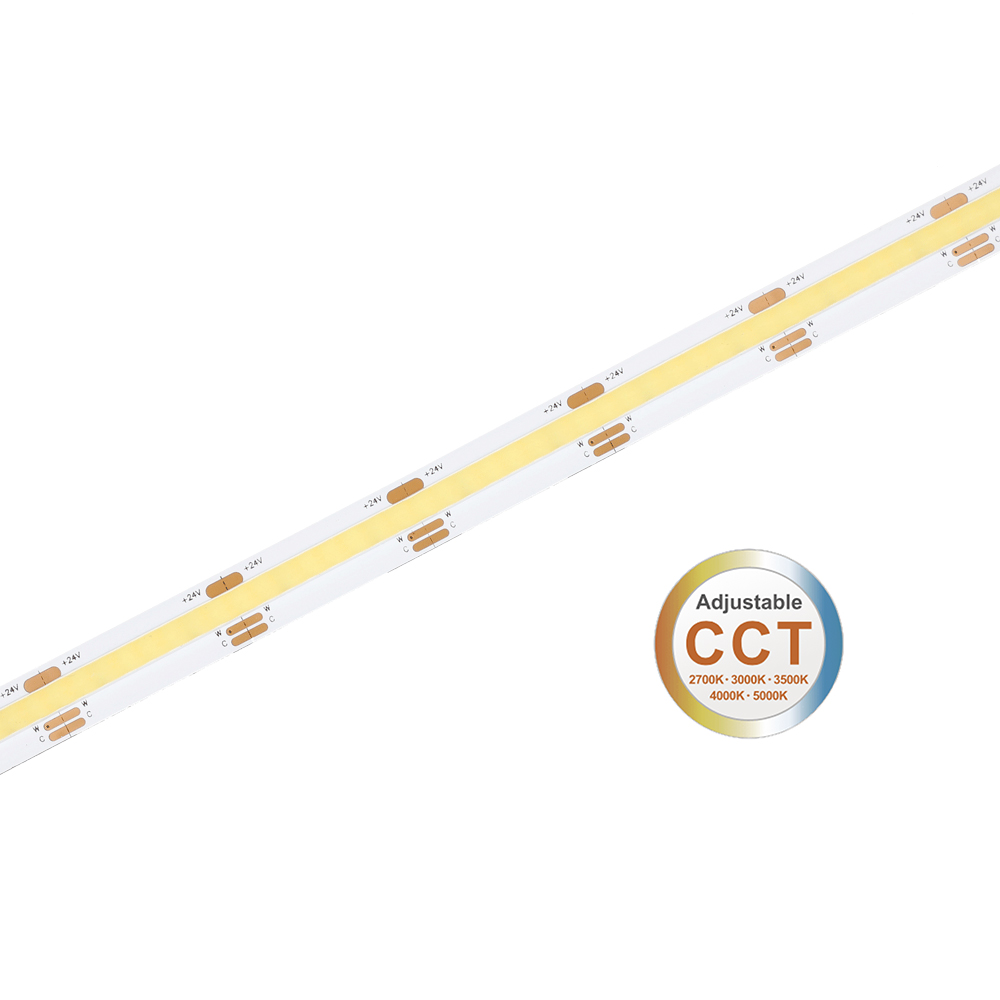

Lotus LED 5CCT Tunable White COB LED Strip - Pre-Order | LBL-COB-TW5CCT-IP20

Lotus LED 5CCT Tunable White COB LED Strip | LBL-COB-TW5CCT-IP20 (Pre-Order Available April 2026)

Overview

The Lotus LED COB Tunable White LED Strip is a high-density linear lighting solution engineered for seamless, dot-free illumination in architectural and accent applications. Utilizing Chip-on-Board technology, this flexible strip allows for precise color temperature control when paired with a compatible 5CCT driver, making it ideal for high-end recessed lighting and millwork integration.

Key Features

• COB technology ensures a continuous, uniform light line without the visible hotspots common in traditional LED tape.
• Architectural-spec 5CCT capability allows field-selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
• Contractor-grade CRI 90+ rating provides superior color rendering and visual accuracy for premium interiors.
• Fully dimmable 24V DC system designed to work exclusively with Lotus LED selectable CCT drivers.
• IC Rated for installation in tight spaces and compatible with a wide range of aluminum channels for a professional finish.

Technical Specifications

• Input Voltage: 24V DC
• Power Consumption: 4.3 Watts per foot (14 Watts per meter)
• Light Output: 370 to 430 Lumens per foot (CCT dependent)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• CRI: 90+
• Beam Angle: 180°
• Maximum Run: 16.4 feet (5 meters)
• Cuttable Increments: Every 1.18 inches (30 mm)
• Strip Width: 10 mm
• Connection: 3-pin proprietary system
• IP Rating: IP20 (Indoor dry location)
• Operating Temperature: -20°C to +45°C
• Lifespan: 50,000 Hours (L70)
• Certifications: cULus Listed

Lotus LED 5CCT Selectable Constant Voltage Drivers | 60W & 96W

Overview

The Lotus LED 5CCT Selectable Driver is a specialized constant voltage power supply designed specifically to control tunable white LED strips via an integrated 5-position slide switch. This contractor-grade driver eliminates the need for complex external controllers by allowing color temperature adjustment directly at the junction box.

Key Features

• Onboard 5CCT switch allows instant selection of 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
• Architectural-spec dimming compatibility supports Triac, ELV, and MLV dimmers for smooth light control.
• Integrated wiring junction box with multiple knockouts facilitates rapid, clean installations in recessed lighting projects.
• Class 2 power unit featuring short circuit, over-voltage, and over-temperature protection for maximum safety.
• IC Rated and UL listed, ensuring compliance for residential and commercial indoor dry and damp locations.

Technical Specifications

• Input Voltage: 100V - 130V AC, 50/60Hz
• Output Voltage: 24V DC (Constant Voltage)
• Wattage Options: 60W (SVD-24060-J-5CCT) or 96W (SVD-24096-J-5CCT)
• Dimming Range: 1% to 100%
• CCT Selection: 5-position slide switch (27K, 30K, 35K, 40K, 50K)
• Power Factor: > 0.95
• Efficiency: > 85%
• Operating Temperature: -40°C to +60°C
• Enclosure: Metal construction with integrated junction box
• IP Rating: IP20 (Indoor dry and damp locations)
• Certifications: UL Listed, Class 2
• Warranty: 5 Year Limited
