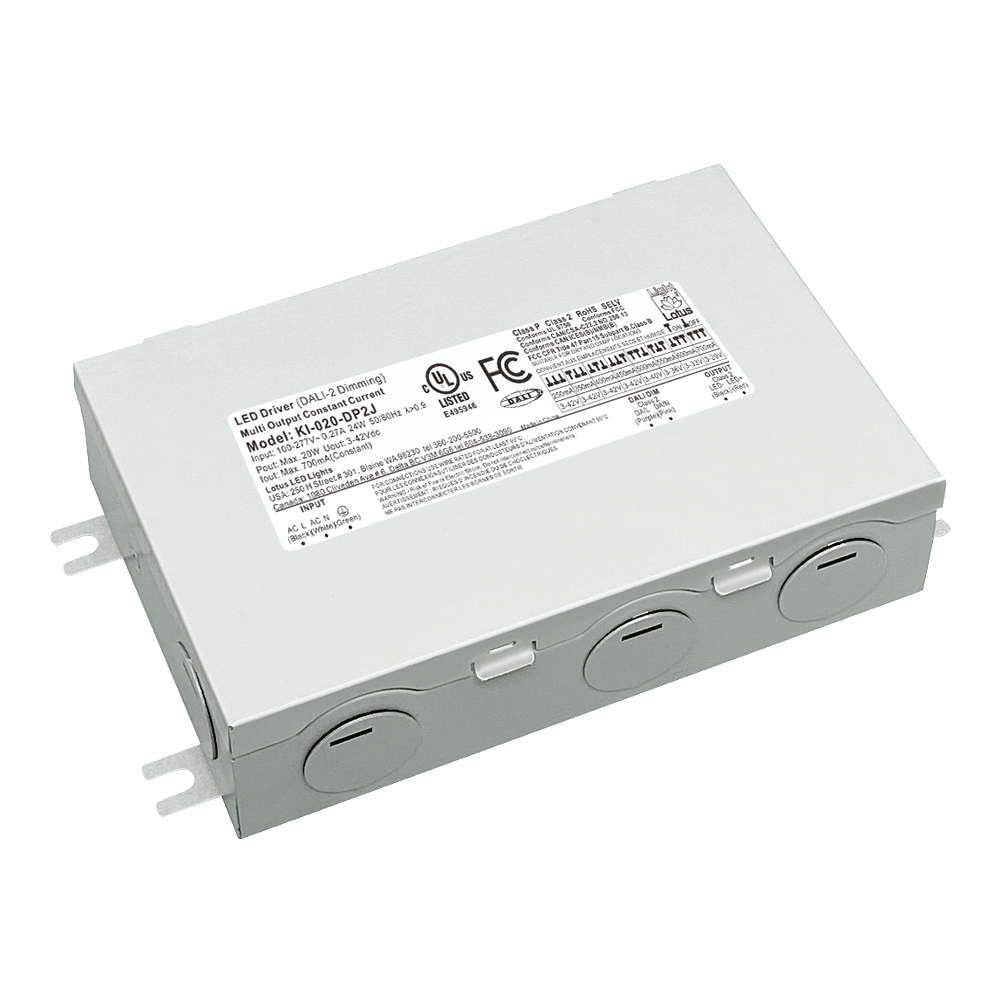

Lotus DALI-2 Dimmable 20W Constant Current Programmable Driver | KI-020-DP2J
Lotus DALI-2 Dimmable 20W Constant Current Programmable Driver | KI-020-DP2J
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:KI-020-DP2J
Shipping terms (Free over $300) calculated at checkout.
Overview
The KI-020-DP2J is a DALI-2 dimmable constant-current programmable electronic LED driver intended for DALI-2 controlled LED lighting. It offers DIP-switch programmable output, compact form factor, dedicated line/low-voltage compartments, and dimming from 1%-100%, making it appropriate for professional and spec-driven applications.
Key Features
- Compact DALI-2 dimmable constant-current driver for control-system lighting applications.
- DIP-switch programmable output current from 250mA to 700mA.
- 1% to 100% DALI-2 dimming for precise control.
- Universal 120V-277V AC input for commercial and specification-grade installations.
- Built-in protection against open circuit, short circuit, overload, and overheating.
Technical Specifications
- Input Voltage: 120V - 277V AC
- Output: 250mA - 700mA / 3V - 42V DC ±5%
- Power Rating: 20W maximum
- Control Protocol: DALI-2
- Dimming Range: 1% - 100%
- No-load Voltage: 52V maximum
- Approved Locations: Dry and Damp Locations
- Operating Temperature: -40°F (-40°C) to +122°F (+50°C)
- Special Note: Install in a well-ventilated area
- Warranty: 5 Year
