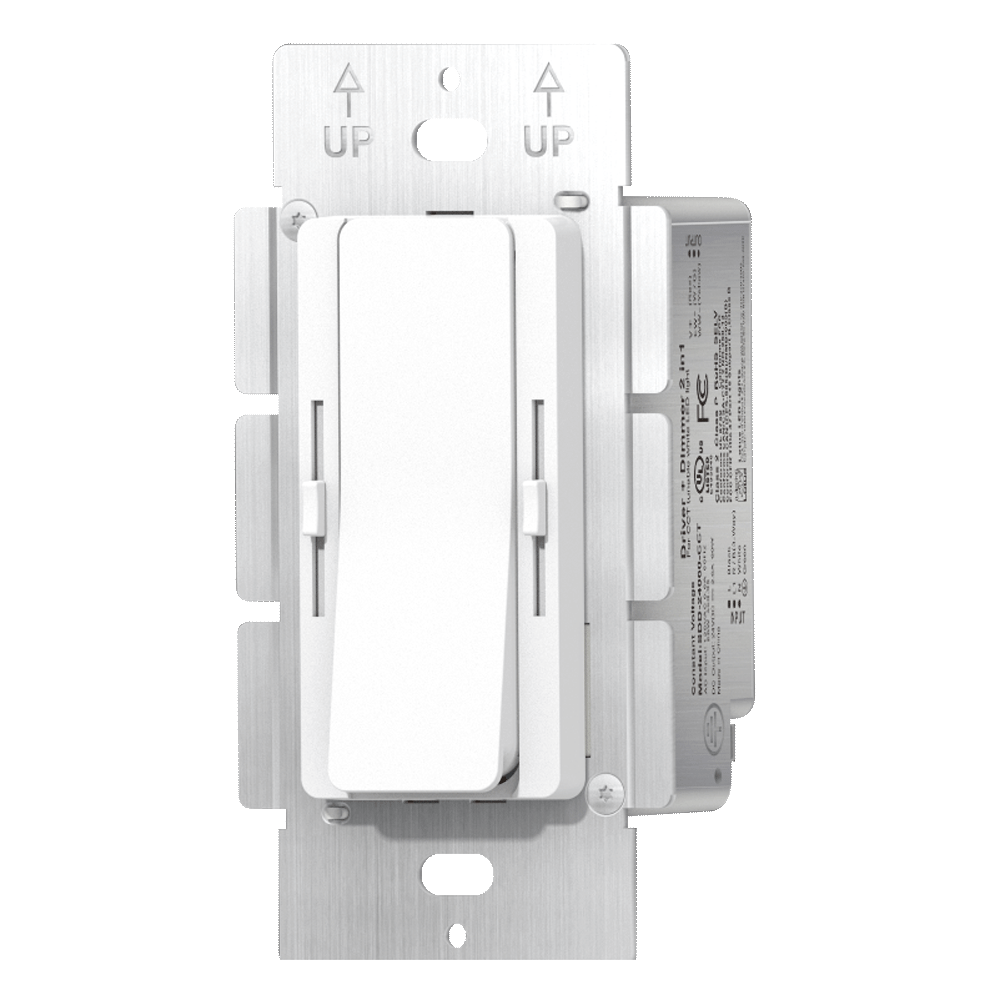

Lotus 4-in-1 Smart Driver + Dimmer + Manual CCT Controller for Tunable White LED, 24V 96W | SDD-24096P-WLCCT-TWB
Lotus 4-in-1 Smart Driver + Dimmer + Manual CCT Controller for Tunable White LED, 24V 96W | SDD-24096P-WLCCT-TWB
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24096P-WLCCT-TWB
Shipping terms (Free over $300) calculated at checkout.
Overview
The SDD-24096P-WLCCT-TWB combines driver, dimmer, manual tunable-white control, and smart control in a single wall-box unit for 24V tunable-white LED installations. It works with Lotus LBL-COB-TW5CCT-IP20 tape and supports both manual slide adjustment and WiFi/Bluetooth control via Smart Life (Tuya).
Key Features
- 4-in-1 solution combines driver, dimmer, manual tunable white controller, and smart control.
- Supports Smart Life (Tuya) app control over WiFi / Bluetooth plus manual wall control.
- Designed for 24V tunable white LED tape installations using Lotus compatible products.
- Manual slide control adjusts color temperature from 2700K to 5000K.
- Supports single-pole and 3-way wiring with 0.3% to 100% dimming.
Technical Specifications
- Input Voltage: 120V AC 60 Hz
- Output: 24V DC / 4A
- Power Rating: 96W
- Voltage Adjustment: 24V to 26V ± 0.5V
- Color Temperature Range: 2700K to 5000K
- Control Methods: Manual wall control, WiFi, Bluetooth, Smart Life (Tuya)
- Dimming Range: 0.3% - 100%
- PWM Frequency: 16 KHz
- Approved Locations: Dry and Damp Locations
- Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
- Warranty: 5 Year
