Lotus JXL-FG0410W-5CCT 4" Adjustable Floating Gimbal LED | 10W, 120V

Quick choice: The Lotus JXL-FG0410W-5CCT is a 4-inch round, 10W adjustable floating-gimbal recessed LED light for sloped ceilings, wall washing, accent lighting, artwork highlighting, task lighting and general illumination. Aim the beam with 90° tilt and 360° rotation. It is a 120V AC fixture with a TRIAC-dimmable driver included in its connection box, so a separately purchased 24V Lotus KVE driver is NOT required or appropriate for this model.

At a glance: 10W • 120V AC driver supplied • five field-selectable CCTs (2700/3000/3500/4000/5000K) • manufacturer model-reference outputs 850/870/920/930/880 lm • 48° beam • CRI 80 • TRIAC dimming 5%–100% • 90° tilt and 360° rotation • 4-inch round cutout • 4⅞-inch outside diameter • 1⅜-inch fixture depth • manufacturer says it fits in 1 inch of ceiling space • Type IC, air tight, damp-location approval • 50,000-hour L70 life • 3-year warranty.

Select the correct trim finish

Choose the exact Trim Finish above. This PDP has two genuine manufacturer SKUs, each with its own barcode and CAD price. Both contain the same 5CCT-selected 10W gimbal lighting system and an included 120V TRIAC-dimmable driver.

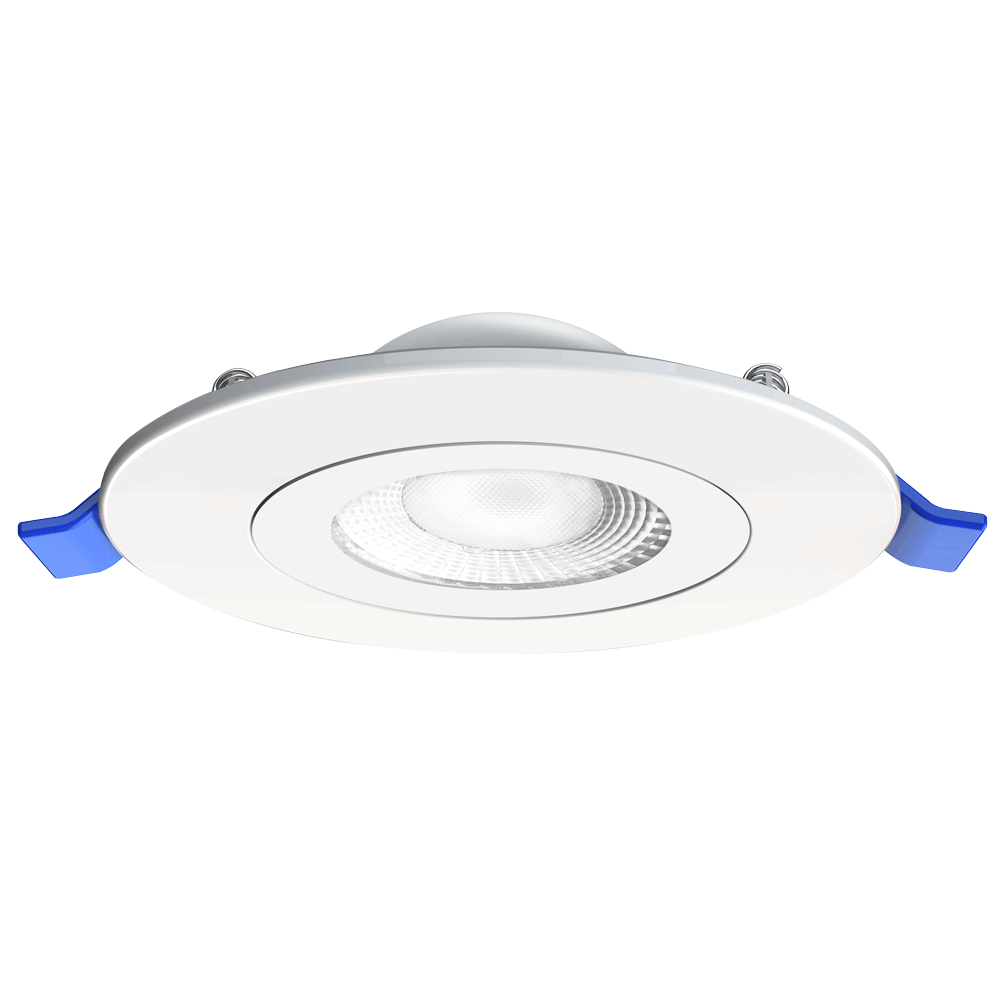

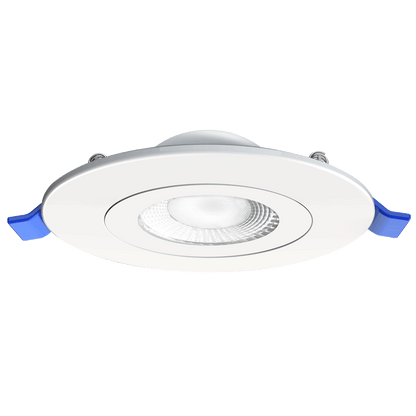

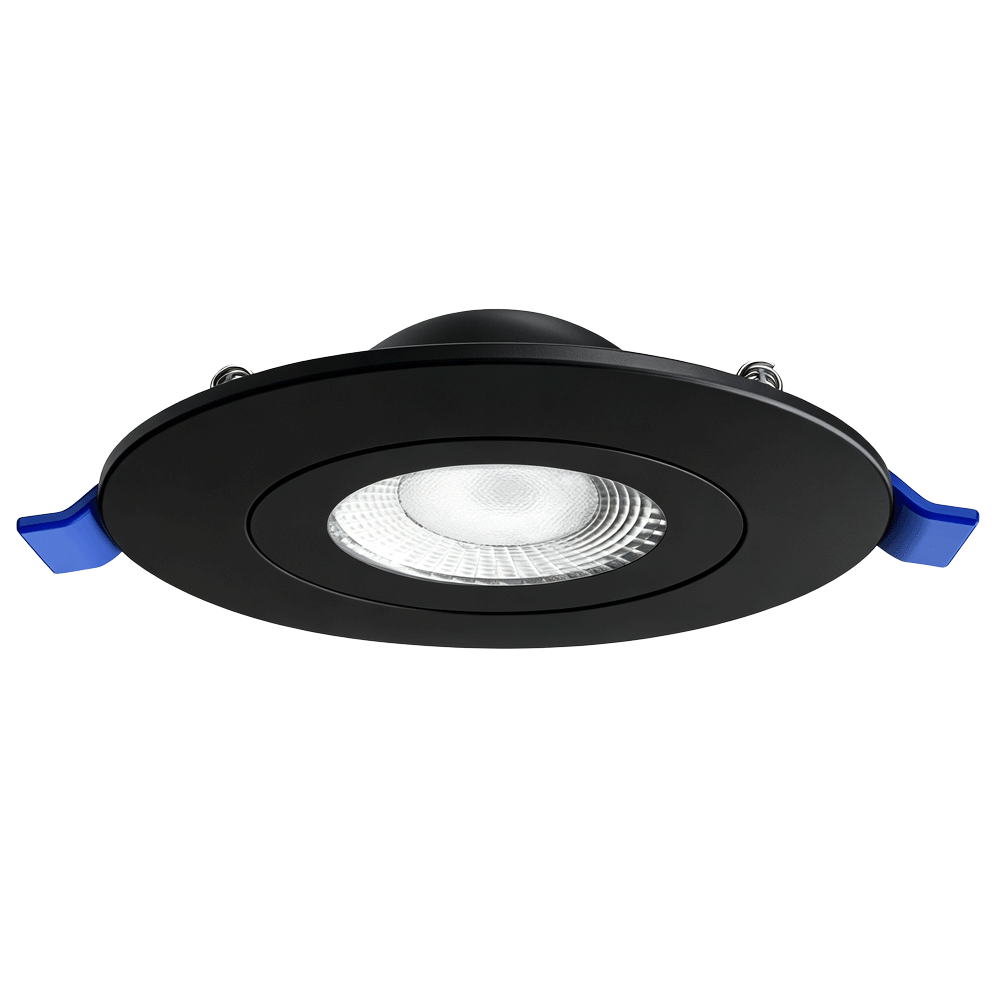

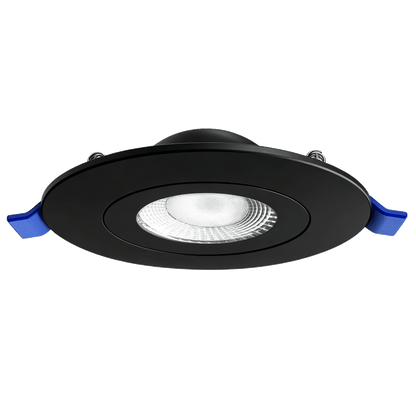

Both versions select 2700K, 3000K, 3500K, 4000K or 5000K at the fixture. Finish is a separate selection; the colour-temperature control does not change black trim to white or vice versa. For exact-SKU photometry, confirm output against the selected finish and installation: the Lotus sheet gives one CCT/lumen table at the model-family level, not separate laboratory results for white and black.

Light output at each field-selectable colour temperature

The published 930-lumen maximum applies at the 4000K setting. It is not a guarantee at all five CCTs, all dimming levels or both trim finishes. Lotus lists CRI 80 and a 48° nominal beam; do not confuse this wider directional gimbal with the CRI95/CRI98 24V Mini Tangra fixed downlights.

Complete manufacturer-verified technical specifications

Installation and 120V wiring considerations

1. Verify the exact JXL-FG0410W-5CCT model and chosen white or black trim on the lighting schedule.
2. Make the 4-inch round ceiling opening and allow for the manufacturer's 1⅜-inch body depth, separately stated 1-inch ceiling-space fit and connection-box placement.
3. Install according to the current Lotus mounting and wiring diagram; Type IC means no separate recessed housing required in the specified assembly.
4. Wire the included 120V AC TRIAC driver and integrated connection box as permitted by the manufacturer and local code. Confirm the 9.69-cu-in box capacity and conductor limits; do not add an unrelated 24V KVE supply.
5. After installation, rotate the light through the specified 360° and adjust tilt up to 90° to aim the 48° beam.
6. Choose the desired 2700–5000K setting, then verify proper operation with a compatible 120V TRIAC dimmer within the manufacturer-stated 5–100% range.

Installation-safety distinction: A qualified installer should follow the manufacturer's exact instructions and electrical-code requirements. The 9.69-cu-in connection box and specified conductor limits do not automatically establish a suitable configuration for every circuit.

Accessories available separately

• MP4-2: 13-inch flat mounting plate.
• MP4: 13-inch flanged mounting plate.
• RIP414: 26-inch flat rough-in plate.
• FRP4: flanged rough-in plate with hanger bars.
• JC-5CCT-10: 10-foot 5CCT jumper cable.
• GR4: 5¾-inch outside-diameter goof ring.
• BLD-HM15D-YYY: the supplied sheet lists this as a non-dimmable accessory; it is not required to replace the included TRIAC-dimmable driver for the standard fixture, and suitability should be confirmed for special installations.

These accessories are sold separately. Their presence in Lotus's accessories list does not imply inclusion in either white or black fixture package.

Compare with other Lotus recessed lighting

• JXL-FG0410W-5CCT (this model): 4-inch aimable floating gimbal; 120V AC included TRIAC driver; 90° tilt/360° rotation; 48° optical beam; CRI80; damp location.
• LE4R-24V: 4-inch ultra-thin fixed panel, 11W 24V DC, 110° wide-angle light; separate appropriate 24V power supply required.
• LE4RR-24V: 4-inch fixed deep-regressed fixture, 11W 24V DC and 90° beam; separate Lotus KVE driver needed.
• Mini Tangra L2G-RRT: smaller 2-inch adjustable round gimbal, different aiming, colour rendering, aperture and 24V DC driver requirements.

Frequently asked buyer and purchasing-agent questions

Is the driver included, or should I add a Lotus KVE driver?

The 120V TRIAC-dimmable driver is included in the connection box. Do not add a 24V KVE driver for this 120V JXL fixture.

Can I use this light on a sloped ceiling?

Yes, that is a stated application. Lotus specifies 90° tilt and 360° rotation to direct the beam for sloped ceilings and wall washing.

How bright is it at 4000K?

The manufacturer lists 930 lumens at 4000K, the highest output among its five CCT reference settings. Outputs for the other positions are 850, 870, 920 and 880 lm at 2700K, 3000K, 3500K and 5000K.

Does this fixture have CRI90 or higher?

No. The manufacturer specifies CRI 80. If a project requires CRI90/95/98, select a model whose particular datasheet documents that grade.

Is it wet-location rated for showers?

Not according to the supplied JXL sheet. Lotus specifies damp locations, not a wet-location approval. Use a properly rated fixture wherever wet exposure is required.

Does it dim to 1% or 0.1%?

Neither minimum is established. This JXL model is specified for 5–100% TRIAC dimming with its included driver.

Does the connection box eliminate the need for a separate junction box?

Lotus states “Driver Inside Connection Box – No Junction Box Needed.” The connection-box volume is 9.69 cu in and the specification provides explicit conductor limits. Verify the completed installation meets all electrical requirements.

Is it confirmed in stock?

Lotus's October 2026 new-product notice anticipated November 2026 availability for this model. That supplier forecast does not confirm current Simply Controlled or manufacturer inventory, nor a committed shipping date.

Documentation: Lotus JXL-FG0410W-5CCT specification and accessories and manufacturer warranty information.
