Lotus LE4RR-24V 4" Round Deep-Regressed 11W LED Downlight | 5CCT & Dim-to-Warm
Lotus LE4RR-24V 4" Round Deep-Regressed 11W LED Downlight | 5CCT & Dim-to-Warm
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LE4RR-24V-5CCT-WH
Quick choice: The Lotus LE4RR-24V is an 11W, 4-inch round deep-regressed recessed LED downlight for low-voltage ceiling, shower and soffit lighting. Its 1⅛-inch recessed light source reduces perceived glare, while a built-in constant-voltage-to-constant-current converter stabilizes LED operation. Choose either a five-colour-temperature selectable (5CCT) engine or a 3000K-to-1800K dim-to-warm engine. These are different, non-interchangeable hardware configurations.
At a glance: 11W • 24V DC constant-voltage input • CRI 90+ • 90° nominal beam • white-trim 5CCT output up to 860 lumens at 3500K • 5-in-1 dimming to 1% with compatible KVE drivers only • 4⅛–4¼-inch round cutout • 2-inch ceiling clearance stated by Lotus • IP54 • Type IC, air tight, wet location • 5-year warranty • driver sold separately.
Select the exact LE4RR-24V model
Choose Trim Finish and Light Engine from the product options. Only the following six manufacturer-orderable SKUs are available in this listing. Each has its own UPC and may have a different CAD price.
| Lotus manufacturer SKU | Trim finish | Light engine | Manufacturer launch period |
|---|---|---|---|

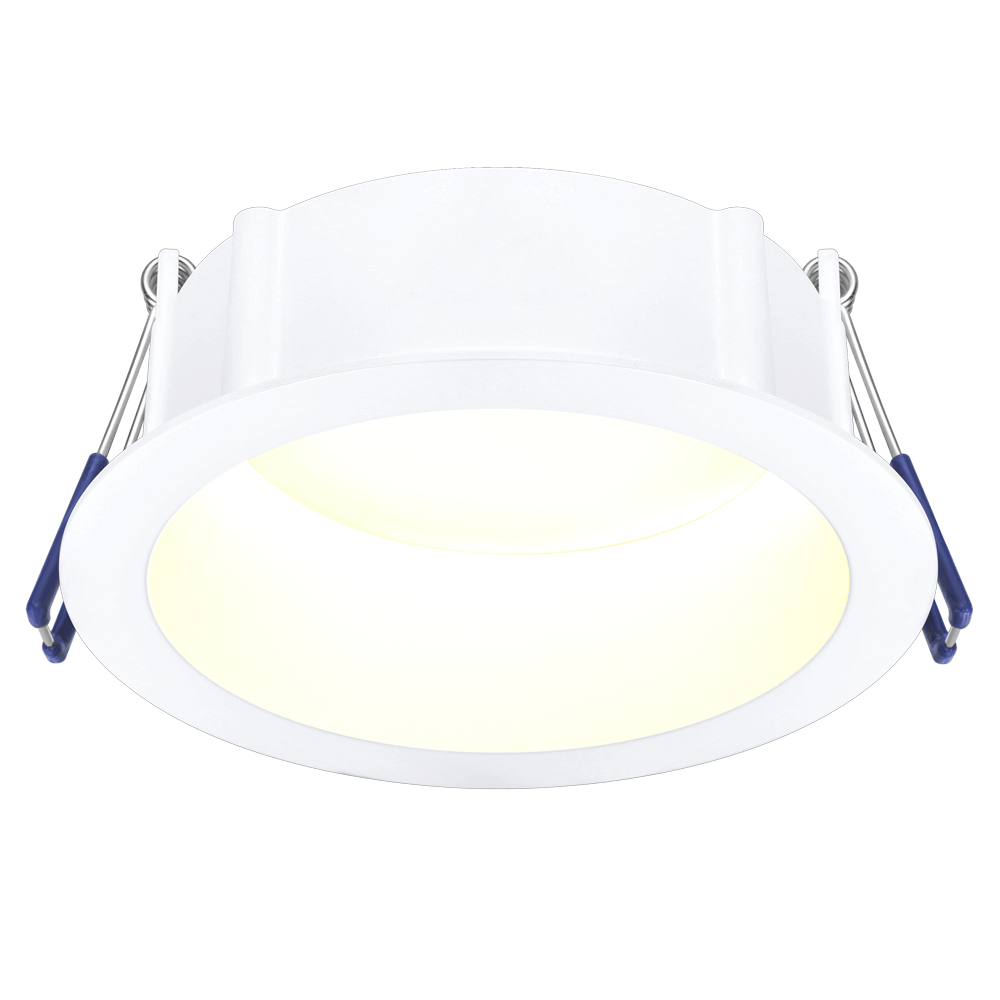

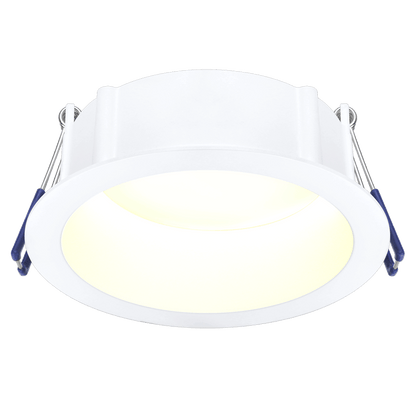

| LE4RR-24V-5CCT-WH | White | 5CCT selectable | November 2026 anticipated |

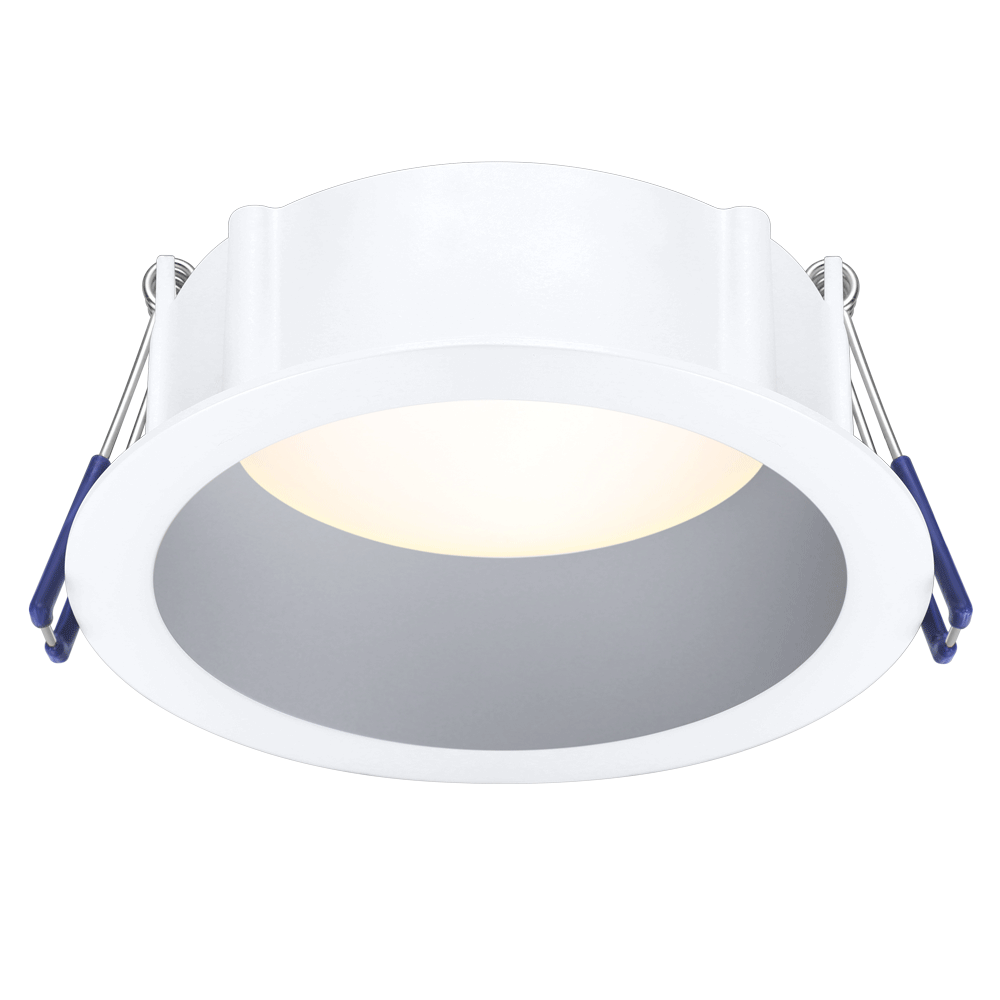

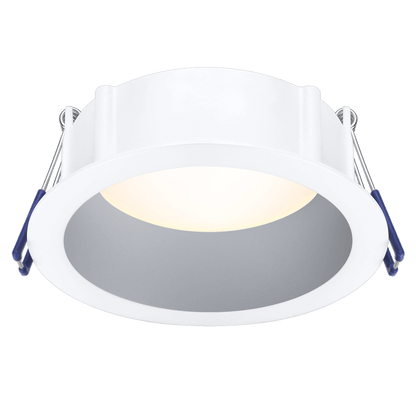

| LE4RR-24V-5CCT-AZ | Alzak | 5CCT selectable | November 2026 anticipated |

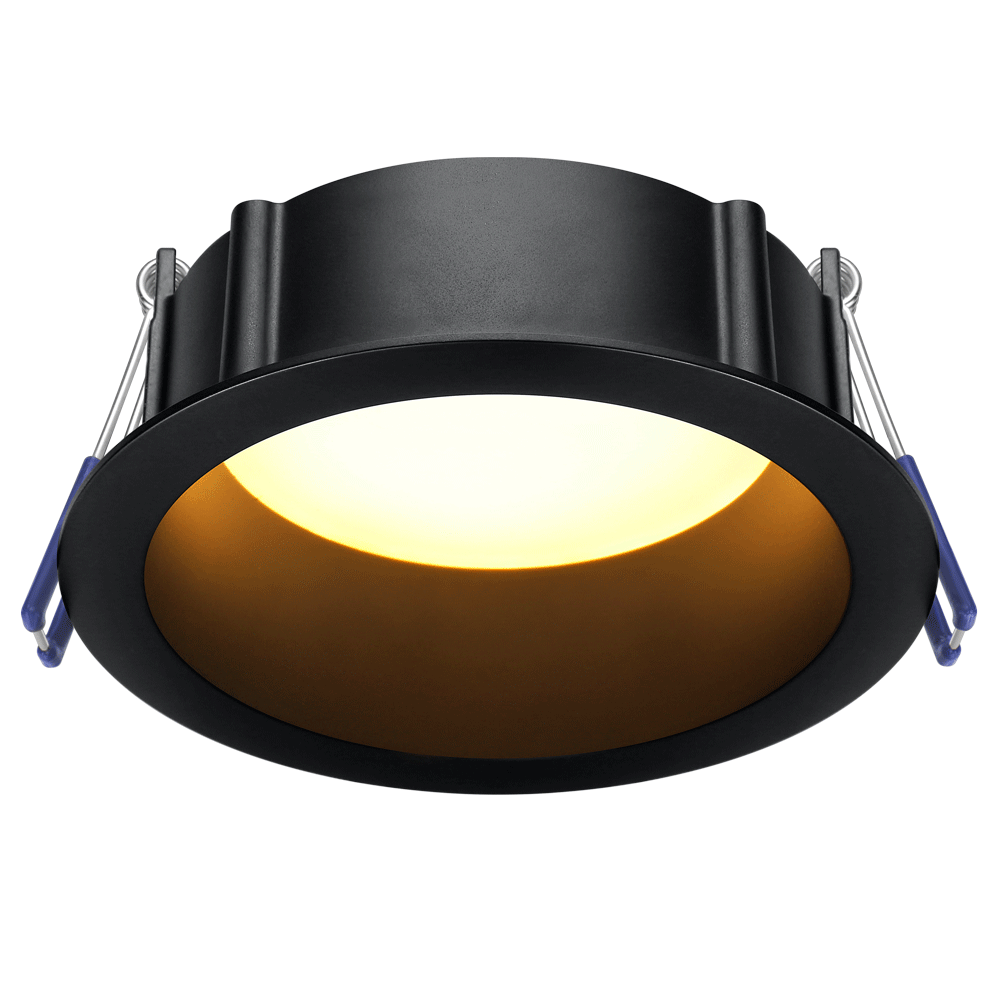

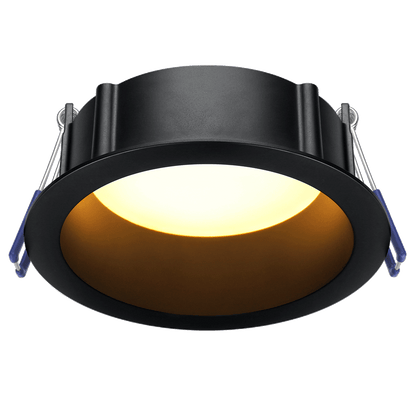

| LE4RR-24V-5CCT-BK | Black | 5CCT selectable | November 2026 anticipated |

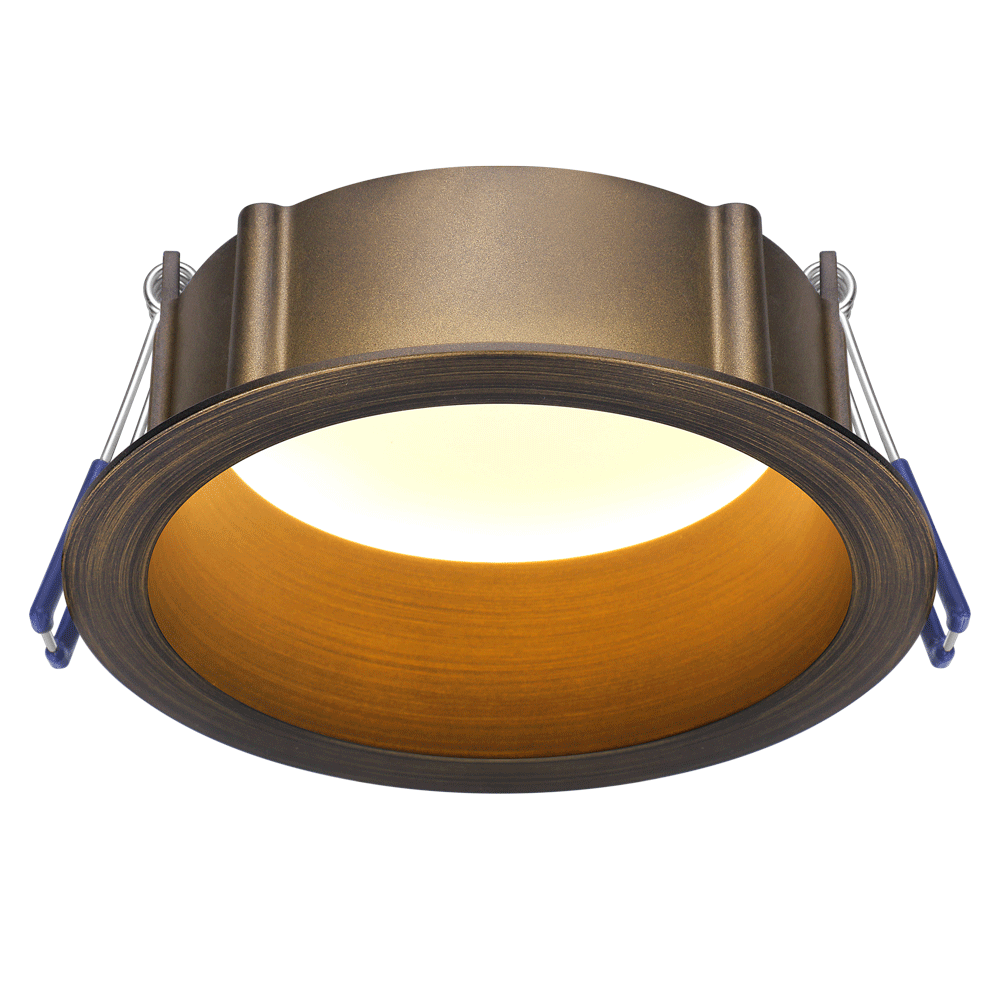

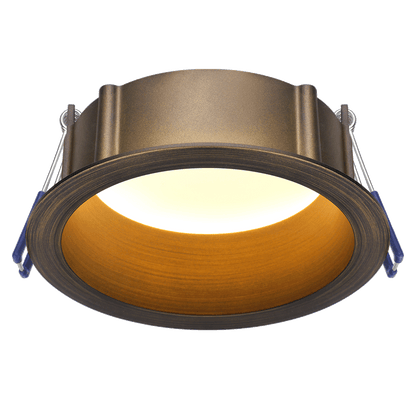

| LE4RR-24V-5CCT-ORB | Oil Rubbed Bronze | 5CCT selectable | November 2026 anticipated |
| LE4RR-24V-3018K-WH | White | Dim-to-warm 3000K–1800K | December 2026 anticipated |
| LE4RR-24V-3018K-BK | Black | Dim-to-warm 3000K–1800K | December 2026 anticipated |
5CCT models: The user selects one of 2700K, 3000K, 3500K, 4000K or 5000K on the fixture. The selectable 5CCT engine is offered in all four finishes: WH, AZ, BK and ORB.
Dim-to-warm models: The 3018K light engine warms from 3000K toward 1800K as it dims. These models are available only in white (WH) or black (BK). The dim-to-warm engine is not a five-position 5CCT selector.
Light output: use the right measurement
The manufacturer lists the following output values for the WHITE trim reference. They are not warranted lumen outputs for black, Alzak or oil-rubbed bronze versions, nor are they independent photometric tests for every SKU.
| White-trim reference configuration | Lotus-listed light output |
|---|---|
| 5CCT at 2700K | 770 lumens |
| 5CCT at 3000K | 820 lumens |
| 5CCT at 3500K | 860 lumens |
| 5CCT at 4000K | 810 lumens |
| 5CCT at 5000K | 820 lumens |
| 3000K–1800K dim-to-warm, white trim | 800 lumens, as specified by Lotus (not a lumen output guaranteed throughout the dimming range) |
For a lighting design or agent-assisted quantity calculation, choose the correct trim and light-engine SKU and obtain its matching photometric data. The headline “up to 860 lm” is a manufacturer value for the white-trim 5CCT reference at 3500K, not every six-SKU configuration.
Verified technical specifications
| Fixture family | Lotus LE4RR-24V 4-inch round deep-regressed Eco recessed LED downlight |
|---|---|
| Applications | Low-voltage recessed ceilings, showers and soffits, subject to the manufacturer's wet-location instructions |
| Fixture load and voltage | 11W; 24V DC constant-voltage input with integral constant-voltage-to-constant-current converter |
| CCT options | 5CCT 2700/3000/3500/4000/5000K or dim-to-warm 3000–1800K; determined by ordered SKU |
| CRI and optical beam | CRI 90+; 90° nominal beam |
| Dimming | 5-in-1 dimmable down to 1% with compatible Lotus KVE drivers only (sold separately); do not assume 0.1% dimming from other Tangra products |
| Reduced-glare recess | 1⅛ inches deep-regressed light source |
| Required round ceiling cutout | 4⅛ to 4¼ inches diameter (manufacturer-approved range; do not treat this as one exact fixed diameter) |
| Inside / outside diameter | Inside diameter 4⅛ inches; outside trim diameter 4¹³⁄₁₆ inches (from Lotus drawing) |
| Required ceiling clearance | 2 inches stated by Lotus; verify all fixture-body, wiring and driver clearances against installation drawing |
| Mounting | Cut the specified ceiling opening and snap the luminaire into place using attached spring clips; separate recessed housing not required by manufacturer |
| Location / protection | IP54, insulated ceiling, wet location, Type IC and air-tight according to Lotus; not a claim of submersible suitability |
| Ambient temperature | −40°C to +40°C (−40°F to +104°F) |
| Projected LED lifetime | L70 at 36,000 hours (70% light output maintained, projected) |
| Certification | cETLus |
| Manufacturer warranty | 5 years, subject to the manufacturer's warranty terms and applicable conditions |
Compatible Lotus 24V driver: select the correct quantity
Important: The LE4RR-24V fixture is 24V DC constant voltage and must not connect directly to 120–277V AC. A compatible Lotus KVE 24V 5-in-1 dimmable driver is required and sold separately. Use the following manufacturer-published 11W LE4RR-24V maximum fixture counts; they differ from the 5W/8W Mini Tangra recommendations.
| Driver model | Driver rating | Max LE4RR-24V fixtures |
|---|---|---|
| KVE-24030-TMWJ1-VA | 30W | Up to 2 |
| KVE-24060-TMWJ1-VA | 60W | Up to 5 |
| KVE-24096-TMWJ1-VA | 96W | Up to 8 |
Explore compatible Lotus KVE dimmable 24V drivers. Low-voltage fixtures may be wired in parallel daisy-chain, as the manufacturer describes. The figures above are maximum counts stated on this fixture's specification; confirm cable sizing, voltage drop, compatible controls, electrical code and driver layout before installation.
Installation and optional rough-in accessories
Lotus specifies an opening between 4⅛ and 4¼ inches in diameter. The spring-clip design snaps into the opening; no separate recessed housing is required under the manufacturer's described installation. The light is 1⅛ inches regressed for reduced glare and needs the stated 2-inch ceiling clearance. Always consult the complete installation diagram for actual clearance and wet-location assembly details.
Manufacturer-listed optional accessories, sold separately:
- FRP4: 4⅛-inch-hole flanged rough-in with hanger bars.
- RIP414: 26-inch long flat rough-in plate.
- MP4-2: 13-inch long flat rough-in plate.
- MP4: 13-inch long flanged rough-in plate.
- GR4 (white) / GR4-BK (black): optional goof rings with 5¾-inch outside diameter.
These optional accessories are not included in the luminaire price. The Mini Tangra PR/PS 1-inch and 2-inch rough-in plates elsewhere in this catalogue have different cutout geometries and must not be assumed to fit LE4RR-24V.
Answers for customers and purchasing agents
What is the difference between 5CCT and 3018K?
5CCT allows selection among five fixed white temperatures (2700–5000K). 3018K is a dedicated 3000K-to-1800K dim-to-warm engine. The two light engines are separate SKU choices; the 3018K version is offered in white or black only.
Can I dim this fixture down to 0.1%?
The LE4RR-24V manufacturer's sheet specifies dimming down to 1% with compatible Lotus KVE drivers, not 0.1%. Always use the specified product-family rating.
How many fixtures can I connect to one 30W driver?
Lotus lists two LE4RR-24V fixtures on a KVE 30W driver, five on 60W and eight on 96W. The driver is a separate purchase and installation-dependent electrical constraints still apply.
Is a recessed housing required?
Lotus specifies Type IC, air-tight, wet-location construction with no separate housing needed and attached spring clips. Follow the manufacturer's installation method and applicable local requirements.
Is 860 lumens guaranteed for black or bronze trim?
No. Lotus's numeric CCT/lumen table is labelled Light Output White Trim. Its 860-lumen maximum applies to the 3500K white-trim 5CCT reference. For other finishes or settings, request variant-specific photometrics.
When will these ship?
Lotus's October 2026 new-products notice anticipated November 2026 for the 5CCT configurations and December 2026 for dim-to-warm. These are historical supplier launch targets, not live Simply Controlled inventory or promised delivery dates. Confirm actual availability before quoting an installation schedule.
Manufacturer documentation: LE4RR-24V specification and ordering sheet; Lotus warranty information.
