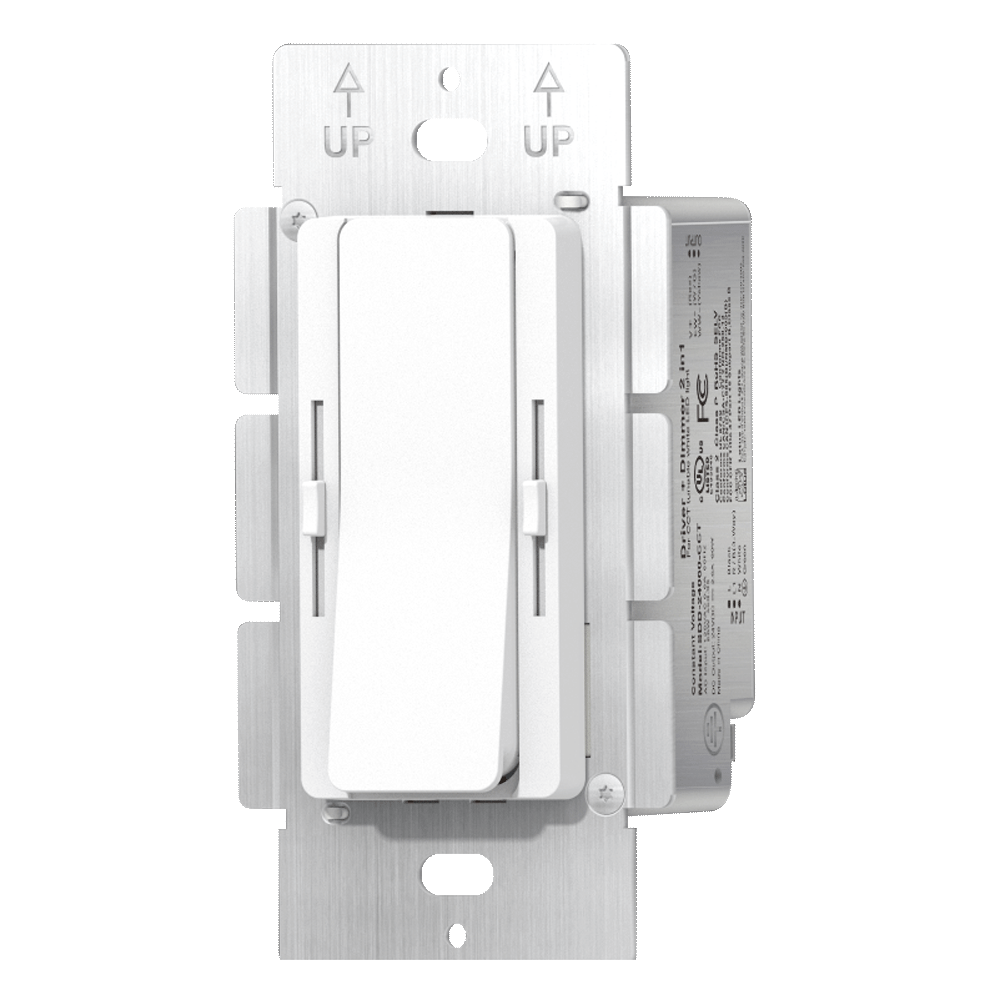

Lotus 3-in-1 Driver + Dimmer + Manual CCT Controller for Tunable White LED, 24V 96W | SDD-24096-CCT
Lotus 3-in-1 Driver + Dimmer + Manual CCT Controller for Tunable White LED, 24V 96W | SDD-24096-CCT
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24096-CCT
Shipping terms (Free over $300) calculated at checkout.
Overview
The SDD-24096-CCT is a Class 2 electrical-box driver for 24V tunable-white LED installations that combines driver, dimmer, and manual CCT control in one product. It is intended for use with Lotus LBL-COB-TW5CCT-IP20 tape and enables manual color-temperature adjustment from 2700K to 5000K while also supporting 0.3%-100% dimming.
Key Features
- 3-in-1 wall-box solution combines driver, dimmer, and manual tunable white controller.
- Designed for 24V tunable white LED tape installations using Lotus compatible products.
- Manual slide control adjusts color temperature from 2700K to 5000K.
- Smooth 0.3% to 100% dimming with constant-voltage PWM output.
- Supports single-pole and 3-way wiring.
Technical Specifications
- Input Voltage: 120V AC 60 Hz
- Output: 24V DC / 4A
- Power Rating: 96W
- Voltage Adjustment: 24V to 26V ± 0.5V
- Color Temperature Range: 2700K to 5000K
- Dimming Range: 0.3% - 100%
- PWM Frequency: 16 KHz
- Approved Locations: Dry and Damp Locations
- Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
- Warranty: 5 Year
