Overview

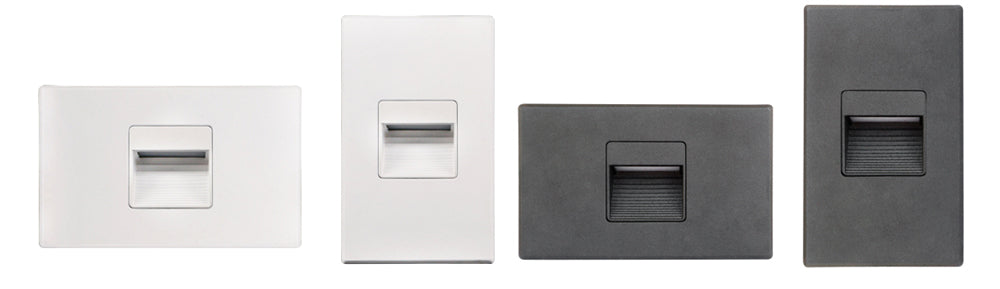

The Lotus LED LSD is a contractor-grade mini die-cast LED step light designed for recessed installation in stairways, walkways, and covered patios. This versatile fixture features dual horizontal and vertical mounting options and fits directly into a standard 2" x 4" junction box without the need for a remote driver.Key Features
- 5CCT field-selectable color temperature allows for easy on-site adjustment between 2700K and 5000K.
- Architectural-spec die-cast aluminum construction ensures durability for both indoor and outdoor applications.
- Wet Location rated for safe installation in environments exposed to moisture and weather.
- High-fidelity 90+ CRI lighting provides superior color rendering for residential and commercial spaces.
- Integrated driver design simplifies installation by connecting directly to 120V AC power.
Technical Specifications
- Energy Used: 2.5W to 3W
- Light Output: 90 lm – 125 lm
- Halogen Equivalent: 15W
- CRI: 90+
- Input: 120V AC
- Dimming: Triac Dimmable (except 3000K version)
- Approved Location: Indoor / Outdoor - Wet & Dry Locations
- Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cETLus
- Warranty: 5 Year
- Dimensions: 4 1/2" x 2 3/4"
- Faceplate Thickness: 5/16"
- Mounting: Fits into 2" x 4" junction box
