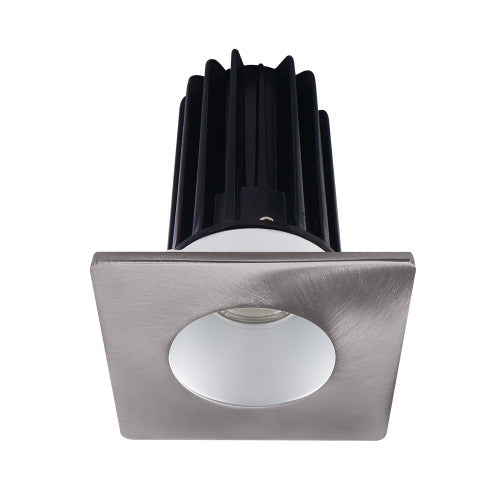

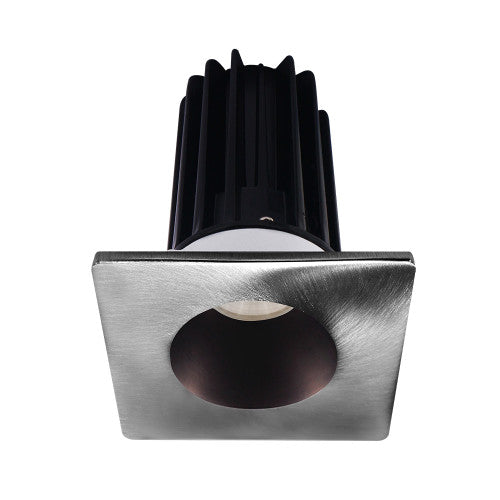

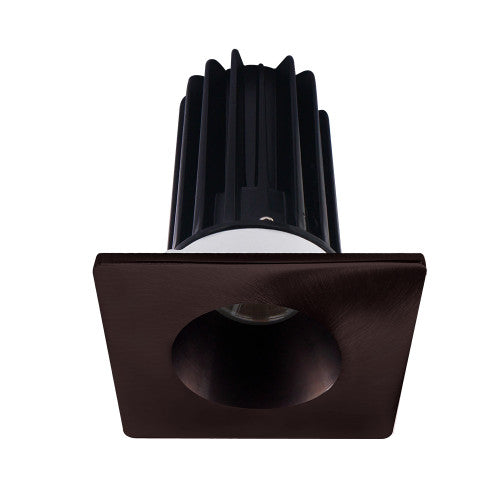

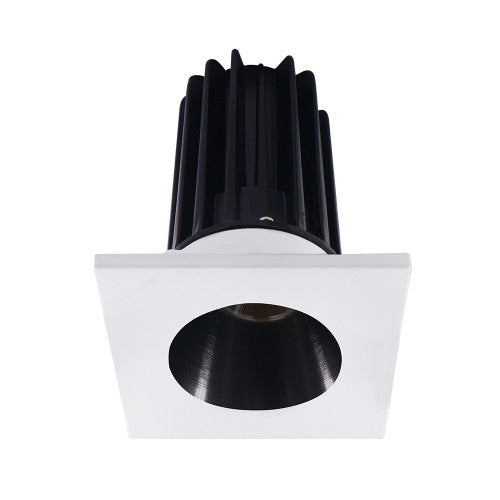

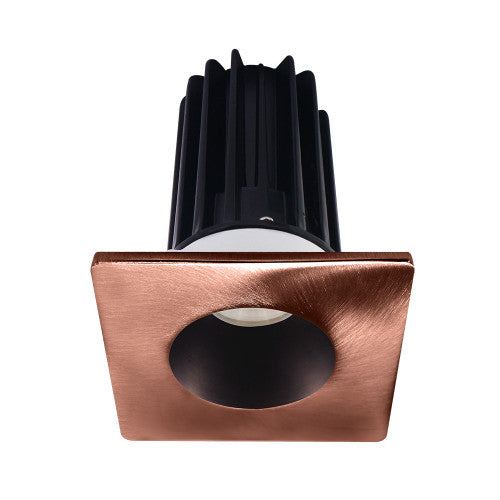

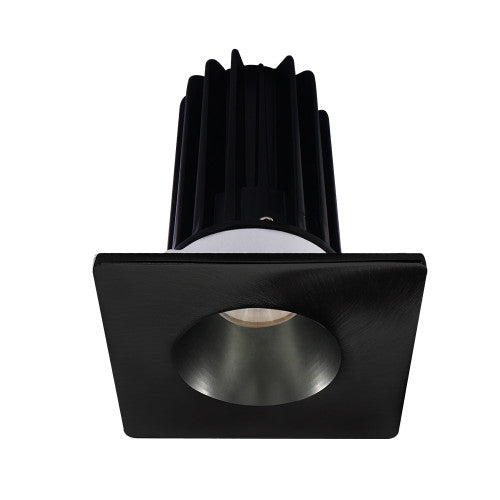

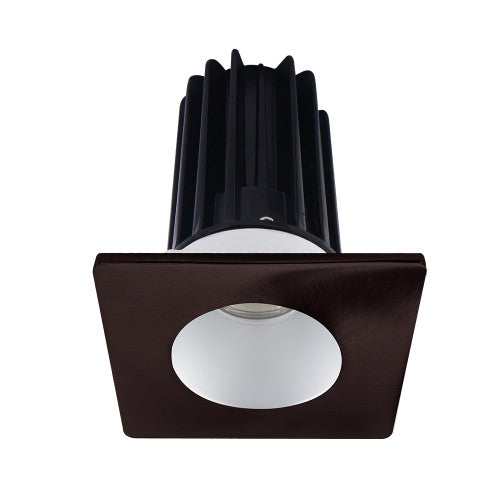

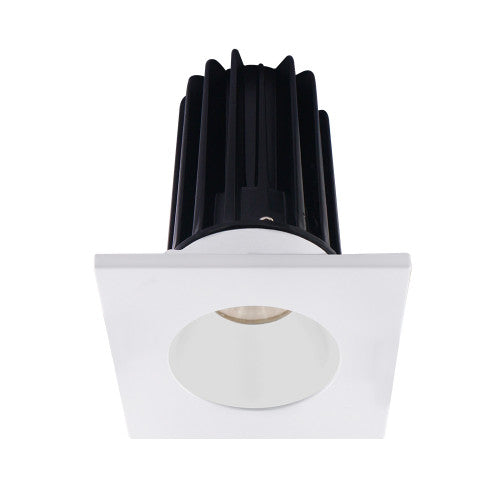

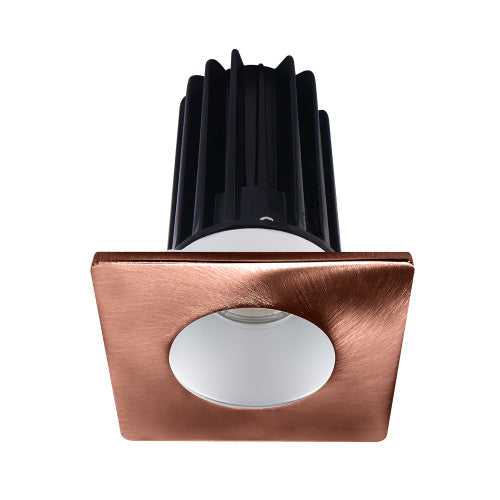

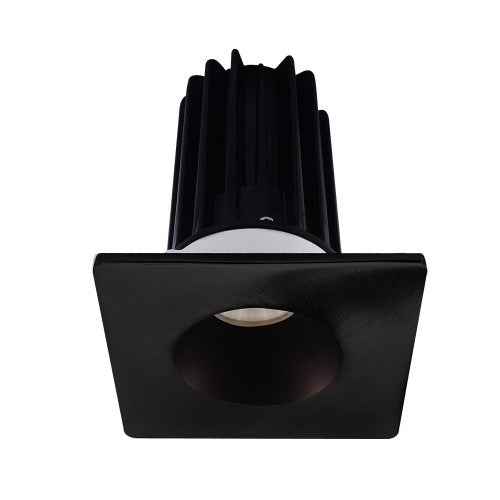

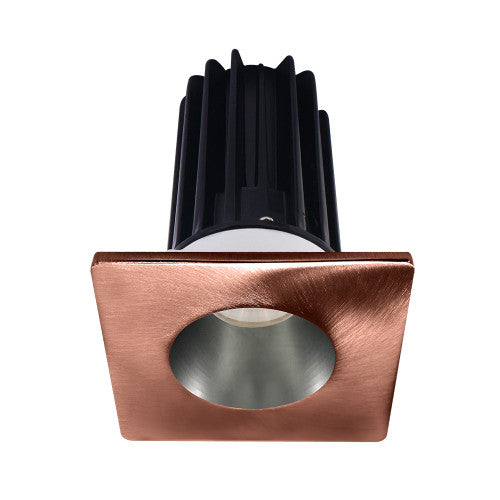

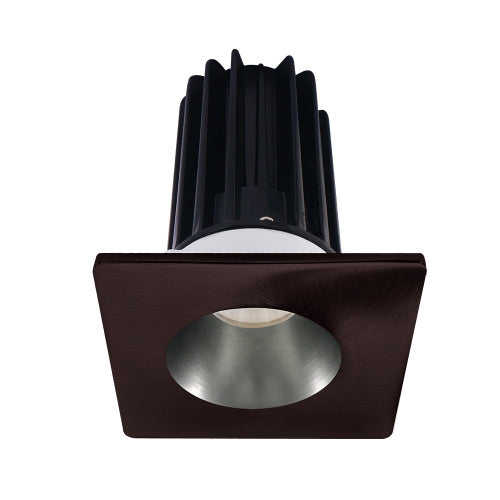

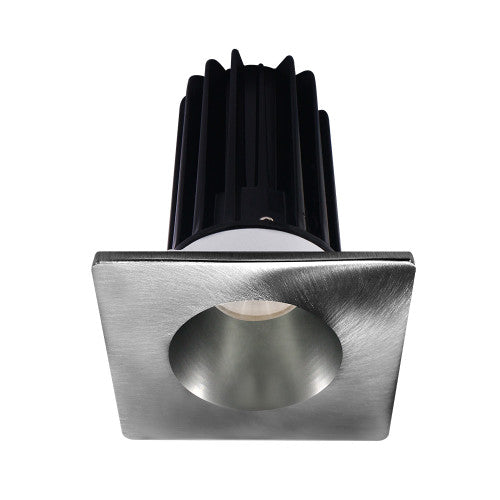

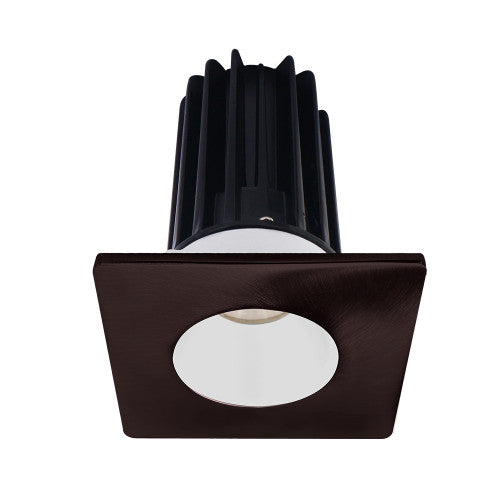

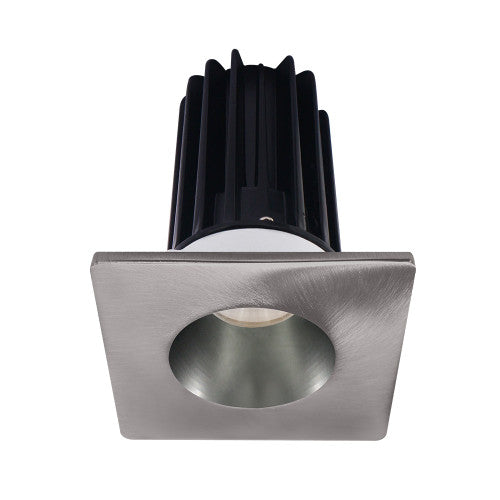

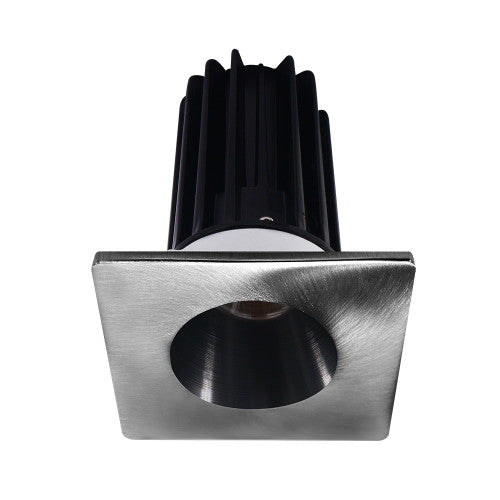

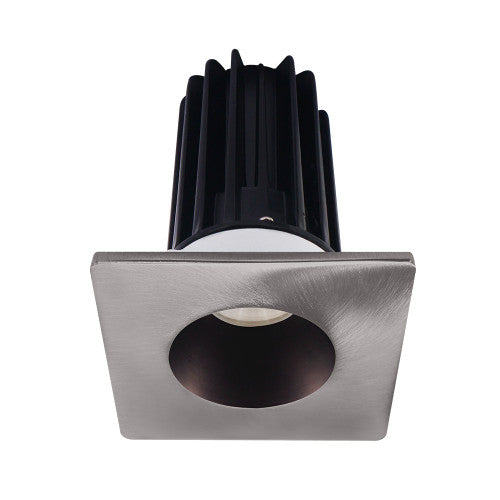

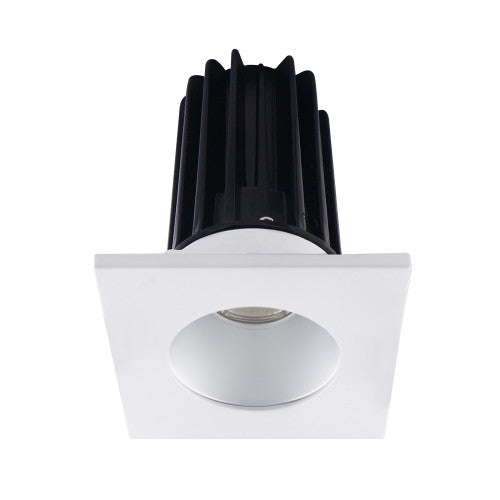

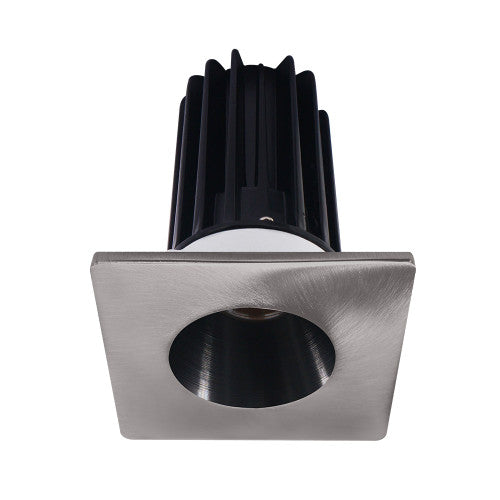

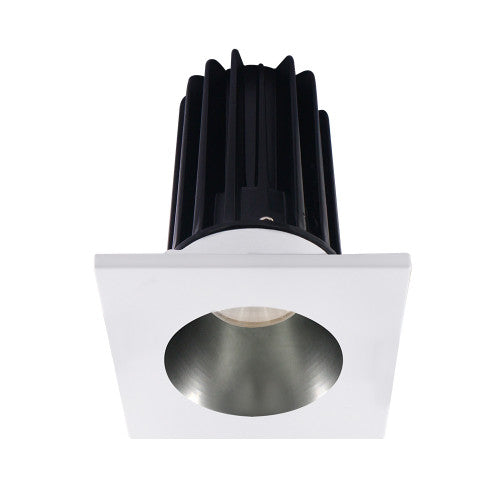

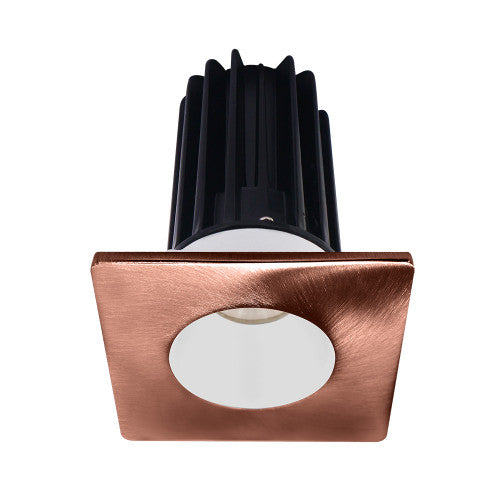

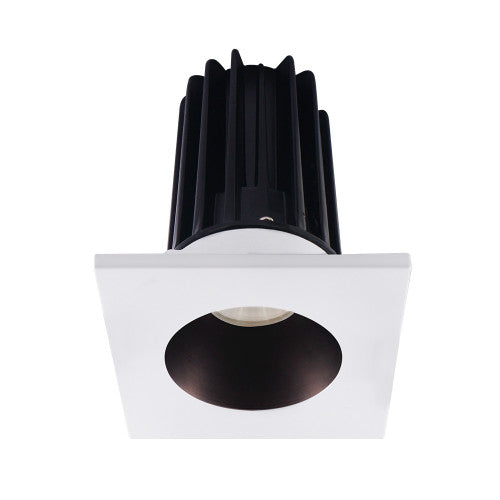

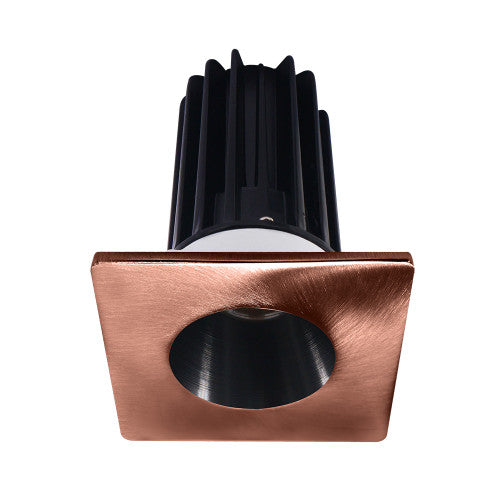

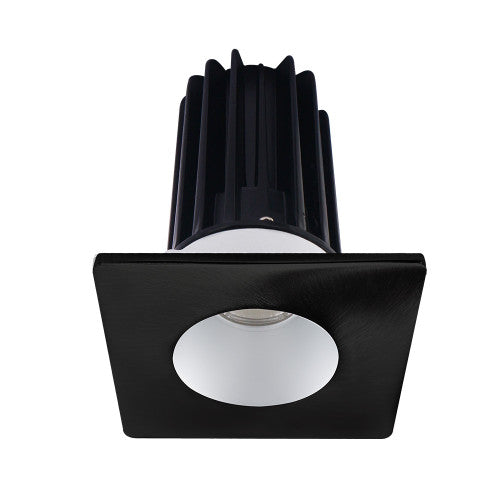

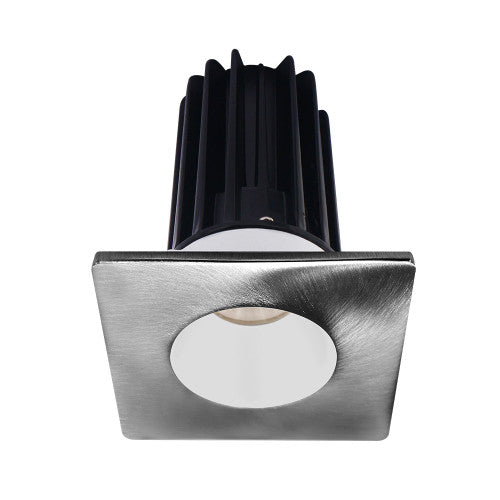

Lotus 2" Square Recessed 3000K LED 15W High Output Designer Series | LED-2-S15W

Overview

The Lotus LED LED-2-S15W is a high-output, architectural-spec 2-inch recessed lighting fixture designed for commercial and high-end residential applications. This designer series fixture features a 4 3/8-inch deep profile with an integral driver inside a connection box, making it an ideal solution for installations where ceiling space is limited.

Key Features

• Designer series construction with interchangeable reflectors, trims, and lens options for complete aesthetic customization.
• Delivers up to 1000 lumens with a CRI of 90+ for high-fidelity color rendering in premium spaces.
• Type IC Rated for direct contact with insulation, requiring no recessed housing or separate junction box.
• Versatile color temperature options including field-selectable 5CCT, single CCT (2700K-4000K), and Dim to Warm (3000K-1800K).
• Standard 38° beam angle with optional 24° and 60° optics available to meet specific architectural lighting requirements.

Technical Specifications

• Wattage: 15W
• Light Output: 800 - 1020 Lumens
• Halogen Equivalent: 100W
• CRI: 90+
• Beam Angle: 38° standard (Optional 24° and 60°)
• Color Temperature: 2700K, 3000K, 4000K, 5CCT (27K to 50K), and DTW (3000K-1800K)
• Default Driver: 120V AC Triac Dimmable
• Optional Driver: 120V-347V AC 0-10V Dimmable
• Approved Location: Insulated Ceiling & Damp Locations (Wet Location rated with 2RST trim)
• Air-Tight: Yes
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Dimensions: ID 1 7/8"; OD 3 1/8"; Cutout for driver 2 3/4"
• Ceiling Clearance Required: 4 1/2"
• Certification: cETLus, T24
• Warranty: 5 Year
