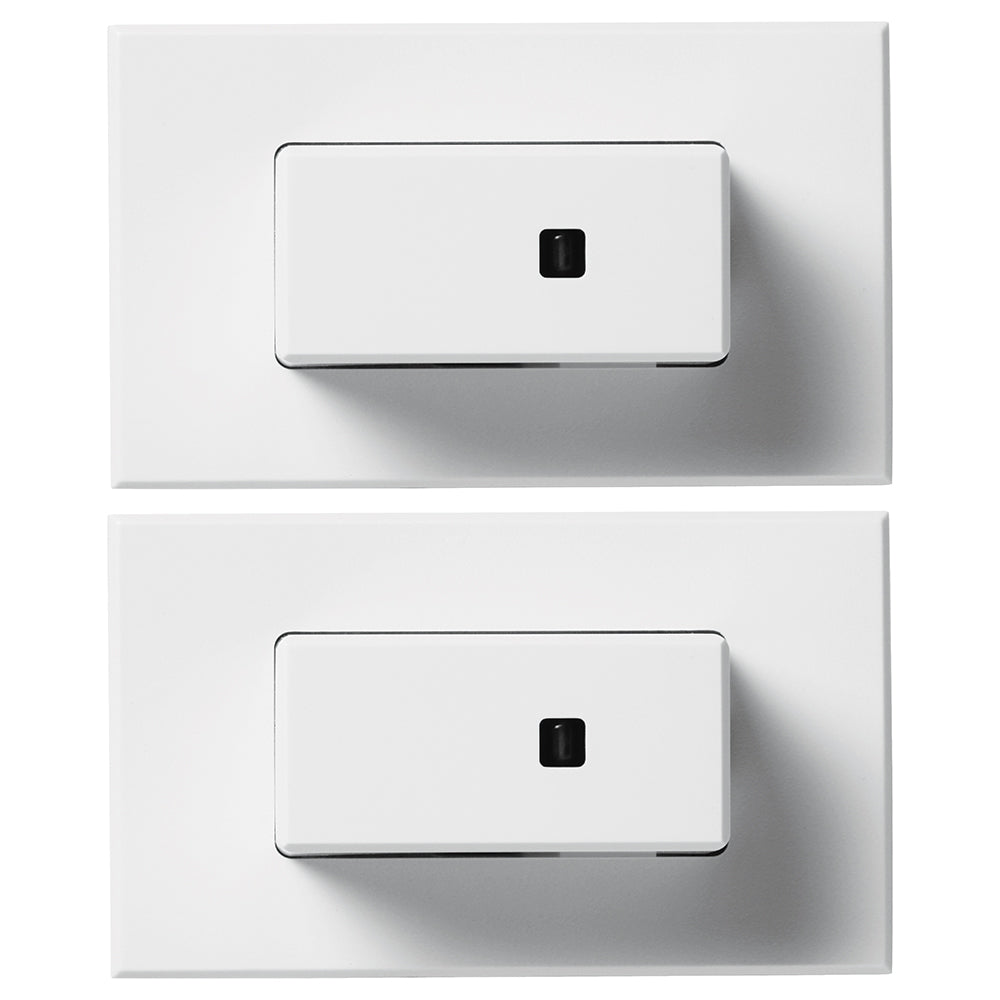

Lutron GRAFIK Eye Infrared Partition Sensor, White | GRX-IRPS-WH
Lutron GRAFIK Eye Infrared Partition Sensor, White | GRX-IRPS-WH
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:GRX-IRPS-WH
Lutron GRX-IRPS-WH GRAFIK Eye Infrared Partition Sensor
The Lutron GRX-IRPS-WH is an essential component for flexible architectural spaces. Designed to work with GRAFIK Eye 3000 and 4000 Series systems (and QS systems via contact closure interfaces), this sensor pair automates the "room combining" process. When a movable partition wall is closed, the sensor detects the barrier and keeps lighting zones independent; when the wall is opened, the sensor automatically links the zones so they function as a single large space.
By utilizing a discreet infrared transmitter and receiver pair, the GRX-IRPS-WH eliminates the need for manual scene reprogramming or toggle switches. Its low-profile design allows it to be recessed into the ceiling or wall, maintaining the clean aesthetic of high-end commercial environments while providing robust, reliable automation.
Key Features
- Seamless Automation: Automatically joins or separates lighting scenes based on the physical state of the room's partitions.
- Infrared Precision: Uses a dedicated IR transmitter and receiver to detect partitions without interference from ambient light.
- Discreet Profile: Small 1-inch diameter footprint allows for a nearly invisible installation in ceilings or walls.
- Flexible Mounting: Operates effectively at distances ranging from 1 foot to 8 feet between the transmitter and receiver.
- System Compatibility: Designed for use with GRAFIK Eye 3000 and 4000 systems, and easily integrated into newer QS systems using a QSE-IO or similar interface.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | GRX-IRPS-WH |
| Input Voltage | 12–24 VDC (Class 2 Low-Voltage) |
| Sensing Distance | 1 ft (0.3 m) to 8 ft (2.4 m) |
| Mounting | Recessed (1-inch/25mm diameter hole) |
| Color / Finish | White (WH) |
| Output Type | NPN Open Collector (Connects to Contact Closure) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
What's Included
- (1) Infrared Transmitter Unit
- (1) Infrared Receiver Unit
- (1) Mounting Hardware Kit
- (1) Wiring and Alignment Instructions
