Lutron GRX-PCBL346S-500 GRAFIK Eye QS Plenum-Rated Control Link Cable
The Lutron GRX-PCBL346S-500 is a high-performance, multi-conductor cable specifically designed for the Lutron QS and GRAFIK Eye 3000/4000 control links. This cable provides a reliable physical layer for the communication between control units, wallstations, and power modules. As the Plenum-rated (CL3P/CMP) version, it is approved for use in environmental air spaces, simplifying installation in commercial drop ceilings.

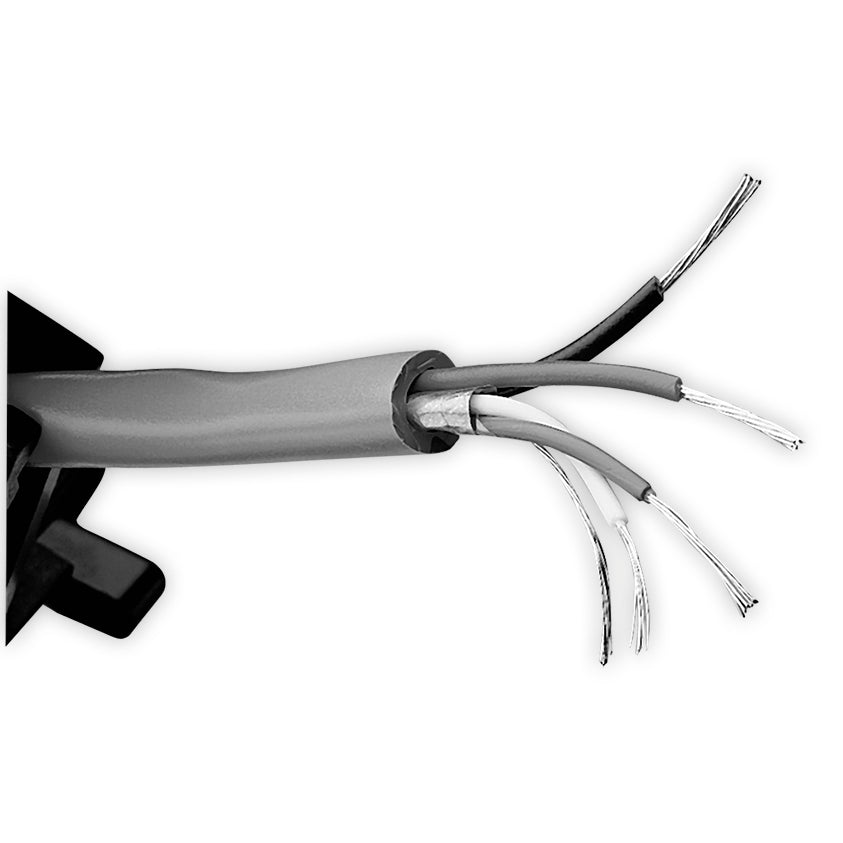

This "346S" standard-distance cable features a composite design: two 18 AWG conductors for power and common, and one shielded, twisted 22 AWG pair for data (Mux Data). To facilitate easy identification and troubleshooting on the job site, the outer jacket is finished in a distinct Light Blue with a Green Stripe, following Lutron’s universal color-coding for control wiring.
Key Features
- System Integration: Optimized for GRAFIK Eye QS, GRAFIK Eye 3000/4000, HomeWorks, and Energi Savr Node systems.
- Plenum Rated (CL3P/CMP): Fire-resistant jacket allows for installation in plenum air ceilings and other environmental air handling spaces.
- Composite Construction: Combines 18 AWG power/common wires and 22 AWG shielded data wires in a single easy-to-pull jacket.
- Reliable Data Protection: The 22 AWG data pair is twisted and shielded with a 24 AWG drain wire to prevent electromagnetic interference (EMI).
- Standard Distance: Rated for total control link lengths up to 2,000 feet (610 m).
- Installer Friendly: Light Blue jacket with a Green Stripe ensures the control link is never confused with power or sensor wiring.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | GRX-PCBL346S-500 |
| Total Conductors | 5 (Power, Common, Data+, Data-, Drain) |
| Power/Common Gauge | 18 AWG (Stranded Bare Copper) |
| Data Pair Gauge | 22 AWG (Twisted & Shielded) |
| Jacket Rating | Plenum Rated (CMP, CL3P, FT6) |
| Voltage Rating | 300 VAC |
| Outer Diameter | ~0.17 in to 0.23 in (Jacket Variant) |
| Length | 500 ft (150 m) Spool |
| Color Coding | Light Blue Jacket with Green Stripe |
Applications
- Lutron GRAFIK Eye QS Control Link
- HomeWorks QS and Interactive Wiring
- Energi Savr Node (ESN) Communication Link
- seeTouch QS Keypad Wiring
- Commercial Lighting Control Networks
