WhisperValue DC™ LED with Pick-A-Flow™ Speed Selector (80-100 CFM) & Multi-Speed for ASHRAE 62.2 | FV0810VSSL1
WhisperValue DC™ LED with Pick-A-Flow™ Speed Selector (80-100 CFM) & Multi-Speed for ASHRAE 62.2 | FV0810VSSL1
Available to order — ships from incoming stock
Typically ships in 3–7 Business Days (Western Canada) · 3–7 Business Days (Eastern Canada)
SKU:FV0810VSSL1

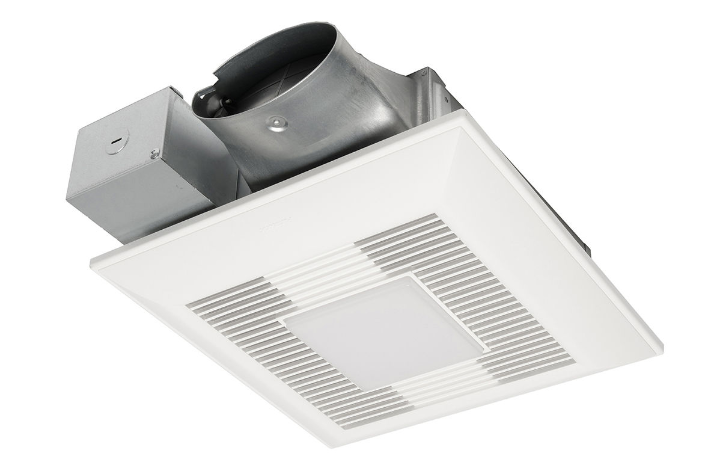

The WhisperValue DC FV-0510VSSL1 exhaust fan/LED light is the ultimate low-profile spot ventilation solution, ideal for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Featuring a revolutionary ECM motor, SmartFlow™ technology, and Multi-Speed Control in an ultra-slim design, it is the lowest-profile ENERGY STAR-rated fan, perfect for tight spaces and continuous ventilation requirements.
The WhisperValue DC FV-0510VSS1 stands out with two key features: Multi-Speed Control for ASHRAE 62.2 Compliance, allowing continuous operation at a lower preset level (0, 30-70 CFM) and boosting to 80 or 100 CFM when activated, and the Pick-A-Flow Airflow Selector, which lets you customize the airflow to 50, 80, or 100 CFM. Together, these features make it easy to meet diverse ventilation needs, ensure code compliance, and minimize callbacks.
- Multi-Speed Control – continuous airflow operation for ASHRAE 62.2 Compliance
- Customizable Airflow with Pick-A-Flow Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance.
- SmartFlow™ Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output.
- Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR certified fan available, making it perfect for tight spaces and easy installation, even in 2x4 stud walls.
- Integrated 10W dimmable LED chip panel with <1W LED night light for warm, energy-efficient illumination (night light must be wired separately)
- Easy Installation: The unique L-shaped bracket offers strong support and simplifies installation, while its UL-approved design allows for ceiling or wall mounting.
- Cost-Effective Wall Installation: Wall-mounted installation eliminates the need for expensive radiation dampers in fire-rated ceilings, making it an ideal choice for multi-family projects.
- Code Compliance: Fully compatible with ASHRAE 62.2, IAP, California Title 24, CALGreen, and WA Ventilation Code, ensuring it meets the most stringent industry standards.
- Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts
- 24 gauge steel, fire code rated 4” oval to 3” round duct adapter, sold separately (model #FV-VS43R)
- Transfer Register Box (model # FV-JD, sold separately), provides room-to-room powered circulation with ductless heat pumps
- UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)
- UL listed for tub/shower enclosure when GFCI protected
| Model | FV-0810VSSL1 |
|---|---|
| Air Volume Exhaust (CFM) | 30, 31, 40, 41, 50, 52, 60, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP |
| Master Carton Dimensions (HxWxD) | 9.06 x 14.17 x 16.93 |
| CFM | 50-70. 80-110 |
| Other Approved Codes and Standards |
Yes |
| Color Rendering Index | 90 |
| Color Temperature (Kelvin) | 3,000 |
| Construction Type | Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps) | 50 CFM= .08A, 70 CFM = 10.0 CFM= .13A, 100 CFM=.18A |
| Ventilation Design Approach | Continuous Ventilation. Spot Ventilation |
| Duct Diameter | 4" Oval |
| Energy Efficiency (CFM/Watt) | 50 CFM= 12.1 CFM/W, 70 CFM=11.2 CFM/80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W |
| ENERGY STAR Certified | Yes |
| Fan Type | Fan Only |
| Grille Size (in sq.) | 13" |
| Industry | Residential. Light Commercial |
| Installation | Ceiling Mount, Wall Mount (UL), Tub/Shower (UL) |
| Lamp Watts | 10 |
| Lumens (lm) | 700 |
| Lumens Per Watt (LPW) | 70 |
| Motor Type (AC/DC) | ECM |
| Mounting Opening (in sq.) | 10-1/2" |
| Mounting Options | Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Night Light | 0.2 |
| Noise (Sones) | 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3 |
| Power Consumption (Watts) | 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperValue DC |
| Radiation Damper Available | Yes |
| Rated Life (hours) | 50,000 |
| Type of Lamp Socket | LED chip |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
| Warranty | 6 year DC Motor, 3 Year Parts |
| Master Carton Gross Weight (lbs.) | 9.9 |
