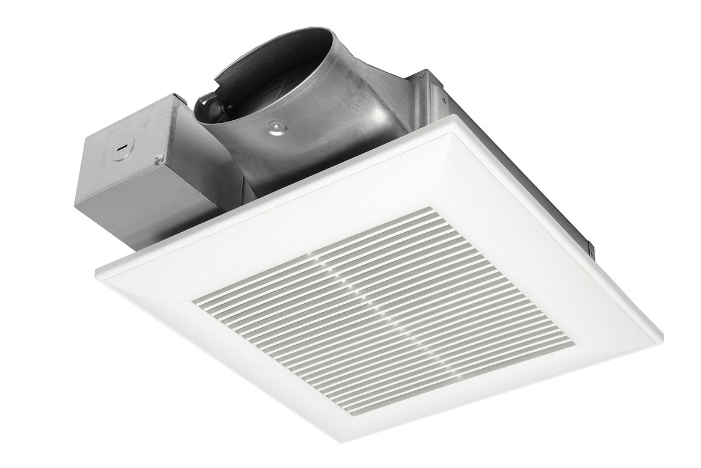

WhisperValue DC™ with Pick-A-Flow™ Speed Selector (80-100 CFM) & Multi-Speed for ASHRAE 62.2 | FV0810VSS1
WhisperValue DC™ with Pick-A-Flow™ Speed Selector (80-100 CFM) & Multi-Speed for ASHRAE 62.2 | FV0810VSS1
Ships in 3–5 Days (Western Canada) · 3–5 Days (Eastern Canada)
In stock
The WhisperValue® DC exhaust fan is the ultimate low-profile, spot ventilation solution ideal for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Featuring a revolutionary ECM motor, SmartFlow® technology, and Multi-Speed Control in an ultra-slim design, it is the lowest-profile ENERGY STAR®-rated fan, perfect for tight spaces and continuous ventilation requirements.
The fan stands out with two key features: Multi-Speed Control for ASHRAE 62.2 Compliance, allowing continuous operation at a lower preset level (0, 30-70 CFM) and boosting to 80 or 100 CFM when activated, and the Pick-A-Flow® Airflow Selector, which lets you customize the airflow to 80, or 100 CFM. Together, these features make it easy to meet diverse ventilation needs, ensure code compliance, and minimize callbacks.
- Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—80, or 100 CFM—for precision airflow and optimal performance
- SmartFlow® Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output
- Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR® certified fan available, making it perfect for tight spaces and easy installation, even in 2" x 4" stud walls
- Cost-Effective Wall Installation: Wall-mounted installation eliminates the need for expensive radiation dampers in fire-rated ceilings, making it an ideal choice for multi-family projects
- Warranty: 6 years ECM Motor, 3 years all other parts
Model | FV-0810VSS1 |
---|---|
Air Volume Exhaust (CFM) | 30, 31, 40, 41, 50, 52, 60, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP |
Master Carton Dimensions (HxWxD) | 6.89 x 14.25 x 16.73 |
CFM | 50-70. 80-110 |
Other Approved Codes and Standards | Yes |
Construction Type | Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
Current (Amps) | 50 CFM= .08A, 70 CFM= 10.0 CFM= .13A, 100 CFM=.18A |
Ventilation Design Approach | Continuous Ventilation. Spot Ventilation |
Duct Diameter | 4" Oval |
Energy Efficiency (CFM/Watt) | 50 CFM= 12.1 CFM/W, 70 CFM= 6.5 CFM/80 CFM= 10.0 CFM/W, 100 CFM = 8.2 CFM/W |
ENERGY STAR® Certified | Yes |
Fan Type | Fan Only |
Grille Size (in sq.) | 13" |
Industry | Residential. Light Commercial |
Installation | Ceiling Mount, Wall Mount (UL), Tub/Shower (UL) |
Motor Type (AC/DC) | ECM |
Mounting Opening (in sq.) | 10-1/2" |
Mounting Options | Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
Noise (Sones) | 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3 |
Power Consumption (Watts) | 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM= 12.4W |
Power Rating (V/Hz) | 120/60 |
Product Family Name | WhisperValue DC |
Radiation Damper Available | Yes |
UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
Warranty | 6 year DC Motor, 3 Year Parts |
Master Carton Gross Weight (lbs.) | 9.0 |
