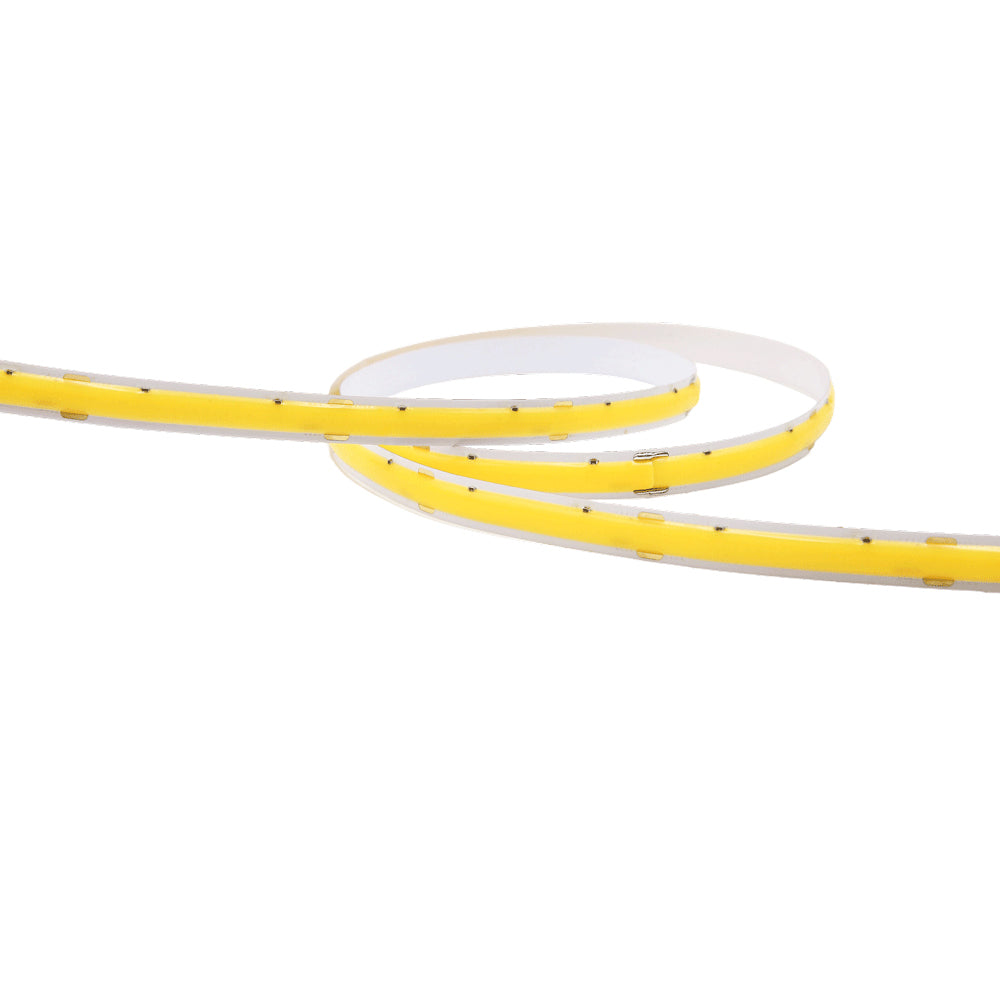

Lotus COB LED Tape Light 24V DC 3W/ft 8mm CRI 90+ IP20 | ES-FSCOBWW-24-IP20

Overview

The Lotus LED COB LED Tape Light is an architectural-grade linear solution designed for seamless, hotspot-free illumination in dry locations. This 24V constant voltage strip utilizes Chip-on-Board (COB) technology to provide a continuous line of light without the need for a diffused cover, making it a "Contractor-grade" choice for high-end undercabinet, cove, and valance applications.

Key Features

• Seamless Linear Output: COB technology delivers a continuous, uniform light stream with no hotspots, eliminating the requirement for additional diffusion.
• Architectural-Spec Construction: Features a 3 oz copper PCB and real gold wires for exceptional light maintenance and long-term durability.
• High-Performance Adhesion: Equipped with 3M 300SE double-sided adhesive tape for secure mounting on heat-dissipating surfaces like metal or glass.
• Reinforced Design: Specifically engineered for stable performance and electrical integrity even when subjected to bending and twisting during installation.
• Professional Length Options: Available in both 16 ft and 100 ft reels with wires pre-installed on both ends for maximum flexibility.

Technical Specifications

• Input Voltage: 24V DC
• Power Consumption: 3 W/ft
• Light Output: 270 lm/ft to 312 lm/ft depending on CCT
• Color Temperature: 2700K, 3000K, 4000K, 5000K
• CRI: 90+
• Efficiency: 90 lm/W to 104 lm/W
• Beam Angle: 135°
• Dimmable: Yes
• IP Rating: IP20 (Dry Location)
• Width: 5/16" (8 mm)
• Cuttable Increment: 2" (50 mm)
• Minimum Bending Radius: 2" (50 mm)
• Maximum Connection Length: 16 ft (5 m)
• Operating Temperature: -13°F (-25°C) to +113°F (+45°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Warranty: 5 Year Indoor / 3 Year Outdoor (when installed with a Lotus LED Lights driver)
