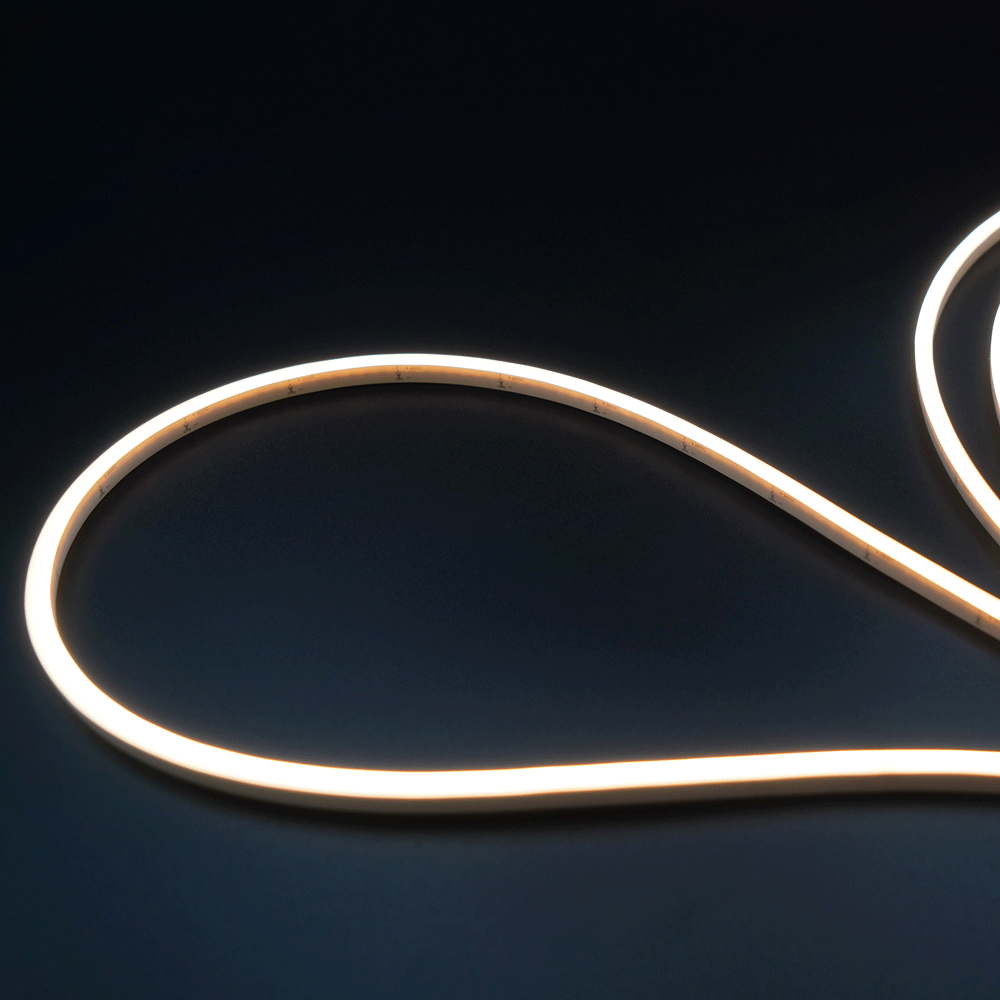

Lotus Mini LED Neonflex 4x6mm 24V DC 3W/ft CRI 90+ IP67 | ES-FS2216C-266-24-Y-3K

Overview

The Lotus LED Mini Neonflex is a super-slim, architectural-spec linear lighting solution designed for high-precision recessed or surface mount applications. At only 1/8" wide, this 24V constant voltage fixture provides a seamless, hotspot-free light output, making it ideal for high-end furniture, cabinetry, and closet storage spaces. Its IP67 waterproof rating and closet-rated certification ensure versatile performance in both specialized interior and exterior wet locations.

Key Features

• Ultra-Slim Profile: Measuring just 1/8" wide by 3/16" high, this fixture allows for creative and original architectural results in tight spaces.
• Seamless Linear Output: Delivers uniform illumination with no hotspots, eliminating the need for a separate diffused cover or aluminum channel.
• Versatile Installation: Certified for recessed or surface mount applications, including specialized closet storage space installations.
• Wet Location Rated: Features an IP67 waterproof grade, making it suitable for demanding architectural and outdoor environments.
• Precision Flexibility: Engineered for horizontal bending with a minimum diameter of 2 3/8" to 4" for complex architectural curves.

Technical Specifications

• Input Voltage: 24V DC
• Power Consumption: 3 W/ft (10 W/m)
• Lumens: 110 lm/ft
• Color Temperature: 3000K
• CRI: 90+
• Beam Angle: 110°
• Dimmable: Yes
• IP Rating: IP67 (Wet Location)
• Approved Locations: Wet Location, Closet Rated
• Dimensions: 1/8" x 3/16" (4 mm x 6 mm)
• Cuttable Increment: 1" (26 mm)
• Minimum Bending Diameter: 2 3/8" (60 mm) to 4" (100 mm) Horizontal
• Maximum Connection Length: 16 ft
• Operating Temperature: -4°F (-20°C) to +113°F (+45°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Warranty: 5 Year Indoor / 3 Year Outdoor (when installed with a Lotus LED Lights driver)
