Lotus 10" Round Commercial LED Downlight (High Output)
Model: DL254-10-40W-M-A5C5-HO
The Lotus DL254 is an all-in-one 10" commercial recessed LED downlight designed for both retrofit and new construction. With field-selectable wattage and 5-CCT tuning, it delivers fast on-site flexibility for hospitality, healthcare, retail/shopping malls, offices, and exterior soffits.
Key Features
- 5 CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- 5 wattage selectable: 22W / 26W / 30W / 35W / 40W
- High output performance: 2240–4360 lumens (varies by CCT & wattage setting)
- Universal input voltage: 120–347V AC (50/60 Hz)
- 0–10V dimming: 5%–100%
- Low-glare optics: regressed design for comfortable illumination
- Ratings: Type IC, air-tight, wet location
Performance & Electrical
- Beam Angle: 90°
- CRI: 80
- Lifetime: 70% light output at 50,000 hours
- Operating Temp: -20°C to +40°C (-4°F to +104°F)
- Certification: cETLus
- Warranty: 5 years
Dimensions
- Outer Diameter (OD): 11 1/2"
- Inner Diameter (ID): 8 7/8"
- Depth / Ceiling Space Needed: 5 3/4"
- Regressed Depth: 2 1/2"
- Cut-Out: 9" to 10"
Trim Options

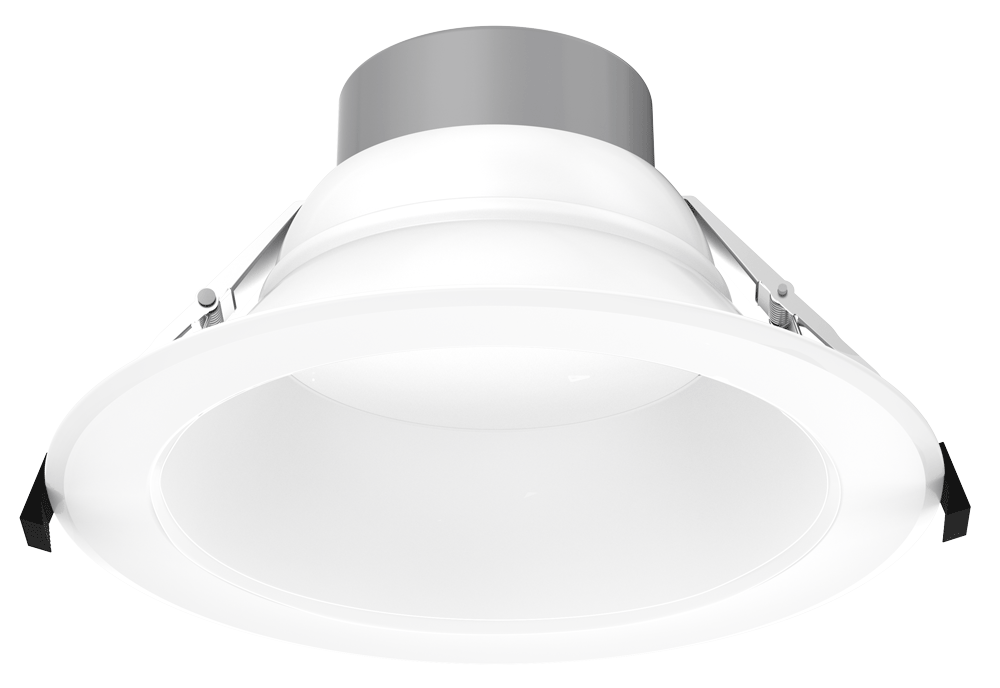

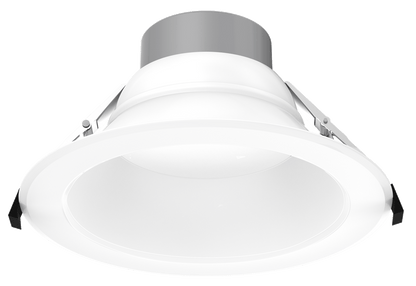

- All White

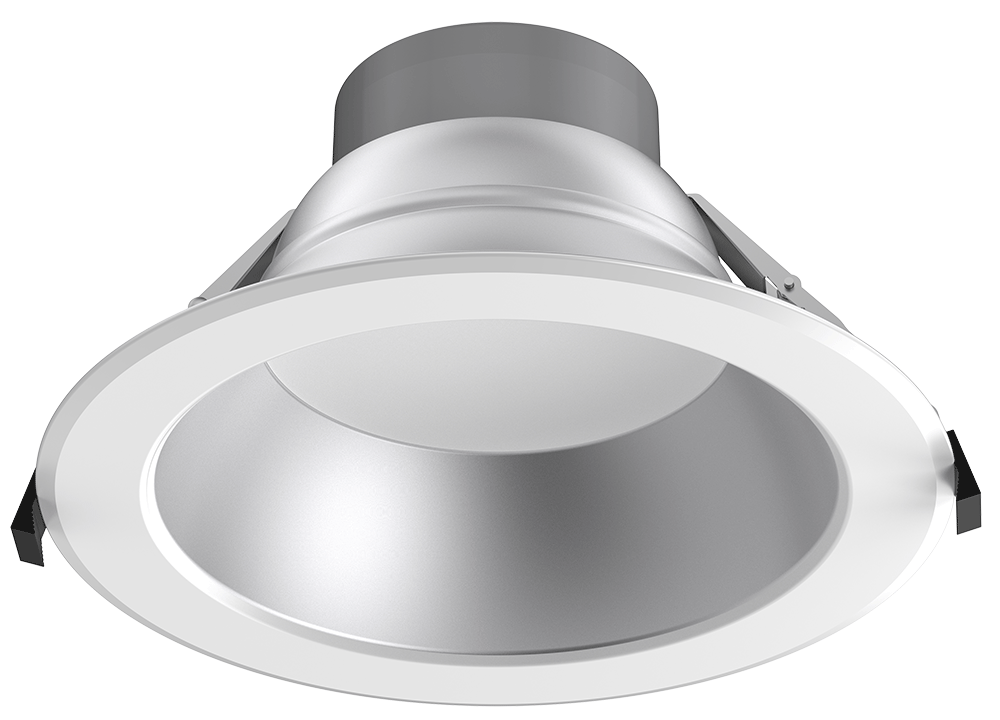

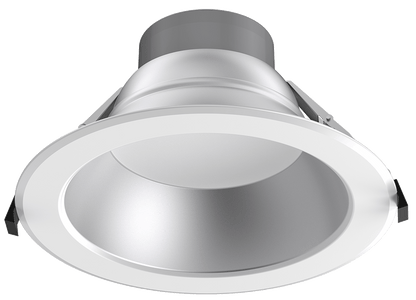

- White Trim + Silver (Alzak) Reflector

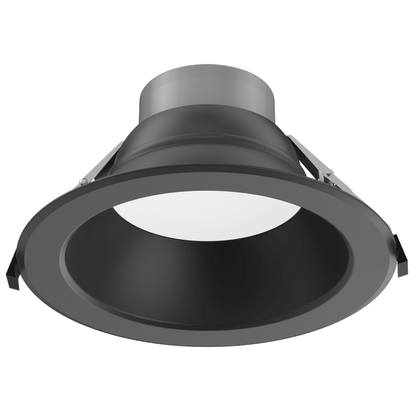

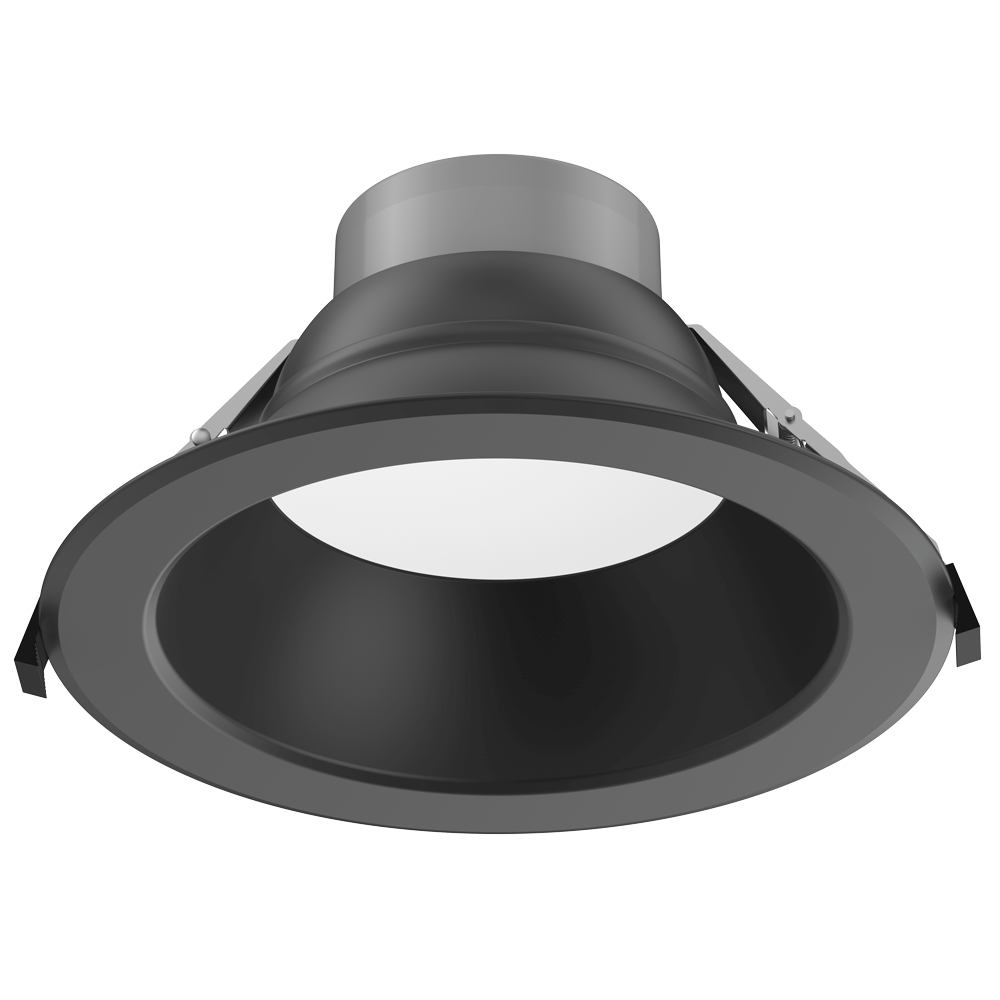

- All Black
Accessories (Sold Separately)
- T-bar mounting plate: LBL-MP-C4-10-TBAR
- Goof ring (round, white): GR10-14 (ID 10 1/2" OD 14"), GR10-16 (ID 10 1/2" OD 16")
- Goof ring (square, white): GS10-14 (ID 10 1/2" OD 14"), GS10-16 (ID 10 1/2" OD 16")
- Emergency driver (8W, 120–347V input): BLD-HM08D-YYY
Please note: junction box is not included.
