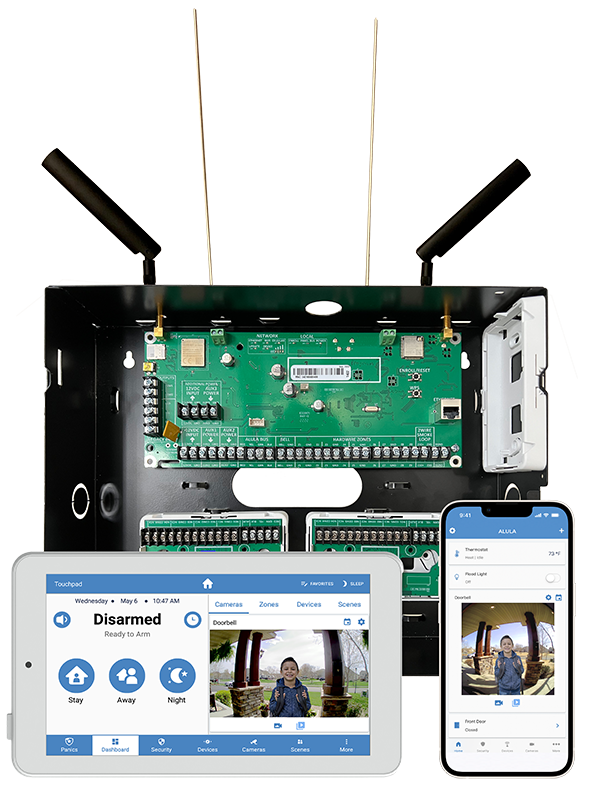

Connect-XiP Hybrid Alarm Panel, Multi-Carrier | CONNECT-XIP-M
Connect-XiP Hybrid Alarm Panel, Multi-Carrier | CONNECT-XIP-M
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:CONNECT-XIP-M
Shipping terms (Free over $300) calculated at checkout.
Connect-XiP Hybrid Alarm Panel, Multi-Carrier is a commercial-grade hybrid alarm panel for new installations, wired takeovers and mixed wired/wireless security projects. This model includes native Multi-Carrier cellular communications with Wi-Fi and Ethernet connectivity.
Connect-XiP is designed to bridge wired and wireless security architectures while supporting Alula app, video and professional monitoring workflows.
When to spec this product
- Residential or commercial projects requiring a scalable hybrid panel.
- Wired takeovers where existing loops should be retained and expanded.
- Projects requiring cellular plus IP communication paths without Z-Wave automation in the panel configuration.
Key features
- Up to 96 wired/wireless zones, 100 users and 8 partitions.
- 10 onboard hardwired zones with 2-wire and 4-wire smoke-loop support.
- Native Multi-Carrier cellular plus Wi-Fi/Ethernet dual-path communications.
- Supports Alula Connect Encrypted sensors plus one takeover frequency: 319.5, 345 or 433.92 MHz.
- Up to 31 BUS devices and up to 5A system output with compatible power expansion (2A standard).
- Works with the Alula Security App and Alula Video platform.
Choose your Connect-XiP panel or package
| SKU | Configuration |
|---|---|
| CONNECT-XIP-M (this page) | Panel - Multi-Carrier |
| CONNECT-XIP-M-Z | Panel - Multi-Carrier + Z-Wave |
| CX-BASE-M | Package - Z-Wave + siren |
| CX-KP-M | Package - Z-Wave + siren + keypad |
| CX-TP-M | Package - Z-Wave + siren + touchpad |
Compatible controls and expansion
| SKU | Configuration |
|---|---|
| RE665WB | 7-inch Wi-Fi/BUS touchpad |
| RE662 | Connect-XiP BUS keypad |
| XiP-XM-8Z | 8-zone hardwired expansion |
| XiP-XM-3OB | 3-output and bell expansion |
Specifications
- Model: CONNECT-XIP-M
- System type: Hybrid wired/wireless alarm panel
- Hardwired zones: 10 onboard
- Maximum zones: 96
- Users: Up to 100
- Partitions: Up to 8
- BUS devices: Up to 31
- Input power: 13.5 VDC power supply included
- Output power: 2A standard; up to 5A with compatible expansion
- Backup battery: 12VDC 7Ah lead-acid suggested; not included
- Housing: 14 x 11 x 3 in
- Warranty: 5 years
Compatibility and planning notes
- Designed for professional installation as part of an Alula Connect-XiP system.
- Confirm the final zone, BUS-device, power and standby-battery calculations before ordering a complete system.
- A 12VDC 7Ah lead-acid backup battery is suggested for Connect-XiP panels and is not included.
