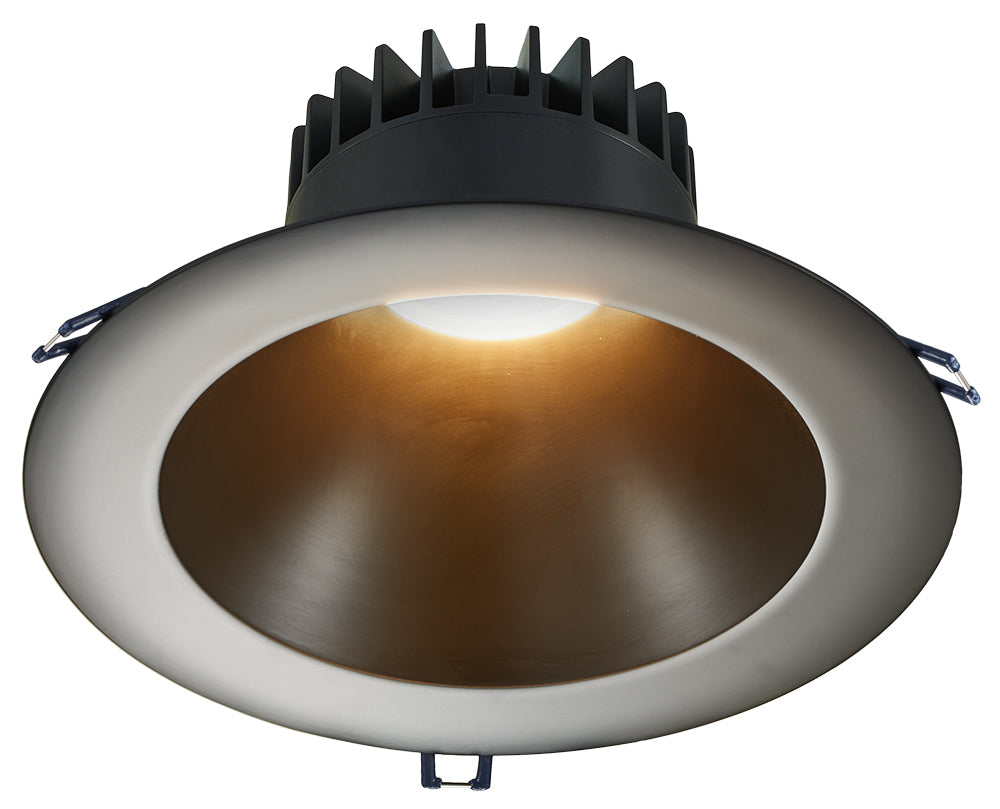

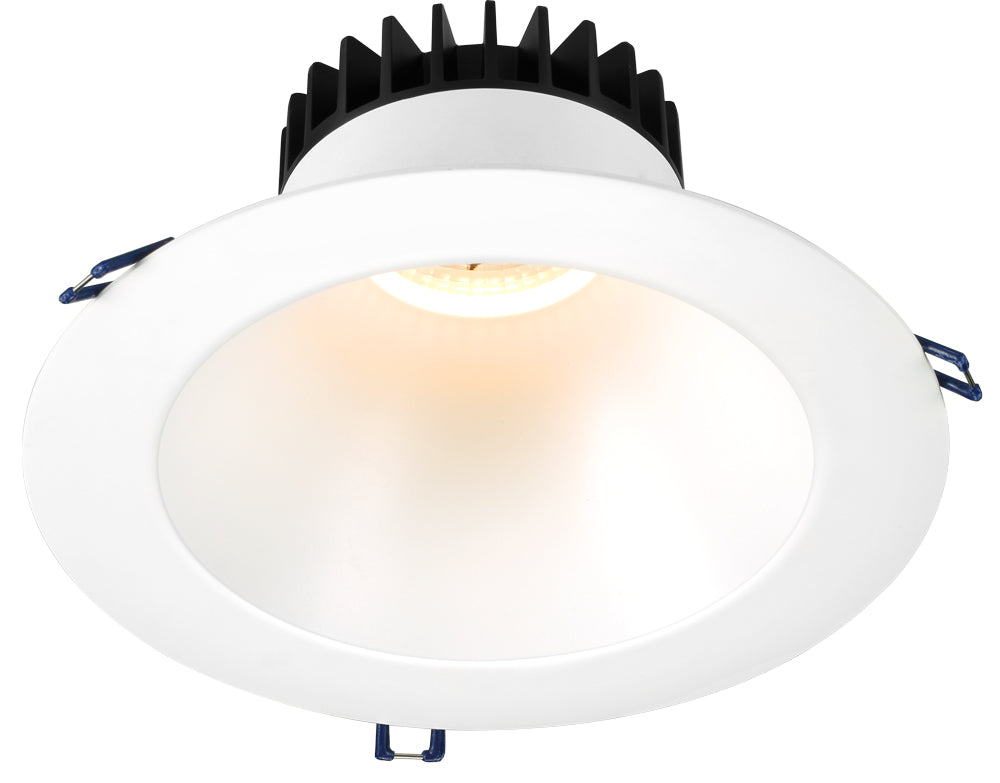

Lotus 8" Round Deep Regressed LED Open Plenum | LD8R

Lotus 8" Round Deep Regressed LED Open Plenum | LD8R

Available to order — ships from incoming stock

Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)

SKU:LD8R-32K-BR-BT

Shipping terms (Free over $300) calculated at checkout.

Overview

The Lotus LED 8" Round Deep Regressed LED Open Plenum is an architectural-spec recessed lighting solution designed for high-end commercial and residential applications. Featuring a deep-regressed design to minimize glare, this 18W fixture is engineered with armored cable and metal connectors for installation in open plenum spaces. Its integrated driver design fits into restricted 4" ceiling clearances without requiring a traditional bulky housing.

Key Features

  • Glare-Reduced Design: Deep regressed aperture provides an elegant look while significantly reducing visual glare in professional environments.
  • Open Plenum Rated: Constructed with armored cable and metal connectors to meet strict commercial building codes.
  • IC Rated & Air-Tight: Certified for direct contact with insulation and provides an air-tight seal for superior energy efficiency in recessed lighting projects.
  • Flexible Illumination: Delivers up to 1700 lumens with a high 90+ CRI for true color rendering, available in 5CCT or Dim to Warm options.
  • Contractor-Grade Construction: Includes an integrated driver inside the connection box with Romex quick connectors for fast, housing-free installation.

Technical Specifications

  • Energy Used: 18W
  • Light Output: 1150 to 1700 lumens
  • Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, Dim to Warm (3000K-2000K), or 5CCT Selectable
  • Beam Angle: 38° standard (60° custom available)
  • CRI: 90+
  • Input Voltage: 120V AC Triac Dimmable (Standard) or 120V-347V AC 0-10V Dimmable (Optional)
  • Power Factor: 0.98
  • Aperture/Dimensions: ID 7 1/2", OD 9"
  • Cut-Out: 7 1/2" to 8"
  • Ceiling Clearance: 4"
  • IP Rating: IP 54 (Wet Location Rated)
  • Air Tight: Yes
  • Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Projected Life: 70% light output at 50,000 hours
  • Certification: cULus, T24, Type IC, Open Plenum Rated
  • Warranty: 10 Year Residential / 5 Year Commercial

Spec / Sell Sheets
