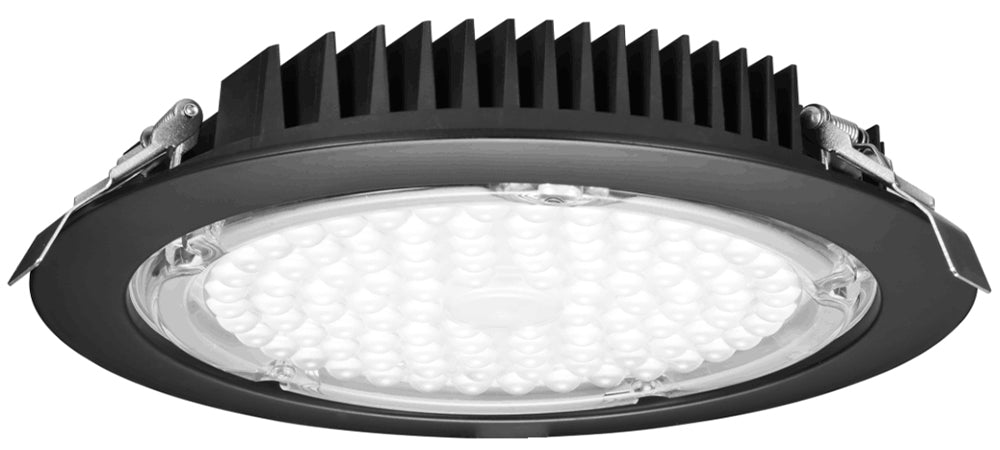

Lotus 8" Round Commercial Recessed LED 40W | LL8R

Overview

This 8-inch Lotus LED architectural-spec recessed lighting fixture is designed for high-lumen commercial applications requiring professional-grade durability. Its low-profile construction allows for installation in ceiling spaces with as little as 2 1/4 inches of clearance while delivering powerful illumination for high-ceiling environments.

Key Features

• Contractor-grade performance delivering up to 5460 lumens for large-scale commercial spaces.
• Type IC Rated for direct contact with insulation, eliminating the requirement for traditional bulky housings.
• IP65 Wet Location rating ensures reliable performance in damp environments and exterior soffits.
• Universal 120V-277V 0-10V Dimmable driver provides precise control for professional lighting designs.
• Airtight construction and energy-efficient LED technology reduce thermal load and operation costs.

Technical Specifications

• Energy Used: 40W
• Light Output: 5200 lm – 5460 lm
• Beam Angle: 60°
• CRI: 80
• Driver Input: 120V-277V AC 0-10V Dimmable
• Optional Driver Input: 347V AC 0-10V Dimmable
• IP Rating: IP65 (Wet Location)
• Insulation Rating: Type IC Rated
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Warranty: 5 Year
• Aperture ID: 8"
• Trim OD: 9 1/2"
• Cut Out: 8" to 8 1/2"
• Depth: 2 1/4"
