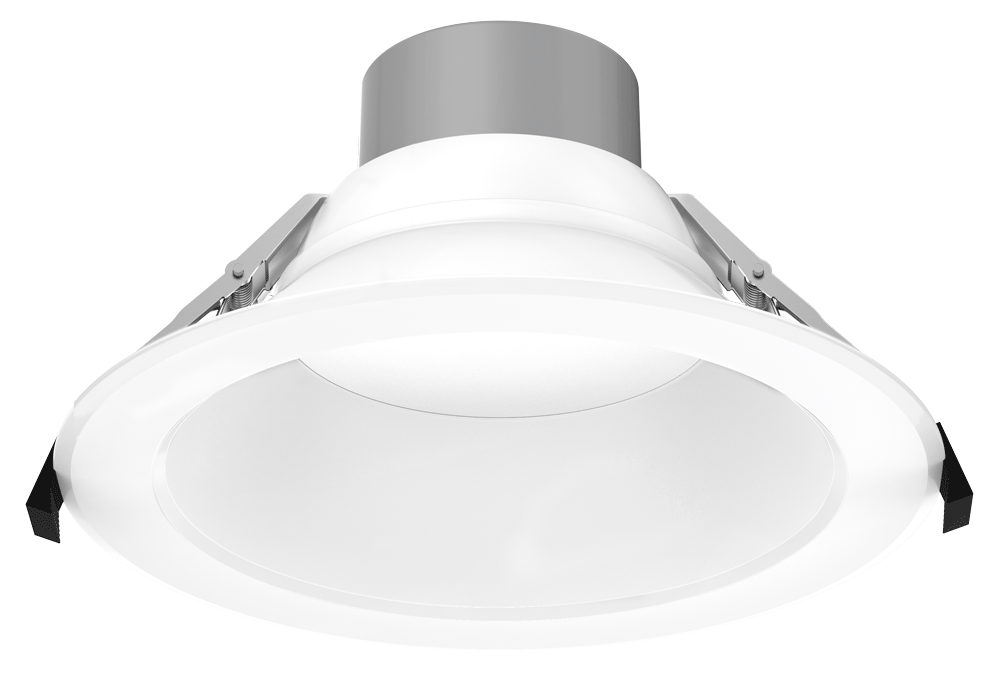

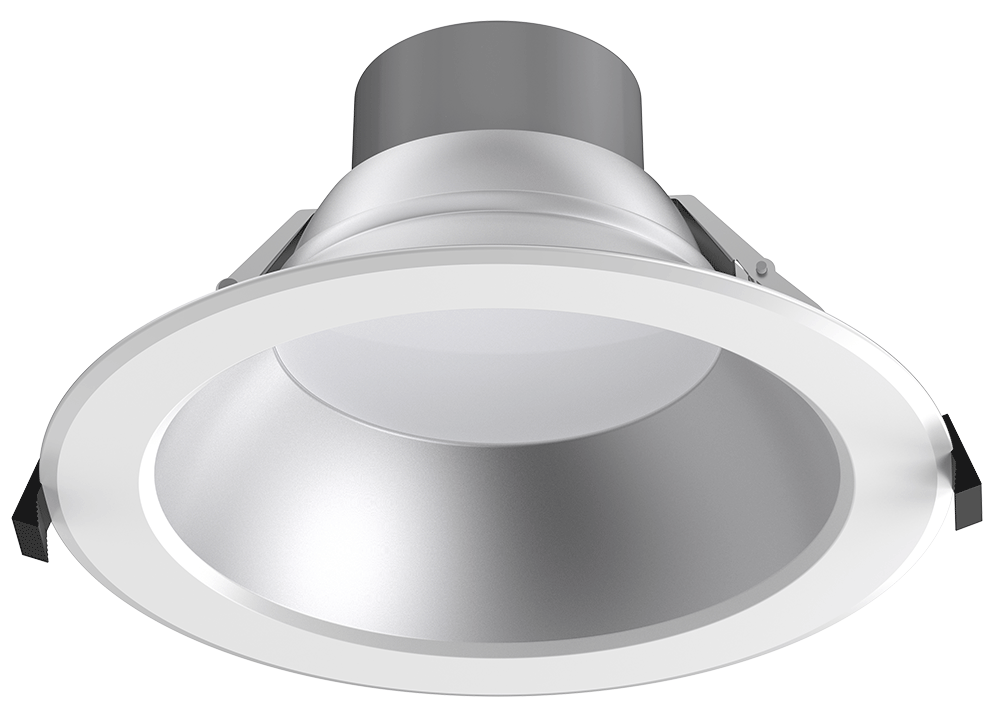

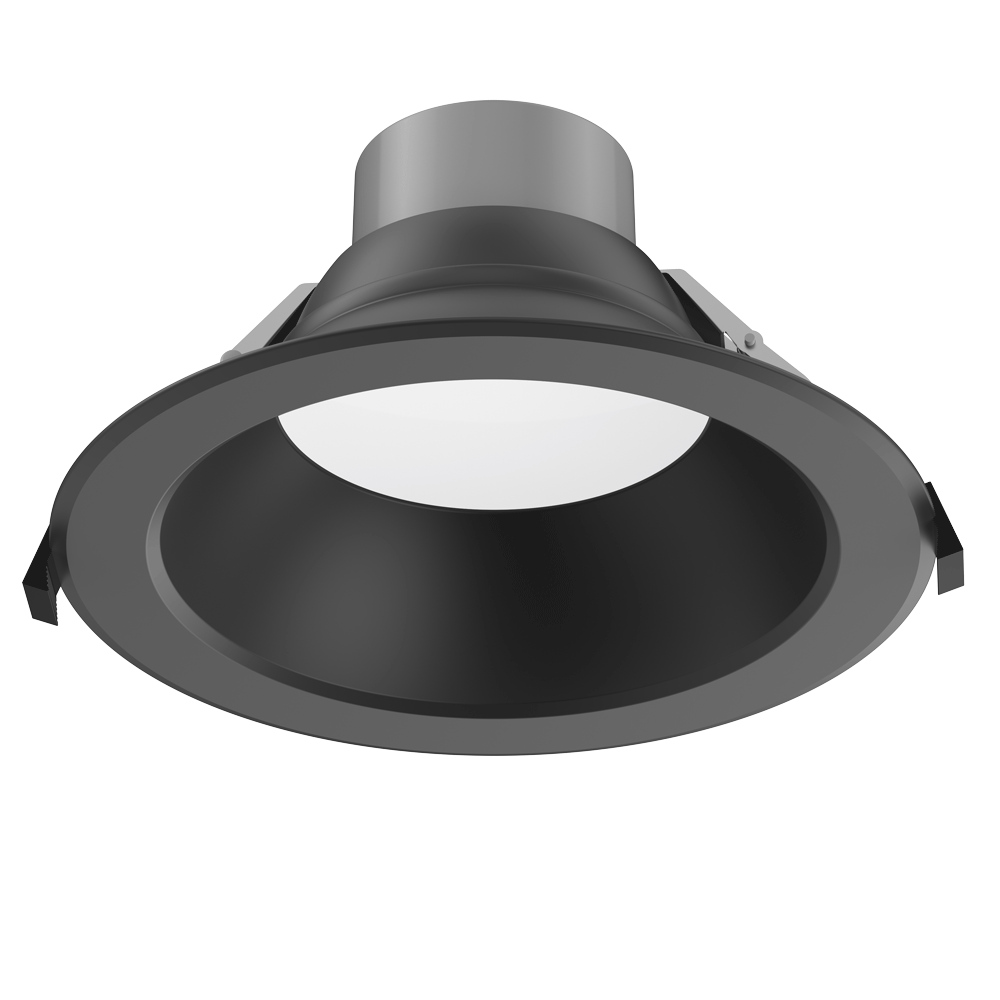

Lotus 8" Round Commercial 5 CCT & 5 Wattage Selectable | DL254-8-35W-M-A5C5-HO

Overview

The Lotus LED DL254-8-35W-M-A5C5-HO is an architectural-spec 8-inch recessed lighting solution designed for high-ceiling commercial and professional residential environments. This high-output fixture features a deep regressed design for superior glare control and visual comfort, delivering contractor-grade performance in a low-profile format.

Key Features

• 5CCT field-selectable color temperature allows for on-site adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K.
• Universal 120V-347V AC input ensures compatibility with standard residential and heavy-duty commercial electrical systems.
• High Output (HO) performance delivers up to 4250 lumens for maximum illumination in large-scale spaces.
• Type IC Rated and Airtight construction allows for direct contact with insulation without the need for a separate housing.
• Professional-grade 0-10V dimmable driver provides smooth, flicker-free control for advanced lighting designs.

Technical Specifications

• Energy Used: 35W
• Light Output: 3500 lm – 4250 lm
• Beam Angle: 55°
• CRI: 90+
• Input: 120V - 347V AC
• Dimmable: 0-10V
• Insulation Rating: Type IC Rated
• Location Rating: Wet Location (IP54)
• Air Tight: Yes
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Certification: cULus, Energy Star
• Warranty: 5 Year
• Aperture ID: 8"
• Trim OD: 9"
• Cut-out: 7 5/8" to 8 1/4"
