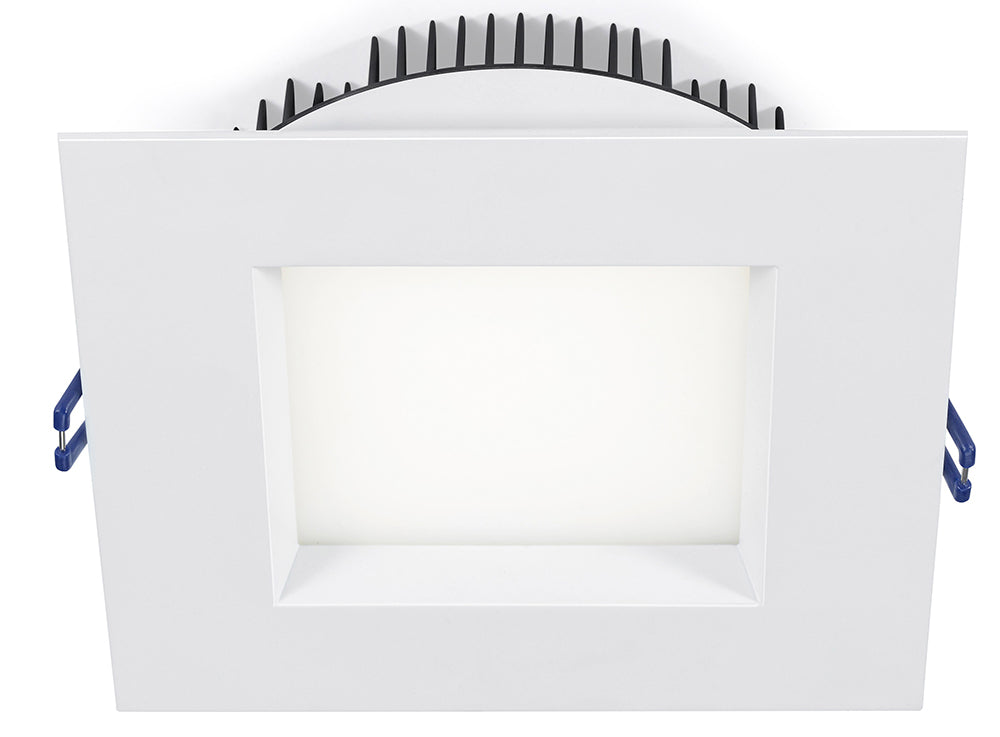

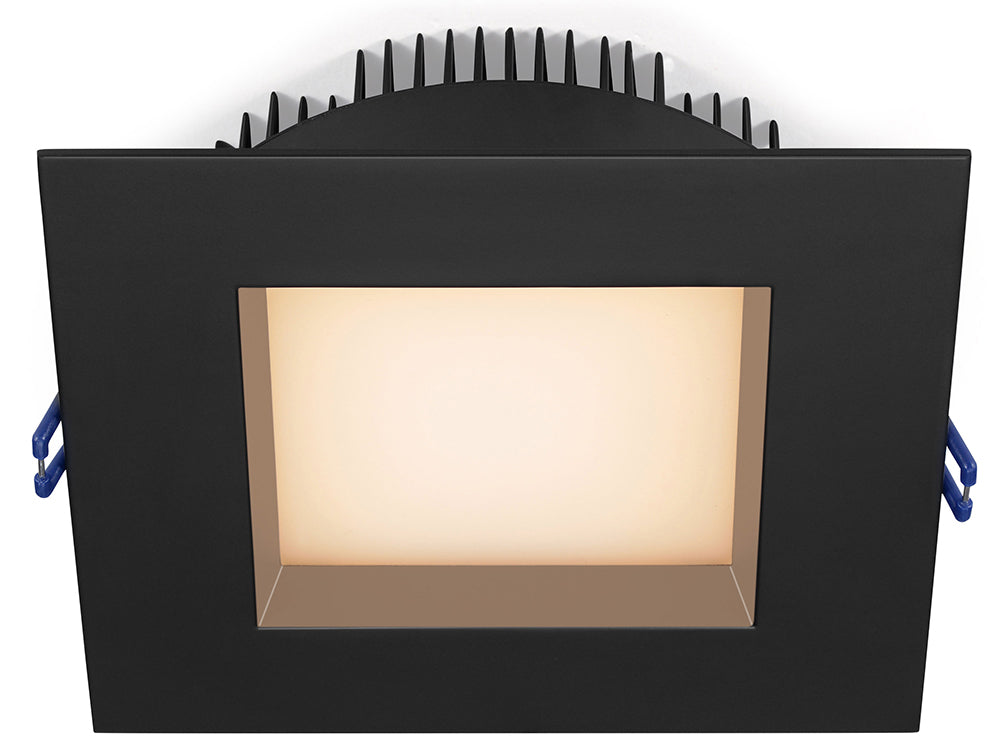

Lotus 6" Square Regressed Open Plenum LED 18W | LL6SR

Overview

The Lotus LED 6" Square Regressed Open Plenum LED is a commercial-grade recessed lighting solution that combines architectural design with high-performance functionality. This 18W fixture features a regressed design for improved aesthetics and is specifically engineered with armored cable and metal connectors to meet open plenum ratings. Its slim 2 1/4" depth allows for seamless installation in restricted ceiling environments without the requirement of a traditional housing.

Key Features

• Architectural Regressed Design: Provides a sophisticated, clean look while maintaining commercial-grade durability.
• Open Plenum Rated: Equipped with armored cable and metal connectors, making it suitable for strict commercial plenum requirements.
• IC Rated & Air-Tight: Contractor-grade construction allows for direct contact with insulation and ensures an air-tight seal for superior energy efficiency.
• Flexible Color Options: Available in multiple single CCT settings or a 5CCT user-selectable option ranging from 2700K to 5000K.
• Simplified Installation: Features a driver inside the connection box, eliminating the need for a separate junction box and saving on labor costs.

Technical Specifications

• Energy Used: 18W
• Light Output: 1030 to 1190 lumens (depending on CCT)
• Halogen Equivalent: 100W
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, or 5CCT Selectable
• Beam Angle: 90°
• CRI: 90+
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Power Factor: 0.98
• Aperture/Dimensions: ID 6", OD 7" Square
• Cut-Out: 6" to 6 1/4"
• Ceiling Clearance: 2 1/2"
• IP Rating: IP 54
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus, Type IC, Open Plenum Rated
• Warranty: 10 Year Residential / 5 Year Commercial
