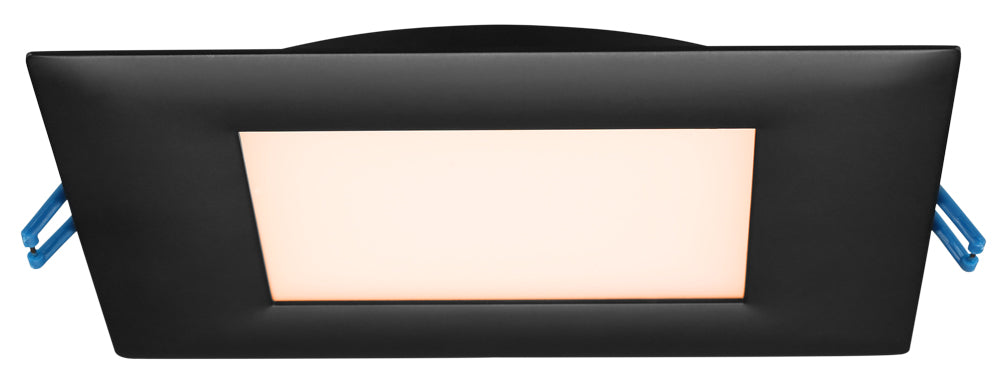

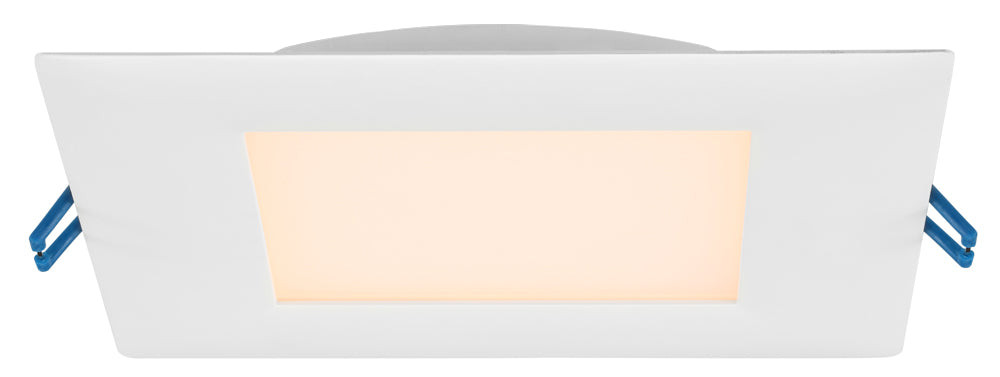

Lotus 6" Square Super Thin Recessed LED 17W | LL6S

Overview

The Lotus LED LL6S is a contractor-grade 6-inch square super thin recessed lighting fixture designed for installations with extremely limited plenum space. With a profile thickness of only 1/2-inch, this architectural-spec solution delivers powerful, high-lumen output and even light distribution, making it ideal for both high-end residential and demanding commercial environments.

Key Features

• Ultra-slim 1/2" profile requires only 1 1/2" of ceiling clearance for the driver, fitting into the tightest plenum spaces.
• Type IC Rated for direct contact with insulation, allowing for fast installation without the need for a separate recessed housing.
• Wet Location and Air-Tight rated, providing a versatile solution for showers, kitchens, and outdoor soffit applications.
• Wide 110° beam angle ensures uniform, shadow-free illumination across large areas.
• Contractor-friendly design with an integral driver inside a connection box, eliminating the need for a standard junction box.

Technical Specifications

• Energy Used: 17W
• Light Output: 1000 lm – 1100 lm
• Halogen Equivalent: 100W
• Beam Angle: 110°
• CRI: 80
• Default Driver Input: 120V AC Triac Dimmable
• Optional Driver Input: 120V-347V AC 0-10V Dimmable
• Insulation Rating: Type IC Rated
• Location Rating: Wet Location
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Aperture ID: 6 1/8"
• Trim OD: 6 3/4" Square
• Cut-out: 6 1/8" to 6 1/4"
• Thickness: 1/2"
