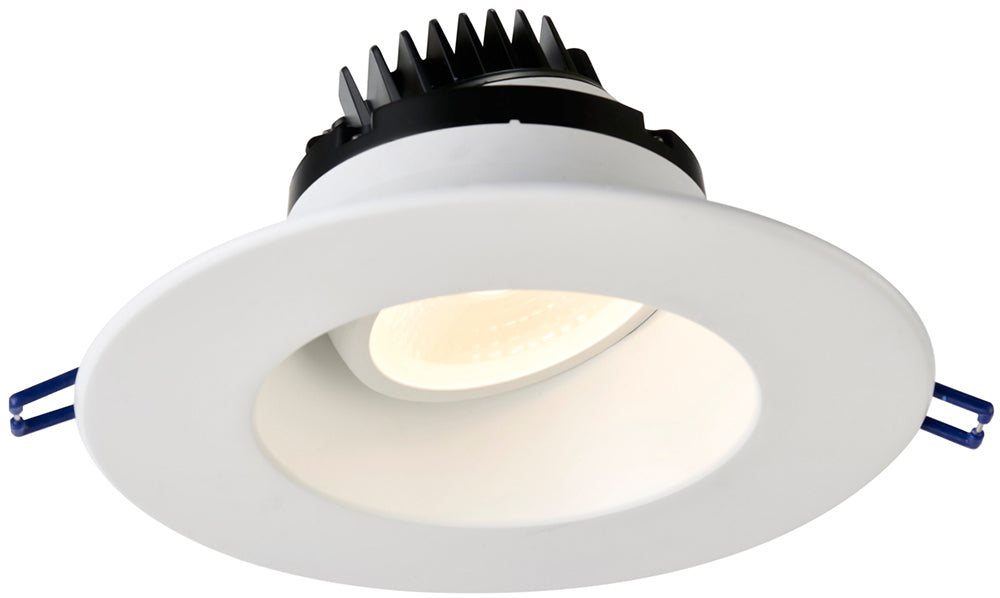

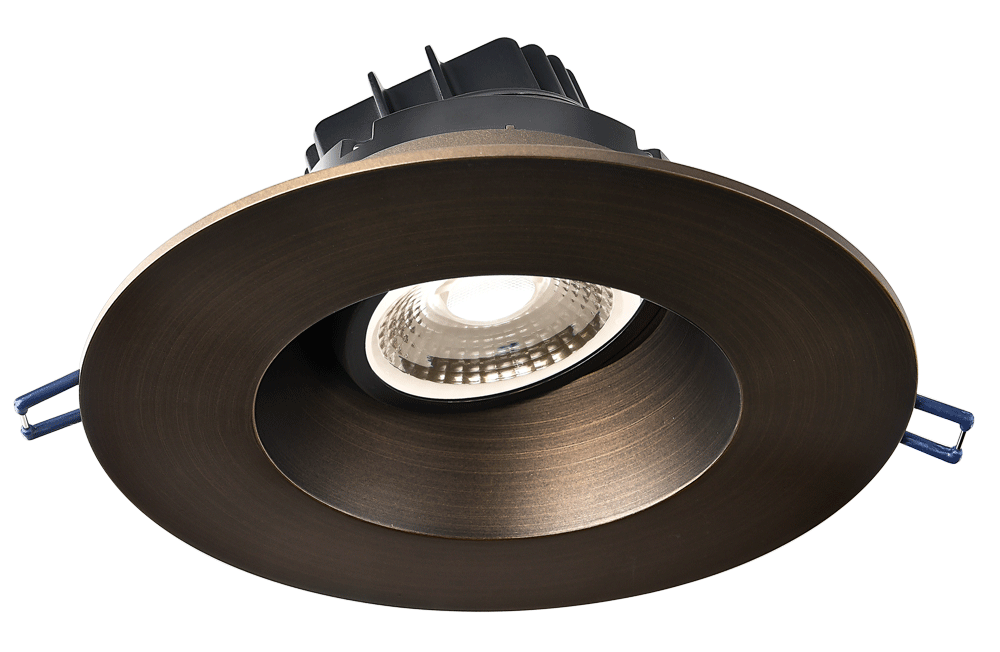

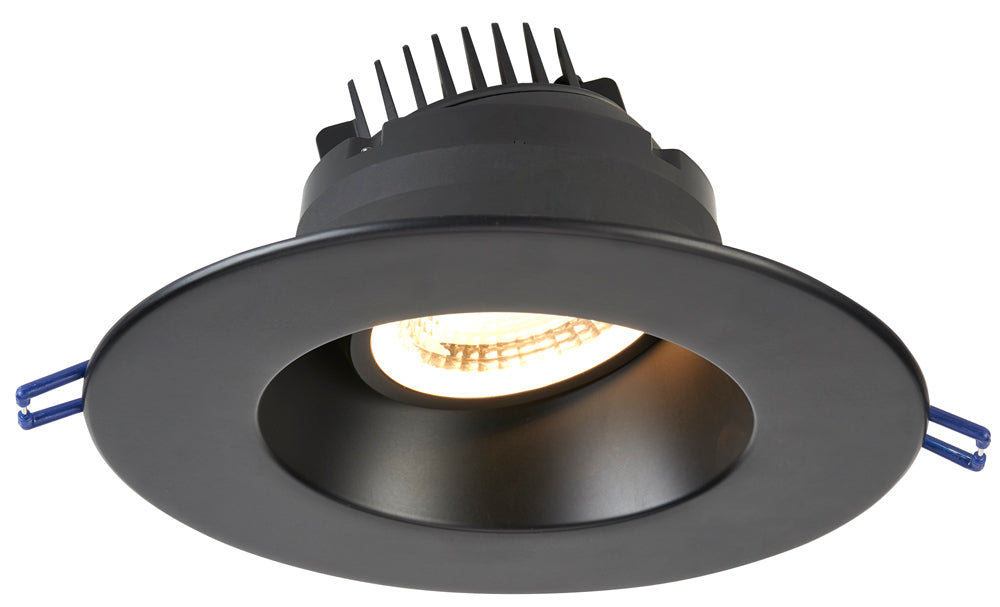

Lotus 6" Round Regressed Gimbal LED High Output 18W | LRG6-HO

Overview

The Lotus LED 6" Round Regressed Gimbal High Output is an architectural-spec recessed fixture designed for high-ceiling applications and sloped ceilings. Featuring a 1 1/2" regressed optic for superior glare reduction, this 18W model provides powerful illumination with a directional beam offering 20° tilt and 360° rotation. The air-tight, IC-rated construction allows for direct installation in contact with insulation without the need for a separate recessed housing.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: Deep 1 1/2" regressed design minimizes visual glare while maintaining high lumen output.
• Precision Aiming: Directional eyeball gimbal allows for 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork.
• Wet Location Rated: IP 54 certified and air-tight, suitable for high-moisture environments including showers and outdoor soffits.
• Contractor-Grade Installation: Features an integrated driver inside a connection box for fast wiring and reduced labor costs.

Technical Specifications

• Energy Used: 18W
• Light Output: 1100 to 1800 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3200K (DTW 30-20K), 3018K (DTW 30-18K), 3500K, 4000K, 5000K, or 5CCT Selectable
• Beam Angle: 38° standard (60° custom option available)
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture/Dimensions: 5 1/4" ID, 7 1/2" OD
• Thickness: 4"
• Cut-Out: 5 1/4" to 6"
• Ceiling Clearance: 4"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
