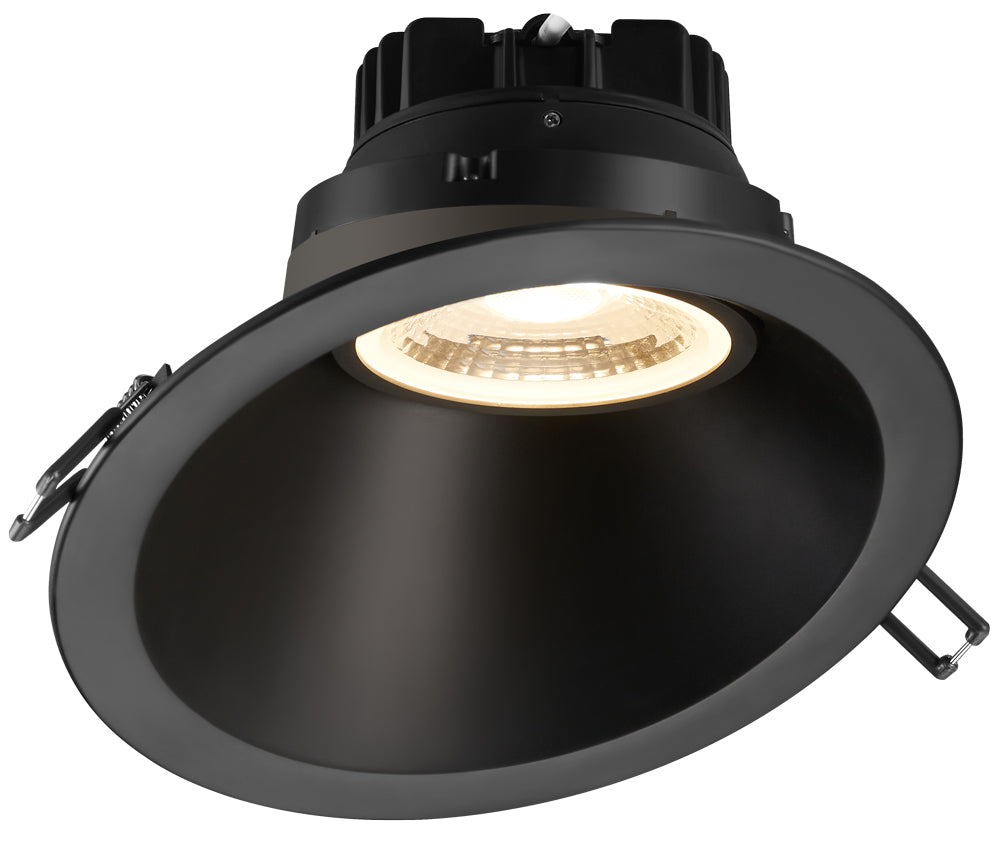

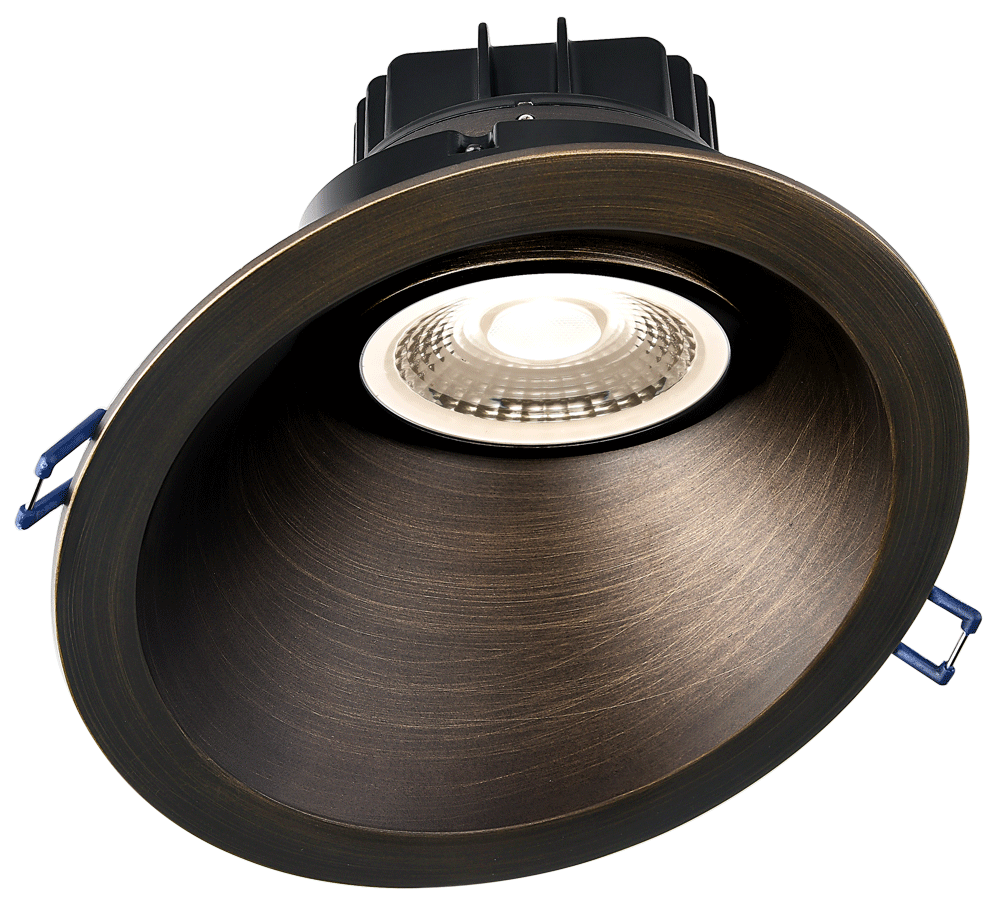

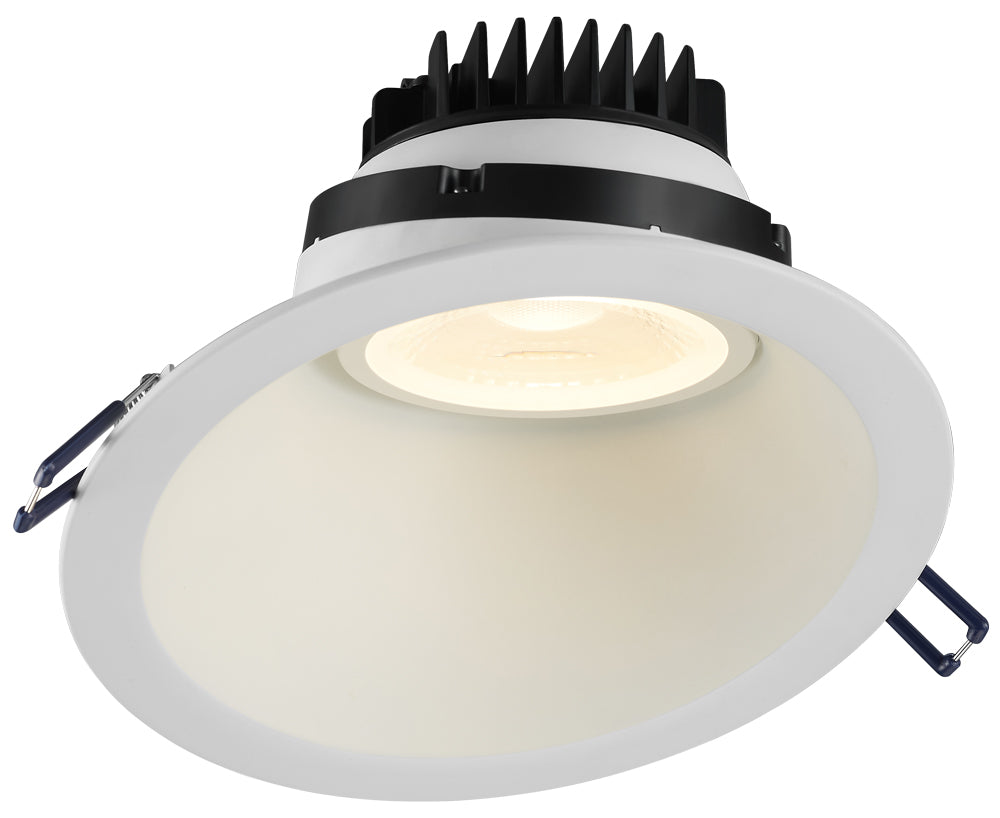

Lotus 6" Sloped Round Regressed Gimbal 15W 38° IC Wet CRI 90+ | LRG6-6RSL

Overview

The Lotus LED 6" Sloped Round Regressed Gimbal is an architectural-spec recessed fixture designed specifically for high-pitched sloped ceilings and wall washing applications. Featuring a 30° sloped trim, this 15W fixture provides powerful illumination for ceilings ranging from 10° to 50° while maintaining a clean, integrated aesthetic. The IC-rated and air-tight design allows for direct contact with insulation without the need for a separate recessed housing.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Specialized Sloped Design: Engineered with a 30° sloped trim to provide optimal light distribution on ceilings with pitches from 10° to 50°.
• Precision Aiming: Directional eyeball gimbal allows for a 20° tilt and 360° rotation for perfect light placement.
• Wet Location Rated: IP 54 certified and air-tight, making it suitable for high-moisture environments such as bathrooms, showers, and outdoor soffits.
• Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring and reduces labor costs for both residential and commercial projects.

Technical Specifications

• Energy Used: 15W
• Light Output: 900 to 1400 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3200K (DTW 30-20K), 3018K (DTW 30-18K), 3500K, 4100K, 5000K, or 5CCT Selectable
• Beam Angle: 38° standard (60° custom option available)
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture/Dimensions: ID 6 1/4", OD 7", Thickness 4"
• Cut-Out: 6 1/4"
• Ceiling Clearance: 3 1/2"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
