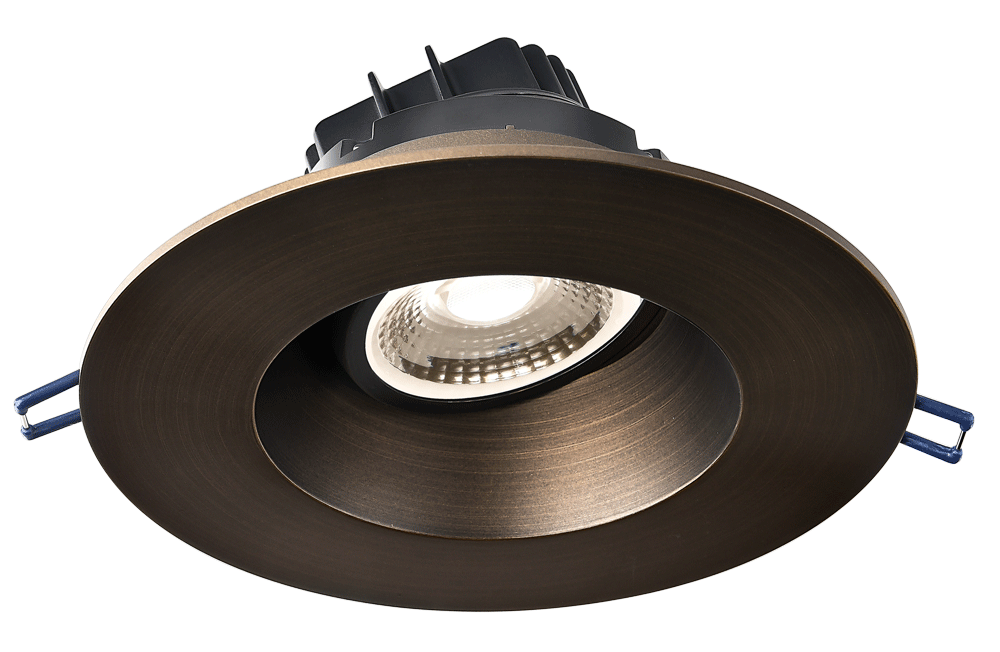

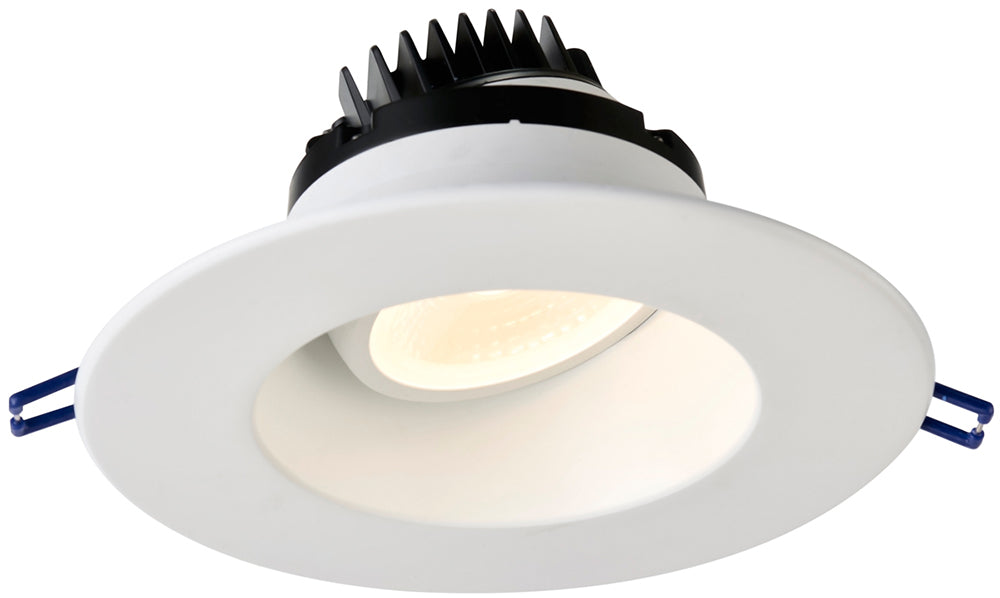

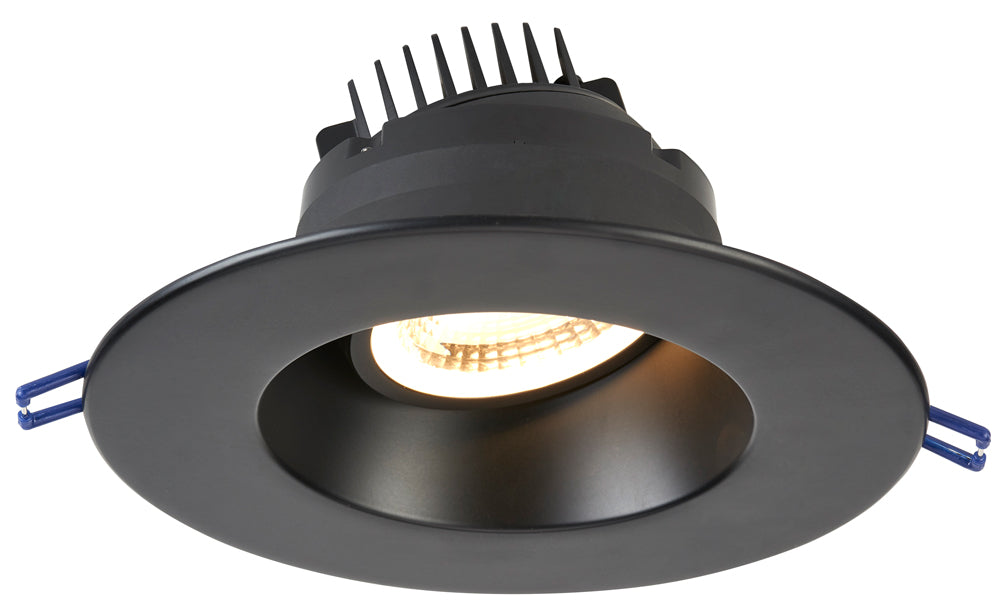

Lotus 6" Round Regressed Gimbal 15W 1100 lm 38° IC Wet CRI 90+ | LRG6

Overview

The Lotus LED 6" Round Regressed Gimbal is an architectural-spec recessed lighting solution featuring a 1 1/2" regressed optic for superior glare reduction. This 15W fixture is specifically designed for sloped ceilings and general lighting applications, providing a directional beam with 20° tilt and 360° rotation. Its IC rated and air-tight construction allows for direct contact with insulation, fitting into tight plenum spaces where traditional housing cannot.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the need for a traditional recessed housing.
• Architectural Glare Control: The 1 1/2" regressed design minimizes visual glare for a cleaner, high-end ceiling appearance.
• Precision Directional Lighting: Features a 20° tilt and 360° rotation, ideal for sloped ceilings up to 20° and highlighting artwork.
• Wet Location Rated: Certified for wet locations and air-tight, making it suitable for showers, bathrooms, and outdoor soffits.
• Contractor-Grade Installation: Dimmable 120V Triac driver is integrated within a connection box, significantly reducing labor and installation time.

Technical Specifications

• Energy Used: 15W
• Light Output: 900 to 1400 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3018K (DTW 30-18K), 3500K, 4000K, 5000K, or 5CCT Selectable
• Beam Angle: 38° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture/Dimensions: 5 1/4" ID, 7 1/2" OD
• Thickness: 3 1/2"
• Cut-Out: 5 1/4" to 6"
• Ceiling Clearance: 3 1/2"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
