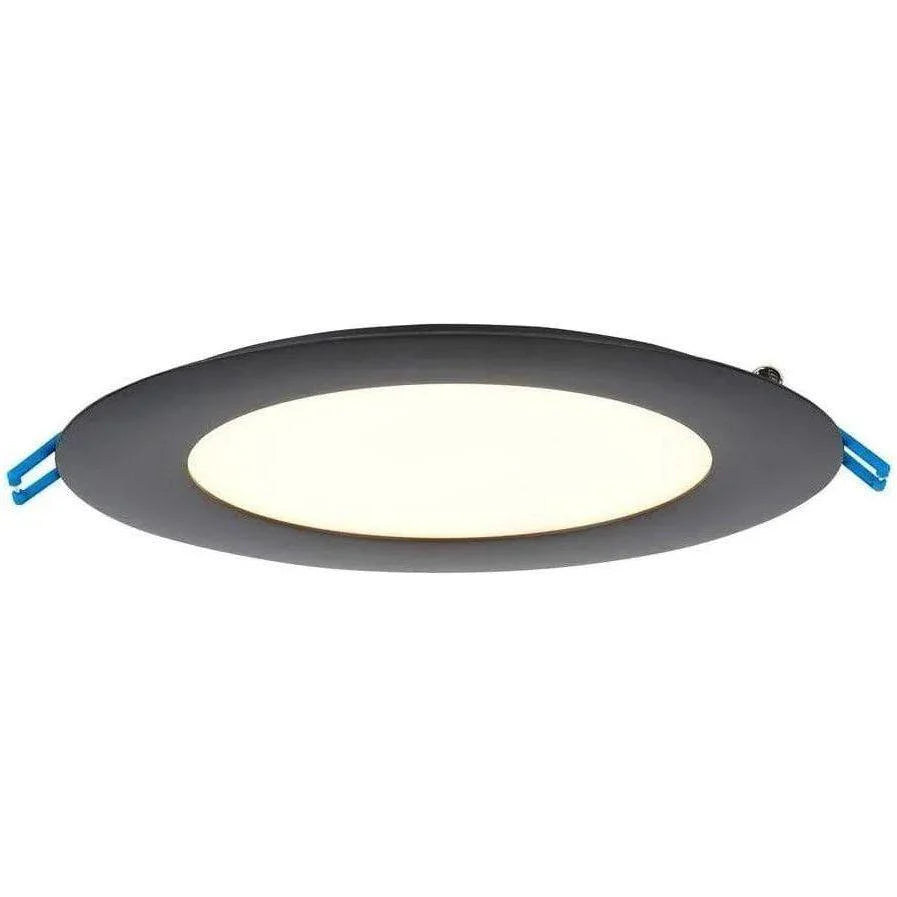

Lotus 6" Round Economy Super Thin Recessed LED 14W | LB6R
Lotus 6" Round Economy Super Thin Recessed LED 14W | LB6R
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LB6R/30K/WH
LB6R | 6" Round Economy Super Thin Recessed LED 14W
The Lotus LB6R is a 6-inch round economy super-thin recessed LED fixture designed for recessed ceilings, showers, and soffits. With a fixture depth of only 1/2", it is built to install directly under joists, making it a practical solution for tight ceiling spaces where traditional recessed housings are not suitable.
This 14W recessed LED delivers 900 to 930 lumens depending on selected color temperature, with a wide 110° beam angle and the performance of a 90W halogen equivalent. The LB6R includes a 120V AC Triac dimmable driver as standard and is available in 3000K, 4100K, and dim-to-warm 3000K to 2000K configurations.
Why this fixture sells
- Super-thin 1/2" fixture depth: installs directly under joists for maximum layout flexibility
- 6" round economy format: clean recessed lighting solution for residential and project applications
- No housing required: Type IC rated fixture installs without a recessed can
- Driver inside connection box: no separate junction box required
- Fast installation: cut the ceiling opening and snap the fixture in place with attached spring clips
- Wet and damp location approved: suitable for showers, soffits, and approved ceiling applications
- Air-tight construction: supports code-conscious recessed lighting installations
- Standard Triac dimming: 120V AC Triac dimmable driver included
- Commercial voltage option: optional 120V-347V AC 0-10V dimmable driver available separately
- White and black trims: finish options for different ceiling and design conditions
Recommended applications
- Recessed ceiling lighting
- Showers and bathrooms
- Soffits
- Residential general lighting
- Multi-family lighting
- Low-ceiling-clearance applications
- Retrofit projects where a traditional recessed can is not practical
- Wet and damp location ceiling applications where permitted by code
Key specifications
| Model Family | LB6R |
|---|---|
| Fixture Type | 6" Round Economy Super Thin Recessed LED |
| Applications | Recessed Ceiling, Showers & Soffits |
| Power | 14 W |
| Color Temperature Options | 3000K / 4100K / Dim-to-Warm 3000K to 2000K |
| Light Output | 900 / 930 / 850 lm |
| Halogen Equivalent | 90 W |
| Beam Angle | 110° |
| CRI | 80 |
| Default Driver Input | 120V AC, Triac Dimmable |
| Optional Driver Input | 120V-347V AC, 0-10V Dimmable |
| Optional 0-10V Driver | LLL-LD1535TB, ordered separately |
| Junction Box Wire Capacity | Max 5 No. 12 AWG or 8 No. 14 AWG |
| Power Factor | 0.95 |
| Approved Location | Insulated Ceiling, Wet & Damp Locations |
| IP Rating | IP54 |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -40°F (-40°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 36,000 hours |
| Dimensions | 6 1/8" ID, 6 7/8" OD |
| Cut Out | 6 1/4" to 6 1/2" |
| Ceiling Clearance Required for Driver | 1 1/2" |
| Certification | cULus |
| Warranty | 5 Year |
Available models

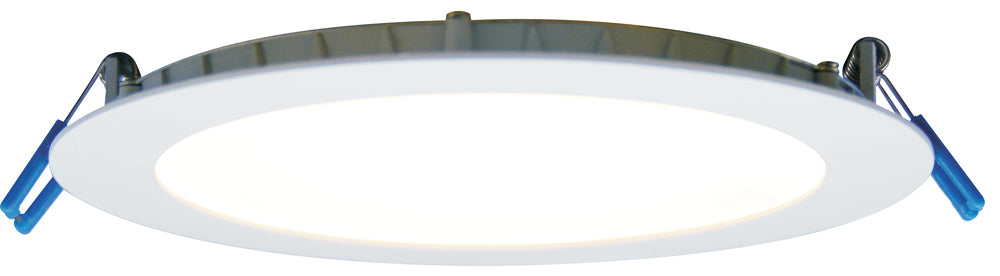

- LB6R/30K/WH: 3000K, White trim

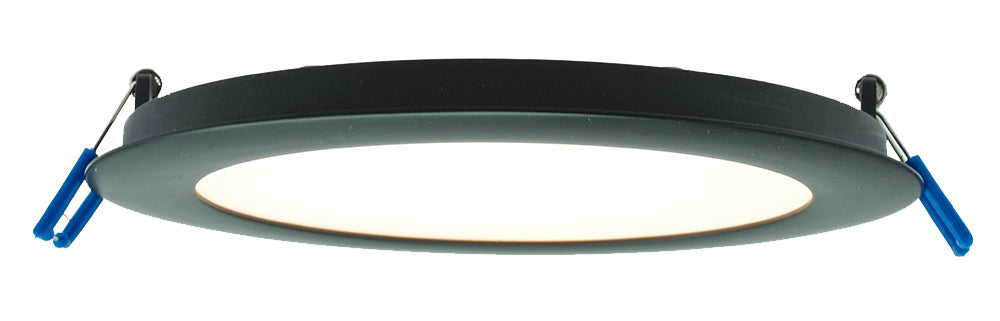

- LB6R/30K/BK: 3000K, Black trim
- LB6R/41K/WH: 4100K, White trim
- LB6R/41K/BK: 4100K, Black trim
- LB6R/32K/WH: Dim-to-Warm 3000K to 2000K, White trim
Available trims
- WH: White trim
- BK: Black trim
Compatible accessories
- EXC10: 10 ft low-voltage extension cable, FT4 / CMR rated
- RIP6: 26" long flat rough-in plate
- MP6-2: 13" flat rough-in plate
- FRP6: Flanged plate with hanger bars
- GR6: White goof ring, 7 5/8" OD
- GR6-BK: Black goof ring, 7 5/8" OD
- BLD-HM08D-YYY: Emergency driver, 8W, 120-347V input
- LLL-LD1535TB: Optional 120V-347V 0-10V dimmable driver, ordered separately
Installation notes
- Cut a 6 1/4" to 6 1/2" opening in the ceiling and snap the fixture in place with attached spring clips.
- The 1/2" deep fixture body can install directly under joists.
- Ceiling clearance required for the driver is 1 1/2".
- The standard 120V AC Triac dimmable driver is included.
- The optional 120V-347V AC 0-10V dimmable driver is ordered separately.
- No recessed housing or separate junction box is required.
- Fixture is Type IC rated, air-tight, and approved for insulated ceilings, wet locations, and damp locations.
- 6" round economy super-thin recessed LED
- 14W power consumption with 90W halogen equivalent
- 3000K, 4100K, and dim-to-warm 3000K-2000K options
- 850-930 lumen output depending on selected version
- 110° wide beam angle
- Type IC, air-tight, wet and damp location approved
- 120V Triac dimmable driver included
- Optional 120V-347V 0-10V driver available separately
- White and black trim options
Frequently Asked Questions
What is the Lotus LB6R?
The LB6R is a 6-inch round economy super-thin recessed LED fixture designed for recessed ceilings, showers, and soffits.
How thin is the LB6R fixture?
The fixture body is 1/2" deep, allowing it to install directly under joists in tight ceiling spaces.
Does the LB6R require a recessed housing?
No. The LB6R is Type IC rated and does not require a recessed housing.
Is the driver included?
Yes. The standard 120V AC Triac dimmable driver is included. An optional 120V-347V AC 0-10V dimmable driver is available separately as model LLL-LD1535TB.
What color temperature options are available?
The LB6R is available in 3000K, 4100K, and dim-to-warm 3000K to 2000K versions.
Can the LB6R be used in wet locations?
Yes. The spec sheet lists the LB6R as approved for insulated ceilings, wet locations, and damp locations, with an IP54 rating.
What trims are available?
The LB6R is available with white or black trim.
What is the cut out size?
The listed cut out range is 6 1/4" to 6 1/2".
