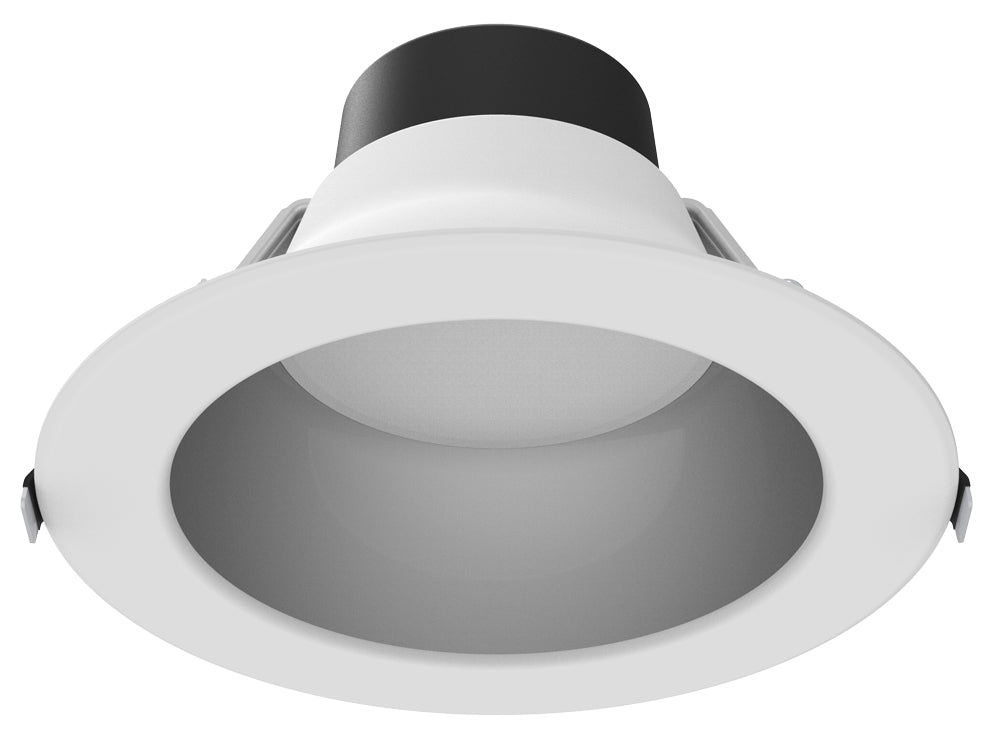

Lotus 6" Round Commercial 3 CCT & 3 Wattage Selectable | TP120-347-RT6-C-DIM-G1-ES

Overview

The Lotus LED 6-inch round recessed fixture is an all-in-one commercial-grade lighting solution designed for maximum versatility. Featuring regressed optics for significantly reduced glare, this architectural-spec luminaire is ideal for healthcare, hospitality, retail, and professional office environments.

Key Features

• 3CCT & 3 Wattage Selectable: Field-adjustable settings for three light colors and three power levels provide ultimate on-site flexibility.
• Universal Voltage: Engineered for professional installations with a wide 120V-347V AC input range.
• IC Rated & Air-Tight: Contractor-grade construction approved for direct contact with insulation and certified air-tight.
• High Color Rendering: Boasts a CRI 90+ rating for true and accurate color rendering in demanding commercial applications.
• Wet Location Rated: Durable design suitable for diverse environments, including exterior soffits and commercial recessed ceilings.

Technical Specifications

• Power Levels: Selectable 10W, 15W, or 18W
• Light Output: Selectable 700 lm, 1000 lm, or 1500 lm
• Color Temperature: 3CCT Selectable (3000K, 3500K, 4000K)
• CRI: 90+
• Beam Angle: 88°
• Input Voltage: 120V-347V AC 50/60 Hz
• Dimming: 0-10V (5% - 100%)
• Dimensions: ID 6 1/4", OD 8 1/4", Regressed 1 5/8"
• Cut Out: 6 1/4" to 7 1/2"
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus, Energy Star, T24
• Warranty: 5 Year
