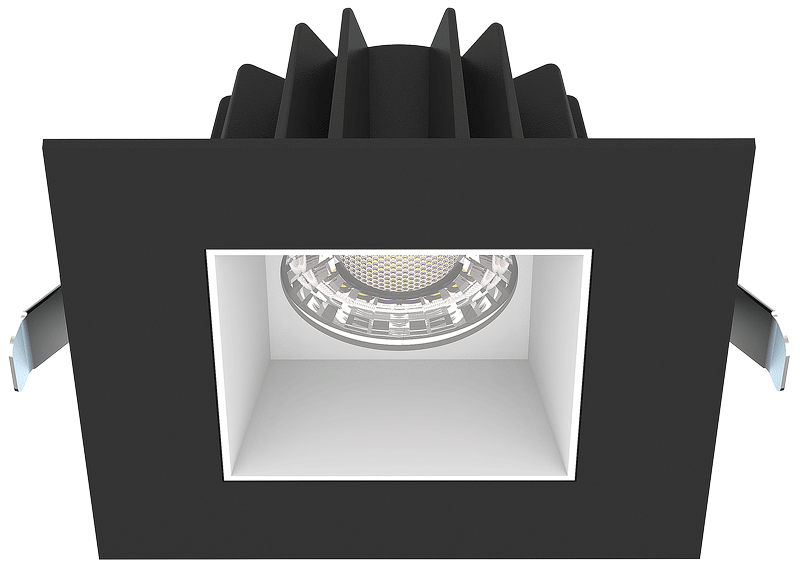

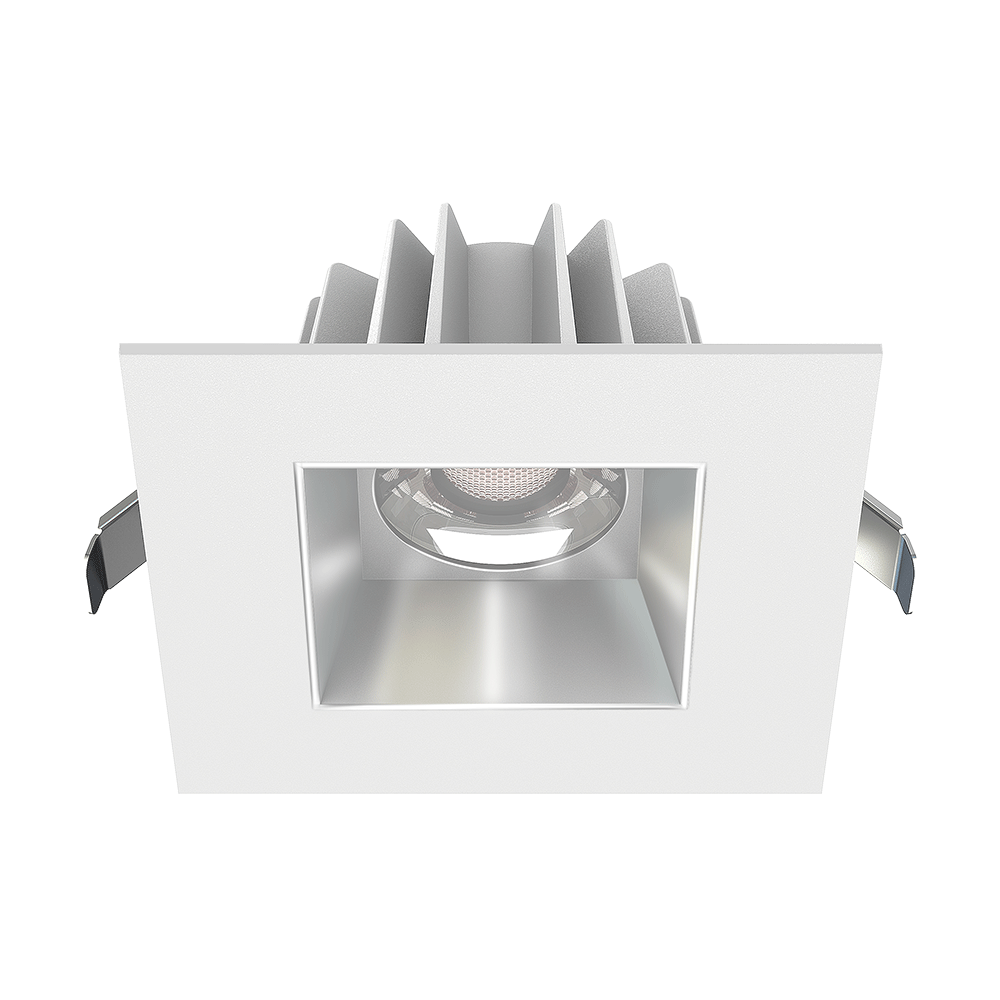

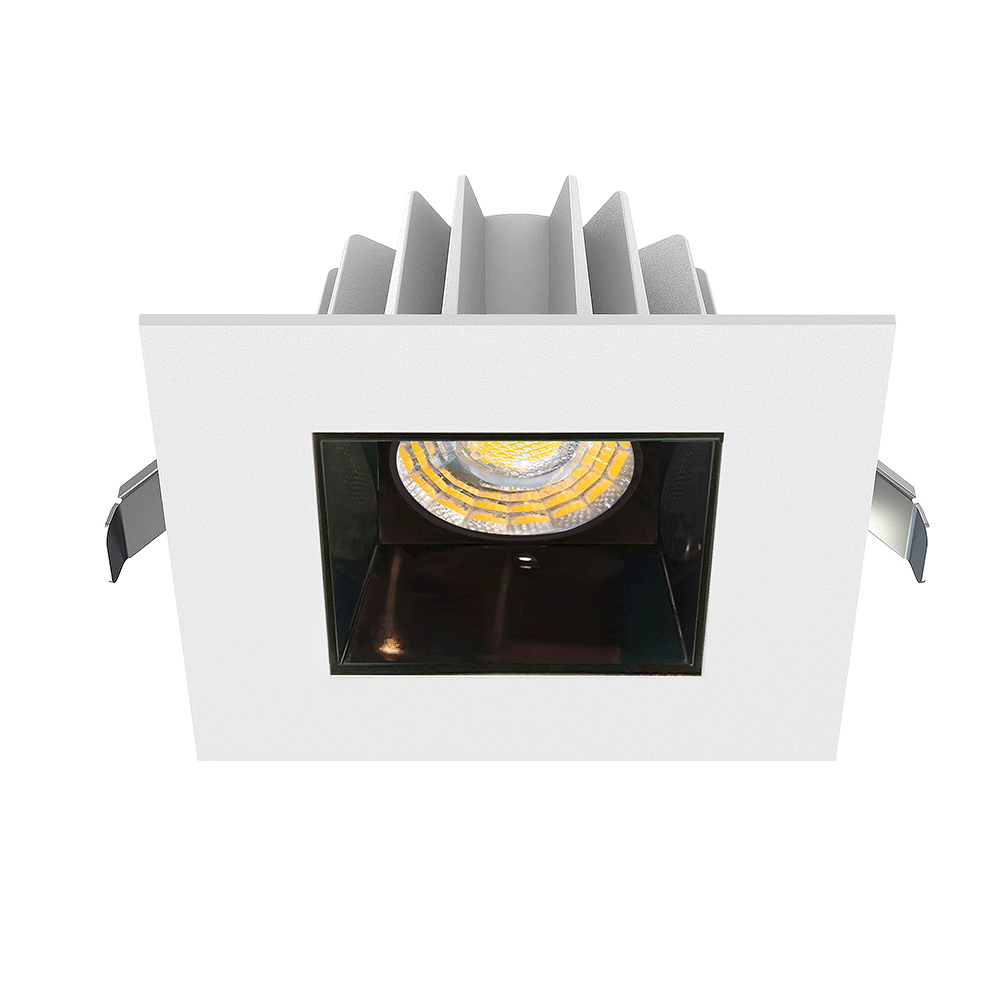

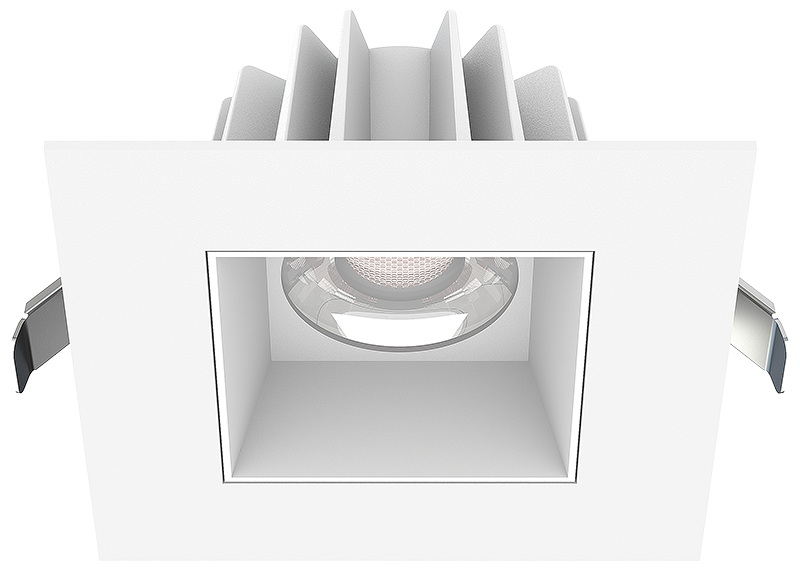

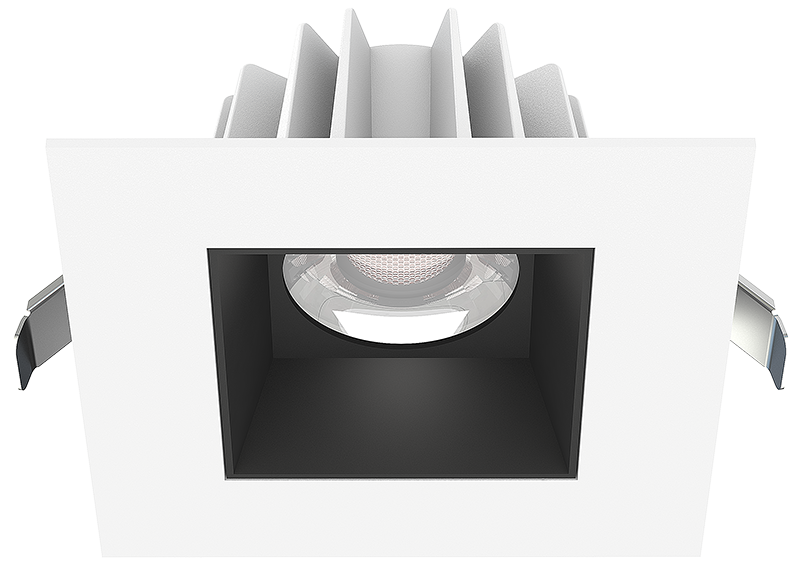

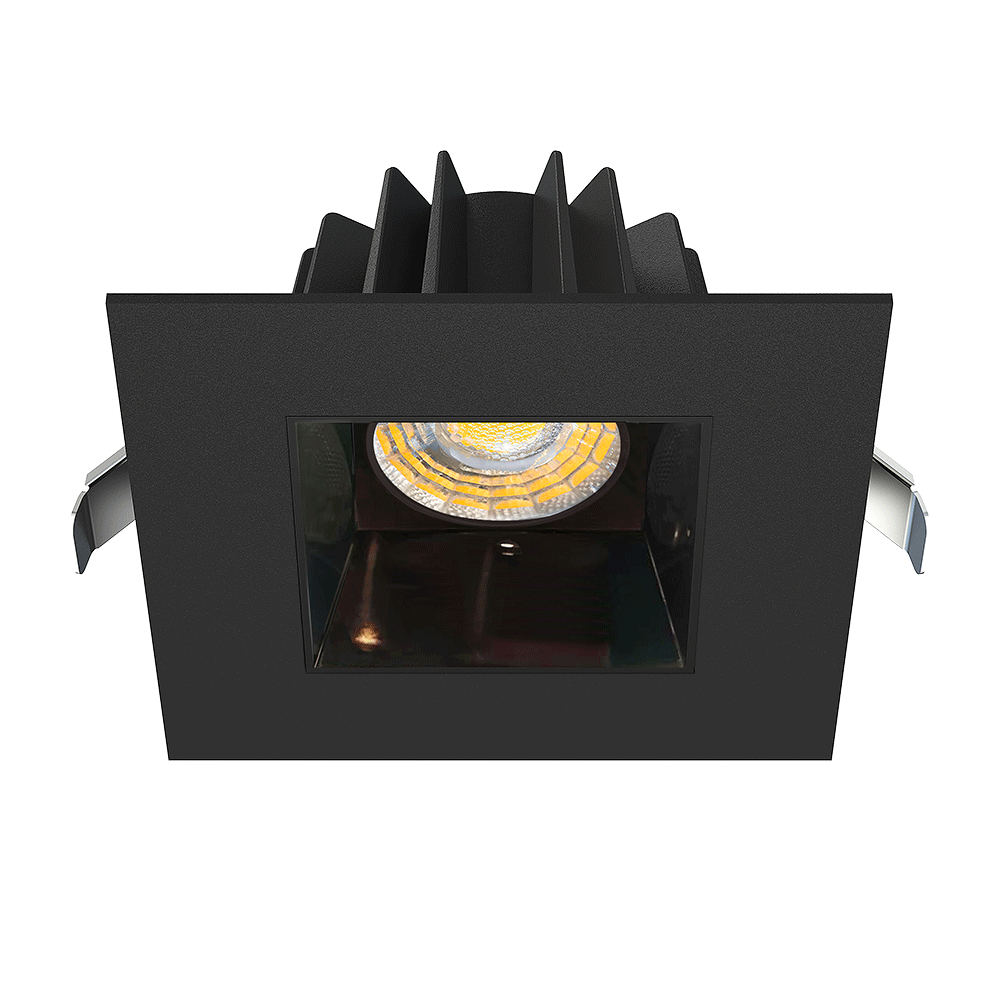

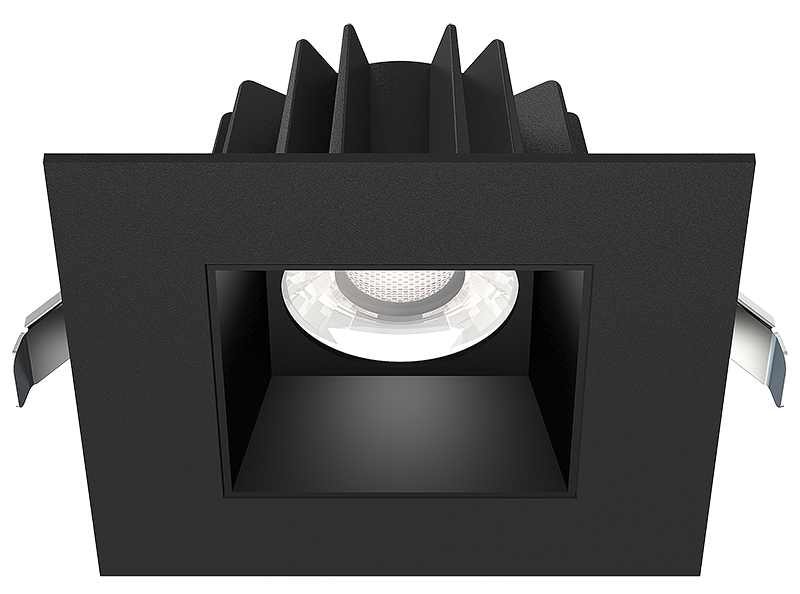

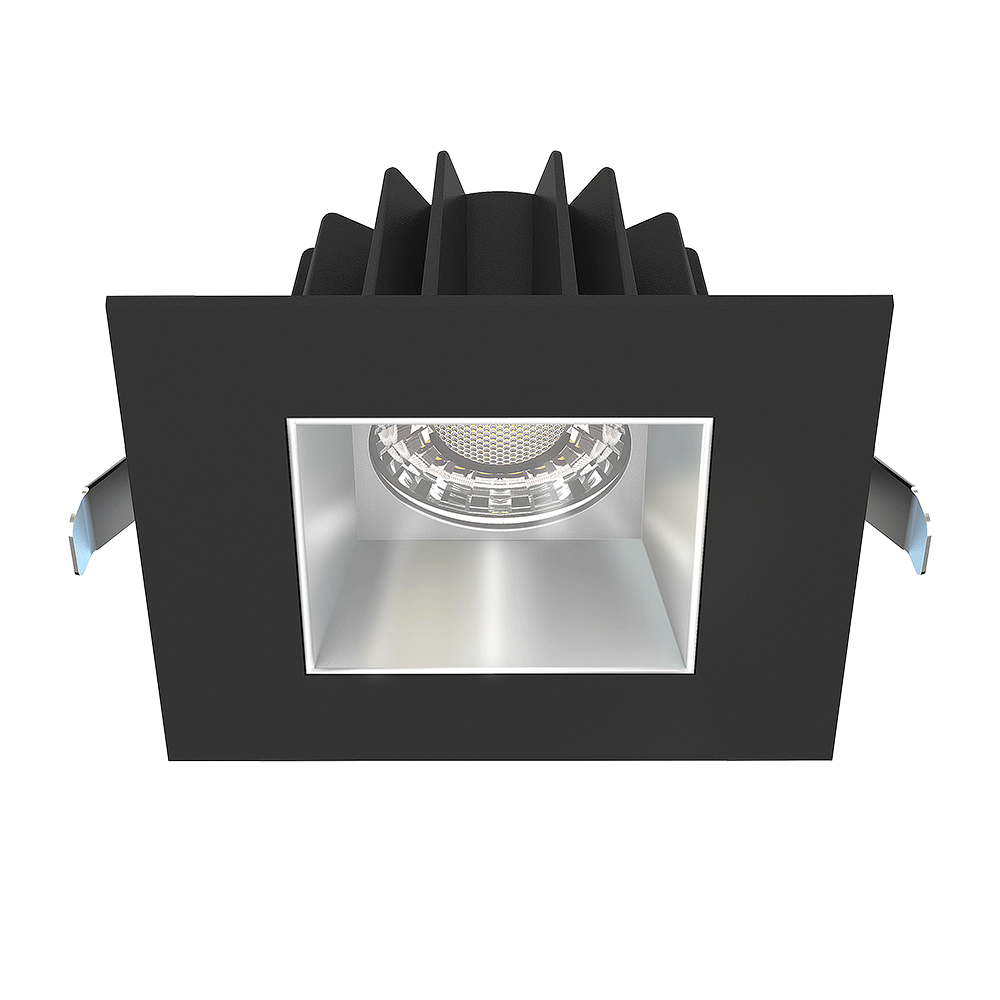

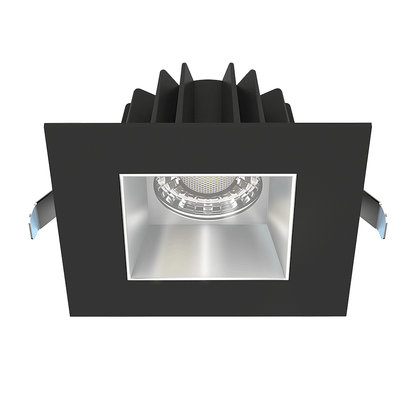

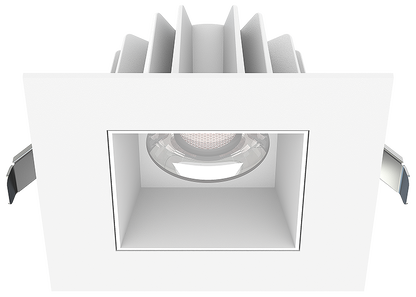

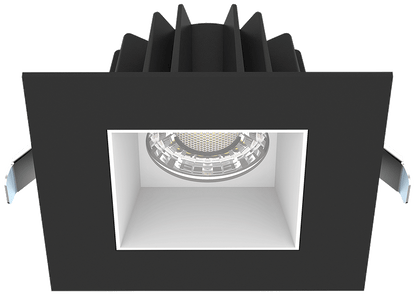

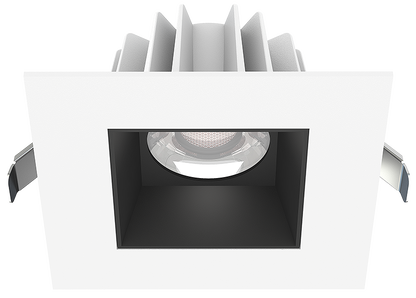

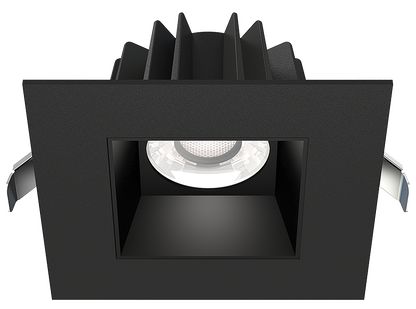

Lotus 4" Square Recessed Economy LED 15W 5CCT | JXL-COB04-S15W-5CCT-XX-4SR-SM-XX

Overview

The Lotus LED 4" Square Recessed Economy LED is a cost-effective, architectural-spec solution for residential recessed lighting applications. This 15W deep regressed fixture features an integral driver inside a connection box, allowing for a fast and easy installation in insulated ceilings without the need for a traditional housing. It offers high-quality illumination with 5CCT user-selectable color temperatures, ranging from warm 2700K to daylight 5000K.

Key Features

• IC Rated: Approved for direct contact with insulation, requiring no recessed lighting housing for installation.
• 5CCT Selectable: Integrated switch allows users to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
• Deep Regressed Design: Features a smooth reflector to reduce glare and provide professional-grade visual comfort.
• Dimmable: Compatible with TRIAC dimmers (20% – 100%) for flexible light level control.
• Contractor-Grade Construction: Air-tight certified and damp location rated, suitable for a wide range of residential projects.

Technical Specifications

• Energy Used: 15W
• Halogen Equivalent: 100W
• Light Output (White Reflector): 1160 to 1390 lumens (depending on CCT)
• Light Output (Black Reflector): 1130 to 1350 lumens (depending on CCT)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• Beam Angle: 36°
• CRI: 90+
• Input Voltage: 120V AC
• Dimmability: TRIAC Dimmers (20% – 100%)
• Dimensions: ID 3 1/2", OD 4 3/4", Depth 2 1/2"
• Cut-Out: 4 1/4"
• Ceiling Clearance: 3"
• Approved Location: Insulated Ceiling & Damp Locations
• IP Rating: Air-Tight
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 30,000 hours
• Certifications: cETLus
• Warranty: 3 Year
