Lotus 4" Round Regressed Gimbal LED 11.4W | LRG4

Overview

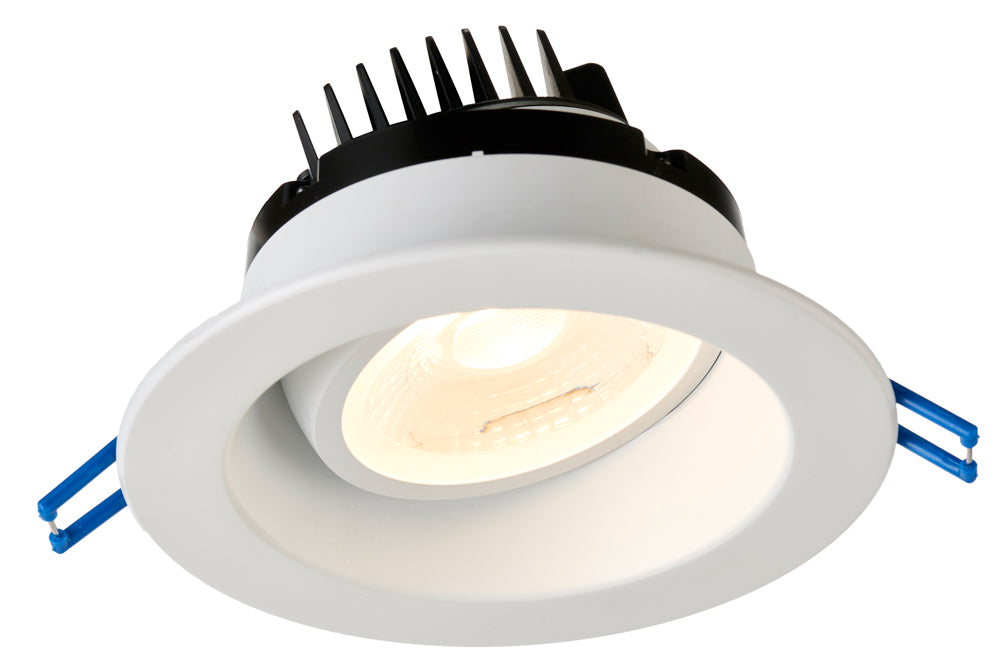

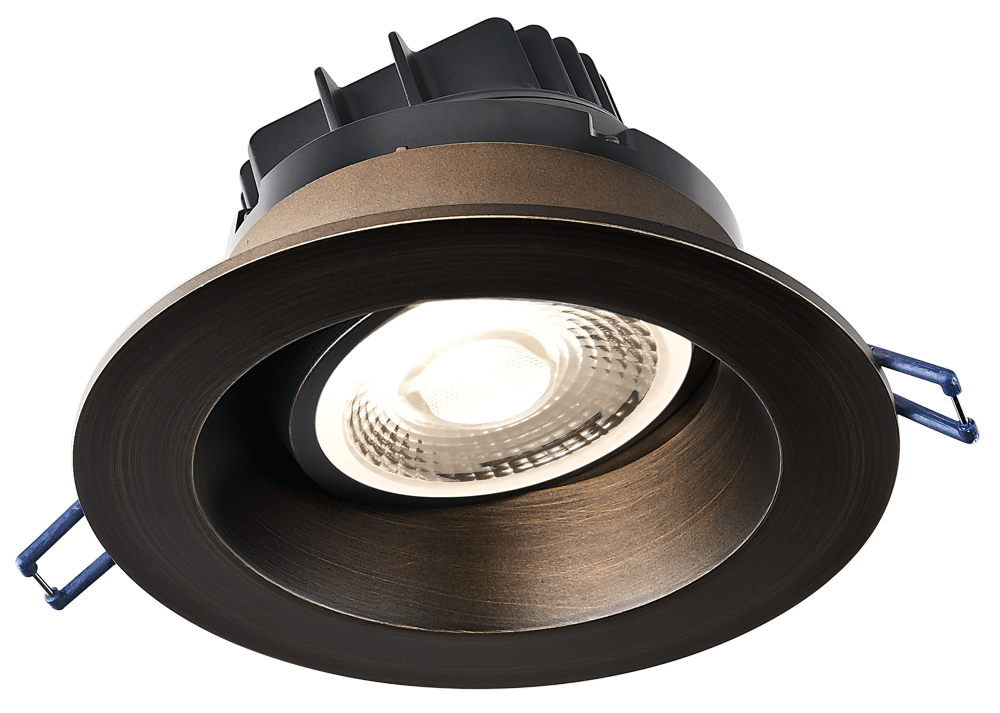

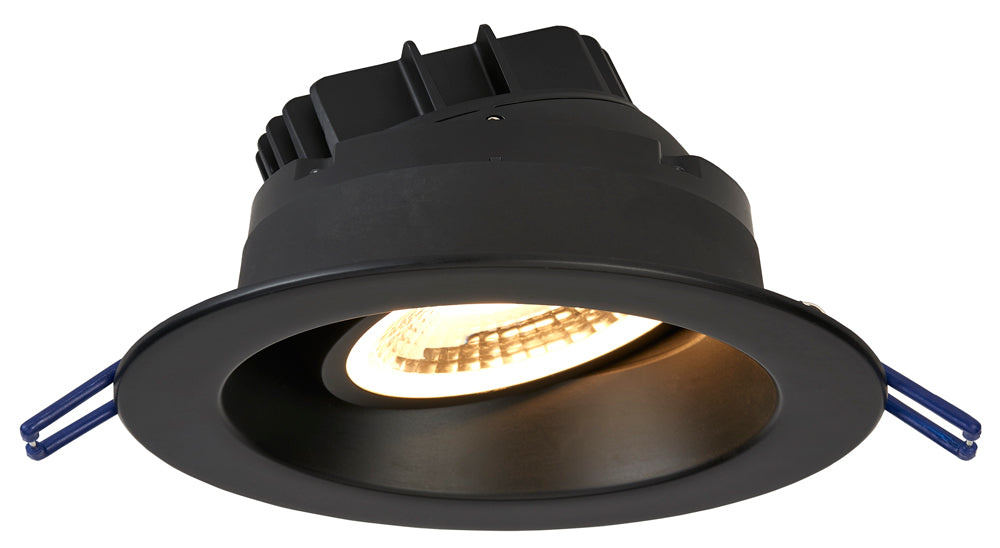

The Lotus LED 4" Round Regressed Gimbal is an architectural-spec recessed lighting solution featuring a regressed design for superior glare control. This 11.4W fixture is engineered for maximum versatility, offering a directional beam with 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork. The air-tight, IC rated construction allows for direct contact with insulation without the need for a separate recessed housing.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Design: Regressed optic reduces visual glare while providing a high-quality aesthetic for high-end residential and commercial projects.
• Advanced Adjustability: Features a 20° tilt and 360° rotation for precise light placement on sloped ceilings up to 20°.
• Wet Location Rated: IP 54 certified and air-tight, making this recessed lighting suitable for showers, bathrooms, and outdoor soffits.
• Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring and significantly reduces labor time.

Technical Specifications

• Energy Used: 11.4W
• Light Output: 800 to 1100 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3200K (DTW 30-20K), 3018K (DTW 30-18K), 3500K, 4100K, 5000K, or 5CCT Selectable
• Beam Angle: 38° standard (60° custom option available)
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac Dimmable (Standard) or 0-10V (Optional)
• Aperture/Dimensions: 4 3/4" ID, 5 3/4" OD
• Cut-Out: 4 3/4" to 5"
• Ceiling Clearance: 3"
• IP Rating: IP 54
• Air Tight: Yes
• Power Factor: 0.95
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
