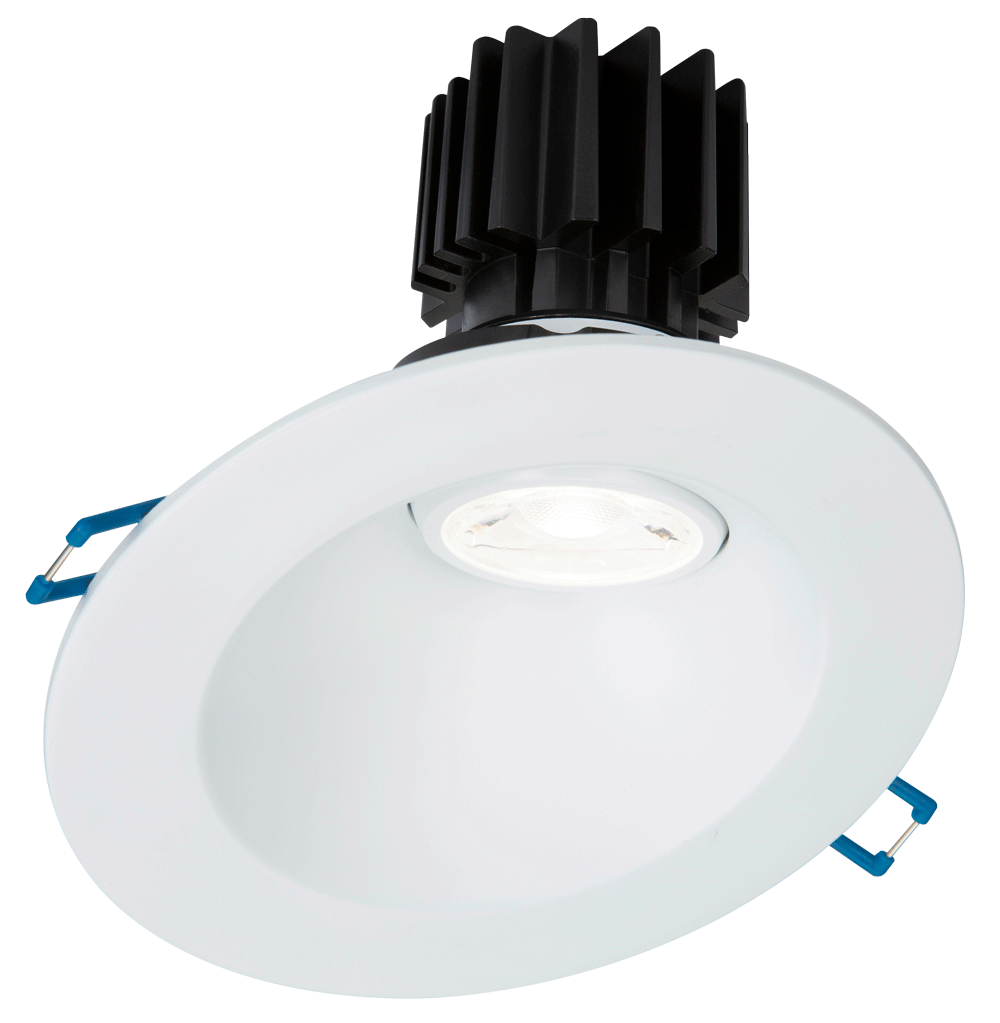

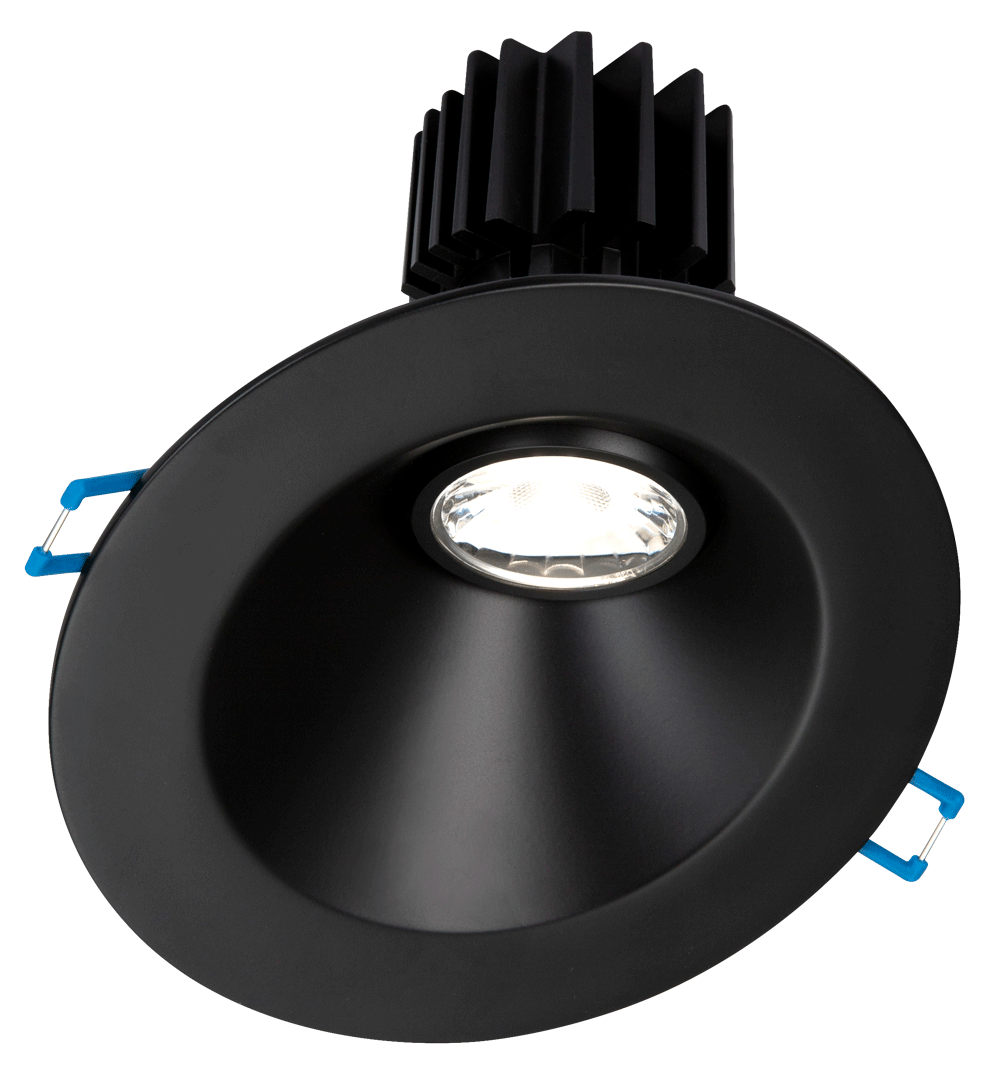

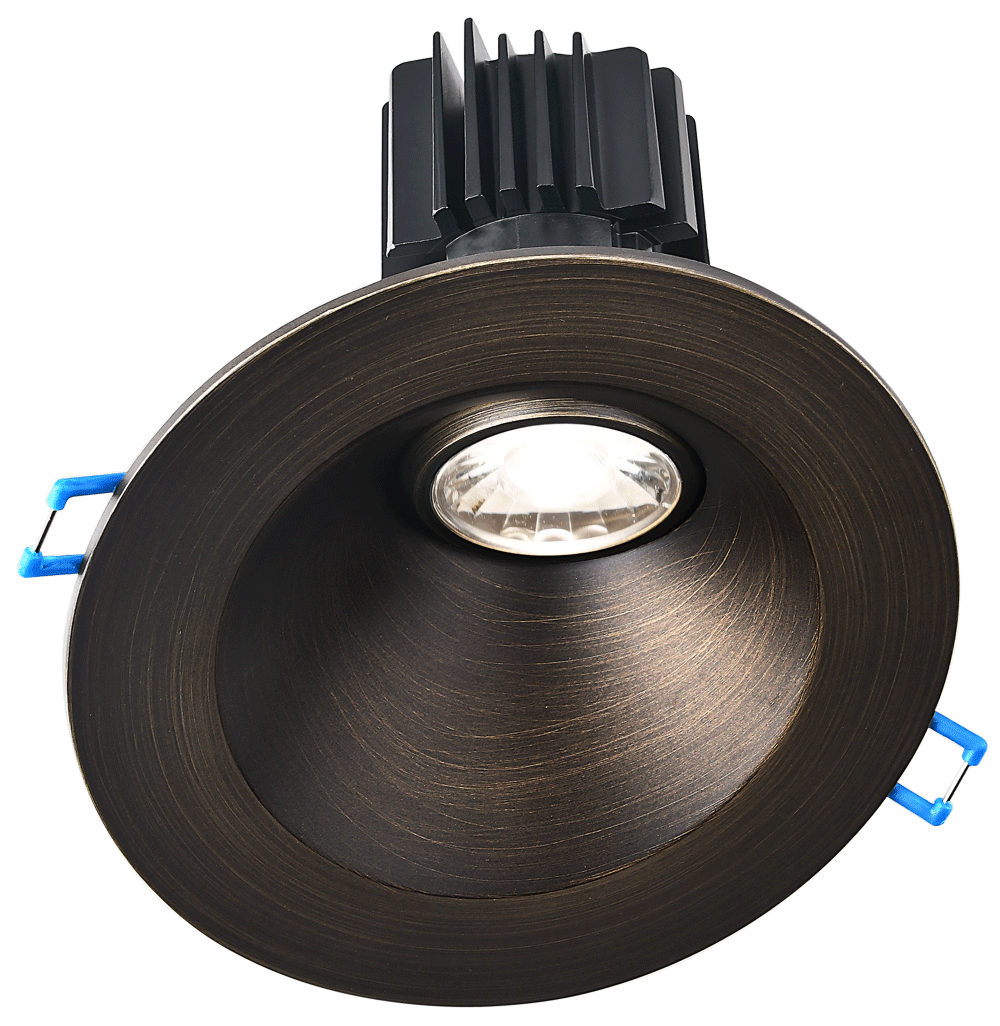

Lotus 4" Round Sloped Regressed Gimbal LED High Output 11W | LRG3-HO-4RSL

Overview

The Lotus LED 4" Round Sloped Regressed Gimbal High Output is an architectural-spec recessed lighting solution specifically engineered for sloped ceilings and wall-washing applications. This 11W fixture features a patented 30° sloped trim that allows for seamless integration into ceiling pitches ranging from 5° to 55° without requiring a bulky traditional housing.

Key Features

• Sloped Ceiling Specialist: Engineered with a 30° sloped trim and a gimbal providing 20° tilt and 360° rotation for precise light placement.
• IC Rated & Air-Tight: Certified for direct contact with insulation, simplifying installation for residential and commercial recessed lighting projects.
• Color Flexibility: Available in 5CCT user-selectable (2700K to 5000K) or Dim to Warm (3000K to 1800K) to match any design aesthetic.
• High-Performance Output: Delivers up to 1060 lumens, serving as a powerful 90W halogen equivalent from a compact 4" aperture.
• Contractor-Friendly Design: Features an integrated driver inside the connection box, fitting into restricted 3 1/2" ceiling clearances.

Technical Specifications

• Energy Used: 11W
• Light Output: 770 to 1060 lumens
• Halogen Equivalent: 90W
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Beam Angle: 38° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Aperture/Dimensions: ID 4 1/2", OD 5 3/4"
• Cut-Out: 4 1/2" to 5" Round Hole
• Ceiling Clearance: 3 1/2"
• IP Rating: IP 54 (Wet Location Rated)
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus, Type IC
• Warranty: 10 Year Residential / 5 Year Commercial
