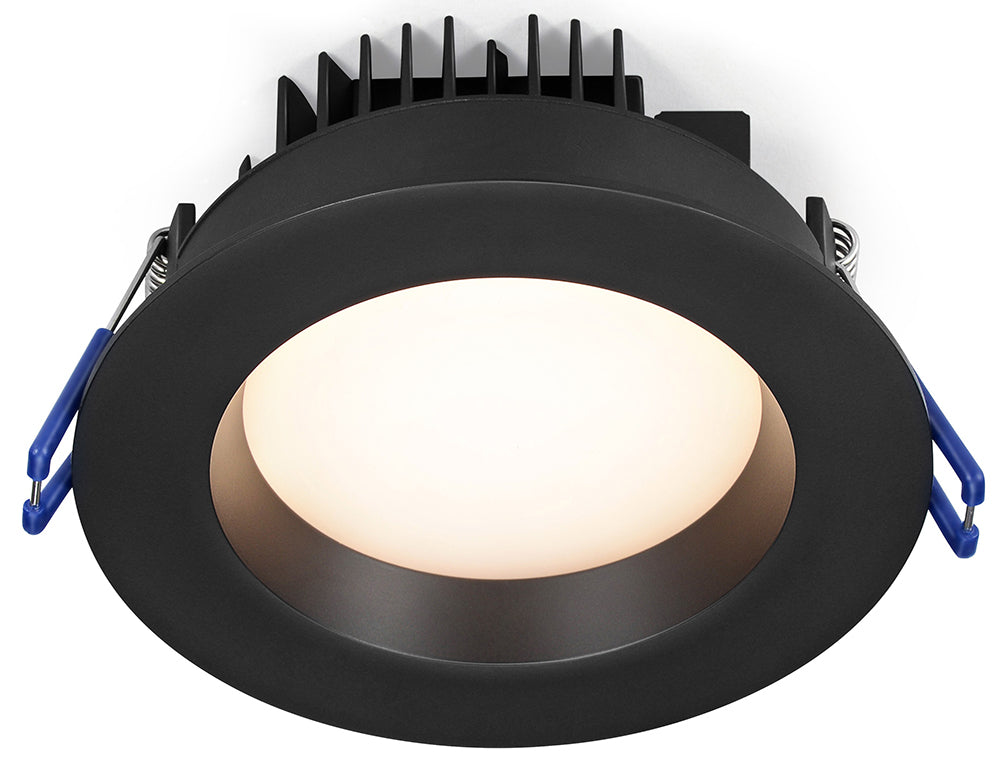

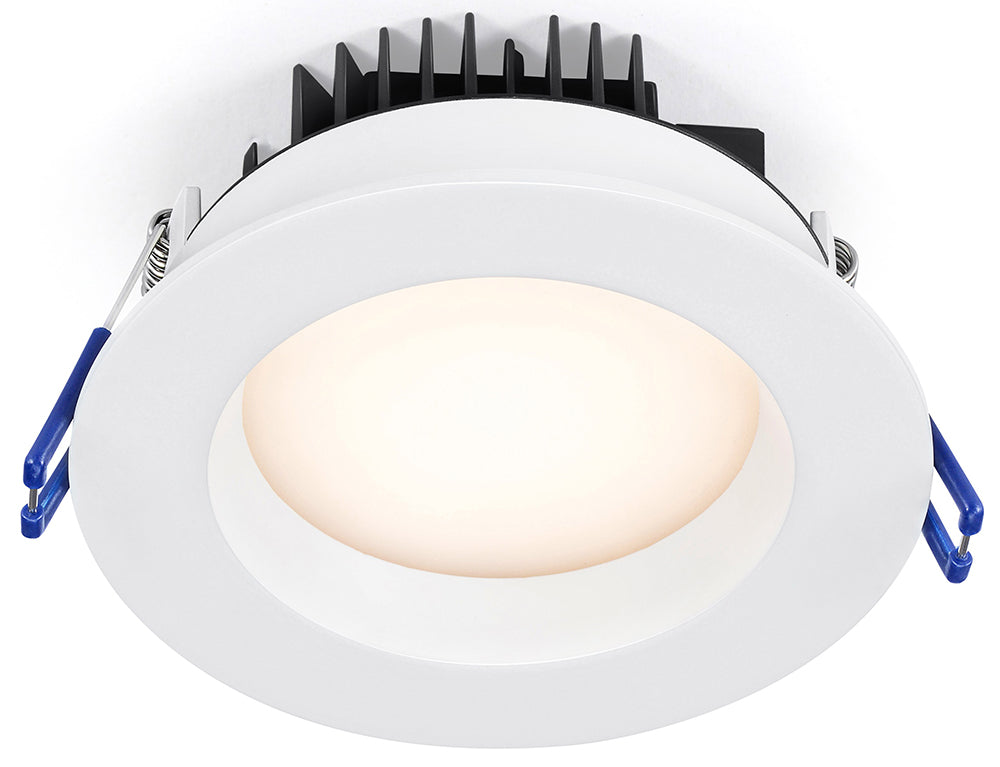

Lotus 4" Round Regressed Open Plenum LED 14.5W | LL4RR
Lotus 4" Round Regressed Open Plenum LED 14.5W | LL4RR
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LL4RR-30K-WH
MPN: LL4RR-30K-WH
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED 4" Round Regressed Open Plenum LED is an architectural-spec recessed lighting solution designed for high-performance commercial and residential applications. Featuring a deep regressed design to minimize glare, this 14.5W fixture is specifically engineered with armored cable and metal connectors to meet open plenum building codes. Its ultra-slim 2" depth allows for seamless installation in restricted ceiling cavities without the requirement of a traditional housing.
Key Features
- Open Plenum Rated: Equipped with armored cable and metal connectors, making it suitable for strict commercial installations.
- Architectural Glare Reduction: The regressed lens design provides a clean aesthetic while significantly reducing visual glare in professional environments.
- IC Rated & Air-Tight: Contractor-grade construction is certified for direct contact with insulation and provides an air-tight seal for superior energy efficiency.
- Simplified Installation: Features an integrated driver inside the connection box with quick connectors, eliminating the need for a separate junction box and saving on labor costs.
- High-Fidelity Light: Delivers a high 90+ CRI for true color rendering, available in single CCT or 5CCT user-selectable options.
Technical Specifications
- Energy Used: 14.5W
- Light Output: 950 lm (2700K), 1000 lm (3000K), 1020 lm (4000K), 990 lm (5CCT)
- Halogen Equivalent: 90W
- Color Temperature: 2700K, 3000K, 4000K, or 5CCT Selectable (2700K to 5000K)
- Beam Angle: 90° to 100°
- CRI: 90+
- Input Voltage: 120V AC Triac Dimmable (Optional 277V-347V AC)
- Power Factor: 0.99
- Aperture/Dimensions: ID 4", OD 5" to 5 1/4", Depth 2"
- Cut-Out: 4" to 4 1/4"
- Ceiling Clearance: 2"
- IP Rating: IP 54 (Wet Location Rated)
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus, Energy Star, T24, Type IC
- Warranty: 10 Year Residential / 5 Year Commercial
