Lotus 4" Round Ultimate Super Thin Recessed LED 13.5W | LL4R

Overview

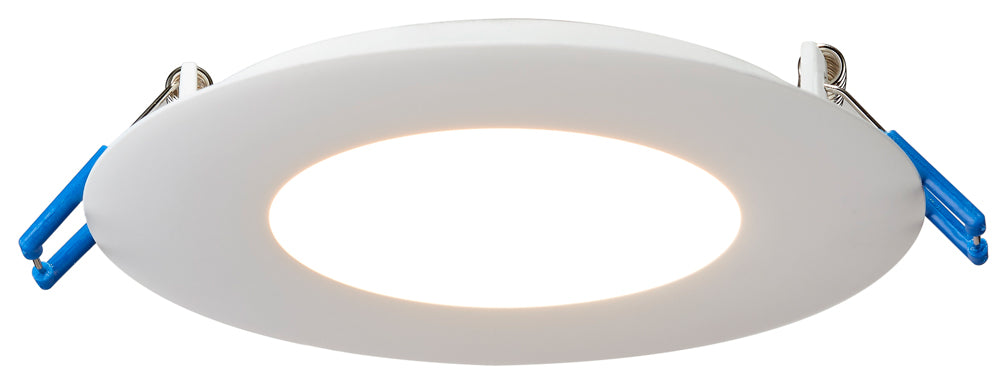

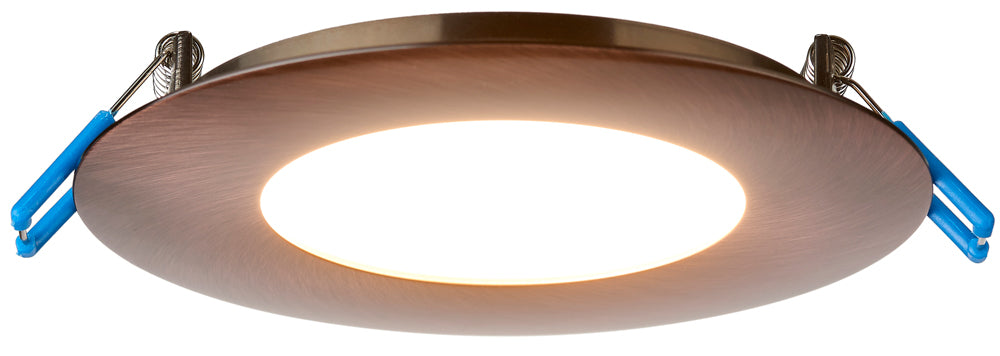

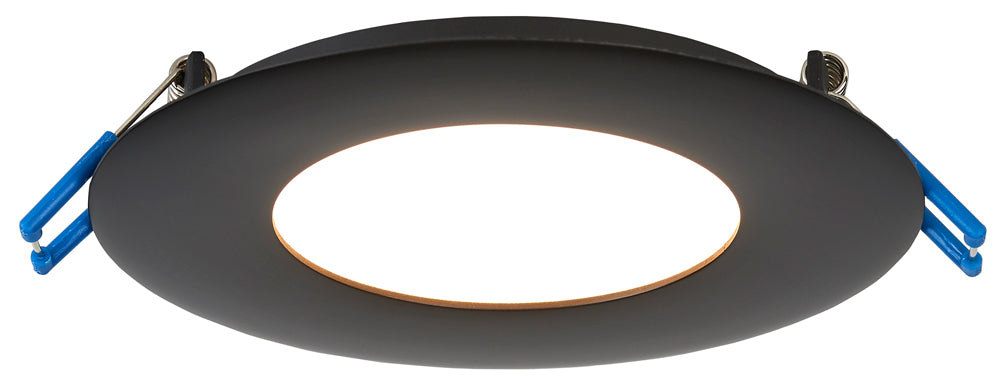

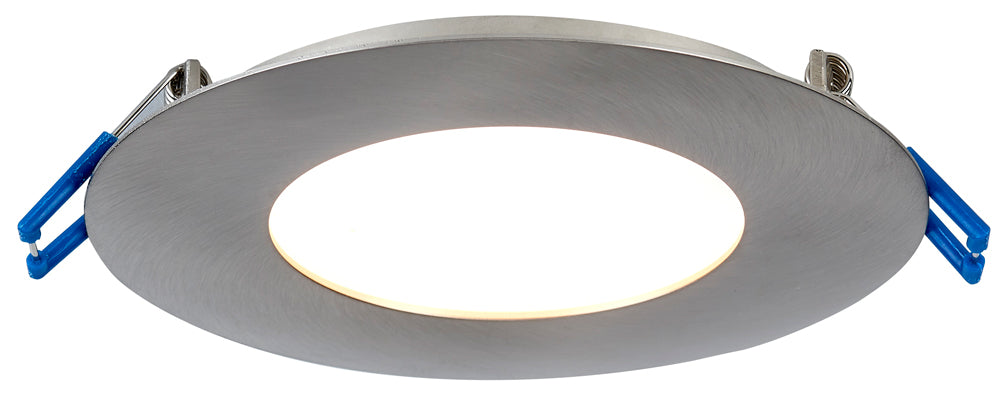

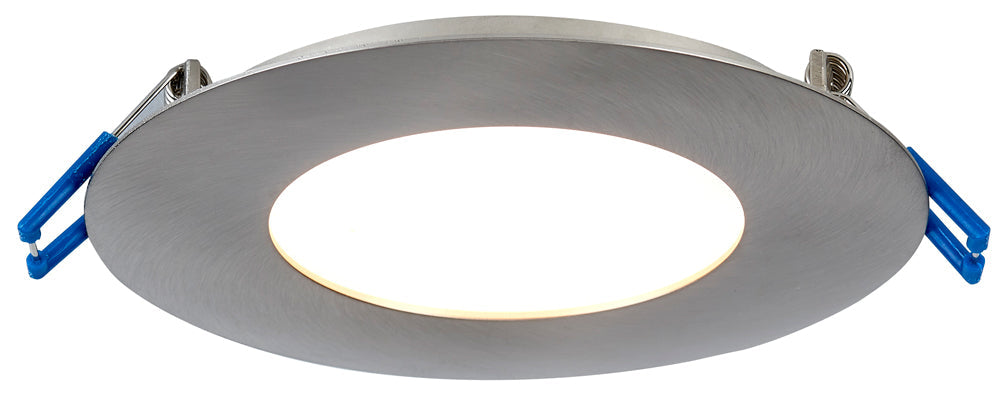

The Lotus LED 4" Round Ultimate Super Thin Recessed LED is an architectural-spec lighting solution designed for maximum layout flexibility with a ultra-low profile of only 1/2" depth. This 13.5W fixture features an integral driver inside a connection box, allowing it to fit in tight plenums where traditional recessed lighting cannot, including installations directly under ceiling joists. It is engineered for a wide range of applications including recessed ceilings, showers, and outdoor soffits.

Key Features

• Ultra-Slim Design: At only 1/2" deep, this fixture can be installed directly under joists for maximum layout flexibility.
• IC Rated: Certified for direct contact with insulation, eliminating the need for a separate recessed housing.
• Contractor-Grade Installation: Features a wider trim to cover old 4" holes and a driver-inside-connection-box design for fast and easy setup.
• Wet Location Rated: IP 54 and air-tight certified, making it suitable for high-moisture environments such as showers and soffits.
• Dimmable Performance: Standard 120V Triac dimming with a CRI 90+ rating for superior color rendering and lighting control.

Technical Specifications

• Energy Used: 13.5W
• Light Output: 750 to 850 lumens (depending on CCT)
• Halogen Equivalent: 75W
• Color Temperature: 2700K, 3000K, 4000K, 5000K, or Dim to Warm (2800K-2000K / 3500K-2000K)
• Beam Angle: 110°
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Power Factor: 0.95
• Approved Location: Insulated Ceiling & Wet Locations
• IP Rating: IP 54
• Air Tight: Yes
• Dimensions: ID 4 1/8", OD 5 1/4"
• Cut-Out: 4 1/4" to 4 1/2"
• Ceiling Clearance: 2 1/2" (required for driver)
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
