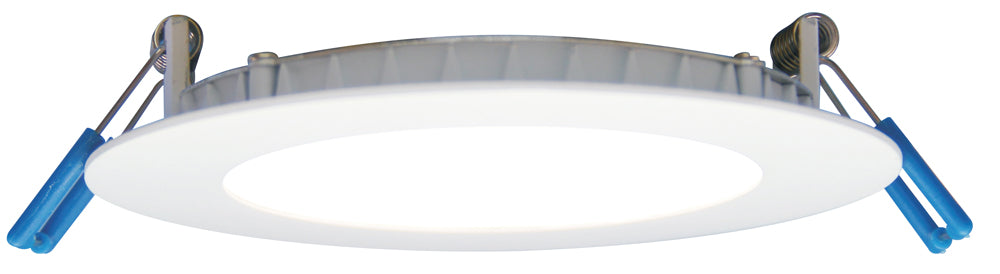

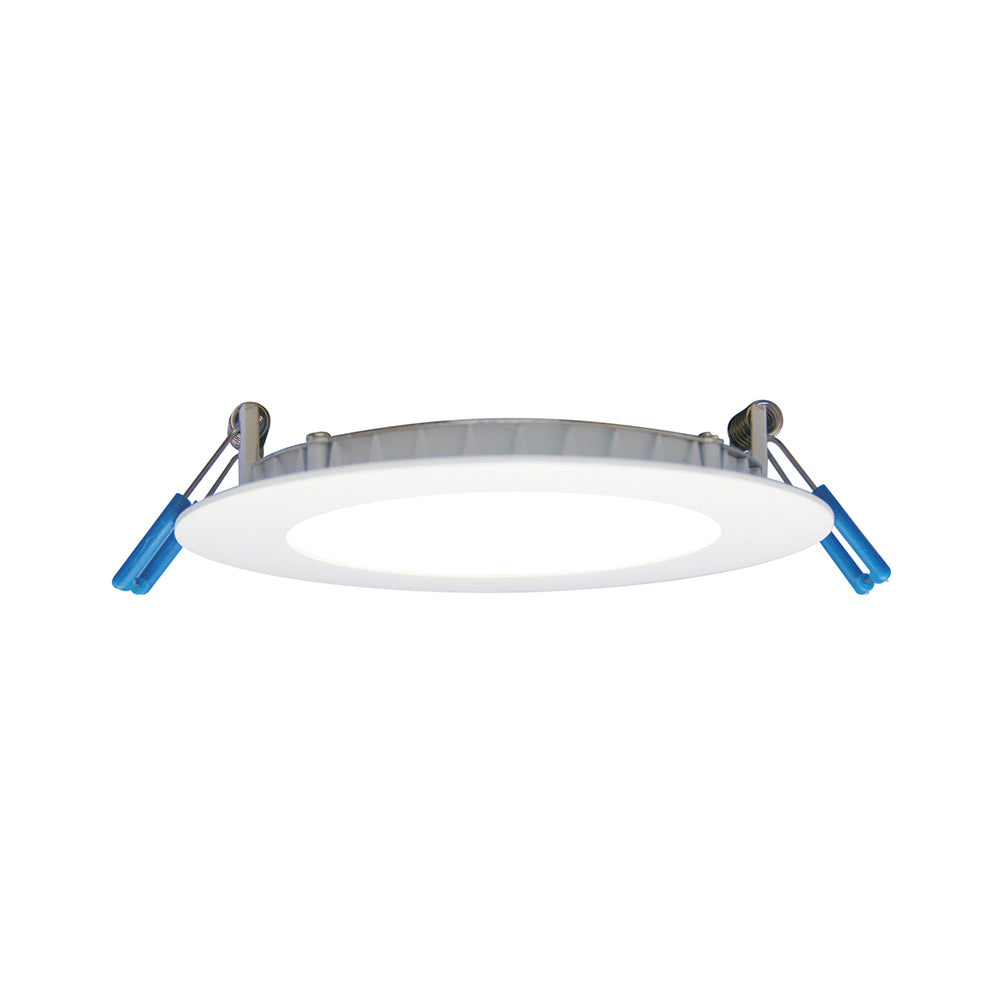

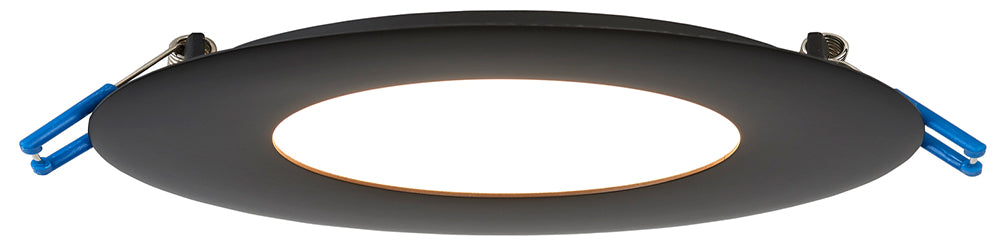

Lotus LE4R-5CCT 4" Round Super Thin Economy LED
Description: 11W Ultra-Slim Recessed Downlight with 5-CCT Selection. Designed for applications where ceiling space is extremely limited; fits directly under joists with only 1/2" thickness.
Product Overview
The Lotus LE4R-5CCT is an 11-watt economy-grade LED fixture featuring a super-thin profile that requires no recessed housing. At only 1/2 inch thick, it is the ideal solution for tight plenums and can be installed directly under ceiling joists. It includes a 5-CCT selectable switch on the connection box, allowing a choice between 2700K, 3000K, 3500K, 4000K, and 5000K. This fixture is IC-rated, air-tight, and suitable for wet locations, including showers and soffits.
Key Features
- Super Thin Profile: Only 1/2" thick—fits where traditional lights cannot.
- 5-CCT Selectable: Toggle between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Fast Installation: No housing required; snap-in spring clips and integral driver box included.
- Versatile Rating: Type IC for direct contact with insulation and Wet Location rated.
- High Color Quality: 90+ CRI for vibrant and accurate color rendering.
Technical Specifications
| Power Consumption | 11 Watts |
| Lumen Output | 680 lm (2700K) | 720 lm (3000K) | 770 lm (3500K) | 780 lm (4000K) | 760 lm (5000K) |
| Color Temperature (CCT) | User Selectable: 2700K, 3000K, 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | 90+ |
| Beam Angle | 110° (General Diffused) |
| Input Voltage | 120V AC Standard |
| Dimming | 120V Triac (Forward Phase). Optional 0-10V dimming (120V-347V) available. |
| Environmental Ratings | Type IC, Air-Tight, Wet Location / IP54 |
| Operating Temperature | -40°F to +104°F (-40°C to +40°C) |
| Projected Lifespan | 36,000 Hours (L70) |
| Certifications | cULus Listed |
| Warranty | 5-Year Limited Warranty |
Dimensions & Mounting
| Ceiling Cutout | 4" to 4 1/4" |
| Outer Diameter (OD) | 4 7/8" |
| Inner Diameter (ID) | 4" |
| Fixture Thickness | 1/2" |
| Connection Box Dimensions | 3 3/4" (L) x 3 3/8" (W) x 1 1/2" (H) |
| Mounting Method | Snap-in installation with attached heavy-duty spring clips. |
