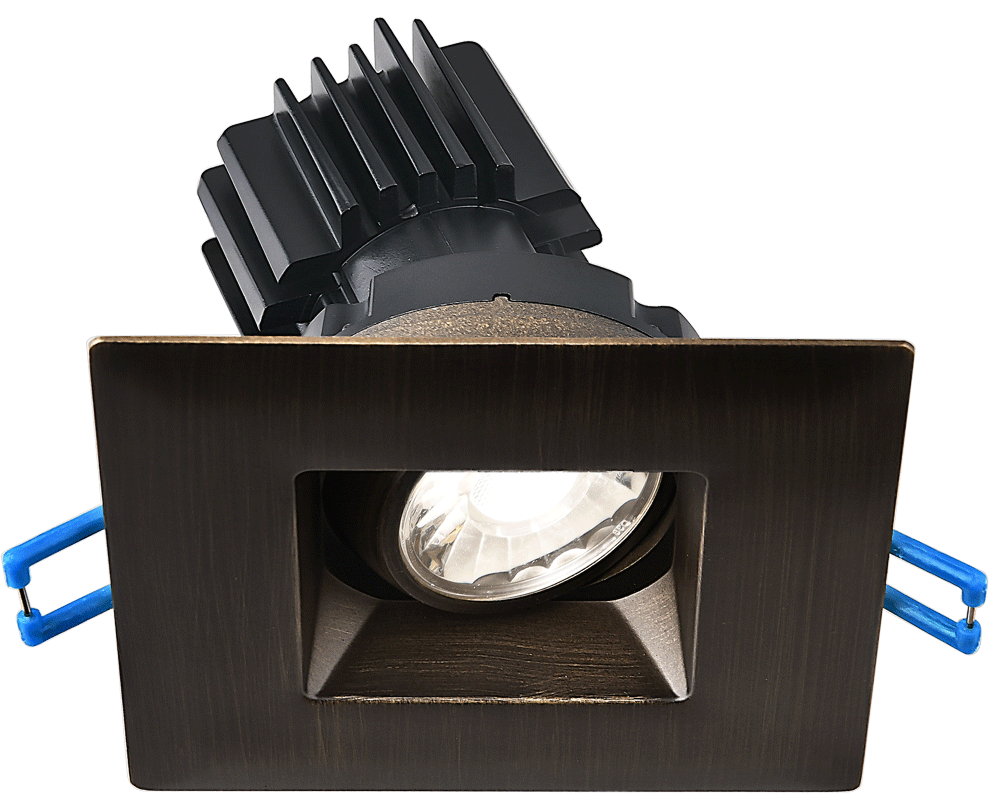

Lotus 3" Square Regressed Gimbal LED High Output 11W | LSG3-HO

Overview

The Lotus LED 3" Square Regressed Gimbal High Output is an architectural-spec recessed lighting solution engineered for high-ceiling applications and precision accent lighting. Featuring a regressed design for superior glare control, this 11W fixture provides a powerful directional beam with 20° tilt and 360° rotation. Its IC Rated and air-tight construction allows for installation in direct contact with insulation without the requirement for a traditional recessed housing.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the need for bulky housings or separate junction boxes.
• Contractor-Grade Performance: High-output 11W LED delivers up to 1040 lumens, serving as a 90W halogen equivalent for powerful architectural illumination.
• Superior Glare Control: Deep regressed optic minimizes visual glare while providing high-quality, directional light.
• Wet Location Rated: IP certified and air-tight, making this fixture suitable for showers, bathrooms, and outdoor soffit installations.

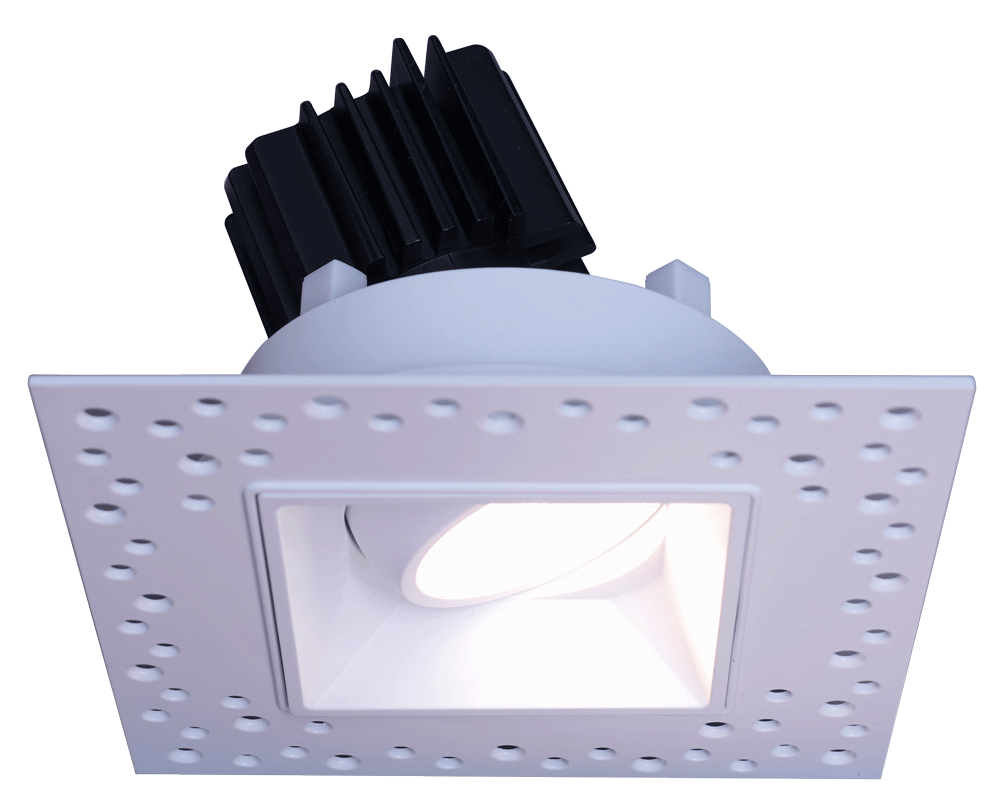

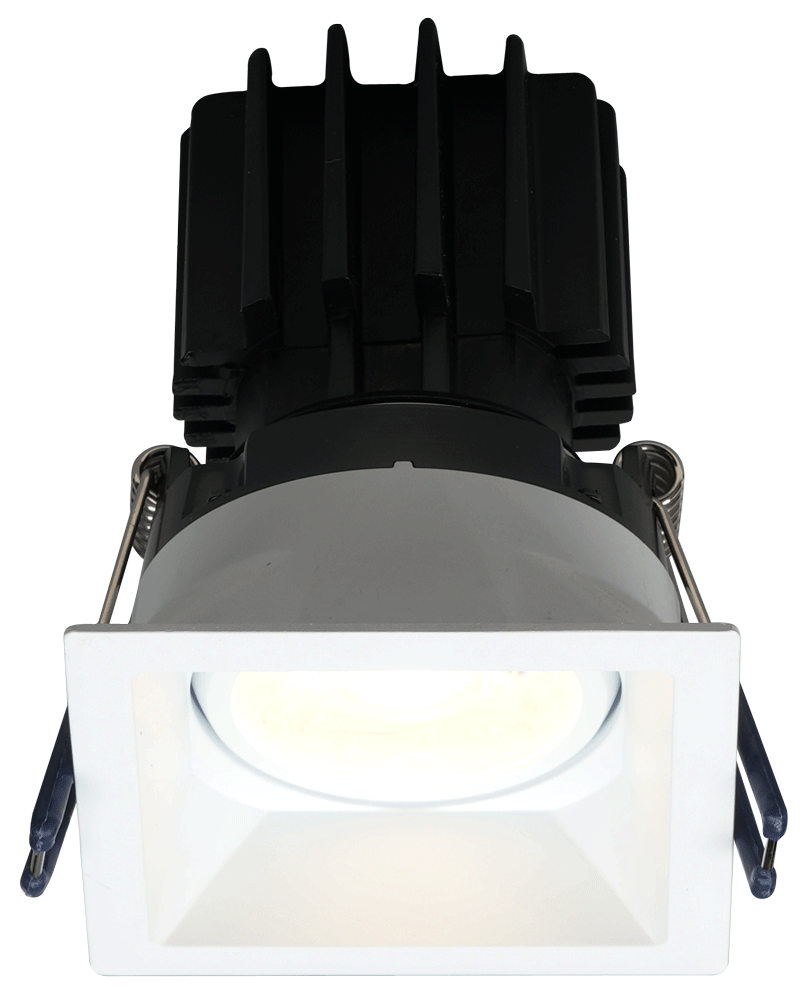

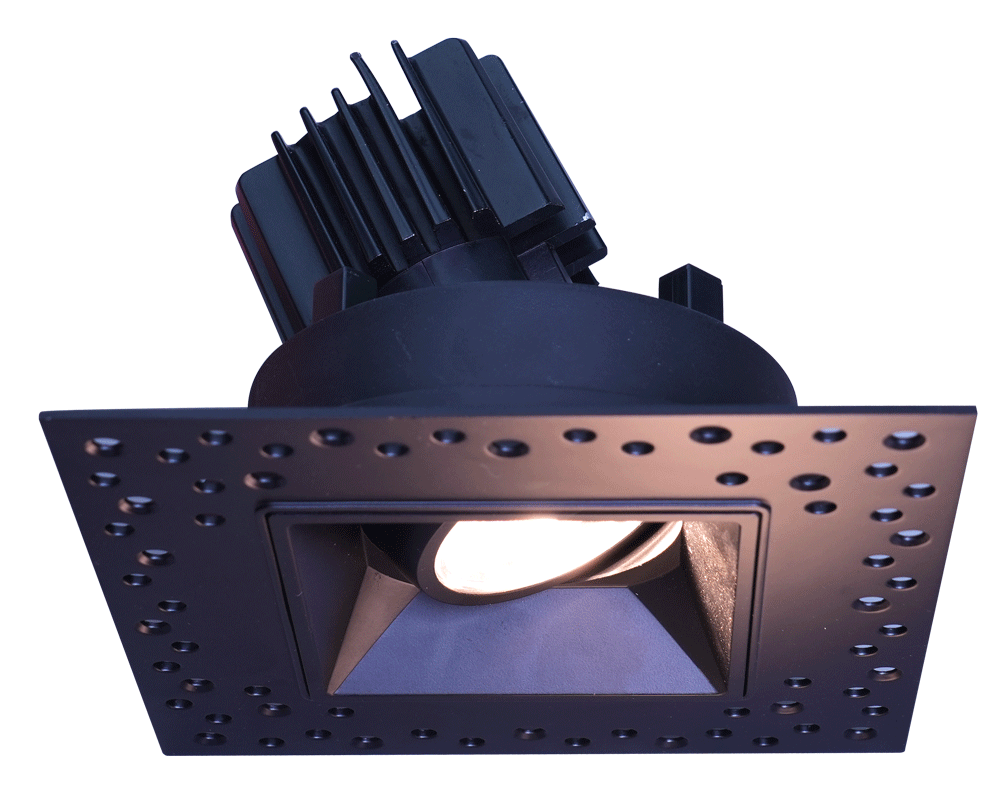

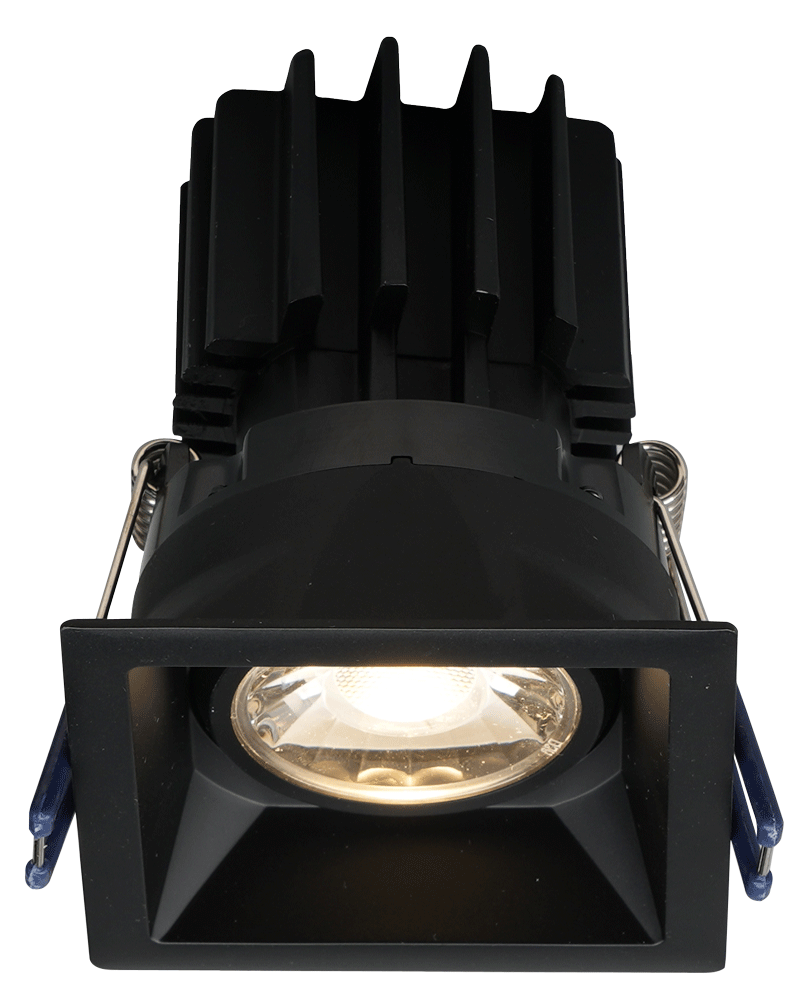

• Architectural Versatility: Available in standard, thin trim (TT), and invisible trimless (IT) options to meet various contemporary design requirements.

Technical Specifications

• Energy Used: 11W
• Light Output: 840 to 1040 lumens (760 lumens for Dim to Warm)
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K to 1800K)
• Beam Angle: 38° beam with 20° tilt and 360° rotation
• CRI: 90+
• Default Driver Input: 120V AC, Triac Dimmable
• Optional Driver Input: 120V-347V AC, 0-10V Dimmable
• Aperture/Dimensions: ID 3 1/4"; OD 4 1/4" Square (Standard)
• Cut-Out: 3 1/4" to 3 1/2"
• Ceiling Clearance: 2 1/2" to 4" depending on installation type
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Title 24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
