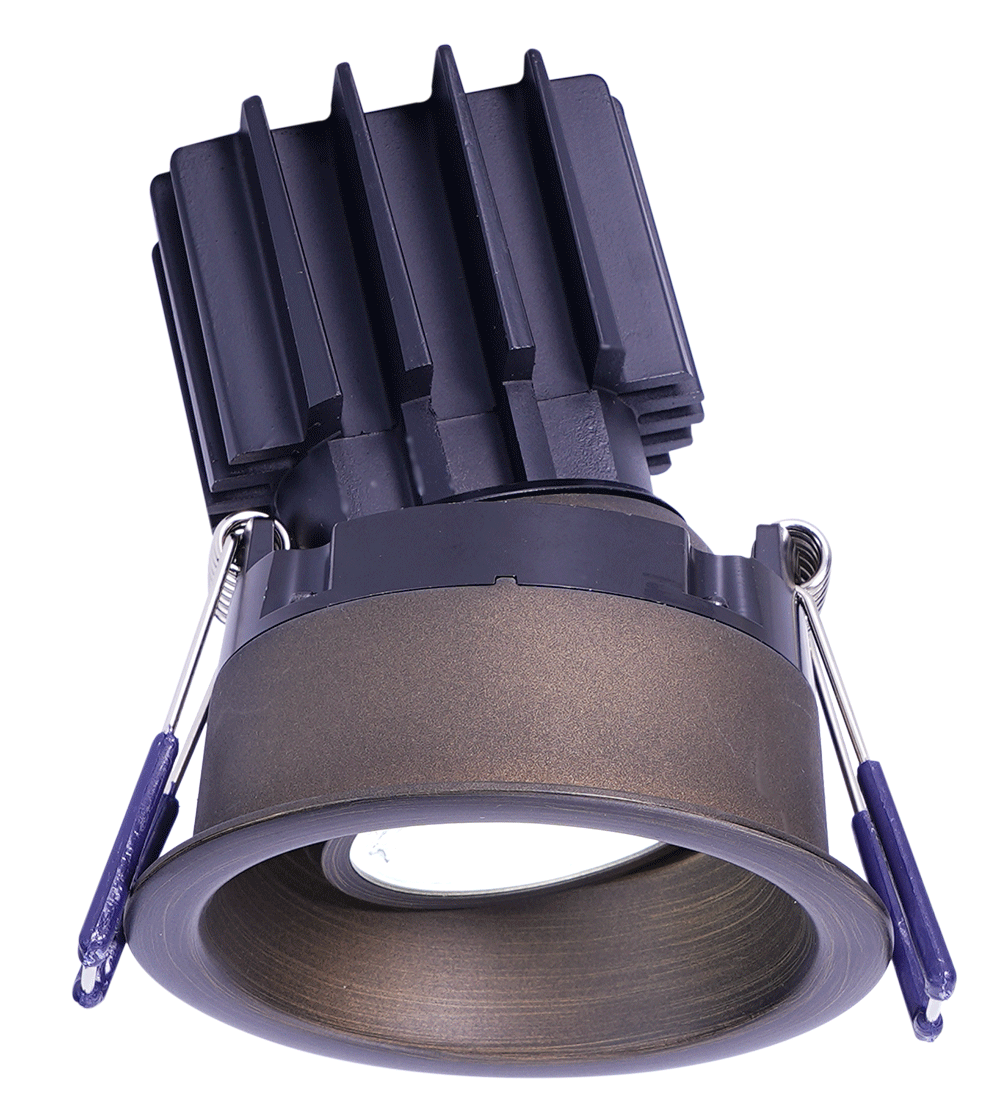

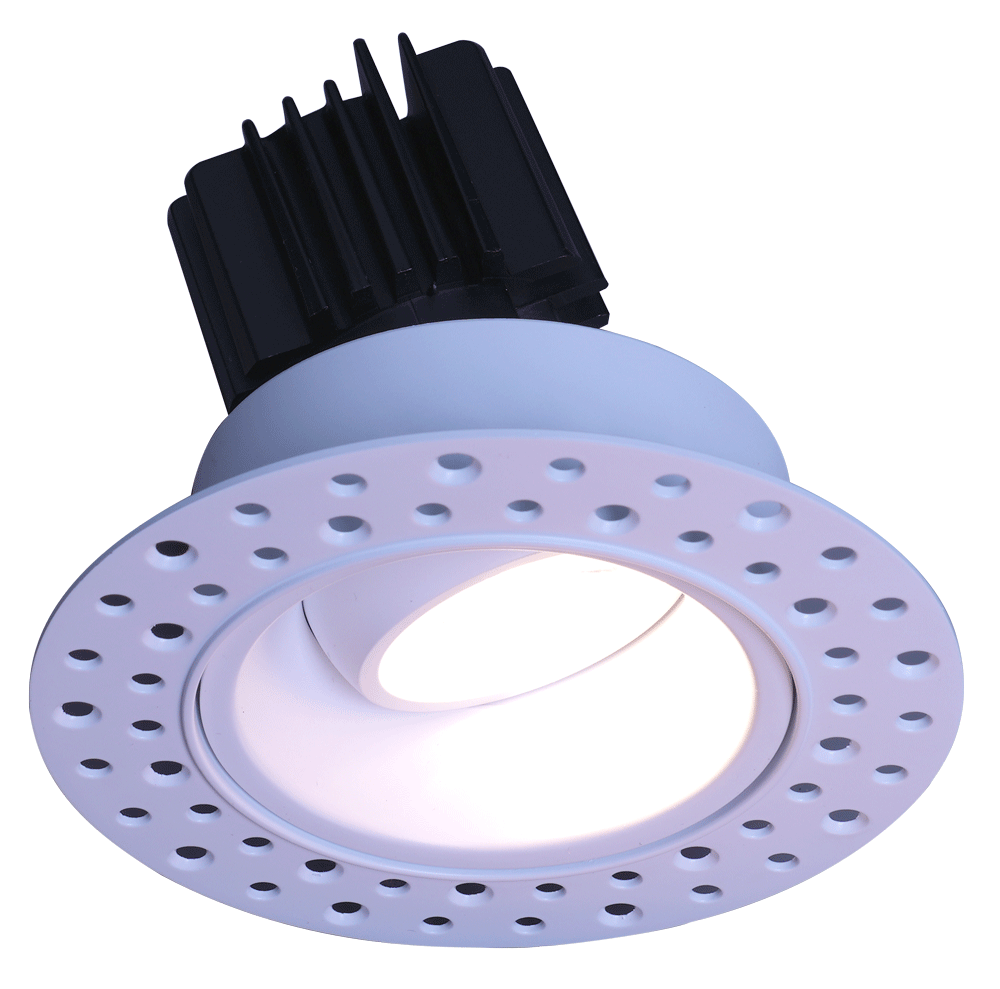

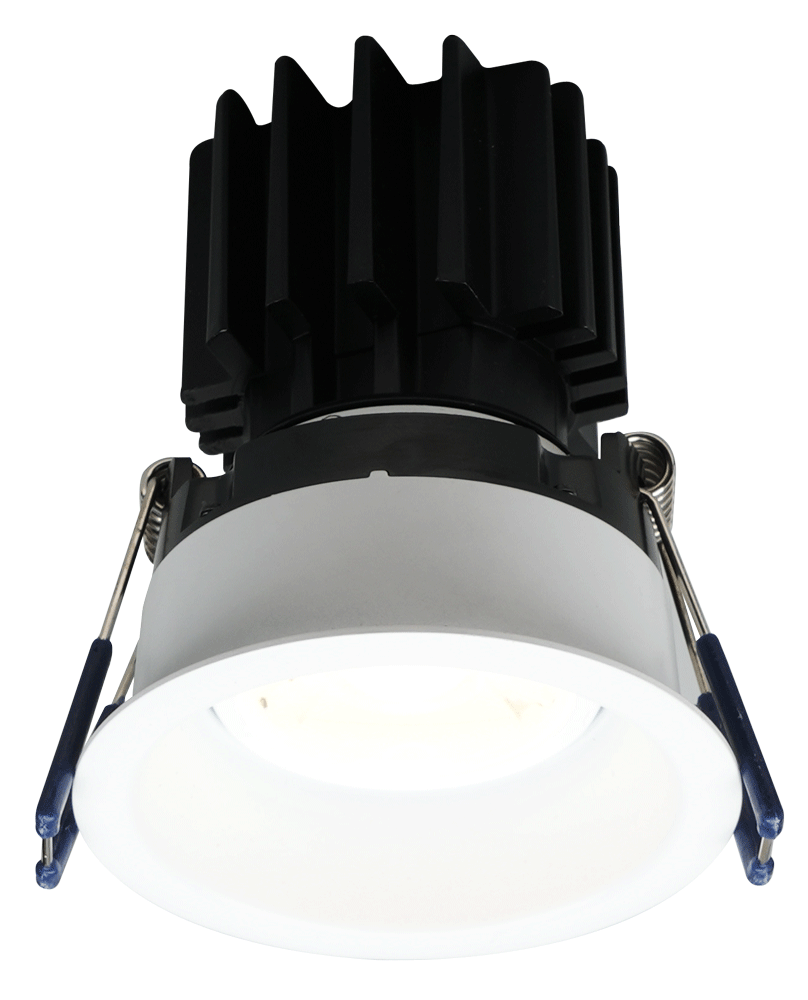

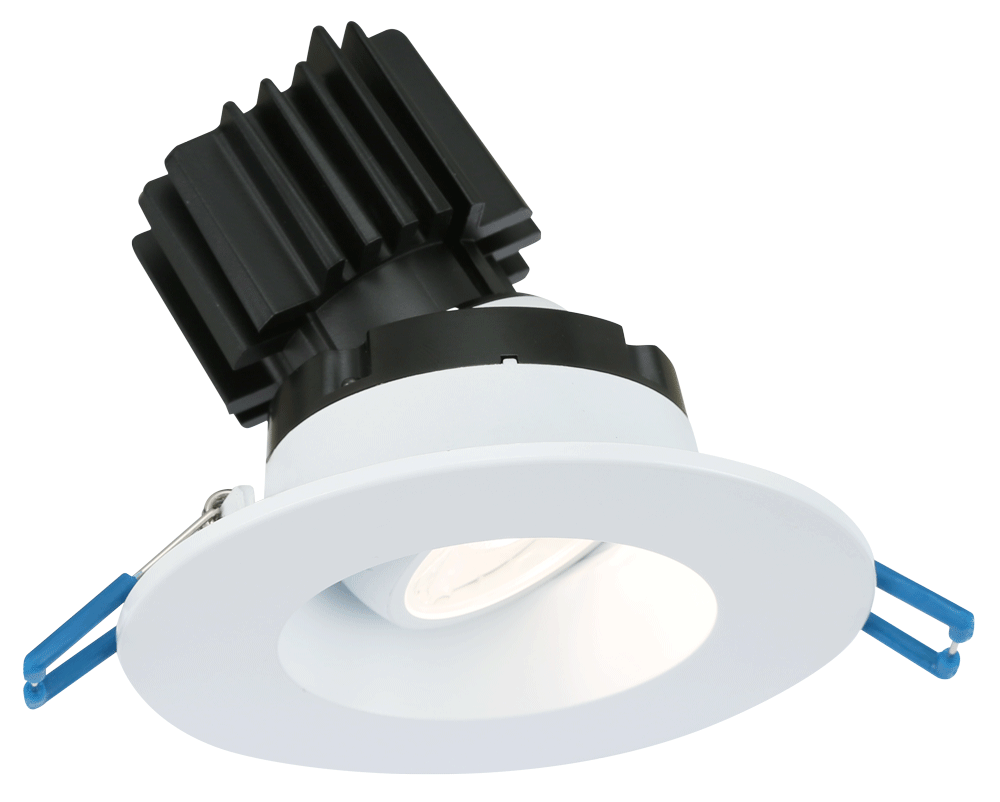

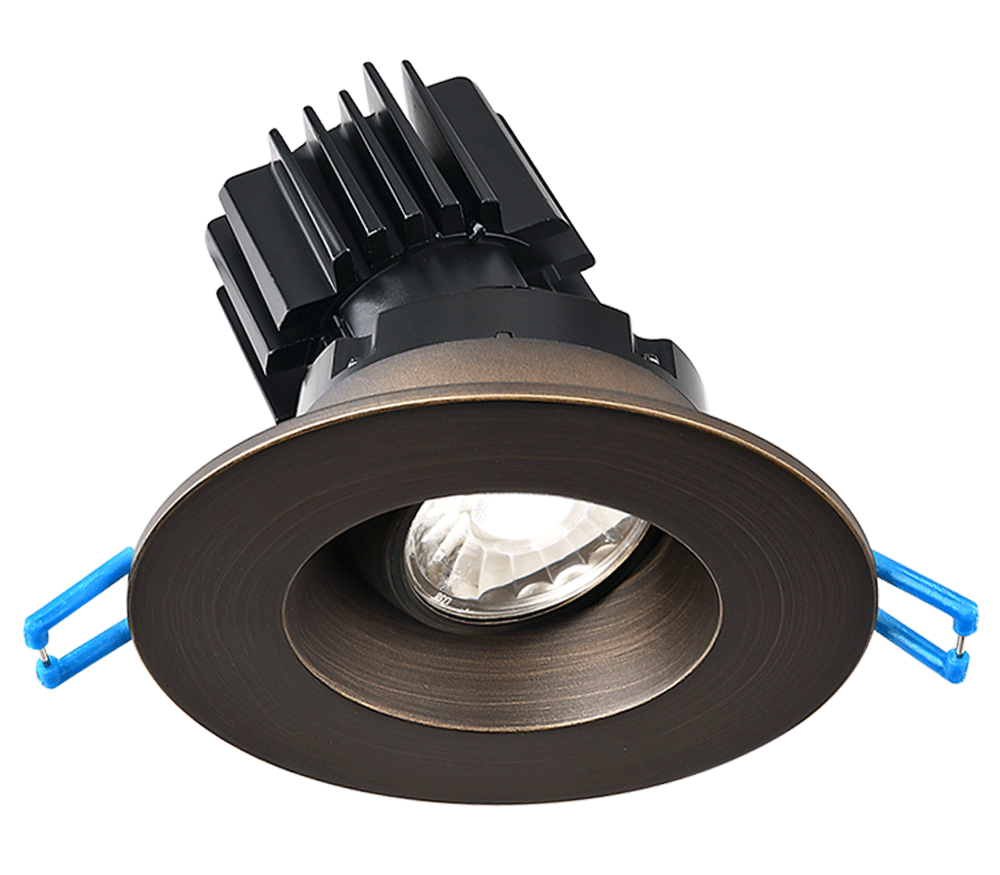

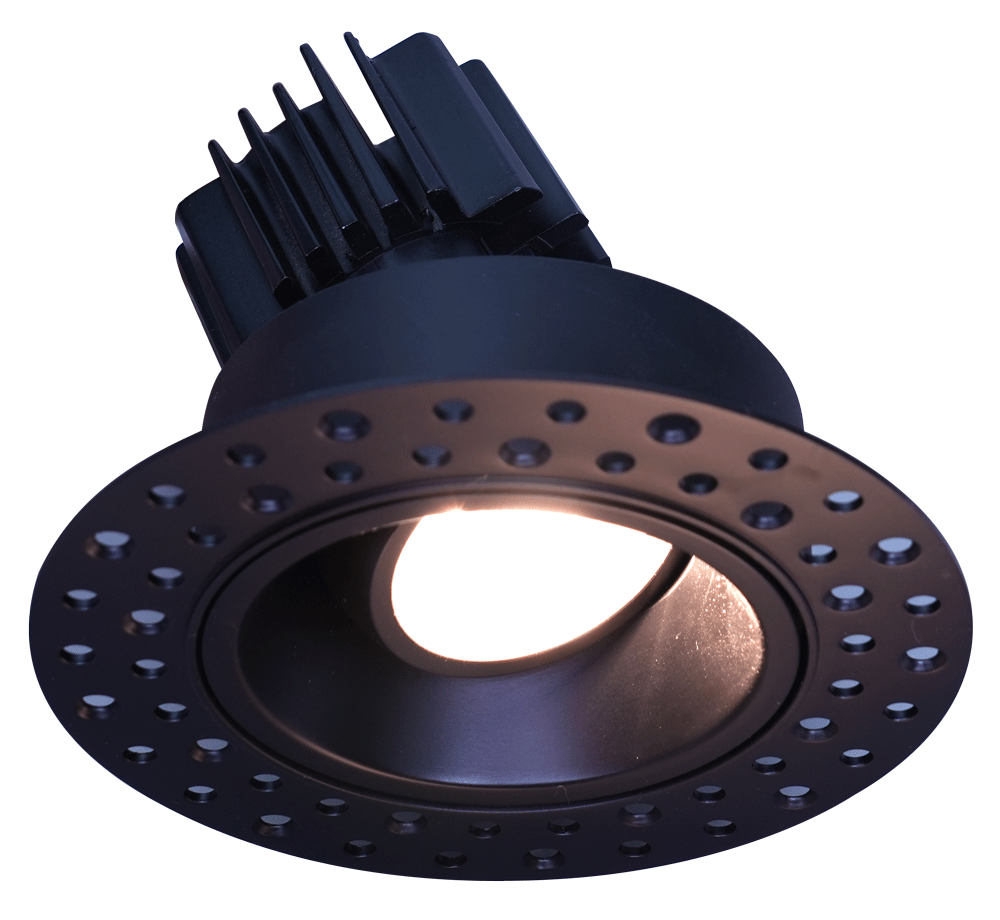

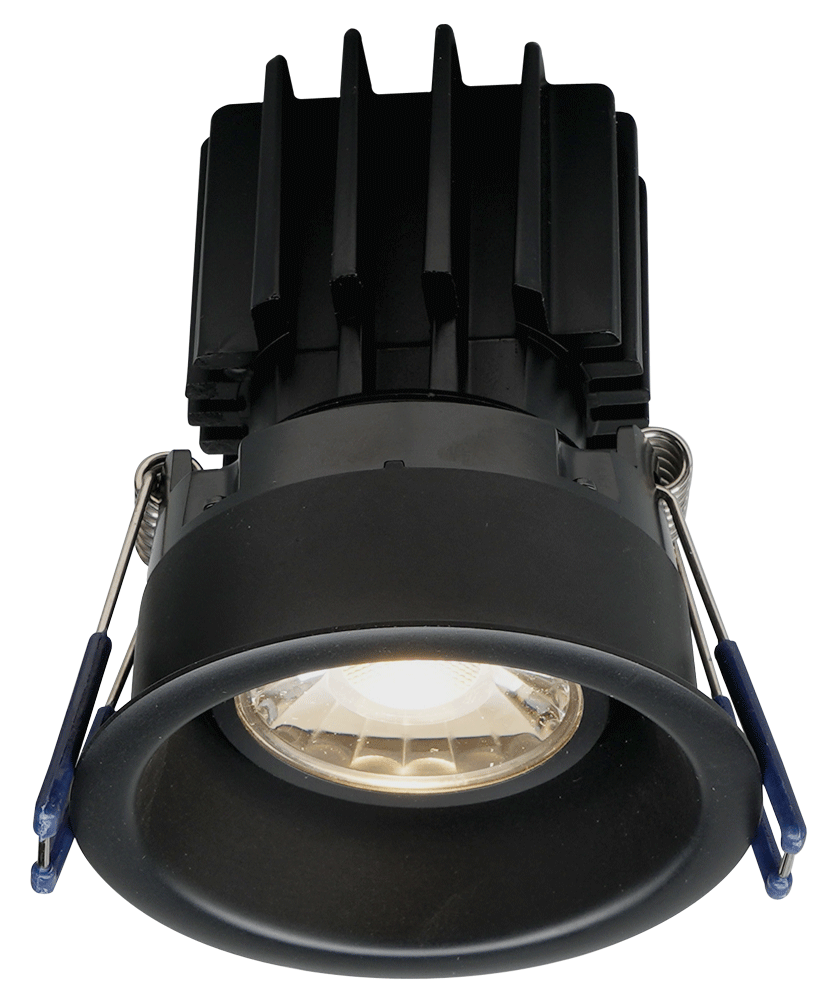

Lotus 3" Round Regressed Gimbal LED High Output 11W | LRG3-HO
Lotus 3" Round Regressed Gimbal LED High Output 11W | LRG3-HO
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LRG3-3018K-HO-WH
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED 3" Round Regressed Gimbal High Output is an architectural-spec recessed lighting solution engineered for high-ceiling applications and precision accent lighting. This 11W fixture features a deep regressed design for superior glare reduction and a directional eyeball gimbal with 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork.
Key Features
- IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
- High Output Performance: 11W LED delivers up to 1060 lumens, providing a powerful 90W halogen equivalent for commercial and residential spaces.
- Architectural Glare Control: The regressed optic design minimizes visual glare while maintaining high-quality illumination.
- Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for showers, bathrooms, and protected outdoor soffits.
- Contractor-Grade Installation: Integrated driver inside the connection box simplifies wiring and allows for fast setup in restricted ceiling spaces.
Technical Specifications
- Energy Used: 11W
- Light Output: 770 to 1060 lumens (depending on CCT/DTW)
- Halogen Equivalent: 90W
- Color Temperature: 3018K (Dim to Warm 3000K-1800K) or 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
- Beam Angle: 38° with 20° tilt and 360° rotation
- CRI: 90+
- Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
- Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
- Aperture/Dimensions: 3 1/4" ID, 4 1/4" OD (Standard trim)
- Thickness/Depth: 2 1/2" to 3 1/2" (depending on trim type)
- Cut-Out: 2 3/4" to 3 1/2" (depending on trim type)
- Ceiling Clearance: 2 1/2" to 4" (depending on trim type)
- IP Rating: IP 54
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certifications: cULus, Title 24, Type IC, Air-Tight
- Warranty: 10 Year Residential / 5 Year Commercial
