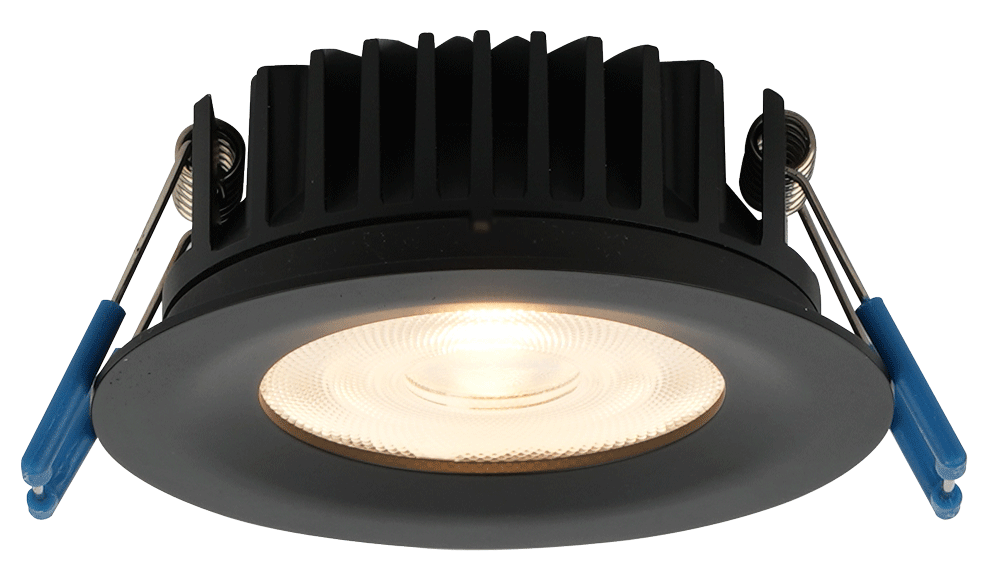

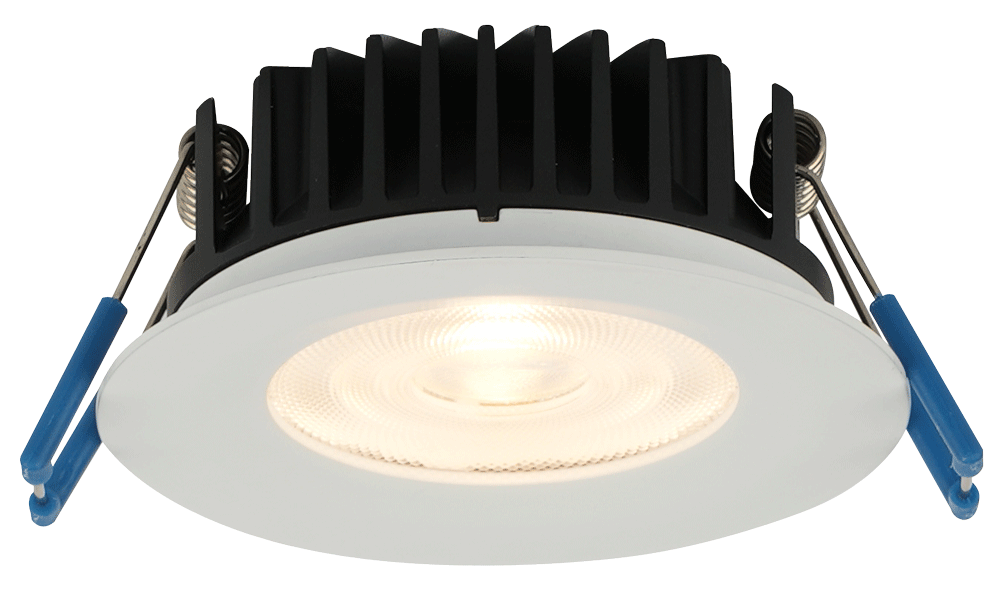

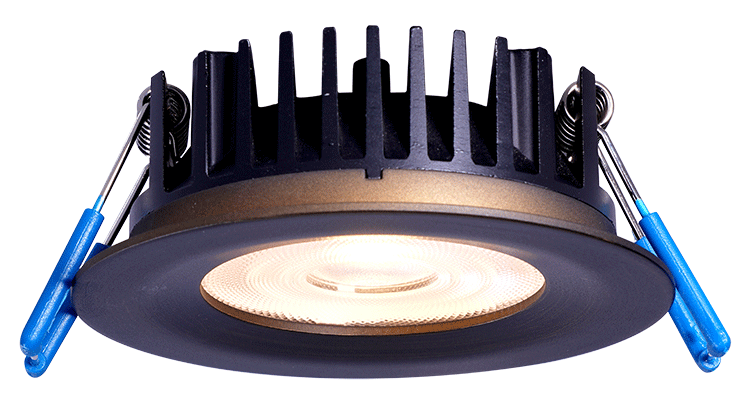

Lotus 3" Round Slim Recessed LED 11W | LL3R

Overview

The Lotus LED 3" Round Slim Recessed LED (Model LL3R) is a versatile 11W lighting solution designed for both renovation and new construction projects. Its ultra-slim 1 1/4" depth allows for installation in restricted ceiling spaces where traditional housings cannot fit. This fixture features an integral driver within a connection box, eliminating the need for a separate junction box and simplifying the installation process.

Key Features

• IC Rated: Approved for direct contact with insulation, requiring no bulky recessed housing for installation.
• Space-Saving Design: At only 1 1/4" deep, it is ideal for ceilings with limited clearance.
• Wet Location Rated: IP 54 certified and air-tight, making it suitable for high-moisture areas like showers, bathrooms, and outdoor soffits.
• Advanced Color Options: Available in 5CCT selectable (2700K to 5000K) or Dim to Warm (3000K to 1800K) versions.
• Contractor-Friendly Installation: Heavy-duty spring clips and a remote driver box allow for fast and easy setup in any ceiling type.

Technical Specifications

• Energy Used: 11W
• Light Output: 780 to 940 lumens (Dim to Warm version provides 900 lumens)
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K to 1800K)
• Beam Angle: 38° standard (custom 15°, 24°, and 60° options available)
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
• Dimensions: ID 2 7/8", OD 3 1/2", Depth 1 1/4"
• Cut-Out: 3"
• Ceiling Clearance: 3 1/2" required for driver fit
• IP Rating: IP 54
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
