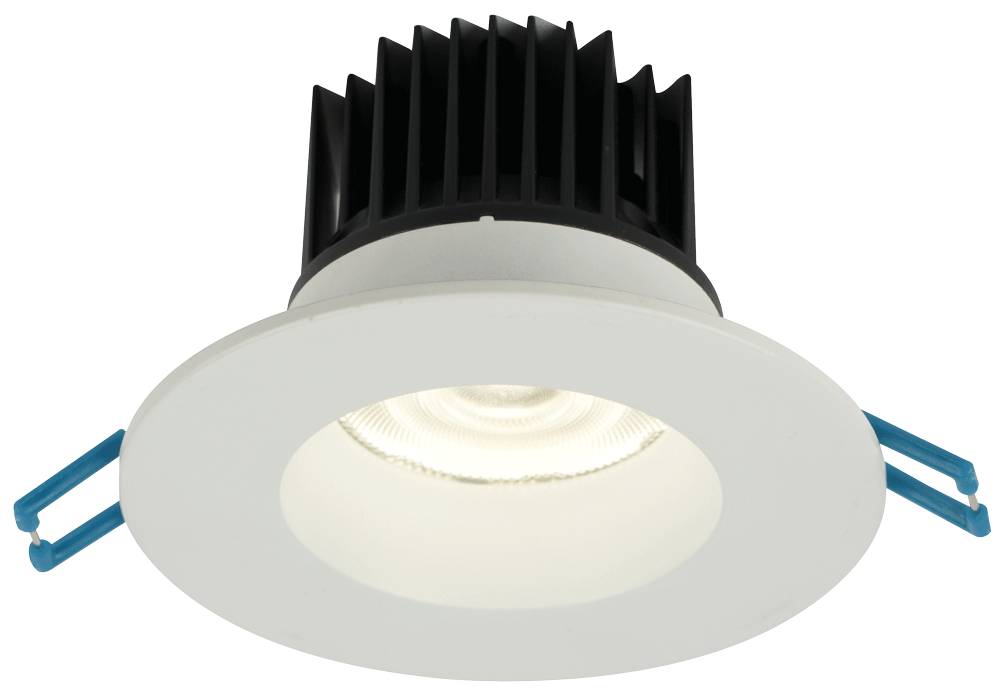

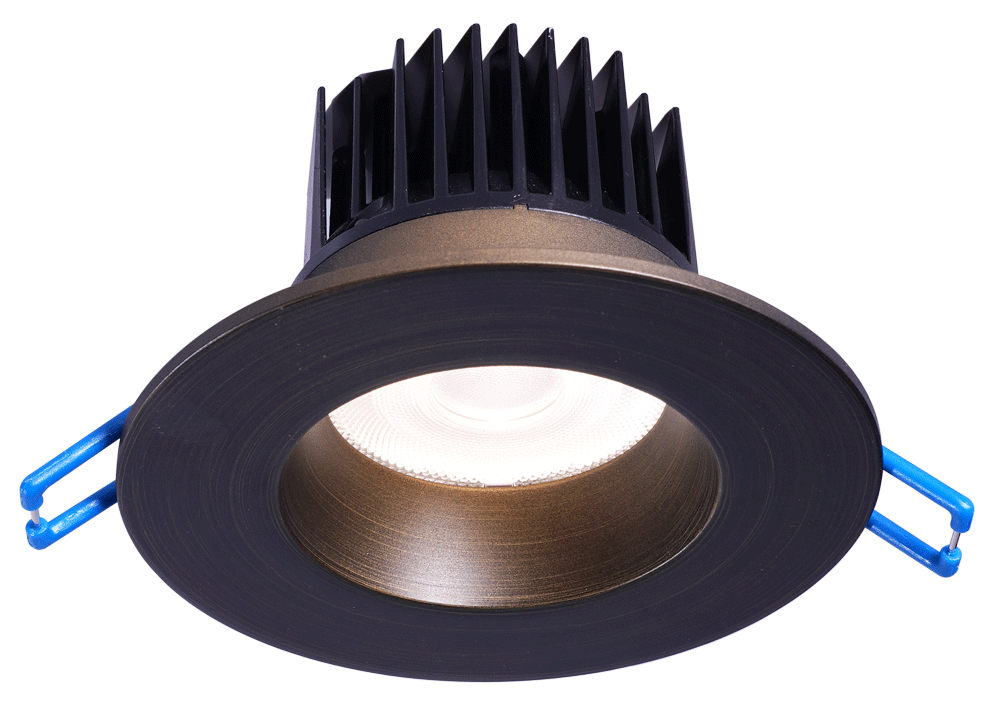

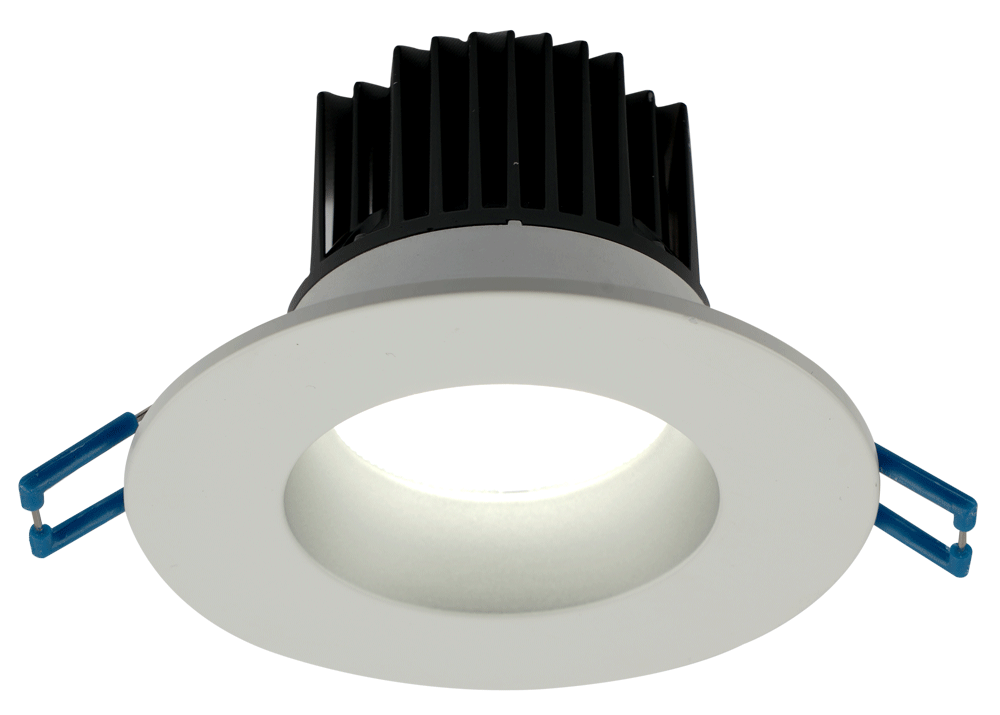

Lotus 3" Round Regressed LED 15W | LD3R

Overview

The Lotus LED 3" Round Regressed LED is an architectural-spec recessed lighting solution designed for commercial, residential, retail, and hospitality applications. Featuring a 3/4" regressed optic for significantly reduced glare, this high-output 15W fixture delivers up to 1450 lumens from a compact 3" aperture. Its 2 1/2" shallow profile allows for versatile installation in restricted ceiling spaces directly under joists.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: The 3/4" regressed design provides a 38° directional beam, ensuring superior visual comfort for high-end interiors.
• Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for high-moisture areas including showers and outdoor soffits.
• Contractor-Grade Power: Delivering 15W with a 120W halogen equivalent, this Lotus LED unit provides powerful illumination for high-ceiling applications.
• Dimmable Performance: Equipped with a standard Triac dimmable 120V AC driver, with optional 0-10V dimming available for 120V-347V systems.

Technical Specifications

• Energy Used: 15W
• Light Output: 1230 to 1450 lumens (depending on CCT)
• Halogen Equivalent: 120W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K to 1800K)
• Beam Angle: 38° standard (Custom 15°, 24°, and 60° options available)
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmability: Triac Dimmable (Default) or 0-10V (Optional)
• Aperture/Dimensions: 3 1/4" ID, 4 1/4" OD
• Cut-Out: 3 1/2"
• Ceiling Clearance: 3 1/2"
• IP Rating: IP 54
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Type IC
• Warranty: 10 Year Residential / 5 Year Commercial
