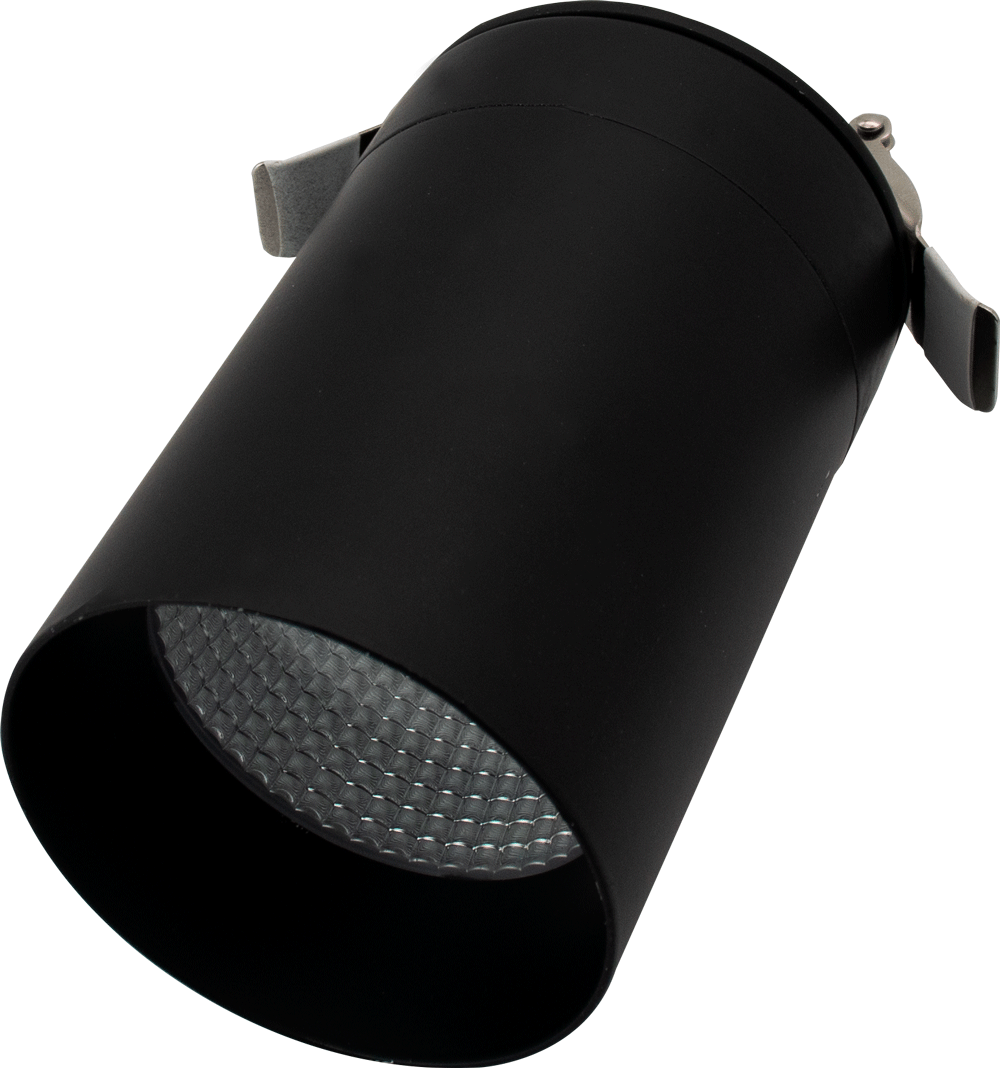

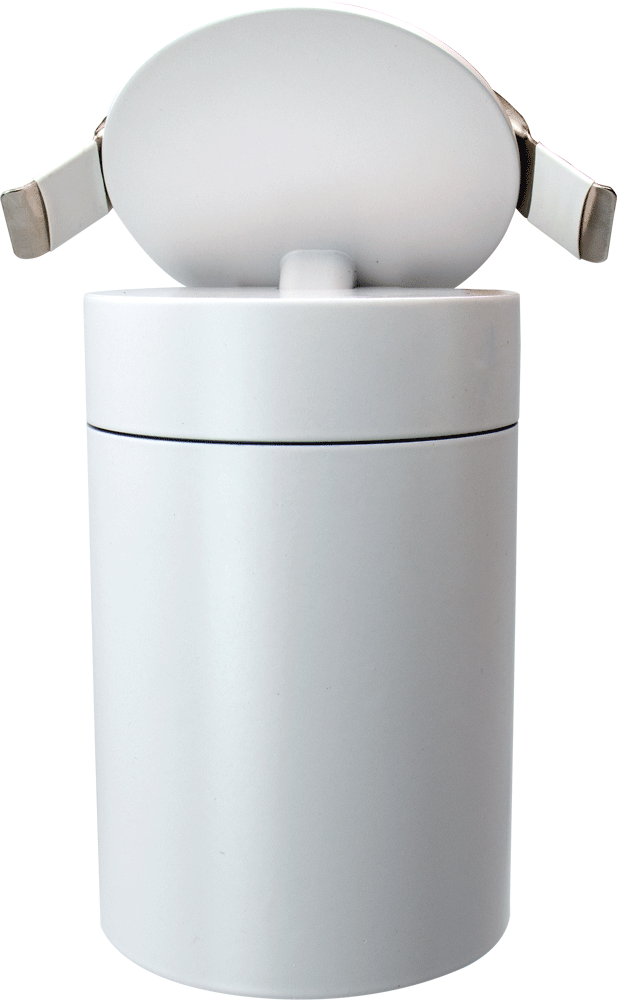

Lotus 3" Floating Torpedo LED 15W | AD-3-S15W-FC

Overview

The Lotus LED 3-inch Floating Torpedo is an architectural-spec mono-point luminaire designed for high-end accent lighting and directional tasks. This multi-directional fixture can be utilized as a straight downlight or a high-tilt gimbal, making it ideal for sloped ceilings, wall washing, and highlighting artwork.

Key Features

• Multi-Directional Adjustability: Provides extreme aiming flexibility with up to a 60° tilt and 360° rotation.
• Field-Selectable CCT: Features a 5CCT switchable system (2700K to 5000K) or a "Dim to Warm" option (3000K to 1800K) to suit any environment.
• Track-Light Effect: Delivers the focused aesthetic of track lighting without the need for visible tracks or bulky housings.
• IC Rated & Air-Tight: Contractor-grade construction approved for direct contact with insulation and certified air-tight.
• Architectural Optics: Standard 38° beam angle with optional 15° and 24° high-precision optics available for specialized applications.

Technical Specifications

• Power: 15W
• Halogen Equivalent: 100W
• Light Output: 830 – 1050 lm (5CCT) / 960 lm (DTW)
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Input Voltage: 120V AC (Standard) / 120V-347V AC (Optional 0-10V)
• CRI: 90+
• Beam Angle: 38° standard (15° & 24° optional)
• Dimensions: ID 2 3/8", OD 2 3/4", Length 4 1/4"
• Cut Out: 2 1/2"
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Approved Location: Wet Locations
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus
• Warranty: 3 Year
