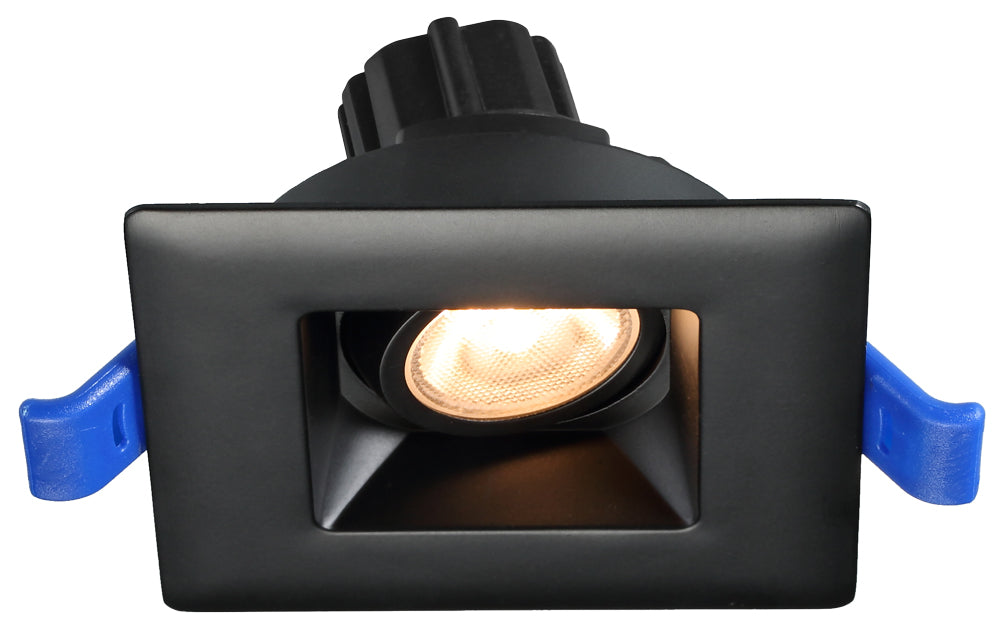

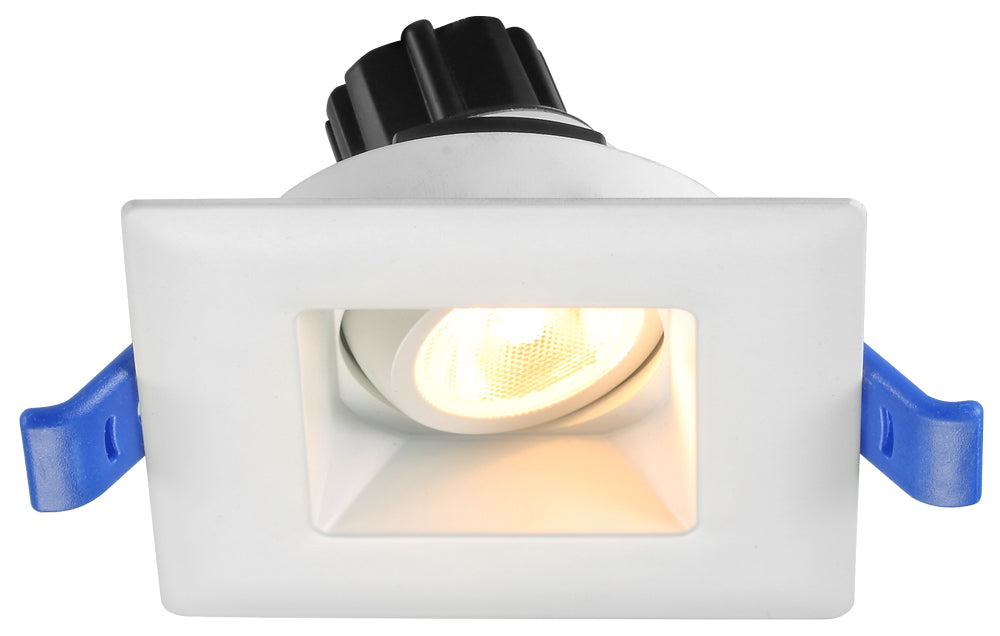

Lotus 2" Square Regressed Gimbal HO 5.5W LED 450 lm IC Wet | LSG2-HO

Overview

The Lotus LED 2" Square Regressed Gimbal High Output is a contractor-grade recessed lighting solution designed for installation in tight spaces with only 1 3/4" depth. This architectural-spec fixture provides a directional beam with 20° tilt and 360° rotation, making it ideal for sloped ceilings, cabinets, and highlighting artwork.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the need for bulky recessed housings.
• Architectural Versatility: Directional eyeball gimbal with 20° tilt and 360° rotation allows for precise light placement in high-end applications.
• Wet Location Rated: IP 54 certified and air-tight, ensuring durability in showers, alcoves, and protected outdoor areas.
• Slim Clearance Requirement: Fits where traditional fixtures cannot, requiring as little as 1 1/2" ceiling clearance when the driver is remotely installed.
• Dimmable Performance: Features standard 120V Triac dimming for superior lighting control and ambiance.

Technical Specifications

• Energy Used: 5.5W
• Light Output: 430 - 550 lm (depending on CCT)
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, or Dim to Warm (3000K-1800K)
• Beam Angle: 36° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Dimensions: ID 2 1/2", OD 3" SQ
• Cut-Out: 2 1/2" to 2 3/4"
• Ceiling Clearance: 1 1/2" (Remote Driver) to 5" (Driver next to fixture)
• Power Factor: 0.95
• IP Rating: IP 54
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
