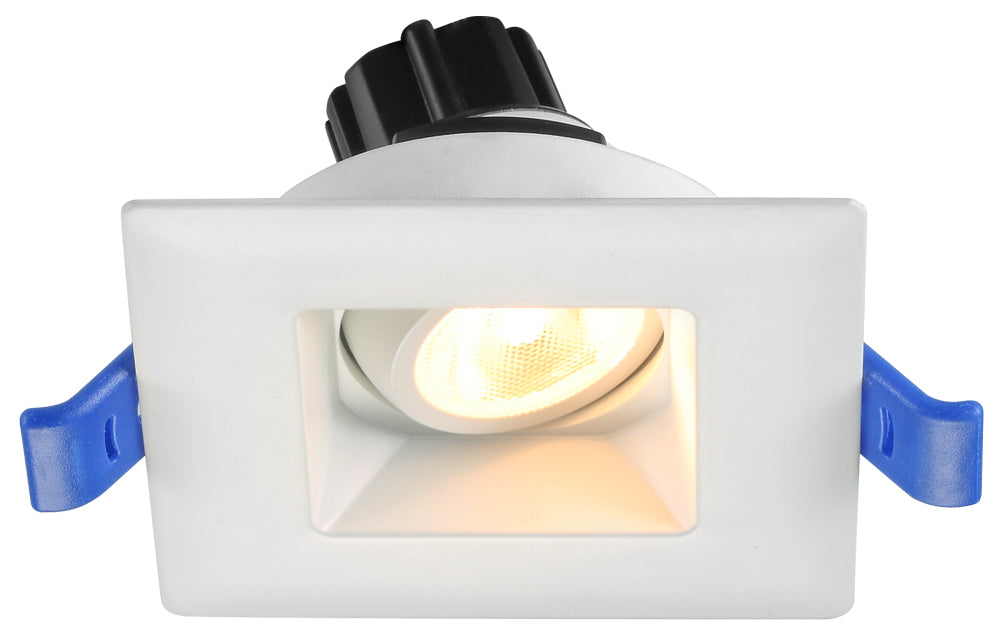

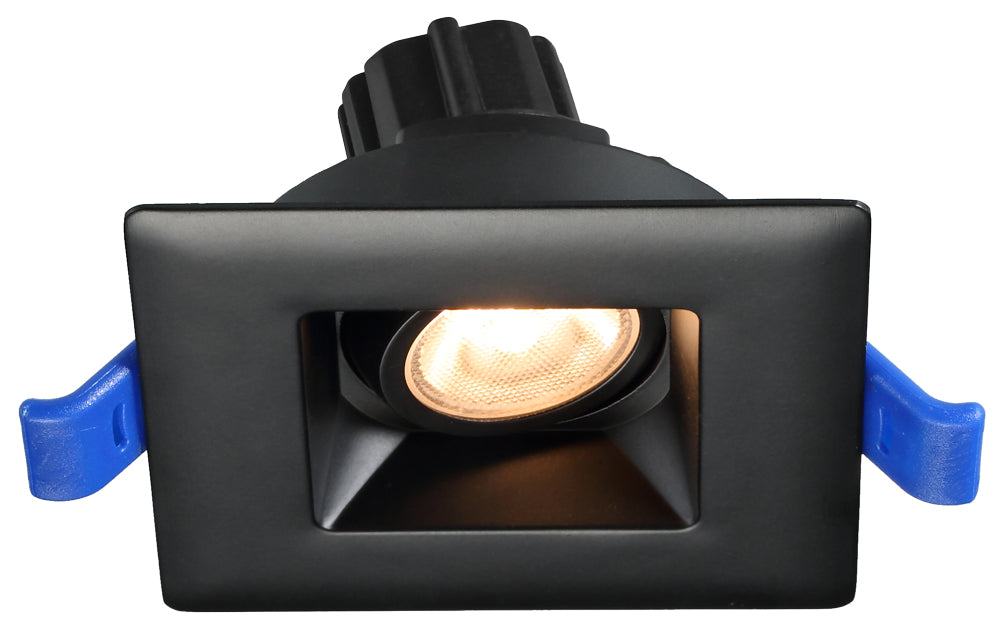

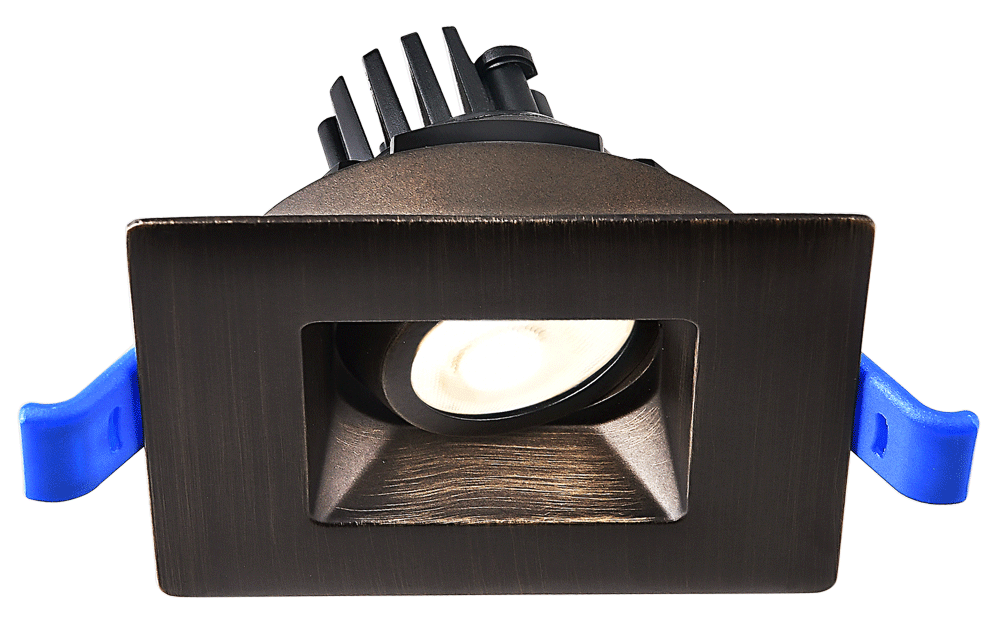

Lotus 2" Square Regressed Gimbal LED 5W | LSG2

Overview

The Lotus LED 2" Square Regressed Gimbal is an architectural-spec recessed lighting solution engineered for precision illumination in restricted-space applications like cabinets and sloped ceilings. This 5W fixture features a unique patented design that maintains air-tight integrity while providing full gimbal functionality without the need for a traditional housing. Its ultra-slim 1 3/4" depth makes it an ideal choice for projects where ceiling clearance is limited.

Key Features

• IC Rated: Approved for direct contact with insulation, streamlining installation for high-end recessed lighting projects.
• Architectural Versatility: Directional beam with 20° tilt and 360° rotation allows for precise light placement on sloped ceilings or artwork.
• Dimmable Performance: Integrated 120V AC driver supports Triac dimming down to 10% for flexible ambiance control.
• Contractor-Grade Durability: IP 54 rated and air-tight, certified for use in both insulated ceilings and wet locations.
• Superior Color Accuracy: Features a CRI 90+ rating, ensuring true color rendering for architectural and commercial environments.

Technical Specifications

• Energy Used: 5W
• Light Output: 380 - 430 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 4100K
• Beam Angle: 24° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC
• Dimmability: Triac Dimmable to 10%
• Power Factor: 0.95
• IP Rating: IP 54
• Air Tight: Yes
• Approved Location: Insulated Ceiling & Wet Locations
• Dimensions: ID 2 1/2", OD 3" Square
• Cut-Out: 2 1/2" to 2 3/4"
• Ceiling Clearance: 1 1/2" (Remote Driver) to 5" (Next to fixture)
• Projected Life: 70% light output at 50,000 Hours
• Certification: cULus, T24
• Warranty: 10 Year Residential / 5 Year Commercial
