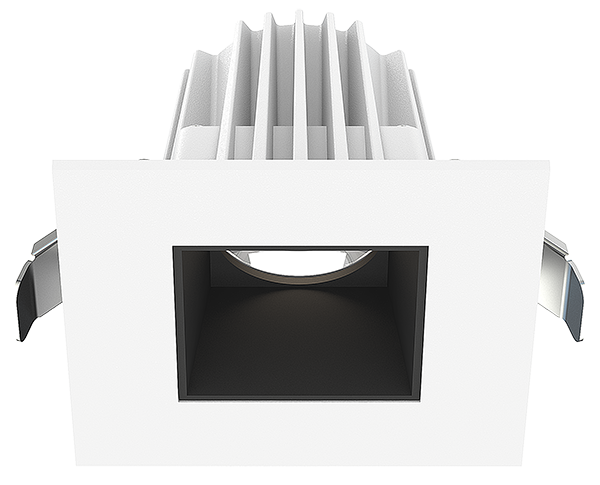

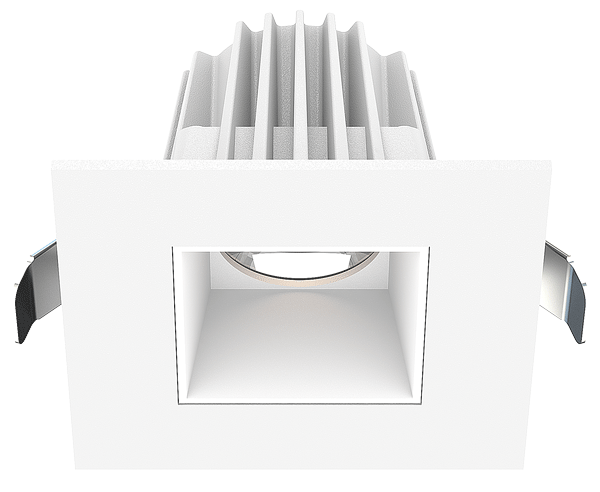

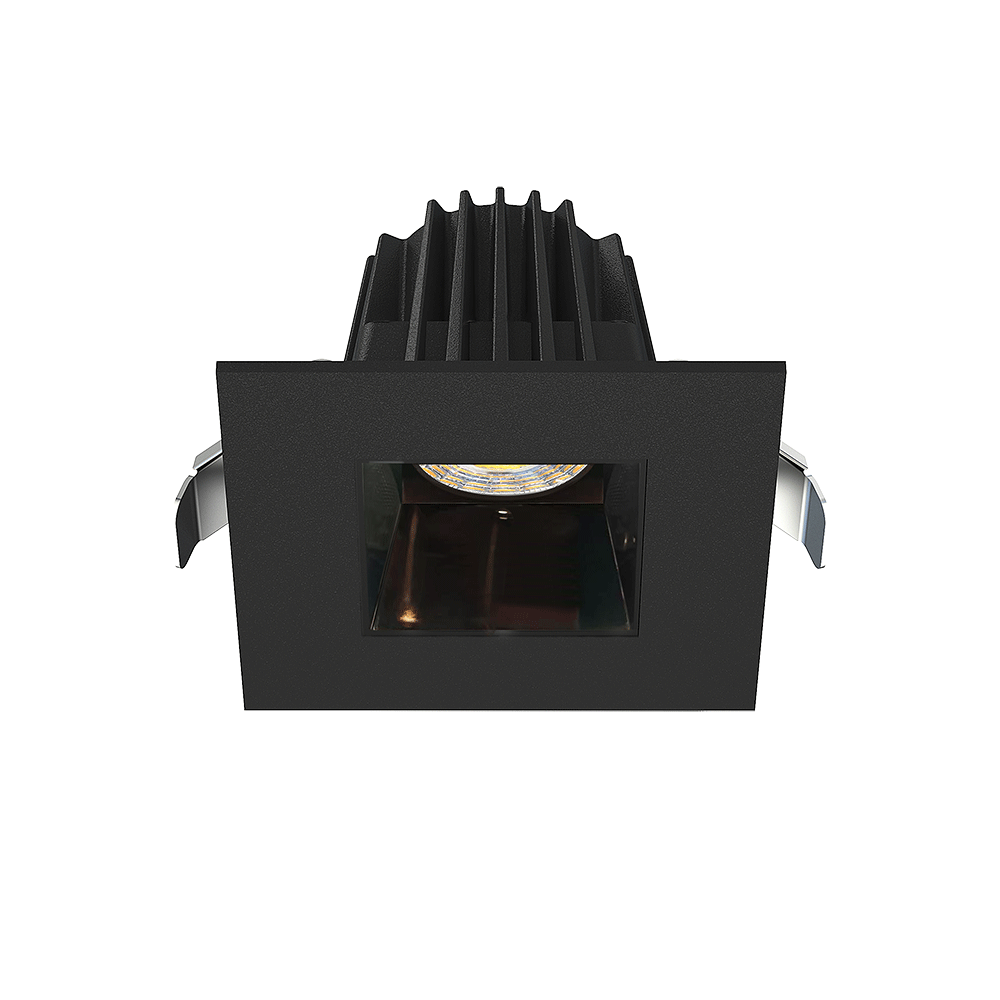

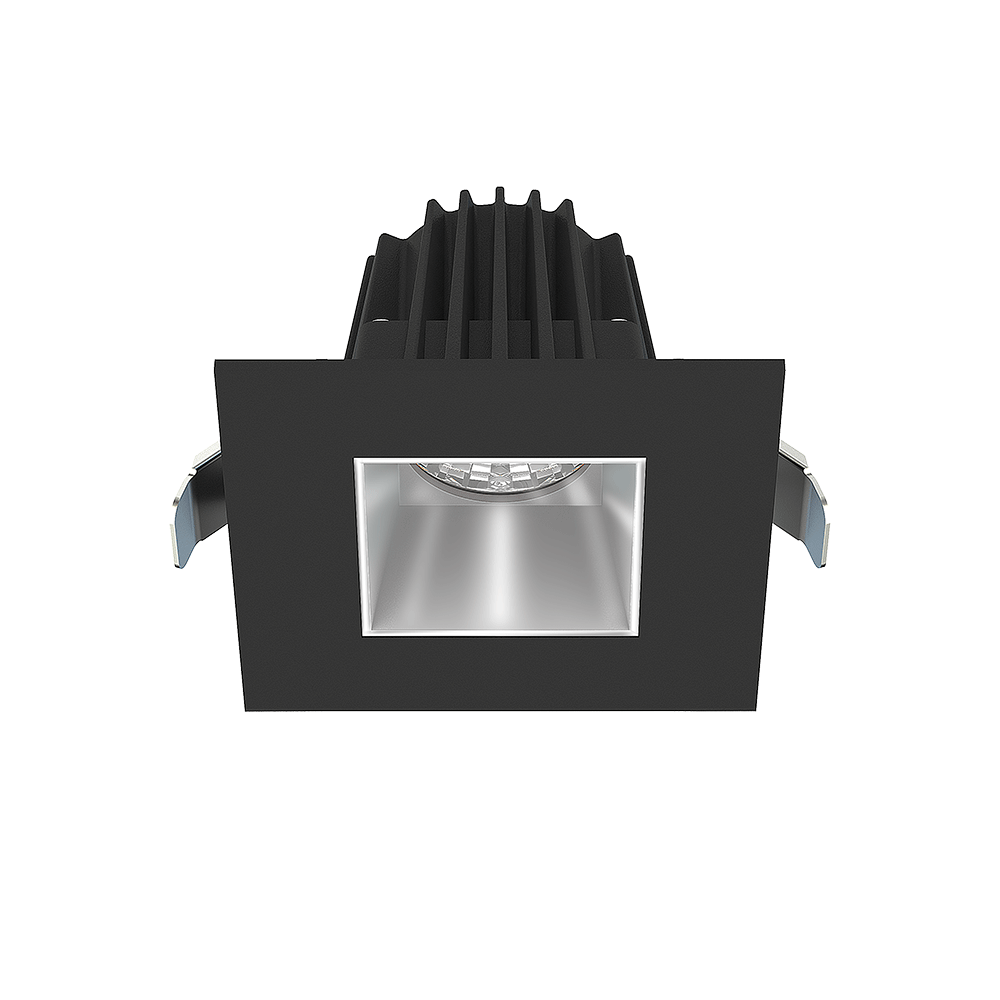

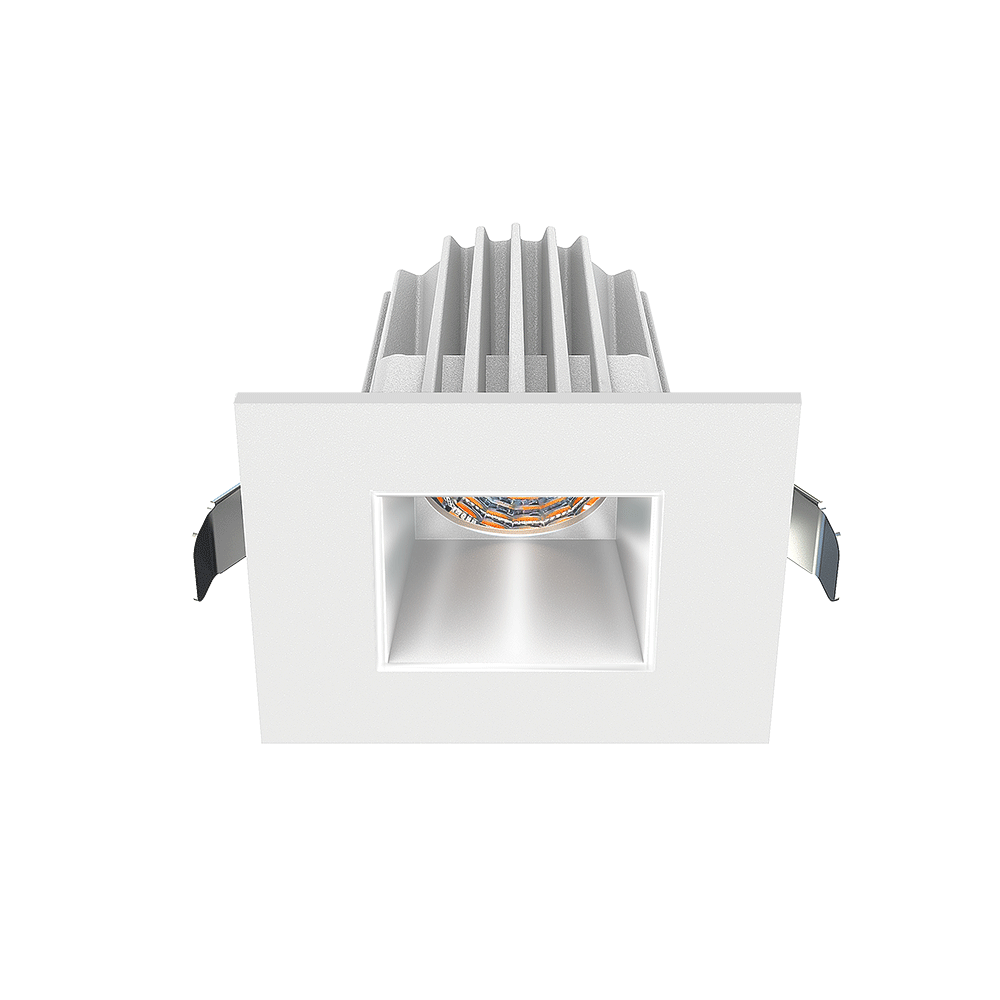

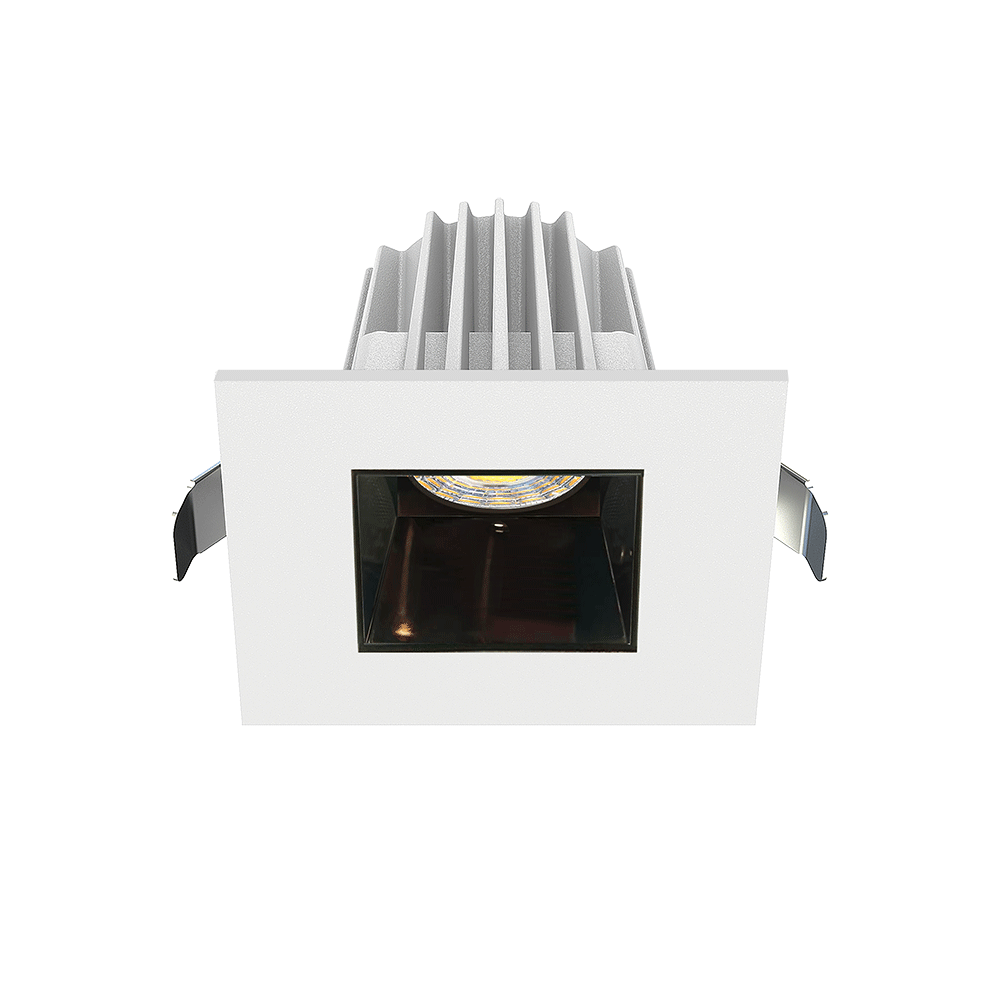

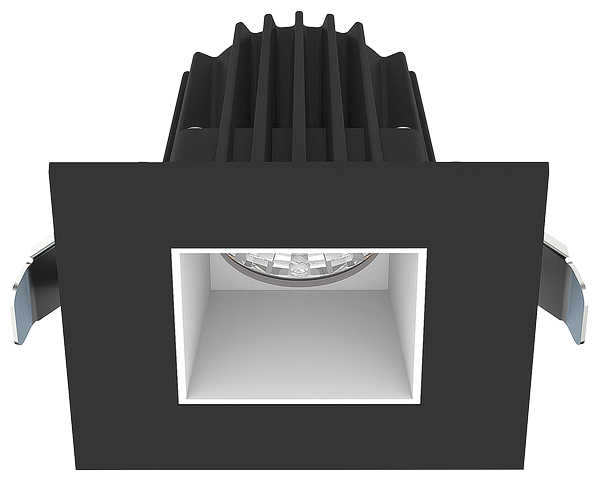

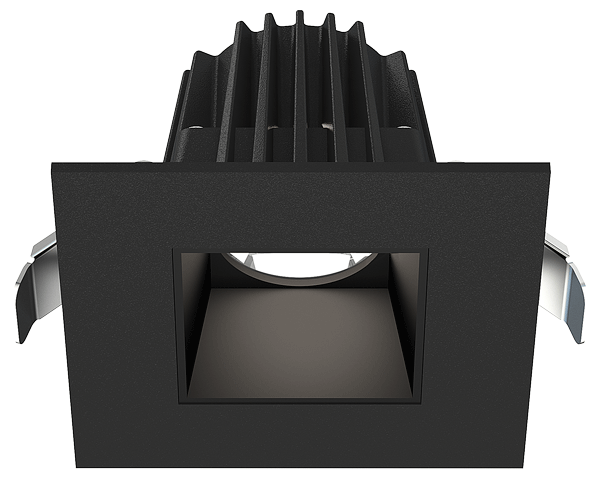

Lotus 2" Square Recessed Economy LED 9W 5CCT | JXL-COB02-S09W-5CCT-XX-2SR-SM-XX

Overview

The Lotus LED 2" Square Recessed Economy LED is a professional-grade recessed lighting solution designed for residential applications where ceiling space is restricted. Featuring a deep-regressed design to minimize glare, this 9W fixture fits into tight plenums and includes an integral driver within a connection box for a streamlined installation. It offers maximum versatility with five user-selectable color temperatures and multiple trim and reflector options to suit high-end architectural aesthetics.

Key Features

• 5CCT Selectable: Integrated switch allows for on-site adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
• IC Rated: Certified for direct contact with insulation, eliminating the need for traditional recessed lighting housings.
• Architectural Glare Control: The deep-profile design and choice of smooth or baffle reflectors provide superior visual comfort and reduced glare.
• Dimmable Performance: TRIAC dimmable from 20% to 100%, allowing for precise light level control in residential environments.
• Contractor-Grade Installation: Fast and easy setup with an integrated driver-in-connection-box design that requires no separate junction box.

Technical Specifications

• Energy Used: 9W
• Light Output: 470 to 630 lumens (depending on CCT and reflector choice)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• Beam Angle: 36° standard (24° custom option available)
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC
• Dimmability: TRIAC Dimmers 20% - 100%
• Dimensions: 2 1/16" ID, 2 3/4" OD
• Depth: 2 1/4"
• Cut-Out: 2 1/2" to 2 3/4"
• Approved Location: Insulated Ceiling & Damp Locations
• IP Rating: Air-Tight
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 30,000 hours
• Certifications: ETLus
• Warranty: 3 Year
