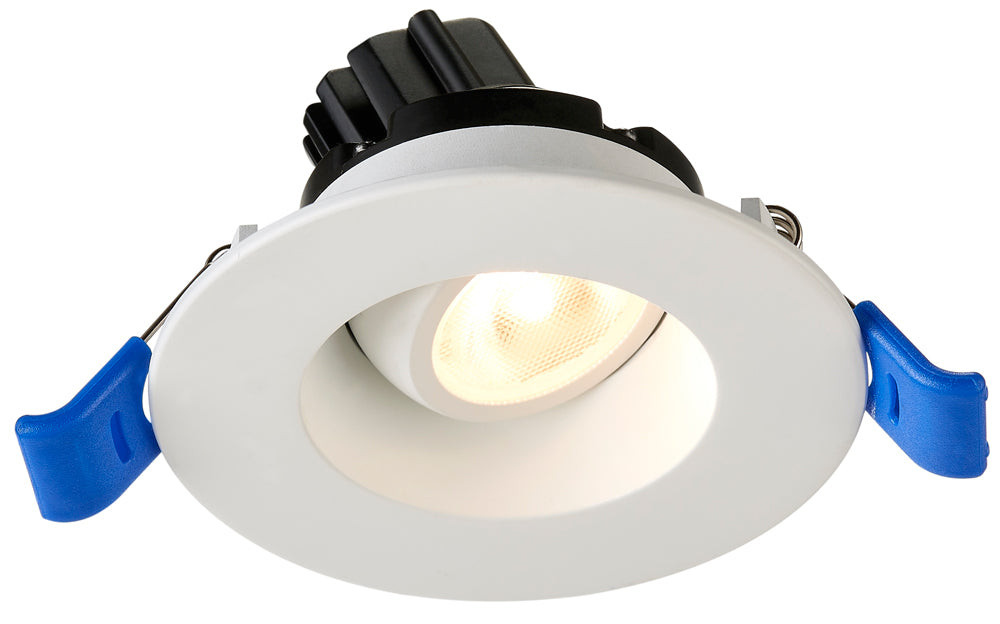

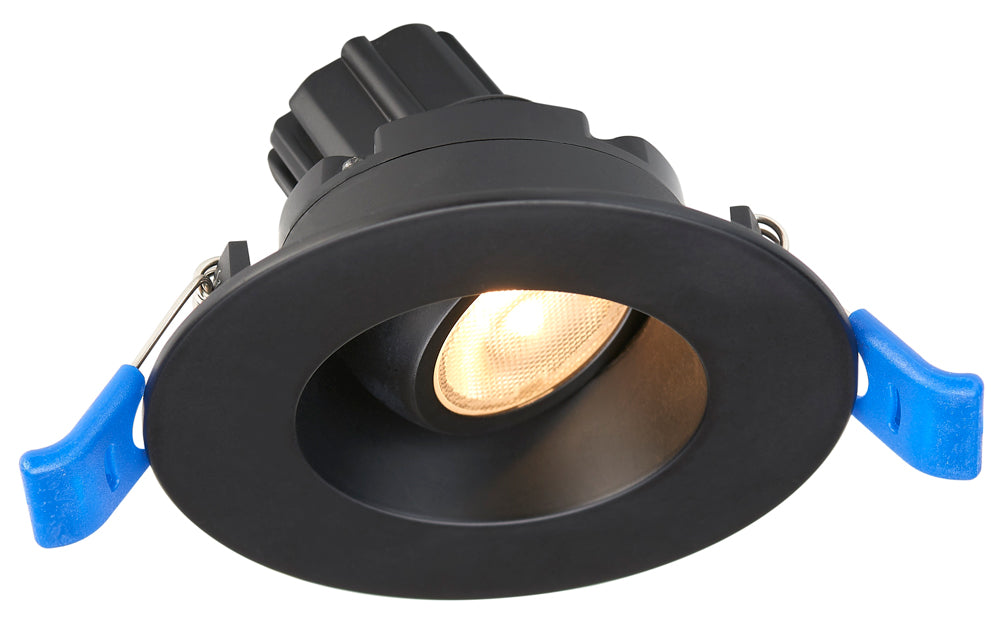

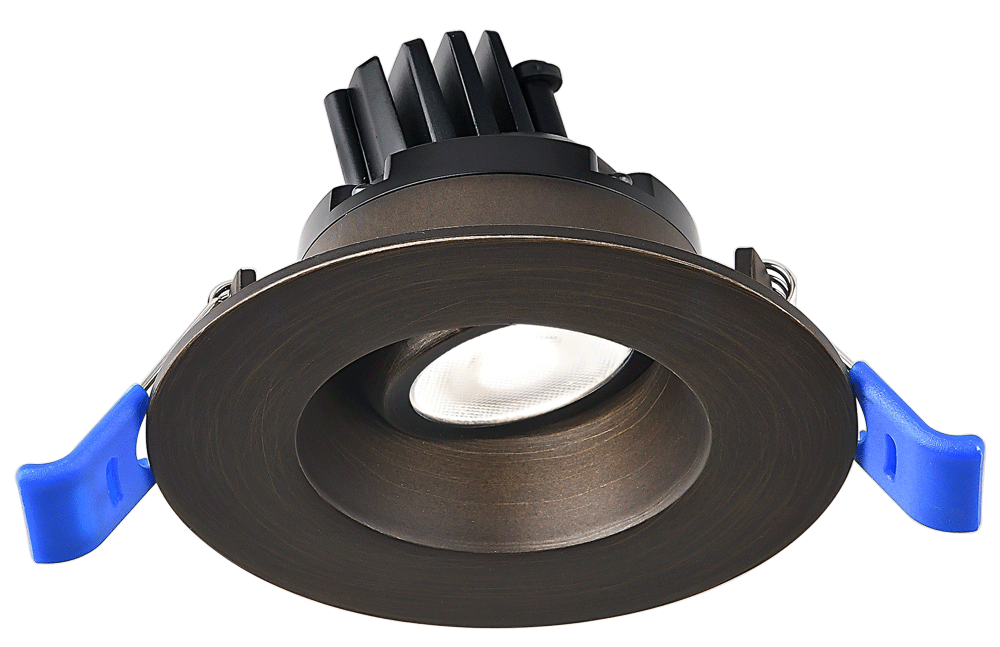

Lotus 2" Round Regressed Gimbal LED 5.5W | LRG2-HO

Overview

The Lotus LED 2" Round Regressed Gimbal High Output is an architectural-spec recessed lighting solution designed for applications with limited ceiling space, requiring only 1 3/4" of depth. This 5.5W fixture features a regressed design for superior glare reduction and a directional beam, making it an ideal choice for sloped ceilings, cabinets, and highlighting artwork. As an IC Rated and air-tight unit, it can be installed in direct contact with insulation without the need for a separate housing.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: Regressed optic design provides a high-end look while minimizing visual glare in residential and commercial spaces.
• Directional Precision: Features a 20° tilt and 360° rotation for flexible light aiming on sloped ceilings or task areas.
• Wet Location Rated: IP 54 certified and air-tight, making this recessed lighting suitable for showers, alcoves, and protected outdoor areas.
• Contractor-Grade Installation: Integrated driver inside the connection box simplifies wiring and allows for fast, efficient setup.

Technical Specifications

• Energy Used: 5.5W
• Light Output: 430 to 550 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, or Dim to Warm (3000K to 1800K)
• Beam Angle: 36° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac Dimmable (Standard) or 0-10V (Optional)
• Aperture/Dimensions: ID 2 1/2", OD 3"
• Cut-Out: 2 1/2" to 2 3/4"
• Ceiling Clearance: 1 1/2" (Remote Driver) to 5" (Driver next to fixture)
• Power Factor: 0.95
• IP Rating: IP 54
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
