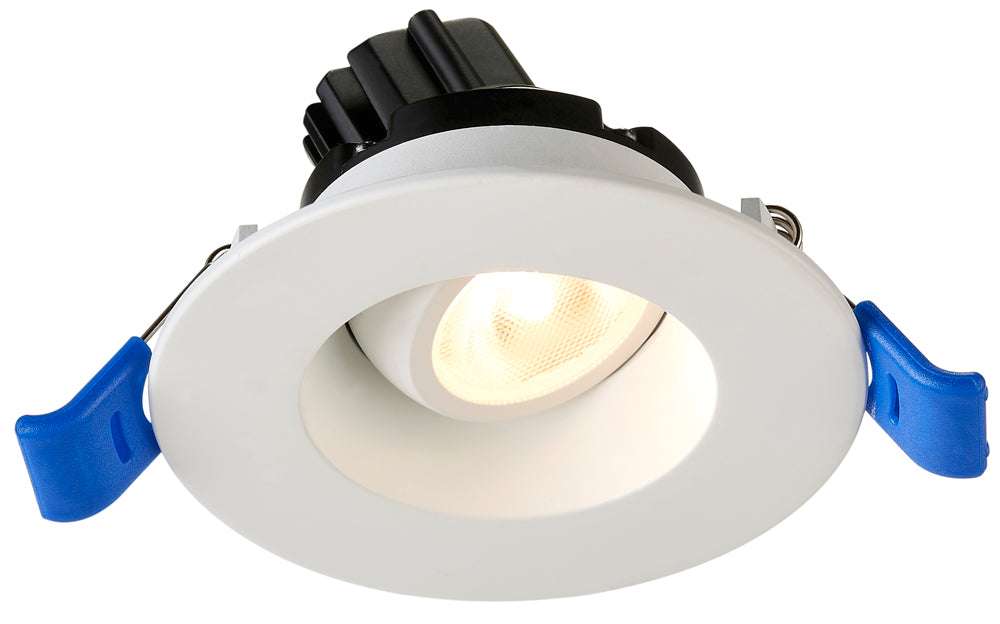

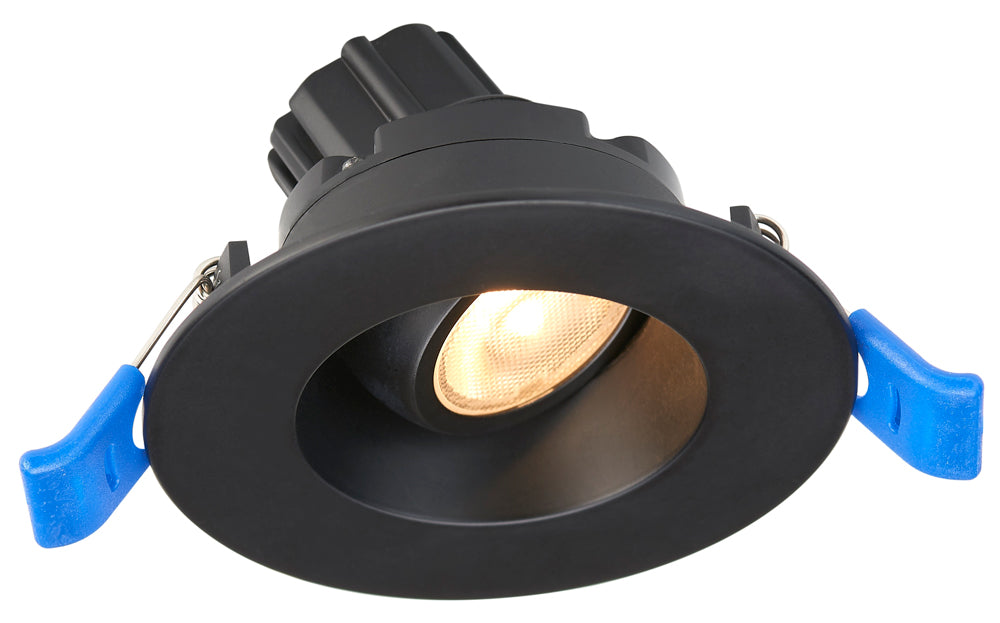

Lotus 2" Round Regressed Gimbal LED 5W | LRG2

Overview

The Lotus LED 2" Round Regressed Gimbal is a high-performance, architectural-spec recessed lighting solution designed for precision accent lighting and wall-washing. This 5W fixture features a deep regressed design that significantly reduces glare while providing a flexible 20° tilt and 360° rotation for exact light placement. Its low-profile construction allows for seamless installation in restricted ceiling spaces as narrow as 2 1/2" without the need for a traditional housing.

Key Features

• Glare-Reducing Regressed Design: The deep regressed lens provides an elegant, clean look while minimizing visual glare in professional and residential environments.
• Precision Directional Control: Features a gimbal with 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork.
• IC Rated & Air-Tight: Contractor-grade construction is certified for direct contact with insulation and provides an air-tight seal for maximum energy efficiency.
• Versatile Installation: Designed to fit into limited 2 1/2" ceiling clearances with an integrated driver inside the connection box, eliminating the need for a separate junction box.
• High-Performance Light Quality: Delivers a high 90+ CRI for true color rendering and is fully dimmable with standard Triac dimmers.

Technical Specifications

• Energy Used: 5W
• Light Output: 380 - 420 lumens (depending on CCT)
• Halogen Equivalent: 35W
• Color Temperature: 2700K, 3000K, 4100K, or Dim to Warm (3000K-2000K)
• Beam Angle: 38° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC Triac Dimmable (Standard)
• Aperture/Dimensions: ID 2", OD 2 1/2"
• Cut-Out: 2 1/8" to 2 1/4"
• Ceiling Clearance: 2 1/2"
• IP Rating: IP 54 (Wet Location Rated)
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus, Energy Star, T24, Type IC
• Warranty: 10 Year Residential / 5 Year Commercial
