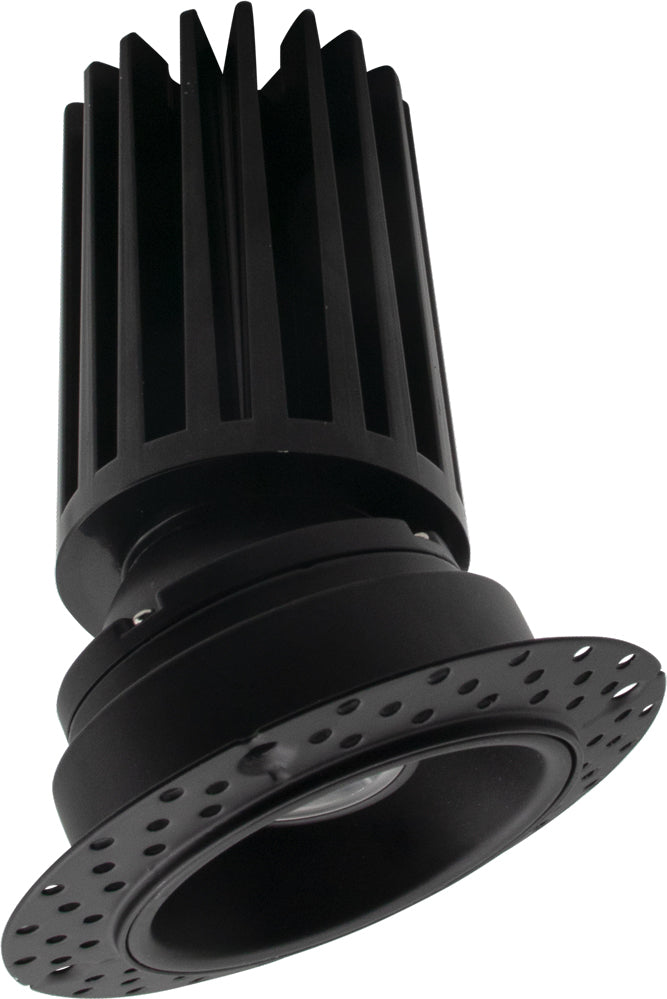

Lotus 2" Trimless Round Gimbal LED 11W | LED-2-S11W-EY-T

Overview

The Lotus LED 2" Trimless Round Gimbal is a professional-grade 11W recessed lighting solution designed for high-end architectural applications. This fixture features an adjustable eyeball gimbal with up to a 20° tilt, making it ideal for sloped ceilings, wall washing, and highlighting artwork in both drywall and millwork installations. Engineered with an integral driver in a connection box, it is IC Rated for direct contact with insulation and approved for wet locations, providing maximum flexibility for modern residential and commercial designs.

Key Features

• Adjustable Directional Beam: Provides up to 20° tilt for precise light placement on sloped ceilings or task areas.
• IC Rated & Air-Tight: Certified for direct contact with insulation and features an air-tight design for superior energy efficiency.
• Trimless Aesthetic: Designed for seamless integration into drywall or millwork, offering a clean, integrated architectural look.
• Flexible Color Technology: Available in 5CCT user-selectable (2700K to 5000K) or Dim to Warm (3000K to 1800K) options.
• Contractor-Grade Performance: Delivers up to 1000 lumens, serving as a powerful 90W halogen equivalent while fitting into restricted 5" ceiling clearances.

Technical Specifications

• Power: 11W
• Light Output: 800 to 1000 lumens (varies by CCT)
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Beam Angle: 38° standard (24° and 60° options available as adders)
• Tilt Angle: 20°
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Dimensions: ID 2 1/2", OD 3 1/2"
• Cut-Out: 2 5/8"
• Ceiling Clearance: 5"
• IP Rating: Air-Tight & Wet Location Approved
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 Hours
• Certification: cETLus
• Warranty: 5 Year
