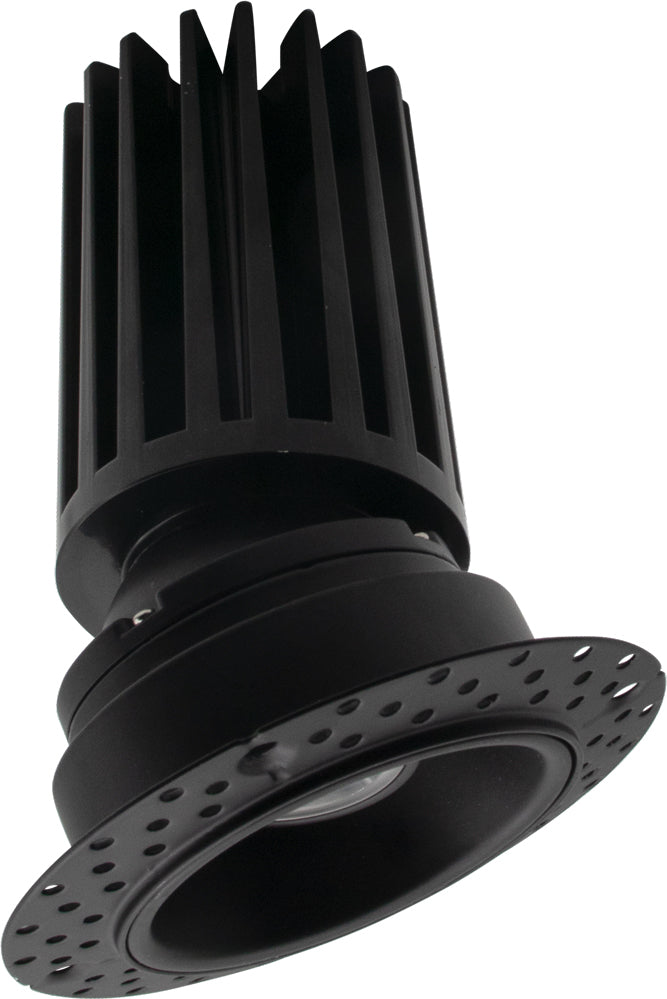

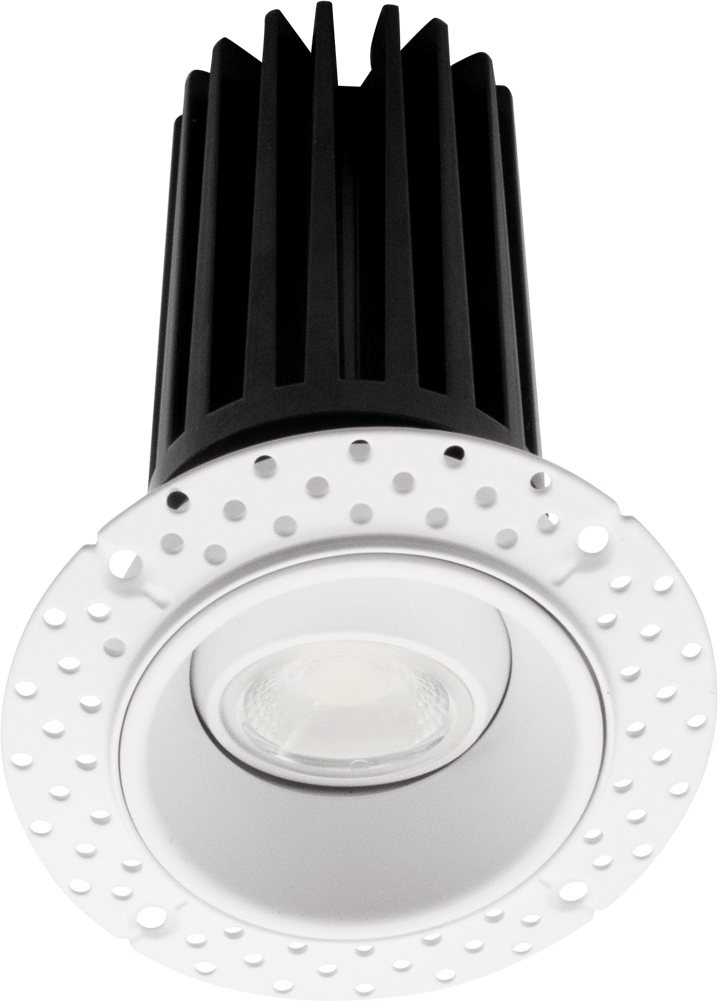

Lotus 2" Trimless Round Gimbal LED 11W | LED-2-S11W-EY-T

Overview

The Lotus LED LED-2-S11W-EY-T is a 2-inch trimless round gimbal recessed LED designed for architectural-spec applications including sloped ceilings, wall washing, and highlighting artwork. This contractor-grade fixture features an eyeball design with a 20° tilt and an integral driver inside a connection box, allowing for a clean, seamless install in both drywall and millwork. +4

Key Features

• High-Adjustability: Features a 20° tilt angle, making it ideal for sloped ceiling installations and precise wall washing.
• IC Rated: This recessed lighting fixture is Type IC Rated, allowing for direct contact with insulation without the need for an external housing.
• Selectable CCT: Equipped with 5CCT user-selectable technology (2700K to 5000K) or a Dim to Warm (3000K to 1800K) option.
• Dimmable: Fully dimmable with a standard 120V Triac driver included; optional 120-347V 0-10V dimmable drivers are also available.
• Wet Location Rated: Architectural-spec construction approved for use in both insulated ceilings and wet locations.

+4

Technical Specifications

• Wattage: 11W
• Light Output: Up to 1000 lumens (White Trim)
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• CRI: 90+
• Beam Angle: 38° standard (24° and 60° options available)
• Tilt Angle: 20°
• Input Voltage: 120V AC (Standard Triac) or 120V-347V AC (Optional 0-10V)
• Dimensions: 3 1/2" OD; 2 1/2" Depth
• Cut Out: 2 5/8"
• Ceiling Clearance: 5"
• Projected Life: 70% light output at 50,000 hours
• Air Tight: Yes
• Certifications: cETLus
• Warranty: 5 Year
