Lotus 2" Square Gimbal LED 11W | LED-2-S11W-EY-SQ

Overview

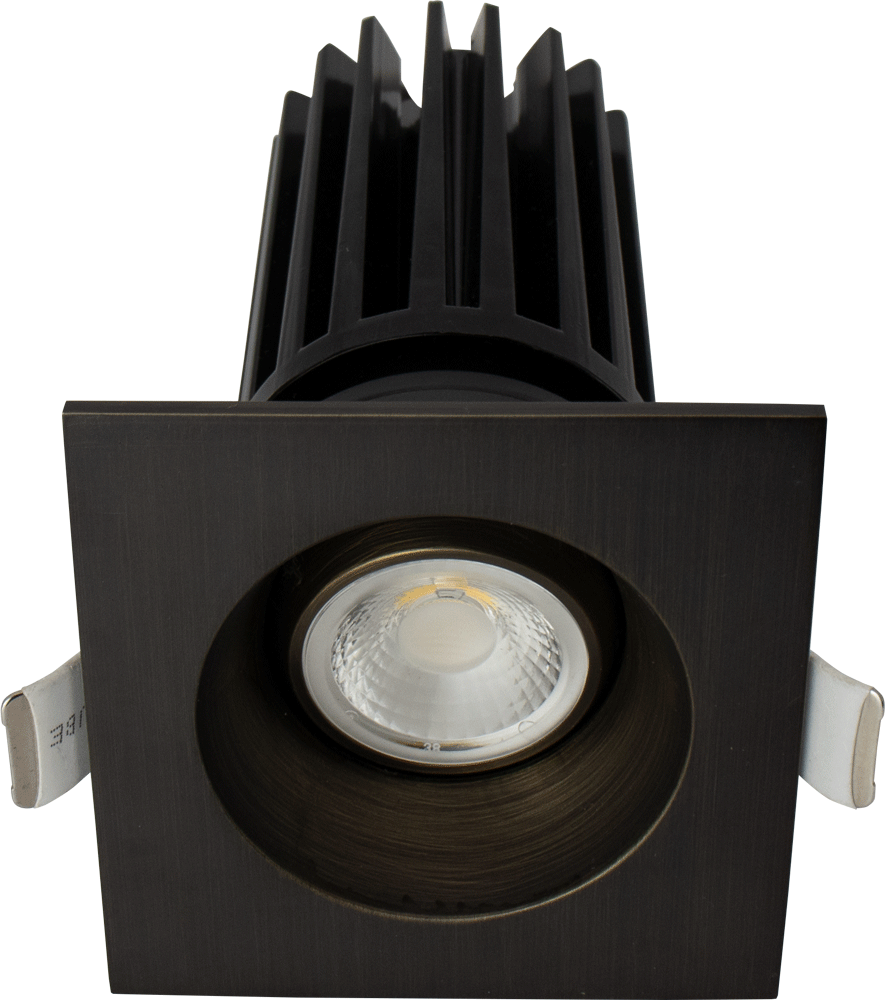

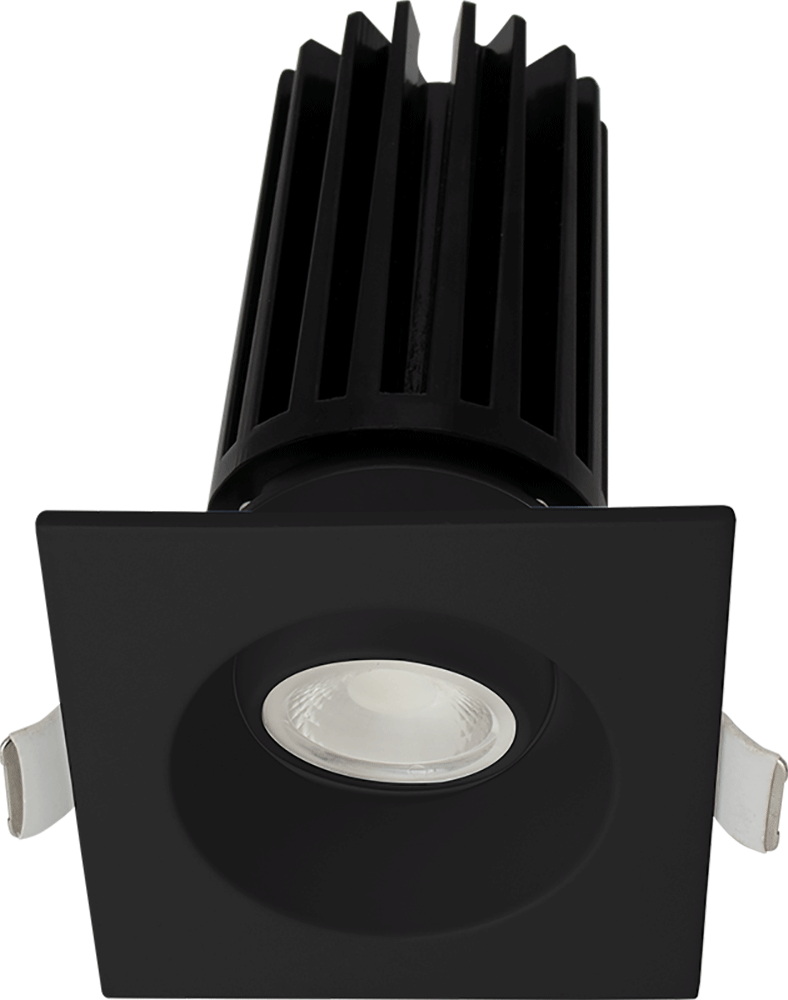

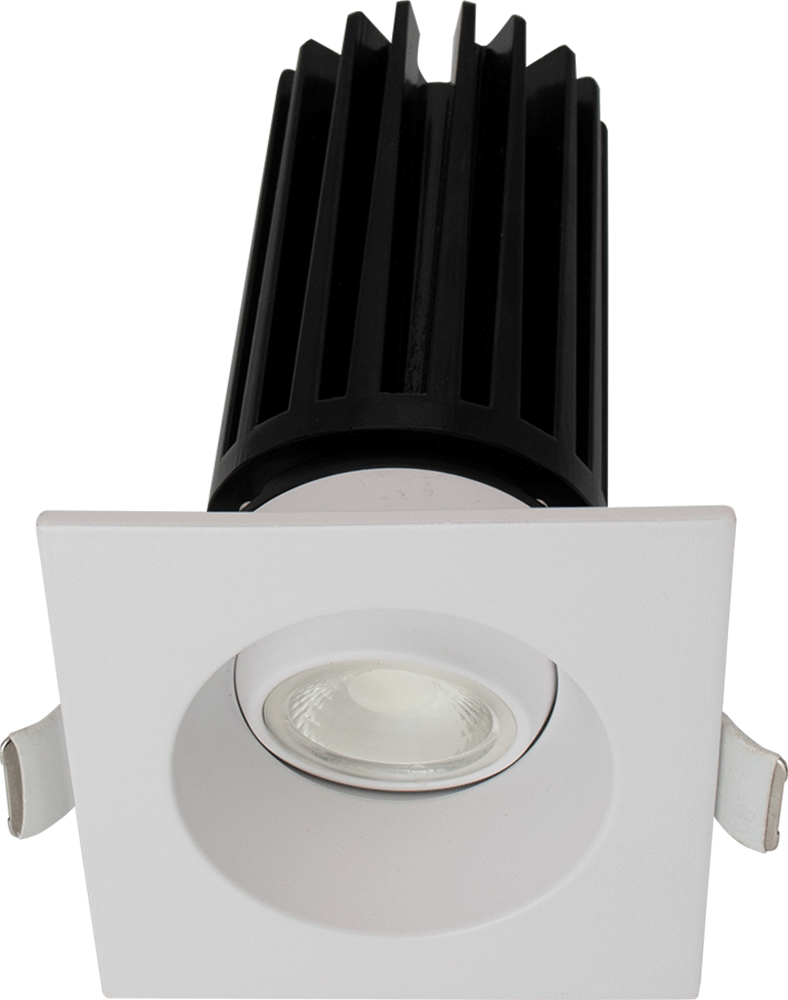

The Lotus LED LED-2-S11W-EY-SQ is an architectural-spec 2-inch square gimbal recessed LED designed for high-end applications such as general lighting, sloped ceilings, and highlighting artwork. This versatile fixture features an adjustable eyeball design with a 20° tilt and an integral driver housed within a connection box for streamlined installation. +4

Key Features

• High Adjustability: Engineered with a 20° tilt angle specifically for wall washing and sloped ceiling applications.
• IC Rated: This recessed lighting solution is Type IC Rated, allowing for direct contact with insulation without requiring a separate housing.
• Selectable CCT: Features a user-selectable 5CCT switch (2700K to 5000K) or a Dim to Warm (3000K to 1800K) option.
• Dimmable: Comes standard with a 120V Triac dimmable driver, with optional 120-347V 0-10V dimmable drivers available for commercial-grade control.
• Contractor-Grade Durability: Wet location approved and air-tight, making it suitable for high-moisture environments and insulated ceilings.

+4

Technical Specifications

• Power: 11W
• Light Output (White Trim): 700 to 1000 lumens depending on CCT selection
• Halogen Equivalent: 90W
• Color Temperature (K): 2700K, 3000K, 3500K, 4000K, 5000K or DTW 3000K-1800K
• CRI: 90+
• Beam Angle: 38° (standard); 24° and 60° available as an adder
• Tilt Angle: 20°
• Default Driver Input & Dimming: 120V AC 50/60 Hz - Triac Dimmable
• Optional Driver Input & Dimming: 120V-347V AC 50/60 Hz - 0-10V Dimmable
• Dimensions: 3 1/8" Square OD; 2 1/2" ID
• Cut Out: 2 5/8"
• Ceiling Clearance Required: 5"
• Approved Location: Insulated Ceiling & Wet Locations
• Air Tight: Yes
• Projected Life: 70% light output at 50,000 hours
• Certification: cETLus
• Warranty: 5 Year
