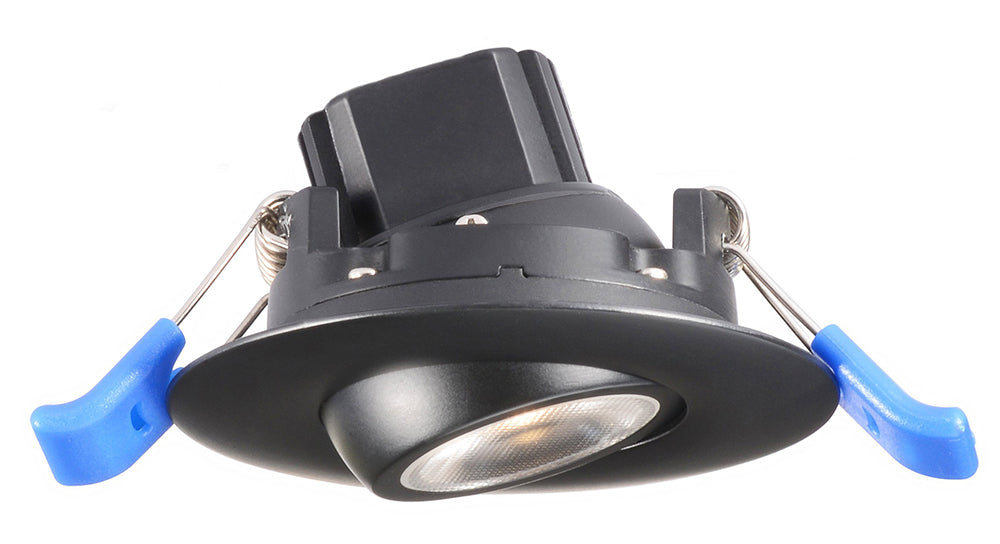

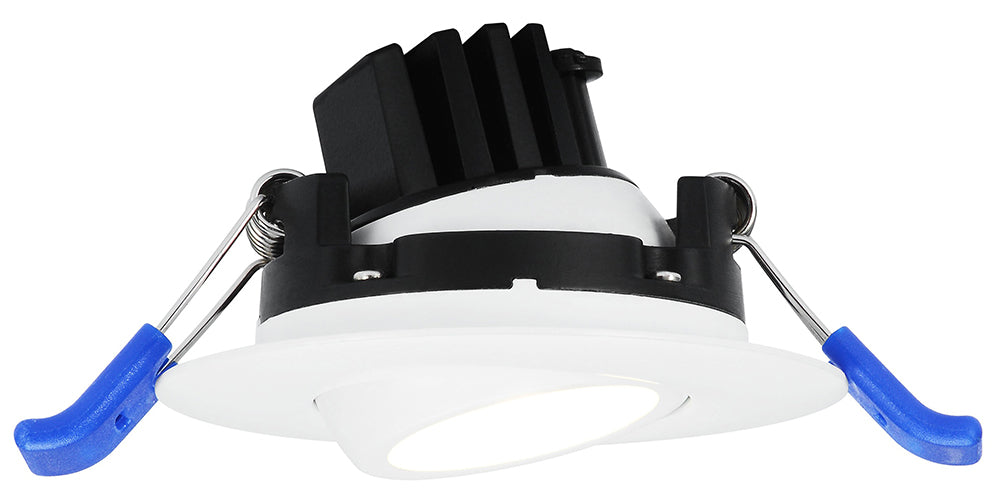

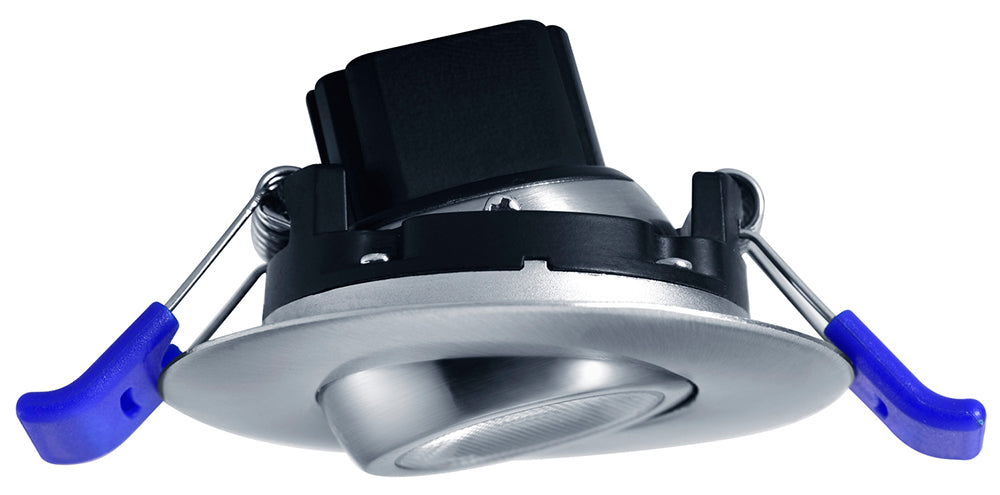

Lotus 2" Eyeball Round Recessed Gimbal LED 5.5W | LL2G-HO

Overview

The Lotus LED 2" Eyeball Round Recessed Gimbal High Output is an architectural-spec lighting solution designed for high-precision directional lighting in extremely tight spaces. Featuring a slim 1 1/2" depth, this 5.5W fixture is engineered for sloped ceilings, cabinets, and highlighting artwork without the need for a traditional recessed housing. The air-tight, IC-rated design allows for direct installation in contact with insulation, providing a versatile option for high-end residential and commercial projects.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Precision Aiming: Directional eyeball gimbal provides 20° tilt and 360° rotation for flexible light placement.
• Contractor-Grade Installation: Integrated driver inside the connection box simplifies wiring and allows for fast setup using attached spring clips.
• Wet Location Rated: IP 54 certified and air-tight, making it suitable for protected outdoor soffits, bathrooms, and shower installations.
• Superior Color Rendering: CRI 90+ ensures true color accuracy for high-end applications.

Technical Specifications

• Energy Used: 5.5W
• Light Output: 430 to 550 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, or Dim to Warm (3000K-1800K)
• Beam Angle: 36° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
• Aperture/Dimensions: ID 2", OD 2 1/2"
• Thickness: 1 1/2"
• Cut-Out: 2 1/8"
• Ceiling Clearance: 1 1/2" (Remote Driver) to 5" (Driver next to fixture)
• IP Rating: IP 54
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
