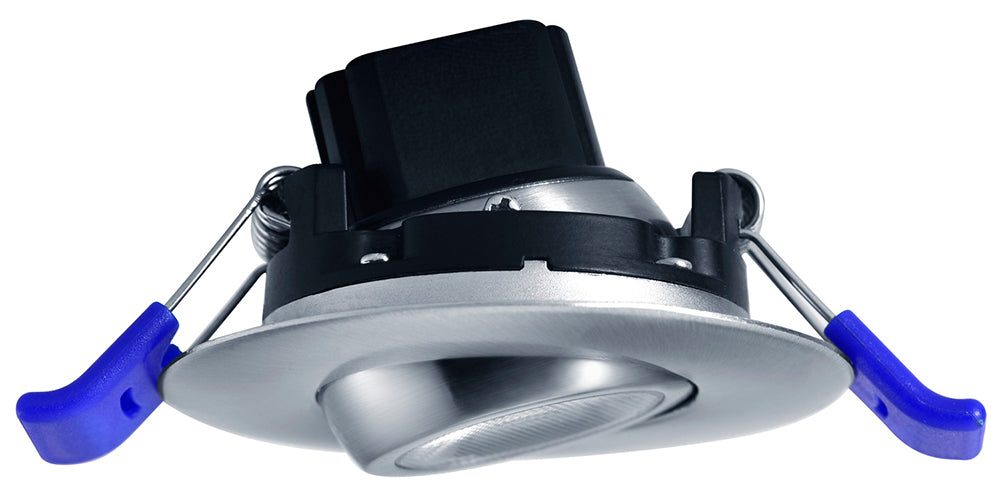

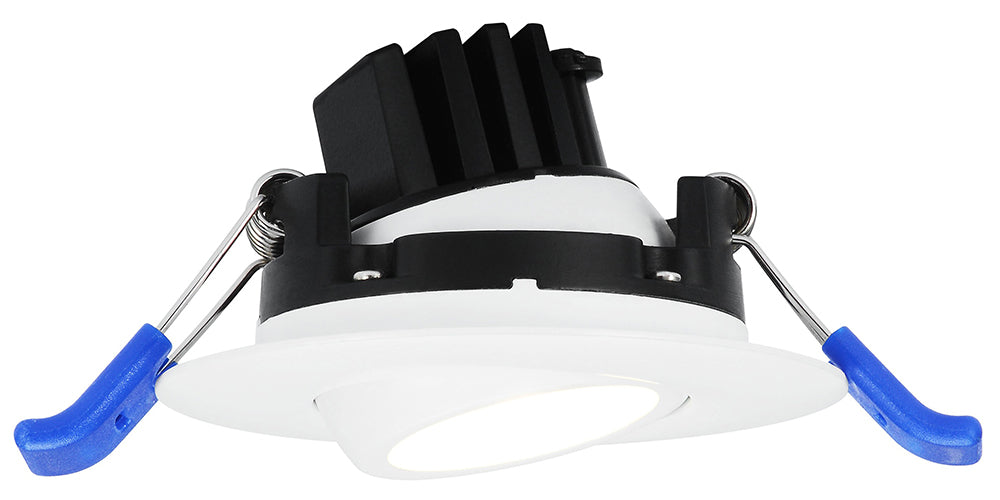

Lotus 2" Eyeball Round Recessed Gimbal LED 5W | LL2G
Lotus 2" Eyeball Round Recessed Gimbal LED 5W | LL2G
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LL2G-30K-WH
MPN: LL2G-30K-WH
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED 2" Eyeball Round Recessed Gimbal is a high-performance, contractor-grade lighting solution specifically designed for precision accenting in cabinets, alcoves, and sloped ceilings. This 5W fixture features a patented design that maintains an air-tight seal without the need for a bulky traditional housing, allowing for a clean, architectural-spec finish. Its directional eyeball gimbal provides exceptional flexibility for highlighting artwork or providing task lighting in restricted spaces.
Key Features
- Space-Saving Profile: Engineered with a slim 1 1/2" depth, this Lotus LED fixture installs easily in restricted ceiling cavities where traditional recessed lighting cannot fit.
- Precision Aiming: Features a 24° beam angle with a 20° tilt and full 360° rotation for exact light placement on focal points or sloped surfaces.
- IC Rated & Air-Tight: Certified for direct contact with insulation and air-tight installation, ensuring energy efficiency and simplified setup without a separate housing.
- High-Fidelity Illumination: Delivers a high 90+ CRI for true color rendering, making it ideal for high-end residential and commercial displays.
- Dimmable Performance: Fully dimmable with standard Triac dimmers, allowing for precise control over ambient light levels in professional environments.
Technical Specifications
- Energy Used: 5W
- Light Output: 380 lm (2700K), 400 lm (3000K), or 430 lm (4100K)
- Halogen Equivalent: 35W
- Color Temperature: 2700K, 3000K, or 4100K
- Beam Angle: 24° with 20° tilt and 360° rotation
- CRI: 90+
- Input Voltage: 120V AC
- Power Factor: 0.95
- Aperture/Dimensions: ID 2", OD 2 1/2", Thickness 1 1/2"
- Cut-Out: 2" to 2 1/8"
- Ceiling Clearance: 1 1/2" (remote driver) to 5" (driver next to fixture)
- IP Rating: IP 54
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus, Energy Star, T24, Type IC
- Warranty: 10 Year Residential / 5 Year Commercial
