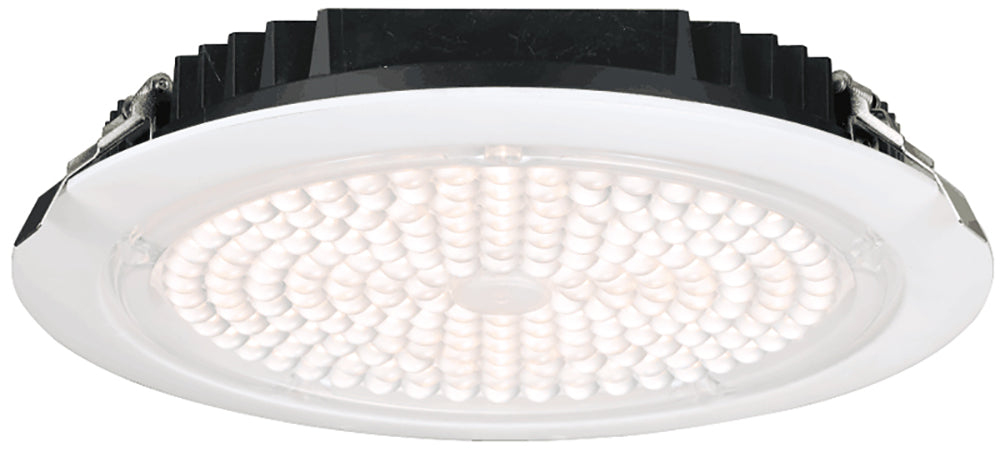

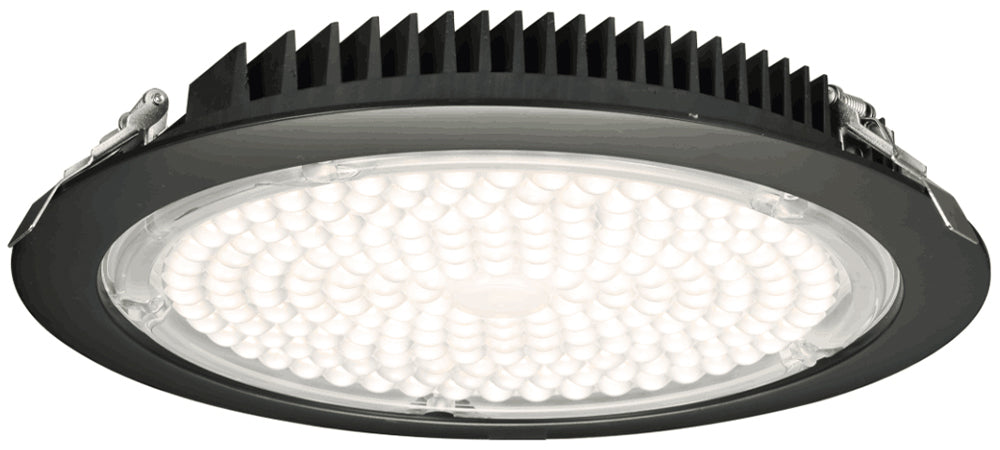

Lotus 10" Round Commercial Recessed LED 50W | LL10R
Lotus 10" Round Commercial Recessed LED 50W | LL10R
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LL10R-30K-WH
MPN: LL10R-30K-WH
Shipping terms (Free over $300) calculated at checkout.
Overview
This 10-inch Lotus LED architectural-spec recessed lighting solution is engineered for high-ceiling commercial applications where high lumen output and durability are required. The fixture is Type IC Rated for direct contact with insulation and features a low-profile design, requiring only 2 1/4 inches of ceiling clearance.
Key Features
- High-output 6700 lumen performance suitable for commercial high-ceiling environments.
- Type IC Rated for direct contact with insulation, eliminating the need for a separate housing.
- IP65 Wet Location rating allows for versatile installation in both interior and exterior soffits.
- 0-10V Dimmable driver with universal 120V-277V AC input for professional-grade control.
- Architectural-spec construction with a 2 1/4-inch depth for installation in restricted plenum spaces.
Technical Specifications
- Energy Used: 50W
- Light Output: 6700 lm
- Beam Angle: 60°
- CRI: 80
- Default Driver Input: 120V - 277V AC 0-10V Dimmable
- Optional Driver Input: 347V AC 0-10V Dimmable
- IP Rating: IP65 (Wet Location)
- Insulation Rating: Type IC Rated
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus
- Warranty: 5 Year
- Aperture ID: 10"
- Trim OD: 12"
- Cut-out: 10" to 11"
