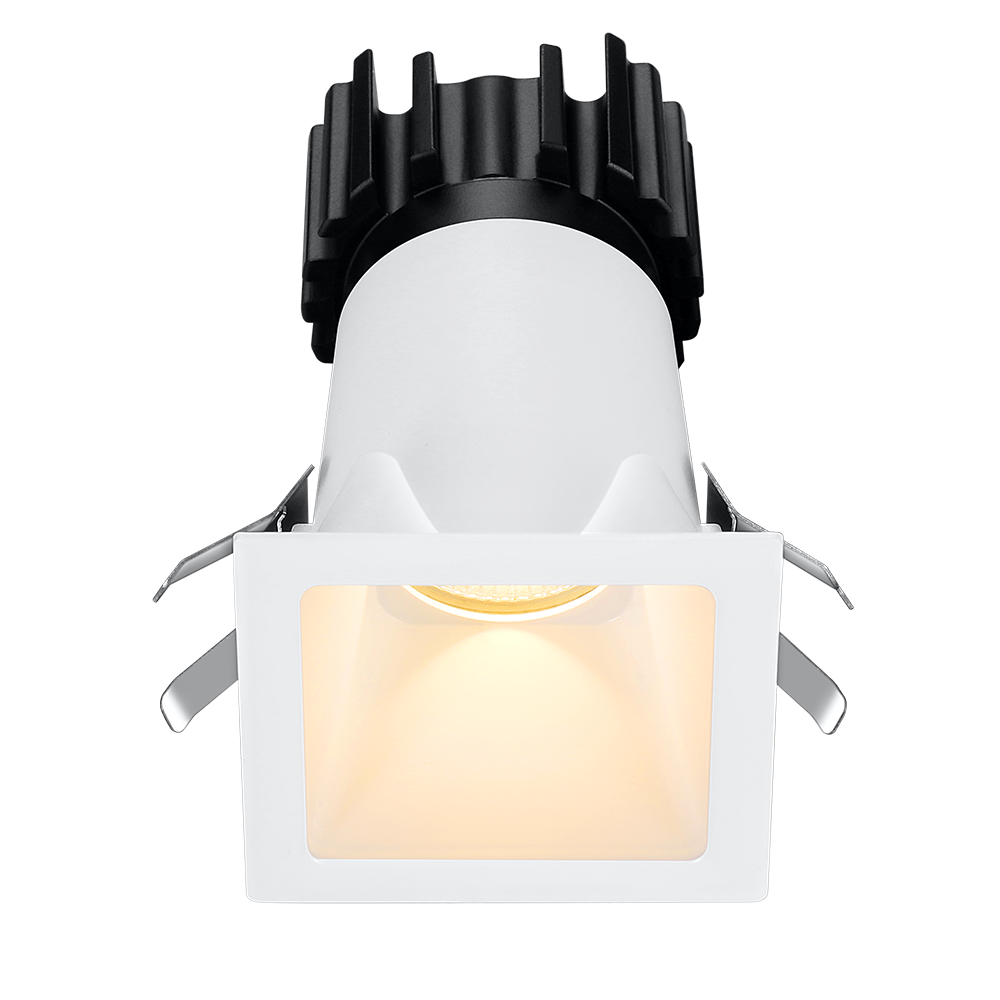

Lotus Tangra L2F-SDT 2" Fixed Square Deep-Regressed LED Downlight | 5CCT

Quick choice: The Lotus Tangra L2F-SDT is a Canadian-made 2-inch fixed square, deep-regressed, thin-trim recessed LED downlight designed for architectural accent and general lighting with reduced perceived glare and a near-trimless appearance. Select this model when the lighting plan specifies a small square opening and a fixed beam. For a square unit that can be aimed, compare the L2G-SRT gimbal instead.

At a glance: 8W • up to 780 lumens at 4000K/CRI95 (specified test condition) • 24V DC constant-voltage fixture • selectable 5CCT 2700K / 3000K / 3500K / 4000K / 5000K • CRI95 or CRI98 by SKU • 20°, 30° or 40° nominal beams • five finishes • 1-15/16-inch SQUARE ceiling cutout • 4 inches overhead clearance • Type IC, air tight, wet-location rated per Lotus • compatible dimmable driver sold separately.

Choose the correct L2F-SDT fixture: 40 orderable SKUs

The variant selectors specify trim finish, optic/beam and CRI. These selections produce 40 manufacturer SKUs with distinct barcodes, not a made-up combination matrix. Always order the complete selected part number rather than the L2F-SDT family prefix alone.

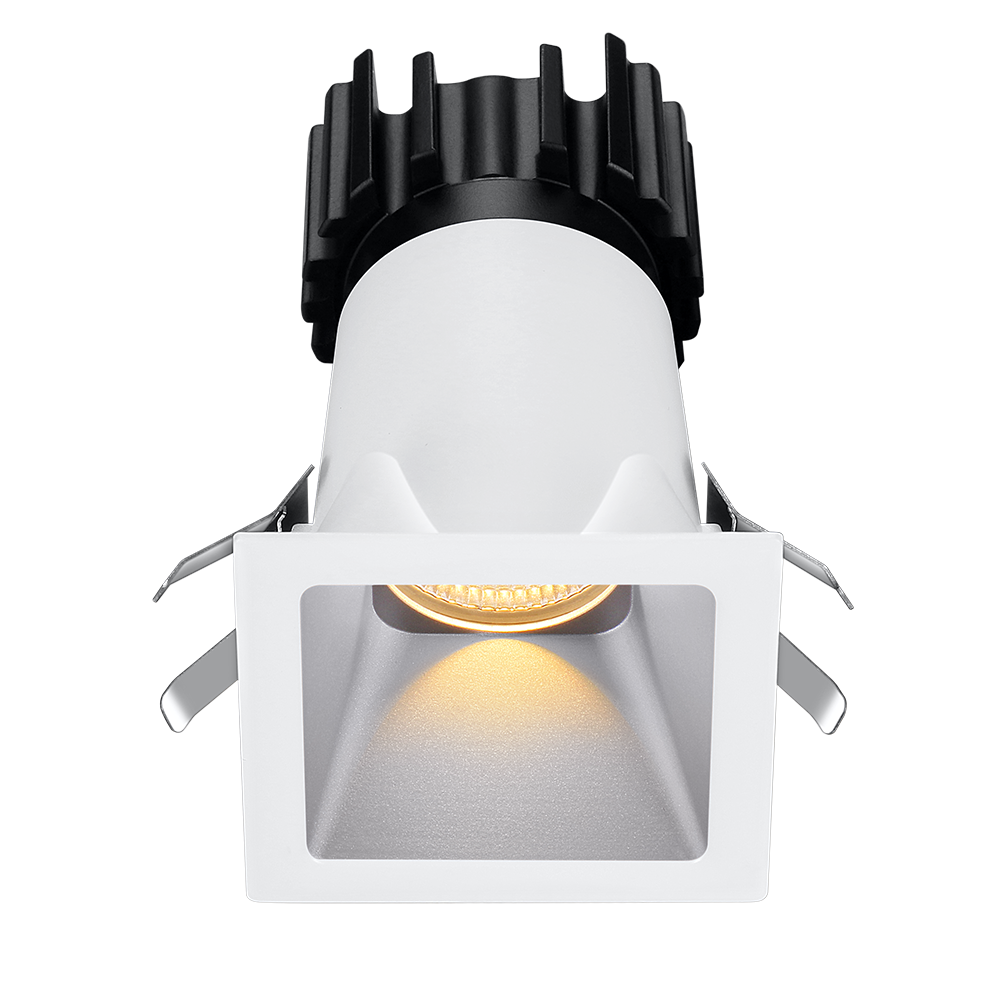

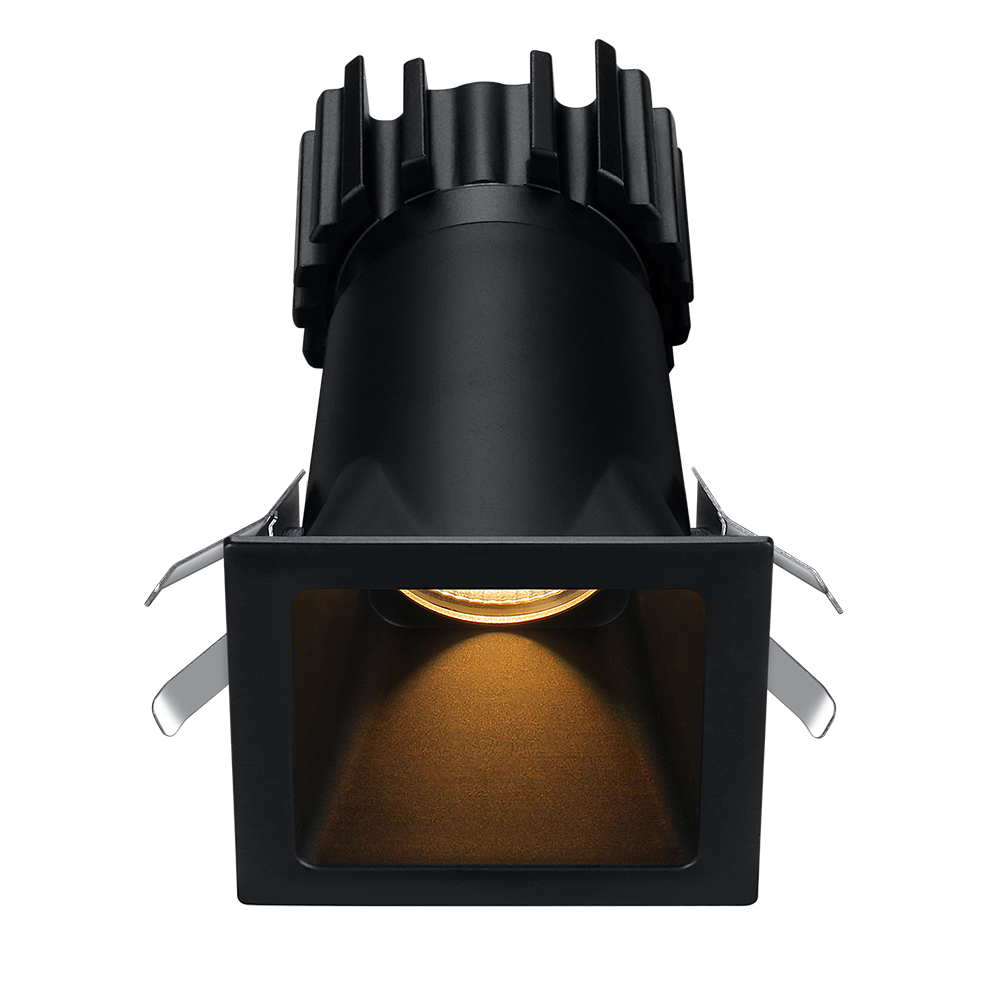

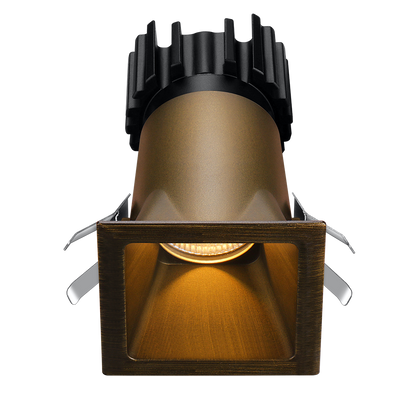

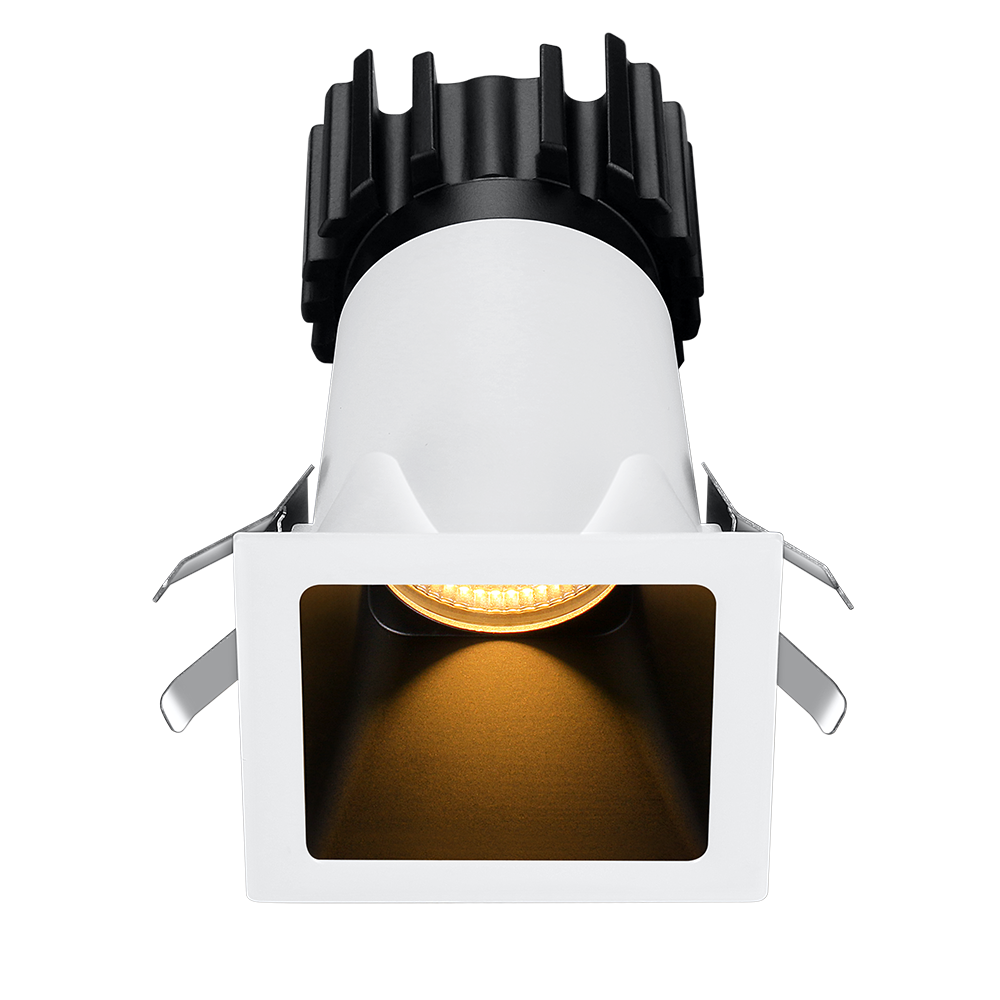

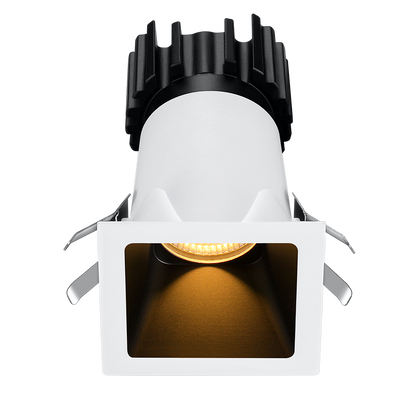

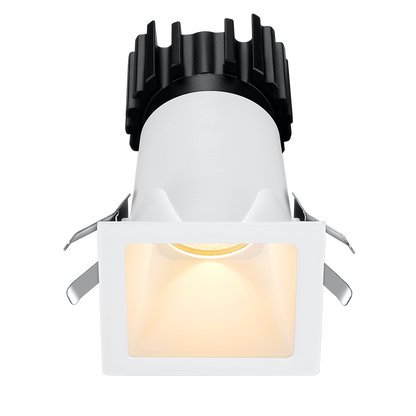

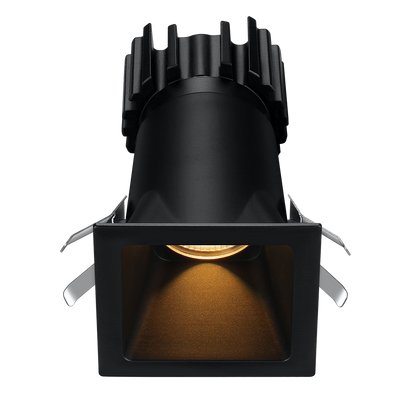

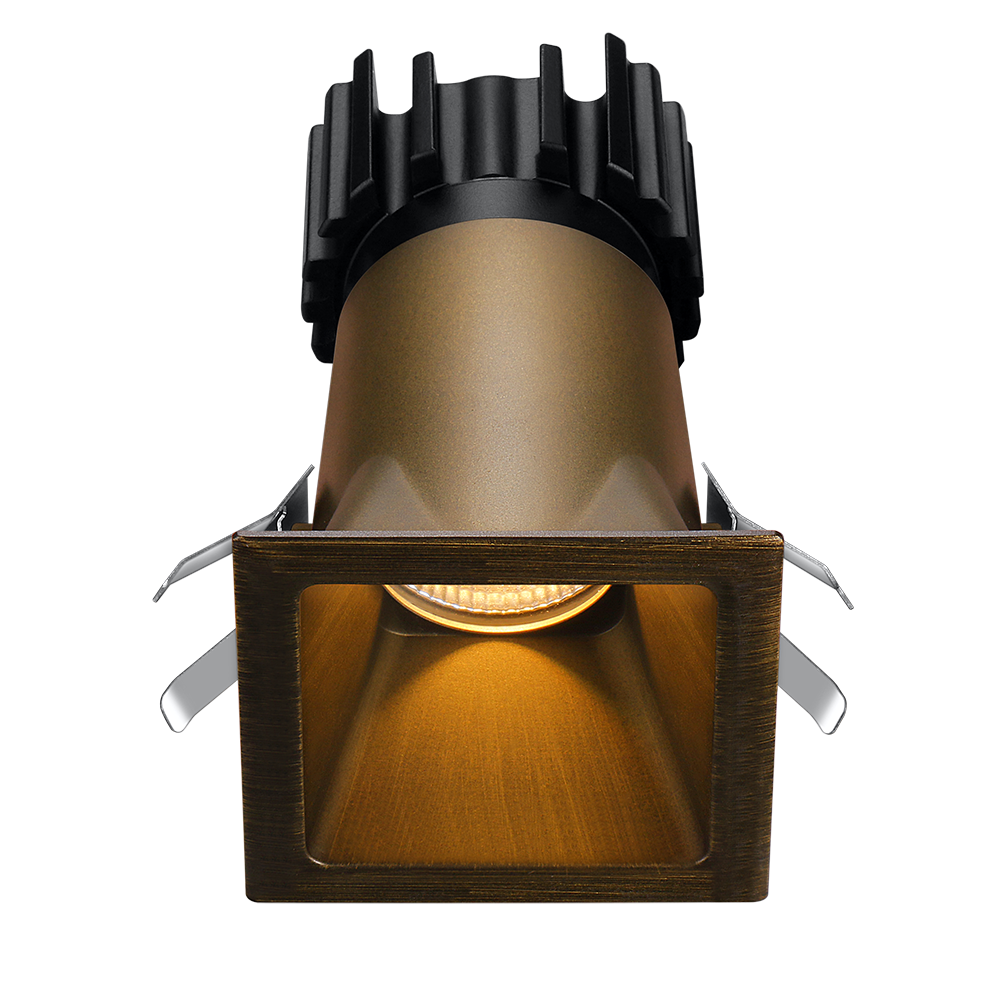

• Five finishes: White (WH), Black (BK), Oil Rubbed Bronze (BR; called Bronze in the product selector), Alzak (AZ), and White/Black Duo (WB).
• Four orderable optics: RC20 = clear-glass reflector 20°; RF30 = frosted-glass reflector 30°; RC40 = clear-glass reflector 40°; RF40 = frosted-glass reflector 40°. No RC30 or RF20 variants are present in this product's supplied orderable range.
• Two LED grades: 5C95 (CRI95) and 5C98 (CRI98). Both include field-selectable 5CCT: 2700, 3000, 3500, 4000, 5000K. CRI is fixed by the ordered hardware SKU, not by changing the Kelvin switch.

Selection guidance: Match the architect's square trim finish first, then select the specified beam spread and clear or frosted reflector, followed by the required CRI grade. This fixture is fixed, not tilt-adjustable; 20°, 30° and 40° describe optical beam spread, not fixture movement. The manufacturer's up to 780 lm figure is specified at 4000K/CRI95, not for every CRI98, optic or CCT combination. Request variant-specific photometric files for lighting calculations.

Model-specific technical specifications

Important: This is the square fixed L2F-SDT, not the square L2G-SRT gimbal. It has a different required cutout and 4-inch overhead clearance, compared with the L2G-SRT gimbal's 3-inch space requirement.

Choose a compatible KVE dimmable driver — separately sold

The fixture's 24V DC constant-voltage requirement means it must not be connected directly to mains voltage. The separately ordered Lotus KVE-24xxx-TMWJ1-VA 5-in-1 driver is specified for 120–277V AC line input and provides the appropriate 24V supply. Lotus publishes the following maximum L2F-SDT fixture counts for this 8W model:

Find compatible Lotus Mini Tangra 24V KVE drivers. A driver is not included in the fixture price. The manufacturer limits are model-specific, and final supported quantities also depend on cable length, voltage drop, dimmer/control compatibility and electrical design. Do not use the higher fixture-count figures from the 5W L1F-RDT.

Square opening, clearance and rough-in accessory

Cut a 1-15/16-inch SQUARE ceiling opening, allowing 4 inches above-ceiling clearance according to the model specification. For preconstruction work, Lotus lists a PS-156 26-inch flat rough-in plate; it is a separate accessory, not included in the fixture. Shop the Mini Tangra rough-in plate family; select PS-156. Verify the accessory's supplier minimum or case quantity when quoting a project.

Compliance note: The model is described as wet-location, Type IC and air-tight, but its one-page sheet does not establish a numerical IP rating, fire-resistance duration or underwater suitability. Installation must follow the current Lotus instructions and local electrical/building code.

Compare the closely related Mini Tangra choices

• L2F-RDT: same nominal 2-inch fixed family with a round deep-regressed trim; it uses a 2-inch round cutout, a PR-200 rough-in plate and a different conditional maximum of 760 lm at 4000K/CRI95.
• L2G-SRT: square adjustable gimbal with 20° tilt and 360° rotation, using a 2-7/16-inch square cutout and PS-276 plate.
• L1F-SDT: smaller 1-inch fixed square Mini Tangra; check its own power, aperture and driver counts before substitution.

Common buying questions

Does the L2F-SDT move or tilt?

No. It has a fixed optic. The 20°/30°/40° selections are beam spreads, not mechanical adjustment ranges.

Can I connect this fixture to 120V directly?

No. The luminaire input is 24V DC constant voltage. Install a suitable separately ordered Lotus KVE driver according to the electrical plan.

How many L2F-SDT fixtures can share a 30W driver?

The manufacturer specifies a maximum of three 8W L2F-SDT fixtures on the 30W model; seven on 60W and twelve on 96W. Confirm conductor lengths and driver/control compatibility.

Is the 780-lumen output the same across CRI98 and all optics?

Not established. Lotus states up to 780 lumens at 4000K/CRI95 only. Exact variant-level lumen output requires the corresponding photometric report.

Is the driver or PS-156 plate included?

No. Each is a separately ordered component. The fixture variant contains the selected finish, optical choice and CRI grade.

Is stock available to ship now?

Lotus's October 2026 announcement identified November 2026 as the planned Mini Tangra stocking period. This is a manufacturer announcement, not live Simply Controlled stock or a promised shipping date. Confirm inventory before scheduling installation.

Documentation: Lotus L2F-SDT model specification; manufacturer warranty terms.
