Lotus Tangra L1F-SDT 1" Fixed Square Deep-Regressed LED Downlight | 5CCT
Lotus Tangra L1F-SDT 1" Fixed Square Deep-Regressed LED Downlight | 5CCT
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:L1F-SDT-WH-RC25-5C95

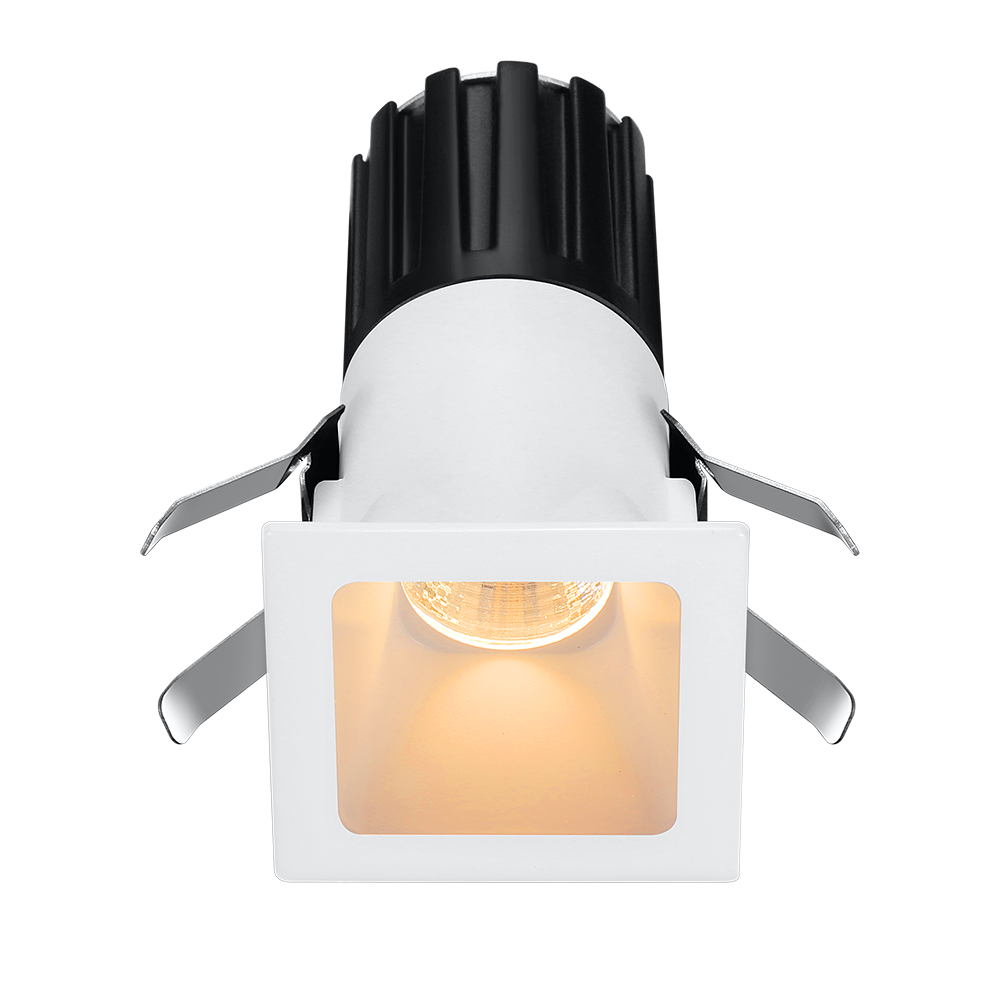

Quick choice: The Lotus Tangra L1F-SDT is a Canadian-made 1-inch fixed square, deep-regressed recessed LED downlight with a thin visible trim. Choose its small architectural square aperture for accent and general lighting where a near-trimless appearance and controlled glare are more important than an aimable light source. It is fixed, not a gimbal.
At a glance: 5W • up to 500 lumens at 4000K/CRI95 • 24V DC constant-voltage fixture • five selectable CCTs (2700K, 3000K, 3500K, 4000K, 5000K) • CRI95 or CRI98 by SKU • 25° or 40° beam optics • five trim finishes • 1-3/8-inch SQUARE cutout • 3-inch space above ceiling • manufacturer-listed Type IC, air tight and wet location • compatible Lotus KVE dimmable driver sold separately.
Choose your exact fixture: 30 manufacturer configurations
Use the product options to choose trim finish, reflector/beam and CRI. These selectors represent 30 genuine manufacturer SKUs, each with a distinct barcode. The finish image is illustrative; the selected variant's part number controls its reflector, nominal beam and CRI.

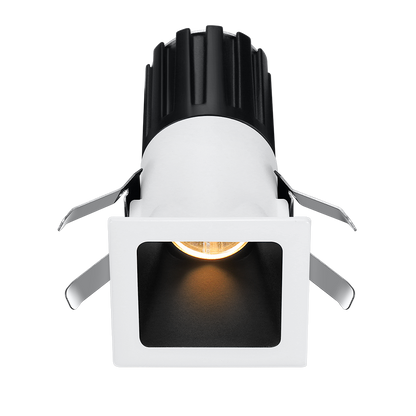

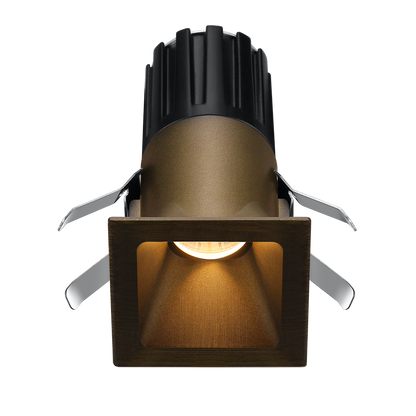

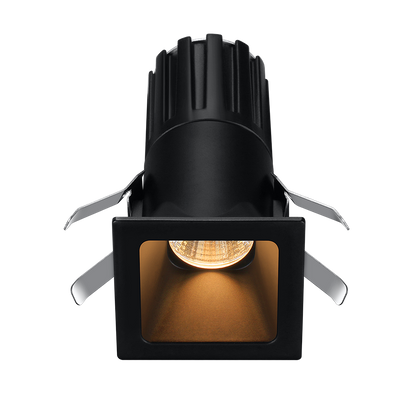

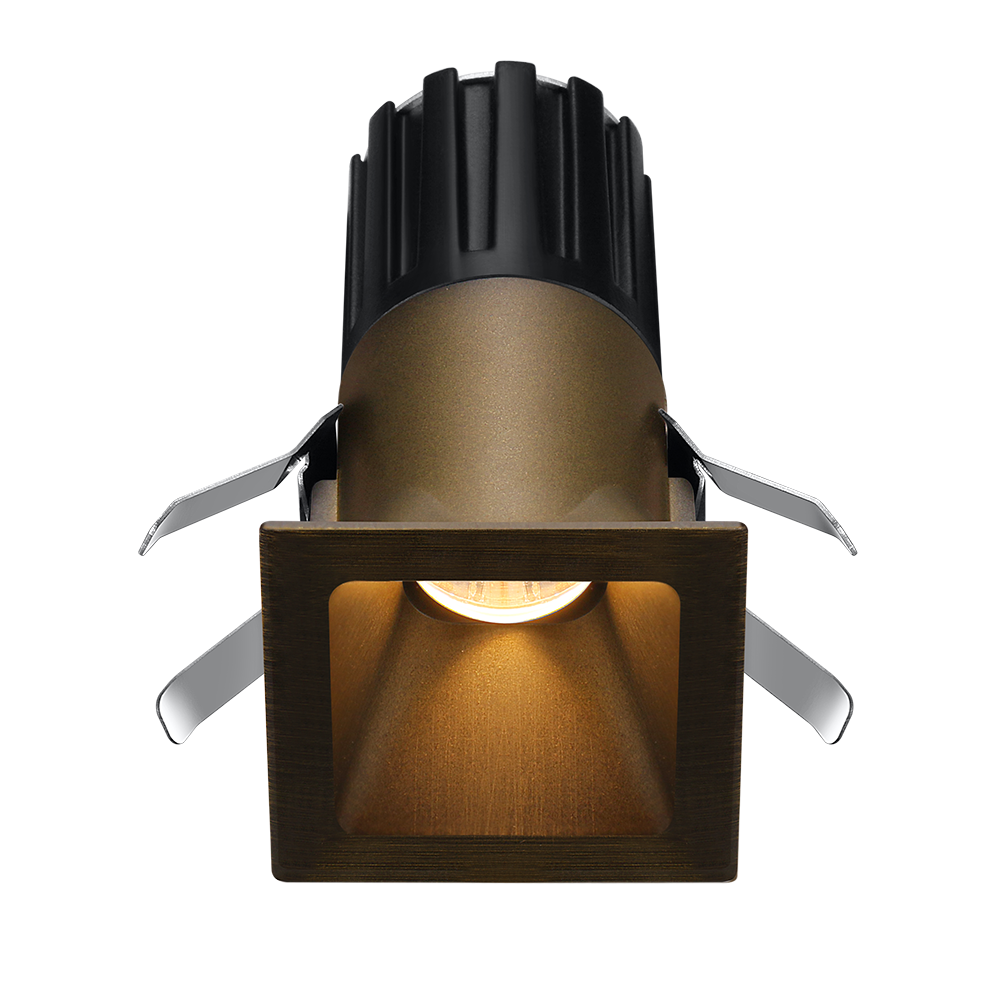

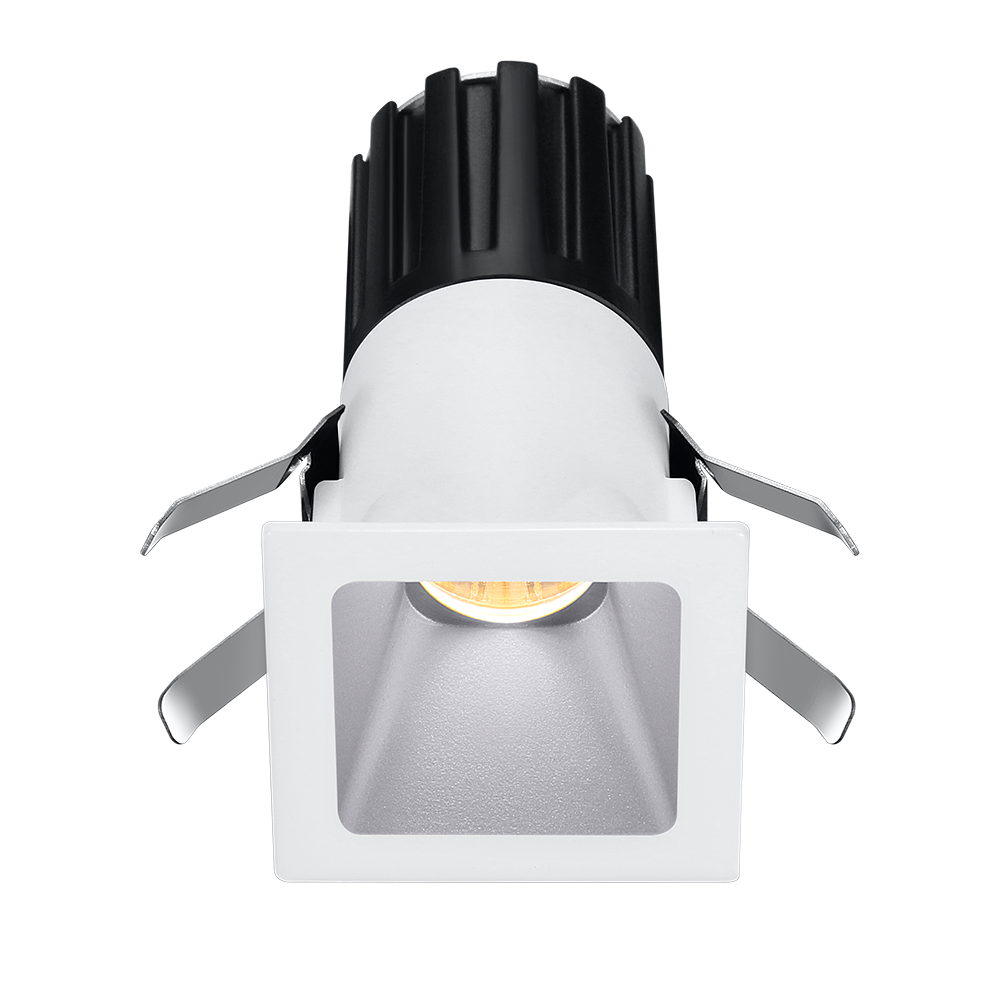

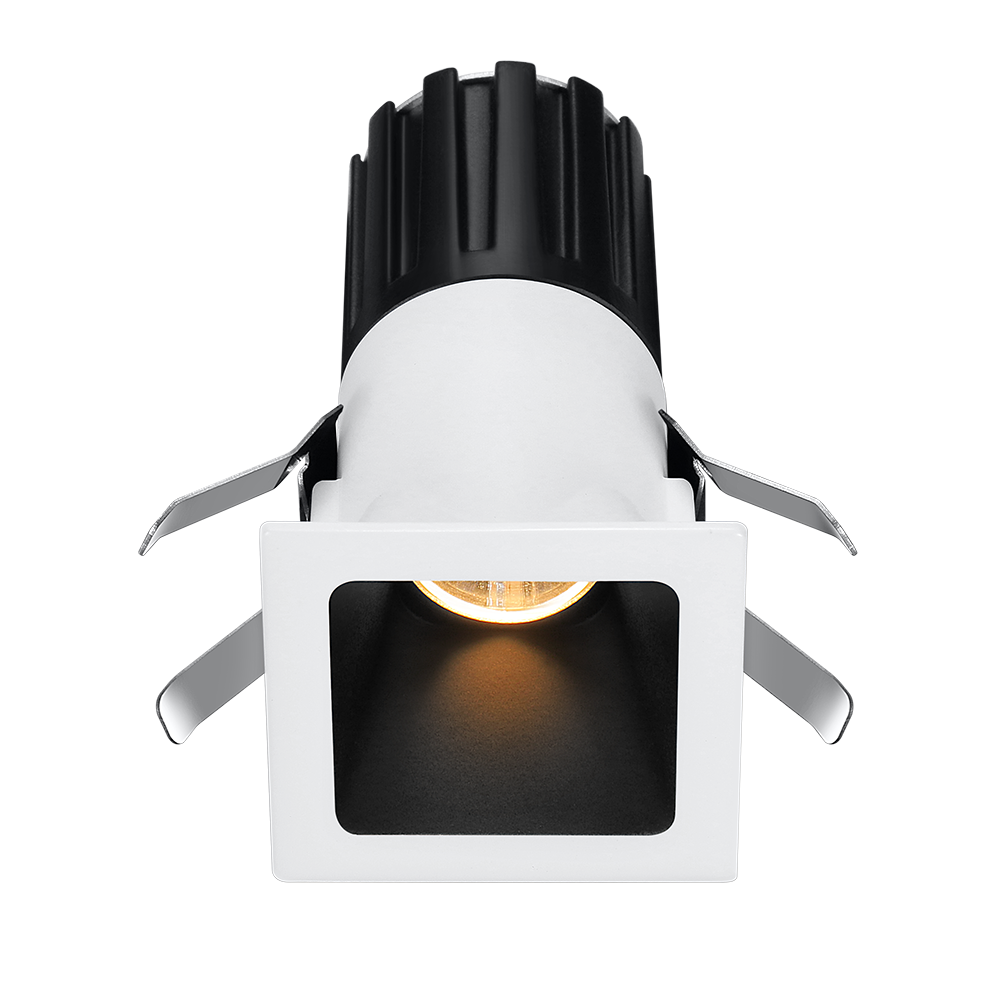

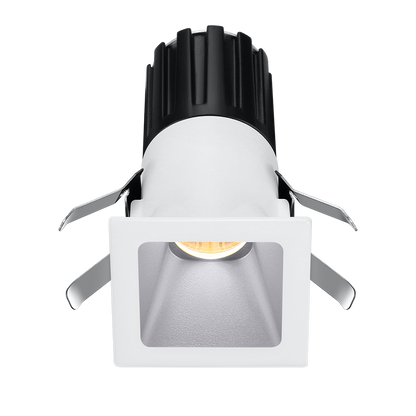

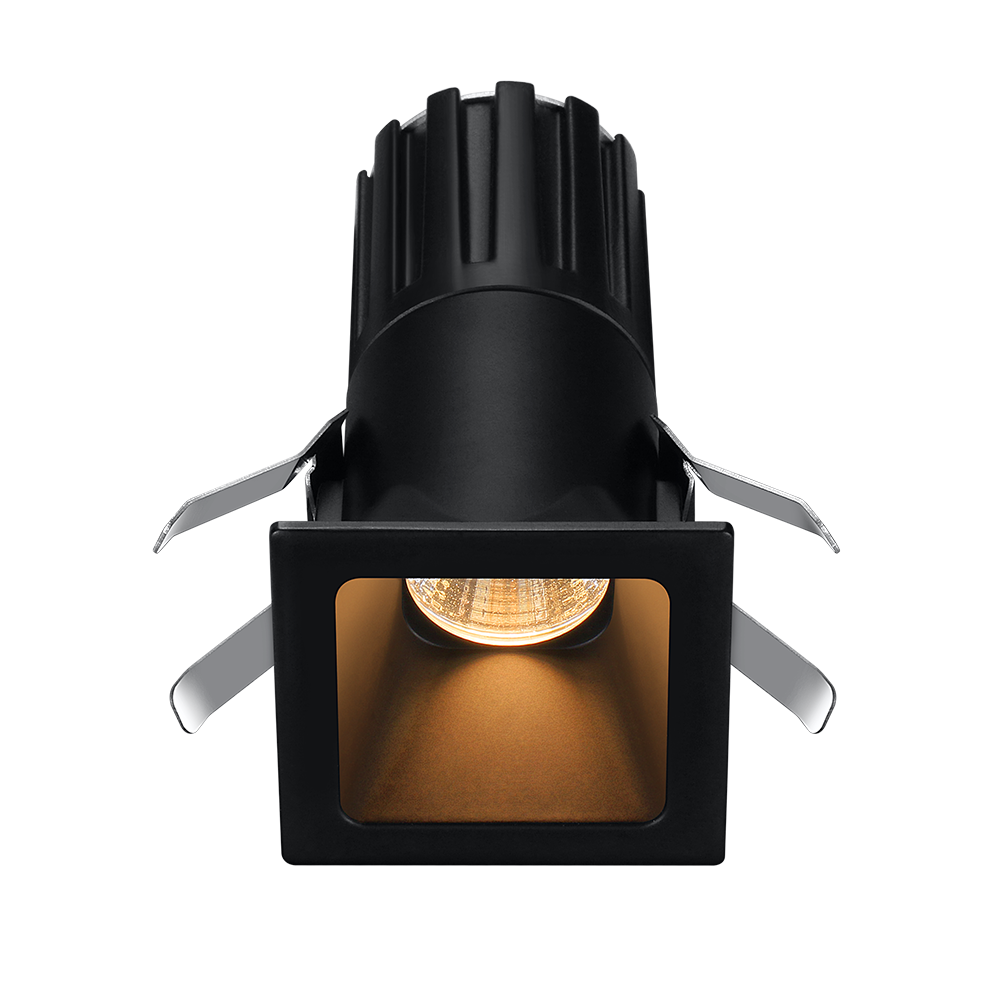

- Five finishes: WH White; BK Black; BR Oil Rubbed Bronze (called Bronze in the selector); AZ Alzak; WB White/Black Duo.
- Three actual optics: RC25 = clear reflector with glass, 25°; RC40 = clear reflector with glass, 40°; RF40 = frosted-glass reflector, 40°. A 25° frosted option is not listed for this series.
- Two high-CRI LED selections: 5C95 = five selectable white CCTs with CRI95; 5C98 = the same selectable CCT range with CRI98. The CRI grade is built into the selected SKU, not changed by the field CCT selector.
How to choose: Match the specified square finish first. Choose the narrower 25° clear optic for a tighter listed beam or either 40° optic for a wider one, then choose the project's CRI grade. The fixture is fixed and cannot tilt or rotate. The manufacturer specifies up to 500 lm at 4000K/CRI95 only; CCT, CRI98 and optic combinations may produce different measured light outputs. Request exact-SKU photometric data for lighting calculations.
Manufacturer-verified technical specifications
| Model and architecture | Lotus L1F-SDT; 1-inch fixed square, deep-regressed thin-trim recessed downlight, made in Canada, solid cast aluminum construction |
|---|---|
| Primary applications | Accent and general lighting with minimal perceived glare and near-trimless appearance |
| Fixture consumption | 5 watts |
| Electrical input | 24V DC constant voltage; parallel daisy-chain installation with separately purchased compatible driver |
| Light output | Up to 500 lm at 4000K, CRI95 (not a guaranteed family-wide value) |
| Field-selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Colour rendering | CRI95 or CRI98, encoded by exact SKU |
| Beam spread | 25° clear; 40° clear or frosted, depending on purchased optic; fixed, non-adjustable |
| Ceiling cutout | 1-3/8 inches SQUARE (34.9 × 34.9 mm)—not a round cutout |
| Required space above ceiling | 3 inches (76.2 mm) |
| Dimming | 100% down to 0.1% when used with compatible Lotus KVE 24V 5-in-1 dimmable drivers |
| Operating temperature | −40°C to +45°C (−40°F to +113°F) |
| Listings / location | Manufacturer lists cETLus, FCC, Type IC, air tight and wet location |
| LED lifetime | Projected L70 at 50,000 hours (70% of original light output maintained) |
| Manufacturer warranty | Lotus describes warranty coverage for as long as it manufactures this product line, plus five years; the complete manufacturer terms govern |
Compatible dimmable driver — required, sold separately
This is not a line-voltage downlight. The fixture itself requires 24V DC constant voltage. Lotus's compatible KVE 5-in-1 dimmable drivers accept 120–277V line input and provide the separate 24V supply. Driver purchase is additional to the fixture price. The manufacturer specifies the following maximum counts for this specific 5W L1F-SDT family:
| Compatible Lotus driver SKU | Driver rating | Maximum L1F-SDT fixtures |
|---|---|---|
| KVE-24030-TMWJ1-VA | 30W | Up to 6 |
| KVE-24060-TMWJ1-VA | 60W | Up to 12 |
| KVE-24096-TMWJ1-VA | 96W | Up to 19 |
View compatible Lotus Mini Tangra KVE driver models. These are manufacturer-stated maximum fixtures per model, not universal guarantees for every wire run, control system or installation. Verify circuit design, voltage drop, conductor requirements, approved controls and applicable installation instructions.
Correct square cutout and preconstruction accessory
Lotus specifies a 1-3/8-inch SQUARE ceiling cutout and 3 inches of required space above the ceiling. Its matching PS-138 26-inch flat rough-in plate is an accessory sold separately; this is the correct square-configuration part, not PR-138 (the rough-in referenced for the 1-inch round model). Find the PS-138 option in the Mini Tangra rough-in family. Confirm any supplier order multiple or packaging quantity for the plate.
The model sheet lists Type IC, air tight and wet location, but it does not establish a numeric IP rating, fire-resistance duration or underwater suitability. Follow Lotus installation instructions and applicable electrical and building rules for the actual ceiling and environment.
Which Mini Tangra model should I choose instead?
- L1F-RDT: 1-inch fixed ROUND deep-regressed thin trim. It uses a round 1-3/8-inch opening and PR-138 plate; its manufacturer-stated maximum is 470 lm at 4000K/CRI95 rather than this square model's 500-lumen maximum.
- L2F-SDT: 2-inch fixed SQUARE deep-regressed thin trim with a larger 1-15/16-inch square cutout, 8W rating and different driver limits.
- L2G-SRT: 2-inch adjustable SQUARE gimbal for projects requiring 20° tilt / 360° rotation; different 2-7/16-inch square opening.
Common technical and purchasing questions
Is L1F-SDT an adjustable gimbal?
No. The 25° and 40° selections are optical beam spreads. The physical light head is fixed and does not tilt or rotate.
Can I use this fixture with standard 120V power?
Only through an appropriately installed separately purchased, compatible Lotus KVE driver. The light itself requires 24V DC constant voltage and must never be connected directly to line voltage.
How many fixtures can share the 30W driver?
Lotus specifies a maximum of six L1F-SDT 5W fixtures on KVE-24030-TMWJ1-VA, twelve on KVE-24060-TMWJ1-VA and nineteen on KVE-24096-TMWJ1-VA, subject to the final electrical design.
Is the 500-lumen maximum valid for the CRI98 versions?
Not confirmed. The manufacturer specifies up to 500 lm at 4000K/CRI95. Exact light output for other CRI, CCT or reflector combinations requires the corresponding photometric data.
Are the driver and PS-138 plate included?
No. They are separate products. Select the fixture's finish, optic and CRI, then add any required driver and rough-in plates.
Is this product available to ship now?
Lotus's October 2026 product announcement projected November 2026 stocking for Mini Tangra. This is not a confirmation of Simply Controlled's current inventory, supplier on-hand quantities or a promised shipment date. Confirm availability before committing a job schedule.
Manufacturer references: Lotus L1F-SDT technical specification sheet and Lotus warranty terms.
